- Preliminary work
- Removing cover for front seat
- Installing cover for front seat
- Subsequent work

Tools

Designation

Type

Number Explanation

cushion clip pliers commercially available tool

NR.130

Preliminary work

Preliminary work

Note

The front-seat air cushions must be bled before removing the front seat.

•

Only for adaptive sports seats.

•

1. Remove control part trim panel. → 721619 Removing and installing control part trim panel - section on

"Removing"

3345

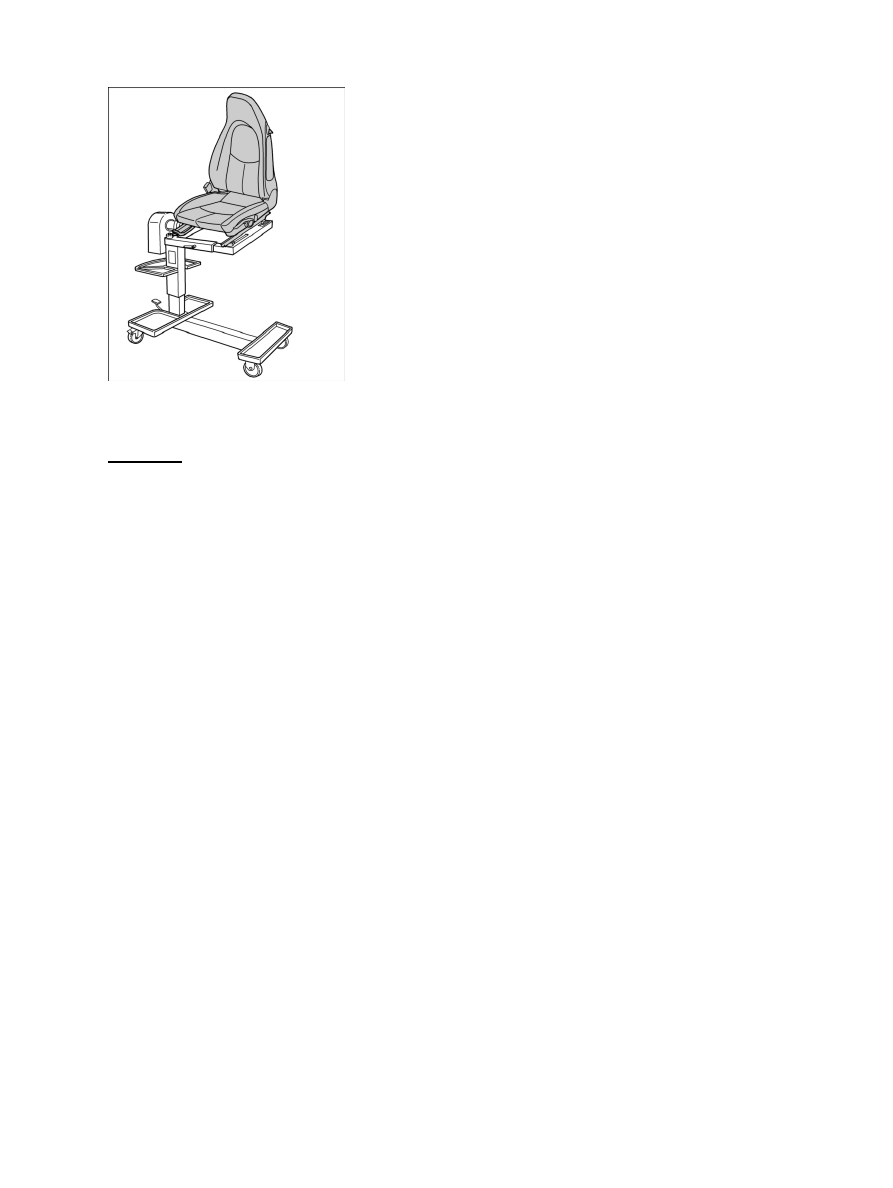

Front seat on assembly fixture

2. Position front seat on assembly fixture.

Removing cover for front seat

Removing cover for front seat

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Preliminary work

3346

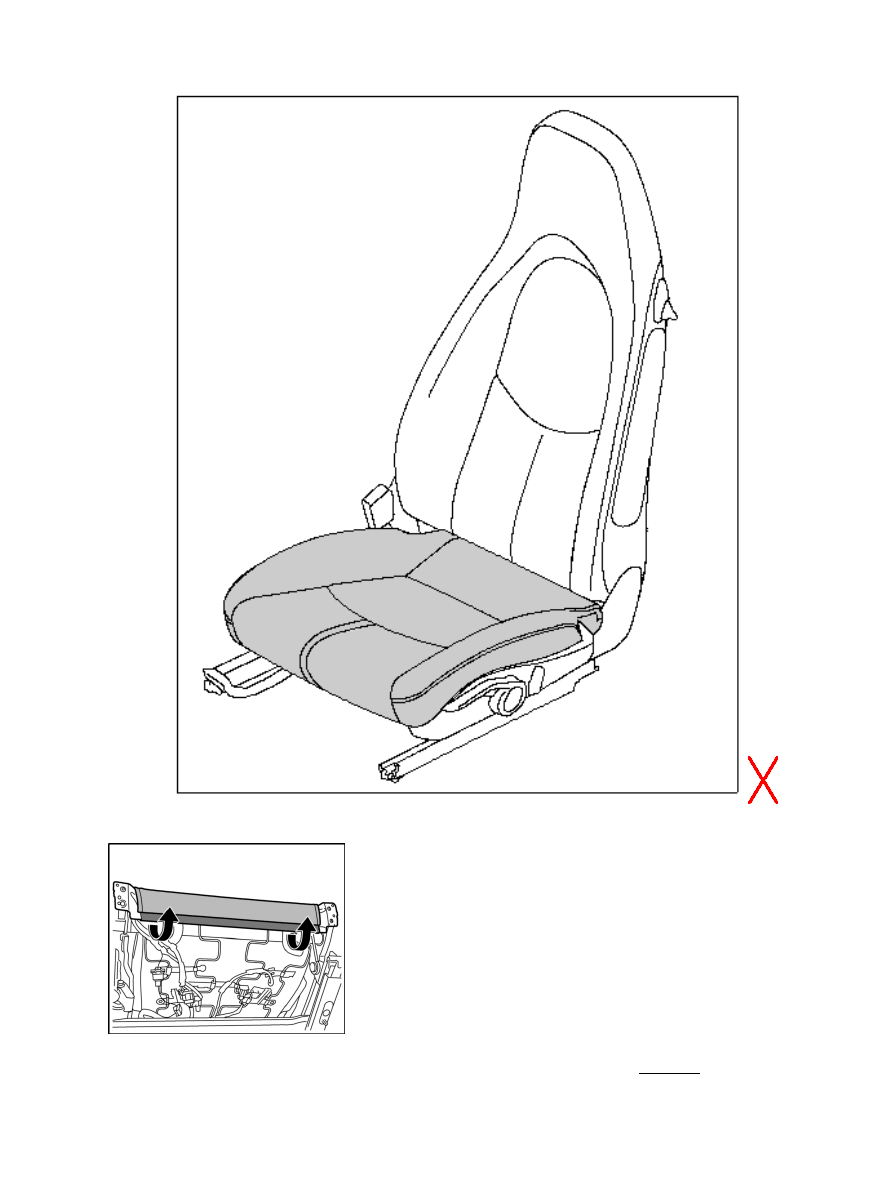

Installation position of cover for front seat

Pressing out cover at rear

1. Press cover piping at rear carefully out of the seat frame using a screwdriver -arrows- .

Diagnostic system: reading out fault memory and activating systems

Removing cover for front seat

3347

Pulling out cover

2. Slightly loosen cover piping -1- with a screwdriver and pull out all around by hand.

Unclip fixing clips

3. Unclip fixing clips -1- with a screwdriver.

Diagnostic system: reading out fault memory and activating systems

Removing cover for front seat

3348
