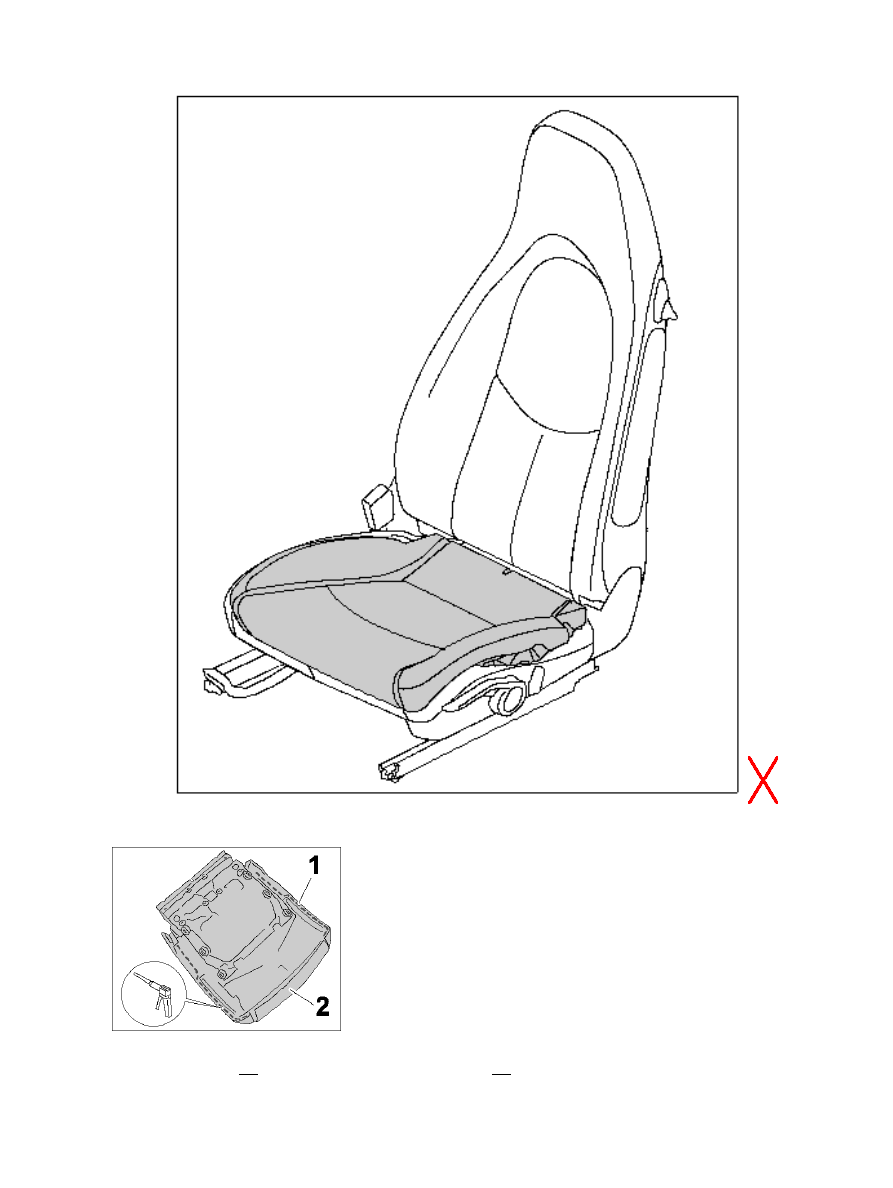

Installation position of padding for seat

Applying adhesive

1. Apply adhesive -1- on the marked area of the padding -2- .

Diagnostic system: reading out fault memory and activating systems

Installing padding for seat

3337

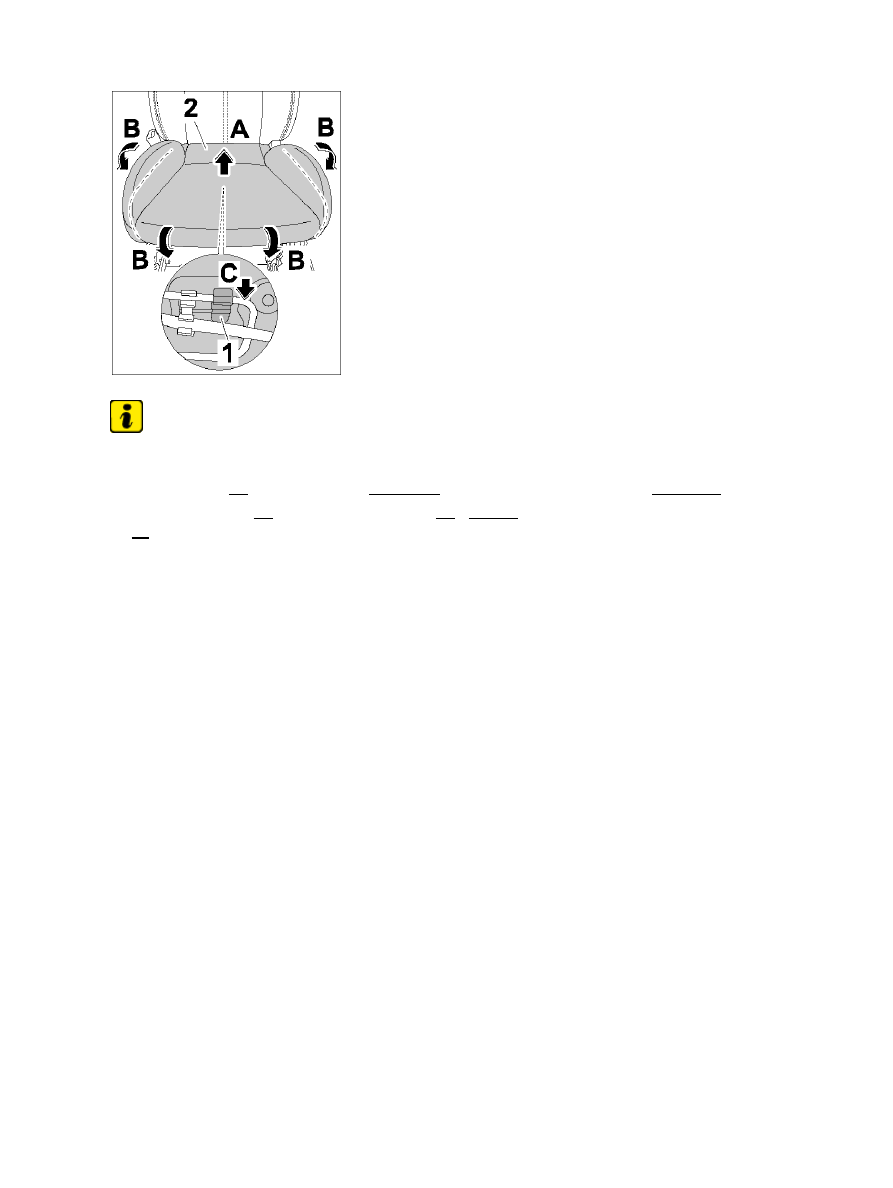

Installing padding

Note

Sealing surface of seat frame must be clean and free of grease.

2. Place padding -2- on the seat frame -arrow A- and align it with the seat frame -arrow B- .

3. Clip in fixing clip -1- underneath the padding -2- ( -arrow

C-

 ).

Securing wire harness for heated seats

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Securing wire harness for heated seats

3338

Installation position of padding for seat

Note

Only for vehicles with heated seats.

Diagnostic system: reading out fault memory and activating systems

Securing wire harness for heated seats

3339

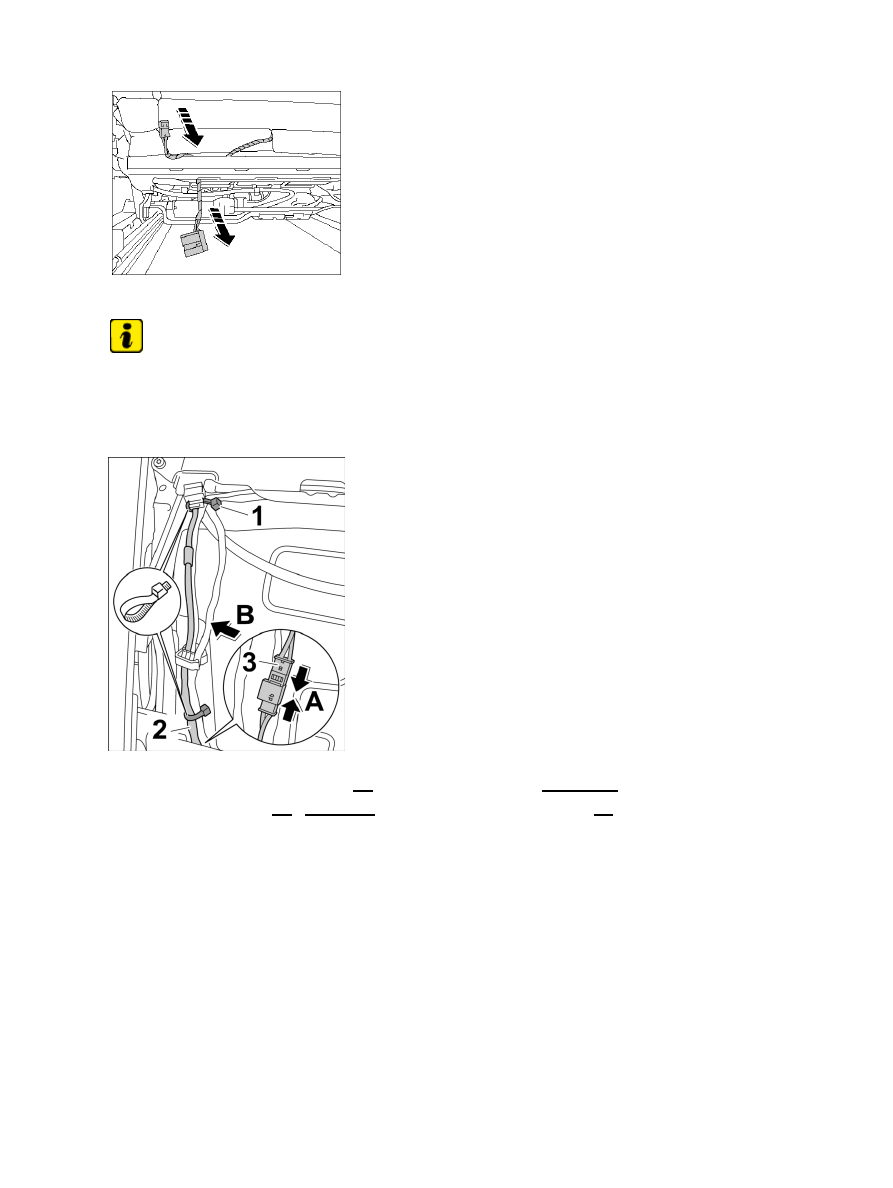

Pulling wire harness through

Note

Make sure not to trap or damage the wire harness when pulling it through.

1. Pull wire harness through the seat

frame.

Securing wire harness on seat frame

2. Connect electric plug connection -3- for backrest seat heating -arrows A- .

3. Engage wire harness -2- ( -arrow C- ) and secure with new tie-wraps -1- .

Diagnostic system: reading out fault memory and activating systems

Securing wire harness for heated seats
