Porshe 911 (997). Manual - part 719

Overview, door trim panel

Releasing door trim panel

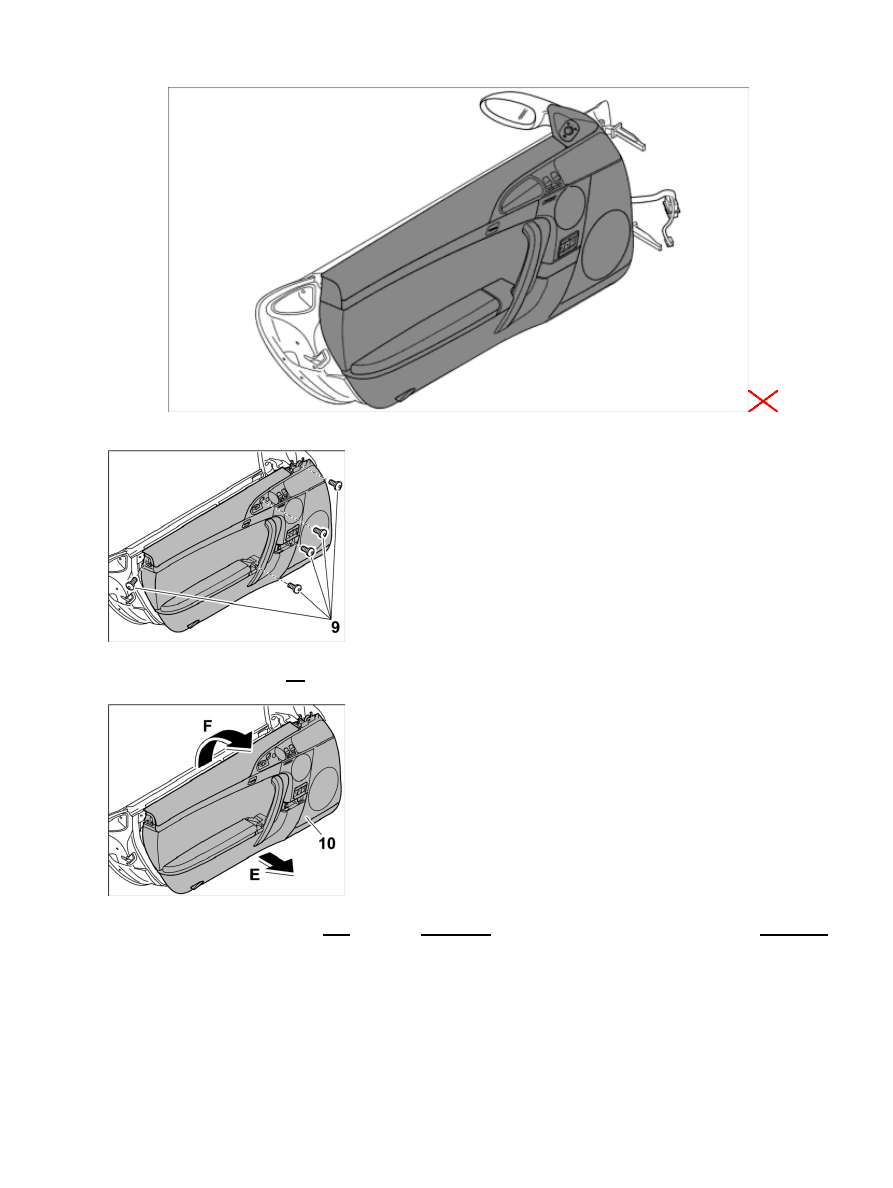

1. Undo fastening screws -9- .

Clipping out door trim panel

2. Unclip front door trim panel -10- at bottom -arrow E- and unhook from sealing channel at top -arrow F-

.

Disconnecting the electrical plug connections

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Releasing door trim panel

3033

Overview, door trim panel

Disconnecting plug connection

1. Disconnect electrical plug connection -arrow- .

Unlocking plug connection on control module

2. Unlock electrical plug connection -12- by operating locking lever -13- and remove from control module

-14-

 .

Removing actuating cable for door lock

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting the electrical plug connections

3034

Overview, door trim panel

Unhooking actuating cable

1. Unlock fastening clip for actuating cable for door lock -15- by pressing the locking hook arrows -arrows

G-

 and disengage from the guide slot arrow -arrow H- .

2. Swivel pin -16- of actuating cable to the right by 90° -arrow I- and

disengage.

3. Remove door trim panel.

Install door trim panel

Checking fastening clips

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing actuating cable for door lock

3035

Overview, door trim panel

Note

The fastening clips have two settings. Before installing the front door trim panel, the fastening clips
must be loosened fully because otherwise the door trim panel may not engage fully into the door unit
carrier, possibly resulting in noises. The fastening clips must be pulled to the front position.

•

Checking the fastening clips

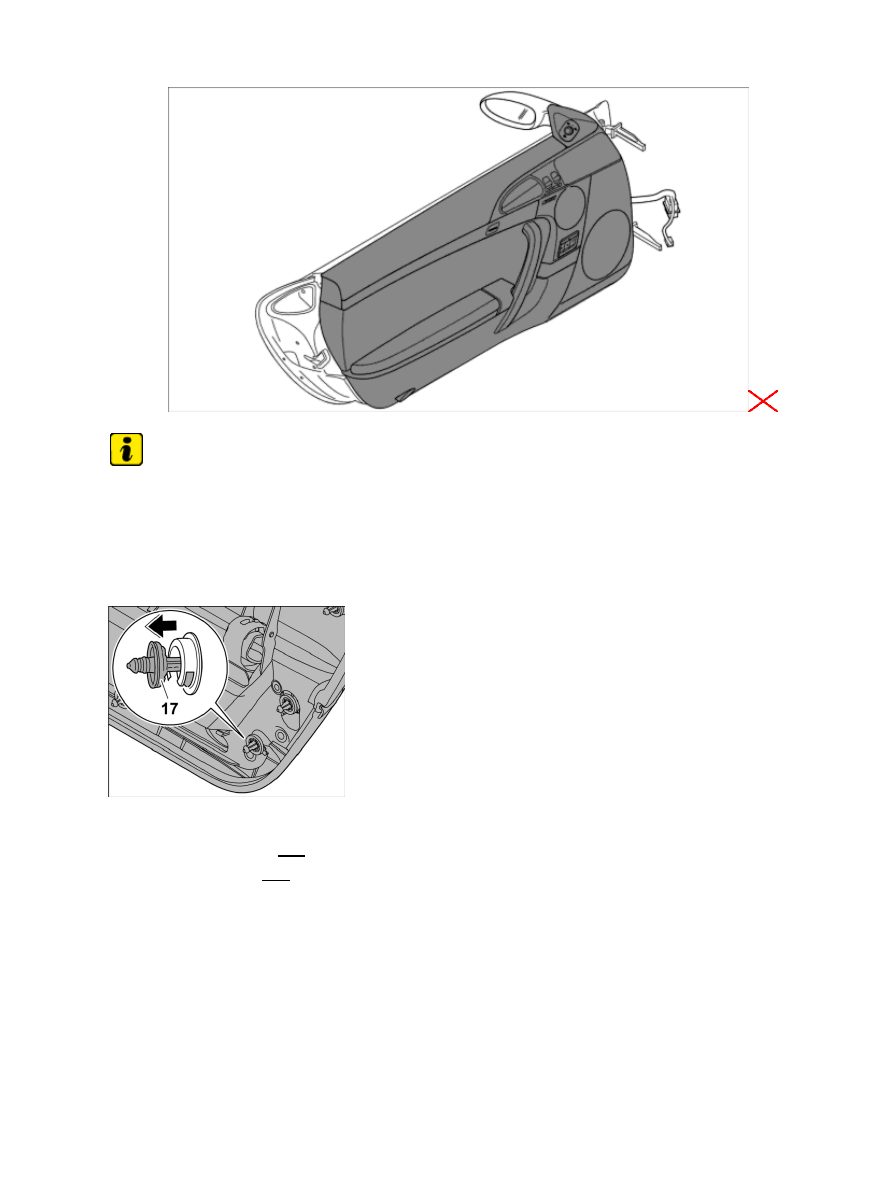

1. Check fastening clips -17- for deformation, replace if necessary.

2. Pull fastening clips -17- to the front position so that they are fully

loosened.

Installing actuating cable for door lock

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Checking fastening clips

3036
