Overview, door trim panel

Engaging actuating cable

1. Engage pin -16- of the actuating cable and swivel to the left by 90° -arrow A- .

2. Insert T-tread of fastening clip -15- into the square hole -arrow

B-

 .

3. Push fastening clip -15- forward and lock the locking hook.

Locking electrical plug connections

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing actuating cable for door lock

3037

Overview, door trim panel

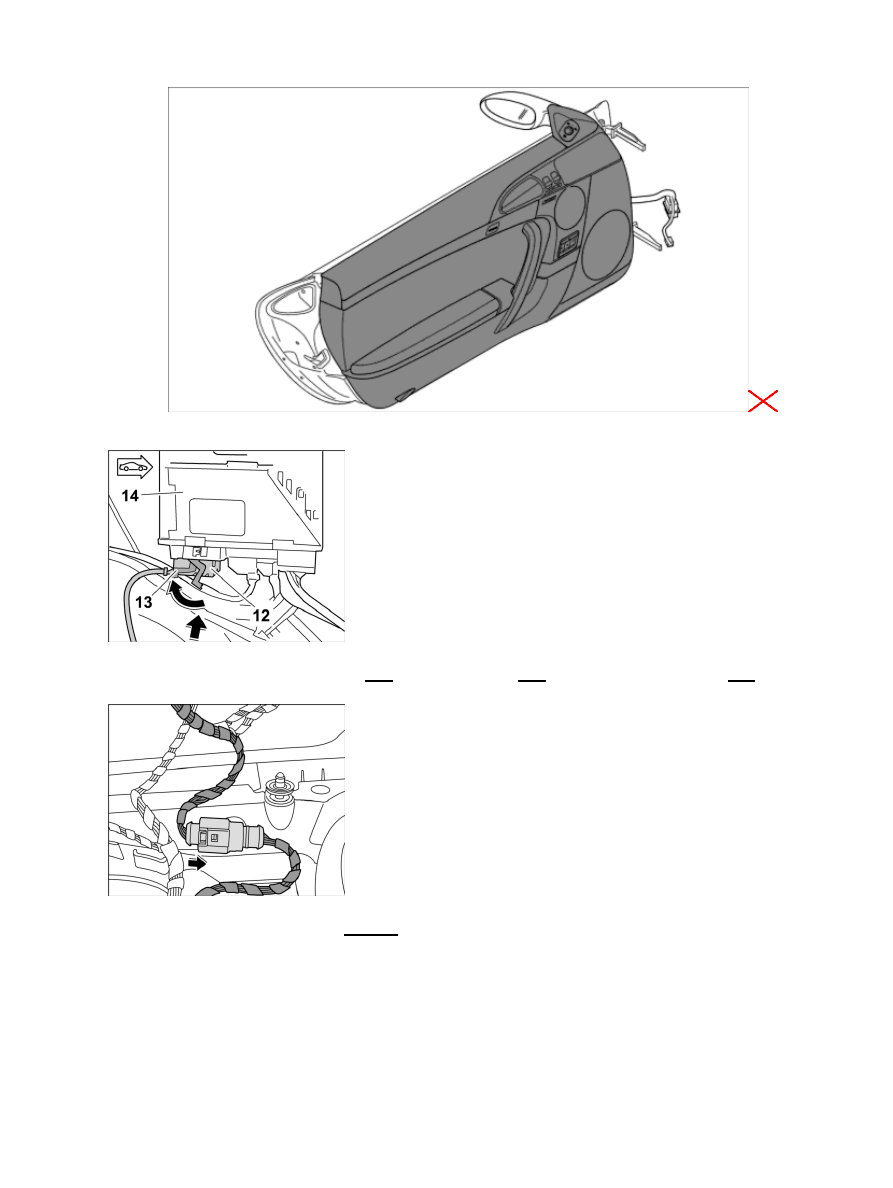

Lock plug connection to control module.

1. Connect electrical plug connection -12- to control module -14- by operating locking lever -13- and lock.

Locking plug connection

2. Lock electrical plug connection -arrow- until it engages audibly.

Installing door trim panel

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Locking electrical plug connections

3038

Overview, door trim panel

Clipping door trim panel into place

1. Hook front door trim panel in sealing channel at top -arrow C- and clip in at bottom -arrow B- .

Make sure that the fastening clips -17- engage in the unit carrier.

Fastening door trim panel

2. Tighten fastening screws -9- . Tightening torque → : 5.5 + 0.5 ftlb.

Installing covers for door trim panel

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing door trim panel

3039

Overview, door trim panel

Installing covers

1. Clip covers -5, 6, 7, 8- into place on the door trim panel until it is felt to

engage.

Installing lever for door handle

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing covers for door trim panel
