Loosening wire harness

1. Release plug connection for rear wire harness -inset- and

disconnect.

2. Remove auxiliary brake light. → 947019 Removing and installing auxiliary brake light - section

on "Removing" [997110 997111 997120 997121 997410 997411 997430 997431]→ 947019
Removing and installing auxiliary brake light - section on "Removing" [997310 997311
997320 997321 997610 997611 997620 997621]

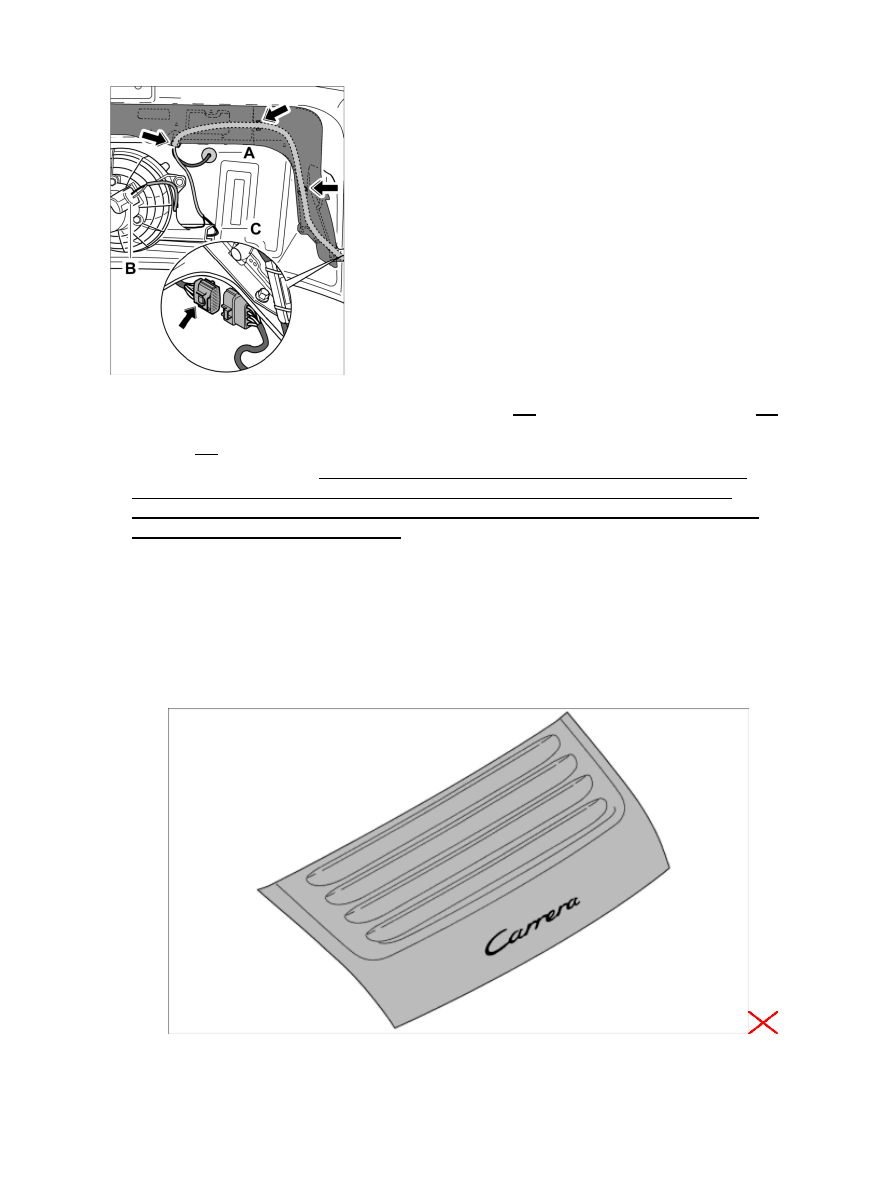

3. Pull out grommet -A- with the auxiliary stop light line. Release connector -B- on the engine

compartment fan and pull off. Pull off engine compartment lighting connector -C- . Check
retaining clip -arrows- , replace if necessary.

Removing spoiler drive

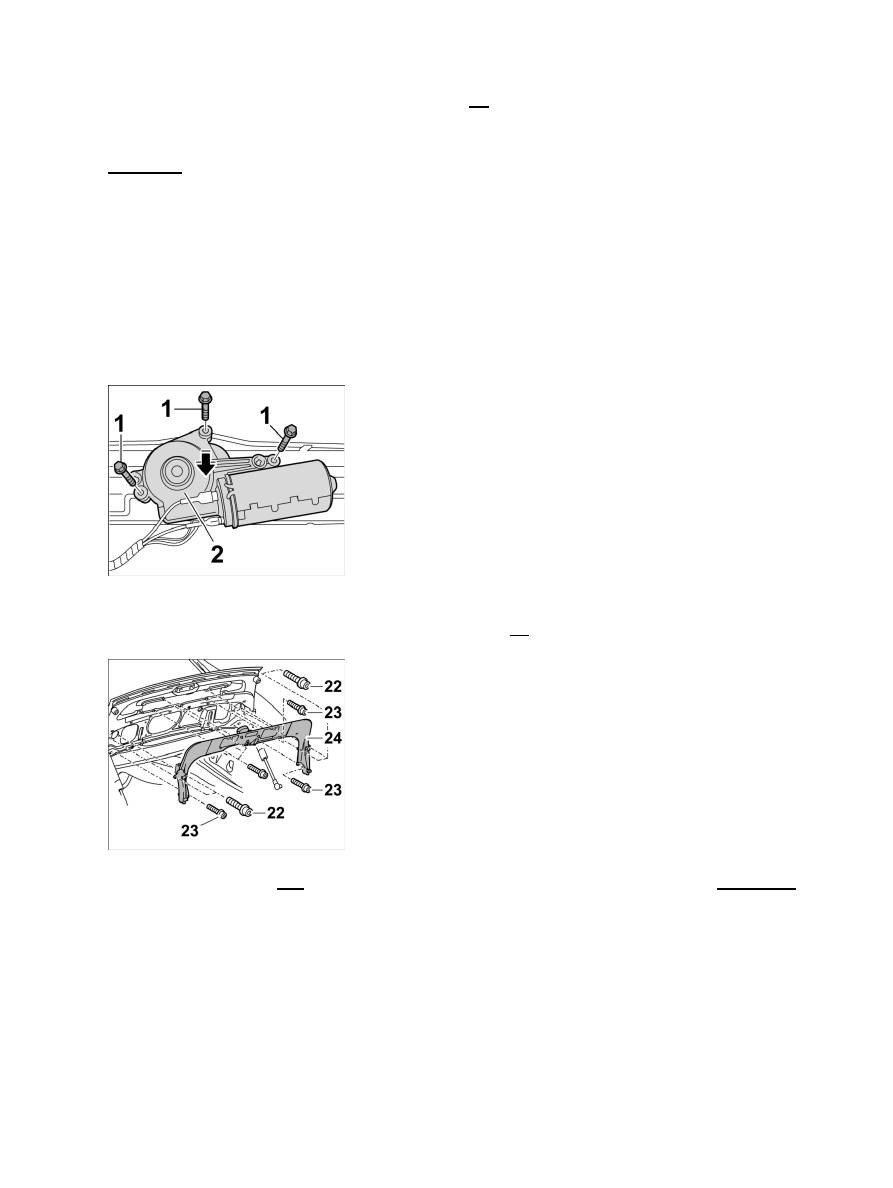

4. Unscrew fastening screws -22 und 23- from the spoiler drive -24- .

Removing motor for rear spoiler

Diagnostic system: reading out fault memory and activating systems

Removing spoiler drive

2669

5. Pull off both connectors on motor for spoiler drive -2- .

6. Remove spoiler drive with wire harness.

Installing spoiler drive

Installing spoiler drive

Installing motor for rear spoiler

1. Push together both connectors on motor for spoiler drive -2- .

Installing spoiler drive

2. Position spoiler drive -24- with wire harness on rear lid and tighten the fastening screws -22 and 23-

. Tightening torque → : 9.7 (7 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

 Installing spoiler drive

2670

Securing wiring harness

3. Push together connector for engine compartment lighting -C- and for engine compartment fan -B- , until

they are felt to engage. Slide auxiliary stop light line with grommet through the opening in rear lid until
grommet -A- can be pressed in.

4. Install auxiliary brake light. → 947019 Removing and installing auxiliary brake light - section

on "Installing" [997110 997111 997120 997121 997410 997411 997430 997431]→ 947019
Removing and installing auxiliary brake light - section on "Installing" [997310 997311 997320
997321 997610 997611 997620 997621]

5. Push the plug connection for the rear wire harness together until it is felt to engage.

Mounting the lower part of the spoiler

Installation Location:

Overview, rear lid

Diagnostic system: reading out fault memory and activating systems

Installing spoiler drive

2671

Mounting the lower part of the spoiler

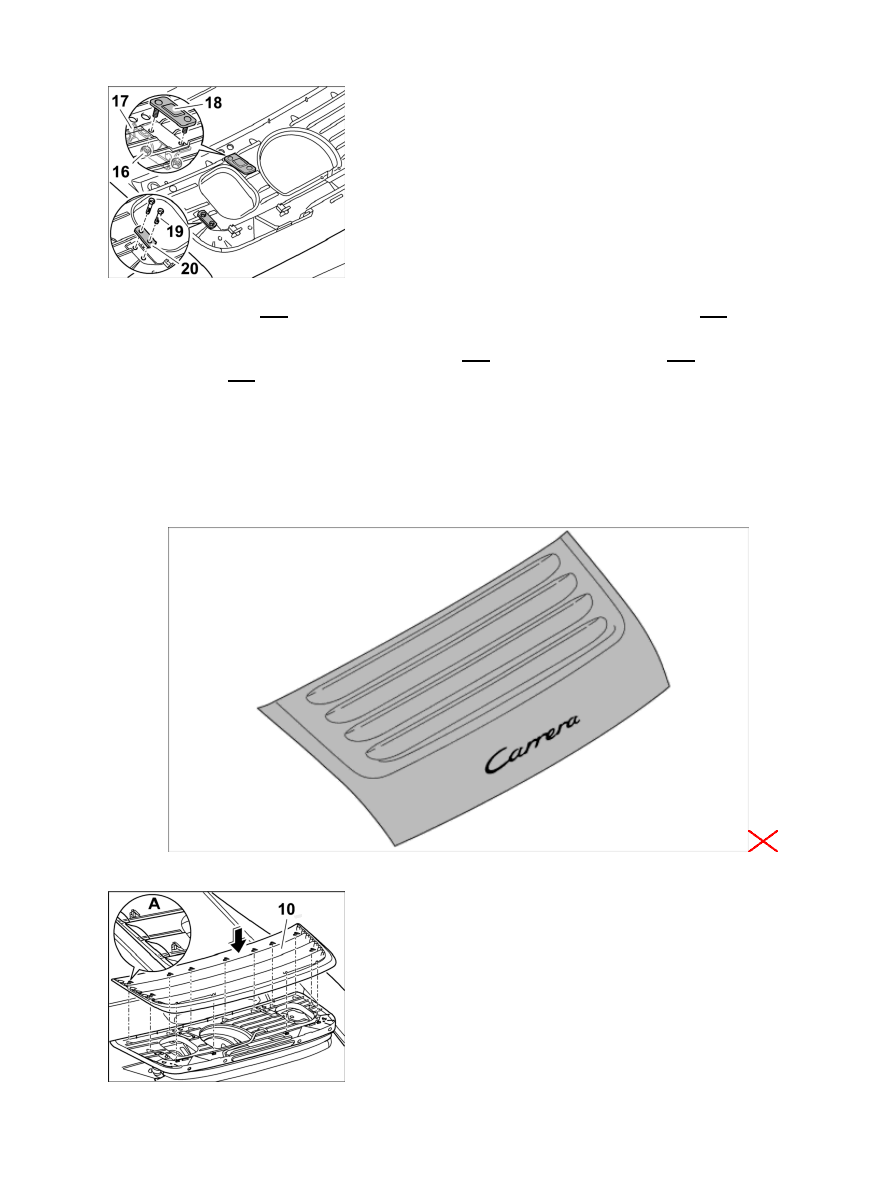

1. Position the spacer -20- on the lower part of the spoiler. Tighten M6 fastening screws -19- . Tightening

torque → : 7 ftlb.

2. Position the upper part of the spoiler on the hinge -17- . Using the threaded plate -18- and the M6

fastening nuts -16- , screw in the upper part of the spoiler securely. Tightening torque → : 7 ftlb.

Mounting upper part of spoiler

Installation Location:

Overview, rear lid

Diagnostic system: reading out fault memory and activating systems

Mounting the lower part of the spoiler
