Porshe 911 (997). Manual - part 609

Glass separating tool

commercially
available tool

vag 1474 b

Special electric cutter
(fine)

commercially
available tool

vag 1561 a

Double cartridge gun

commercially
available tool

vas 5237

Preliminary work

Preliminary work

Remove hardtop. → 610219 Removing and installing hardtop - chapter on "Removing"
Place outer side of the hardtop on the assembly fixture.

General warning notes

Diagnostic system: reading out fault memory and activating systems

Tools

2593

General warning notes

→   General information on installing and removing car windows

Tools and materials

Tools and materials

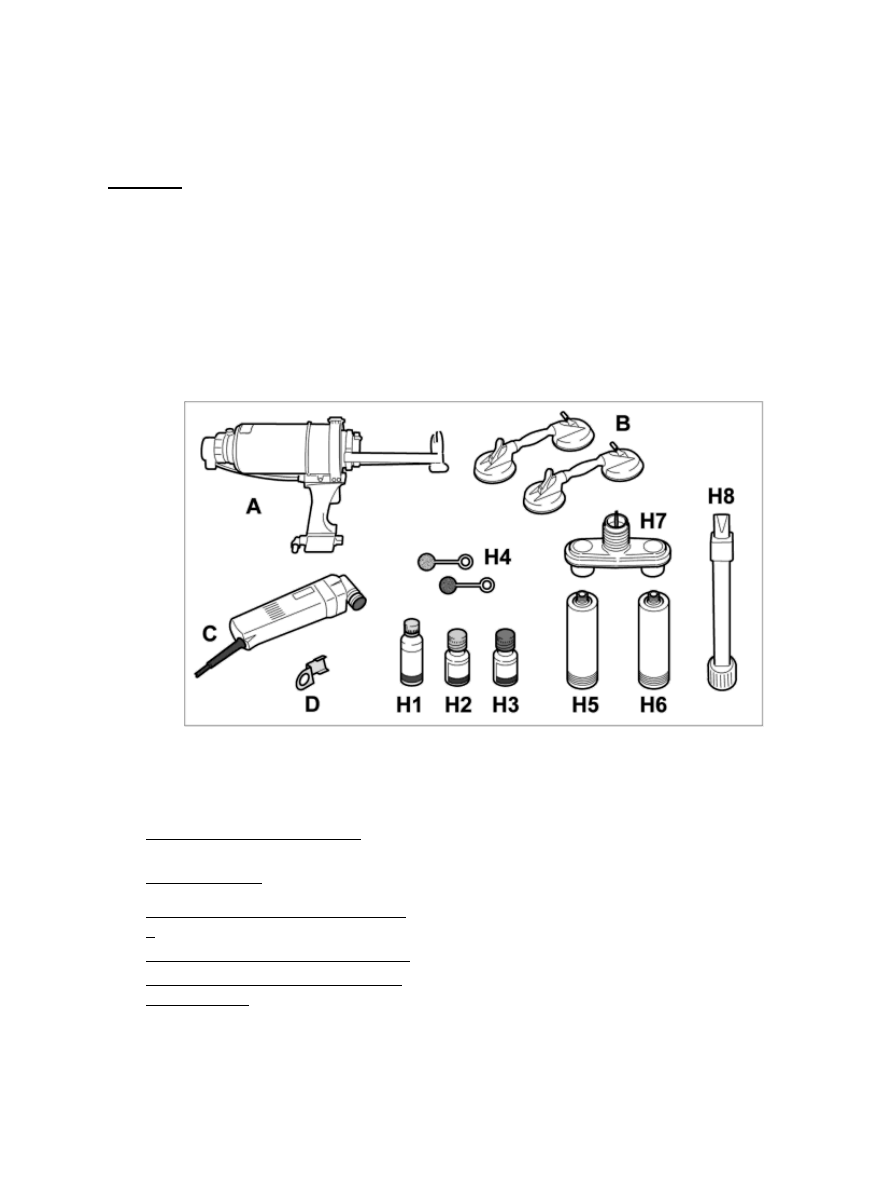

The following tools and materials are required for removal and installation of the rear window with
2-component adhesive:

Tools and materials

Item

Designation

Source

Explanation

-A- Double cartridge gun vas 5237

→ "See Workshop Equipment
Manual, Chapter 3.5"

-B- Pipette vag 1344

→ "See Workshop Equipment
Manual, Chapter 3.5"

-C-

Special electric cutter (fine) vag 1561
a

→ "See Workshop Equipment
Manual, Chapter 3.5"

-D- Flashing knife, U-type 639.031.130.22

-H-

2-component window bonding agent
000.043.300.94

Contains set components
H1-H8

Item

Designation

Item

Designation

Diagnostic system: reading out fault memory and activating systems

General warning notes

2594

-H1-

Cleaning solution

-H5-

Cartridge, component A

-H2-

Primer

-H6-

Cartridge, component B

-H3-

Activator

-H7-

Mixing nozzle

-H4-

Swab

-H8-

Processing nozzle

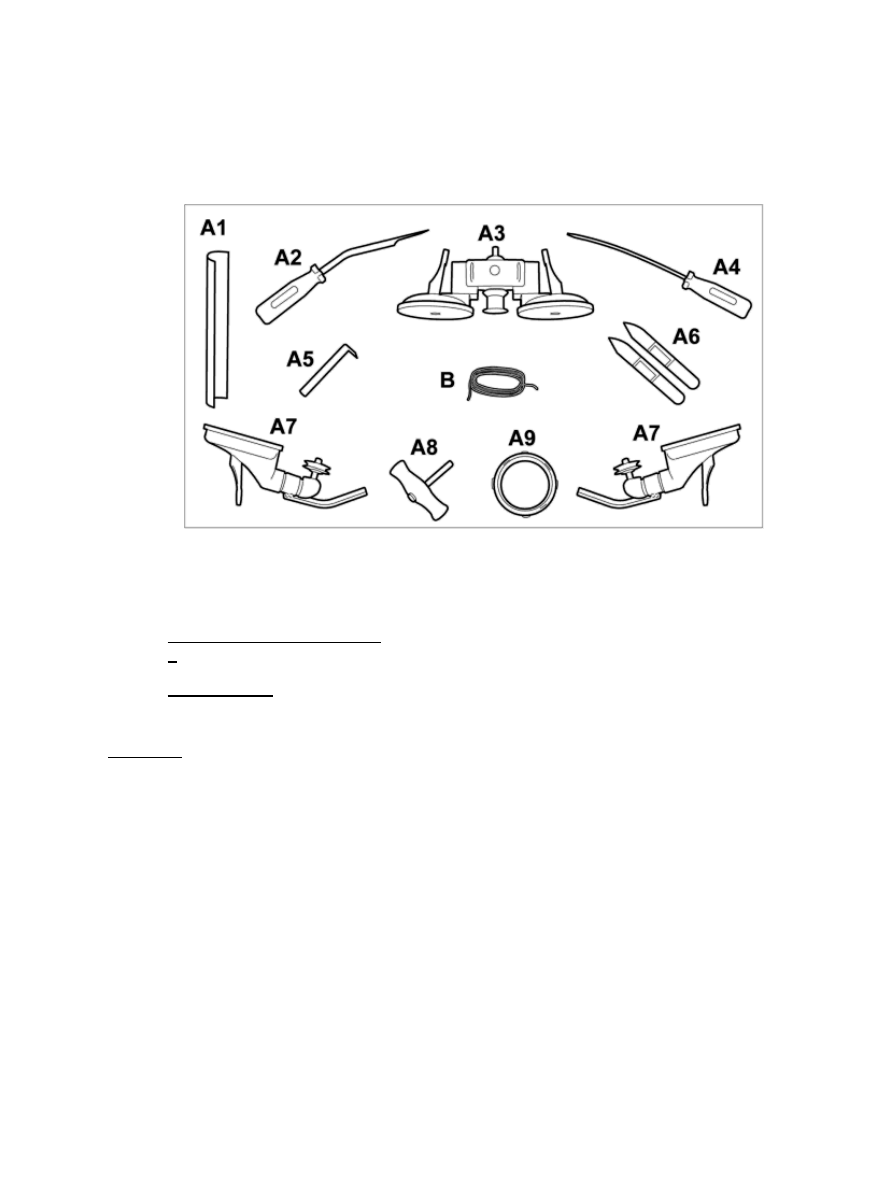

Glass separating tool

Item

Designation

Source

Explanation

-A-

Glass separating tool vag 1474
b

→ "See Workshop Equipment Manual, Chapter
3.5"

Contains set
components
A1-A9

-B-

Cutting thread

→ "See Parts Catalogue in Main Group 8"

Removing rear window

Preparing the rear window (hardtop) for removal

Diagnostic system: reading out fault memory and activating systems

Tools and materials

2595

Removing centring journal support

1. Unscrew fastening screw -1- from the centring journal -2- on the left and right and take off support -2- .

Removing centring journal trim panel

2. Unclip hardtop locking element trim panel -3- on the left and right.

Unclipping linings

3. Unclip lining -4- at the sides and at the rear from the hardtop body -5- .

Detaching the roof liner

Diagnostic system: reading out fault memory and activating systems

Preparing the rear window (hardtop) for removal

2596
