Fitting seal for rear window

Fitting the seal

1. Staring from the edge, adhere the seal -3- along the entire border of the rear window -4-

.

Applying activator to the bonding section of the rear window

Note

Only if the rear window is to be re-installed.

•

1. During longer idle periods (> 24 h) apply activator -H3- to the remaining

adhesive.

Note

A ventilation period of at least 10 minutes must be observed between the cleaning of the glass and the
application of the primer! No cleaning solution residues may remain on the body.

•

2. Clean window with cleaning solution -H1- .

Applying activator to the bonding section of the rear window

3. Apply primer -H2- to the window flange in the area of the

marking.

Diagnostic system: reading out fault memory and activating systems

Fitting seal for rear window

2585

Installing rear window

Aligning rear window

Note

Two persons are needed to insert and adjust the rear window.

•

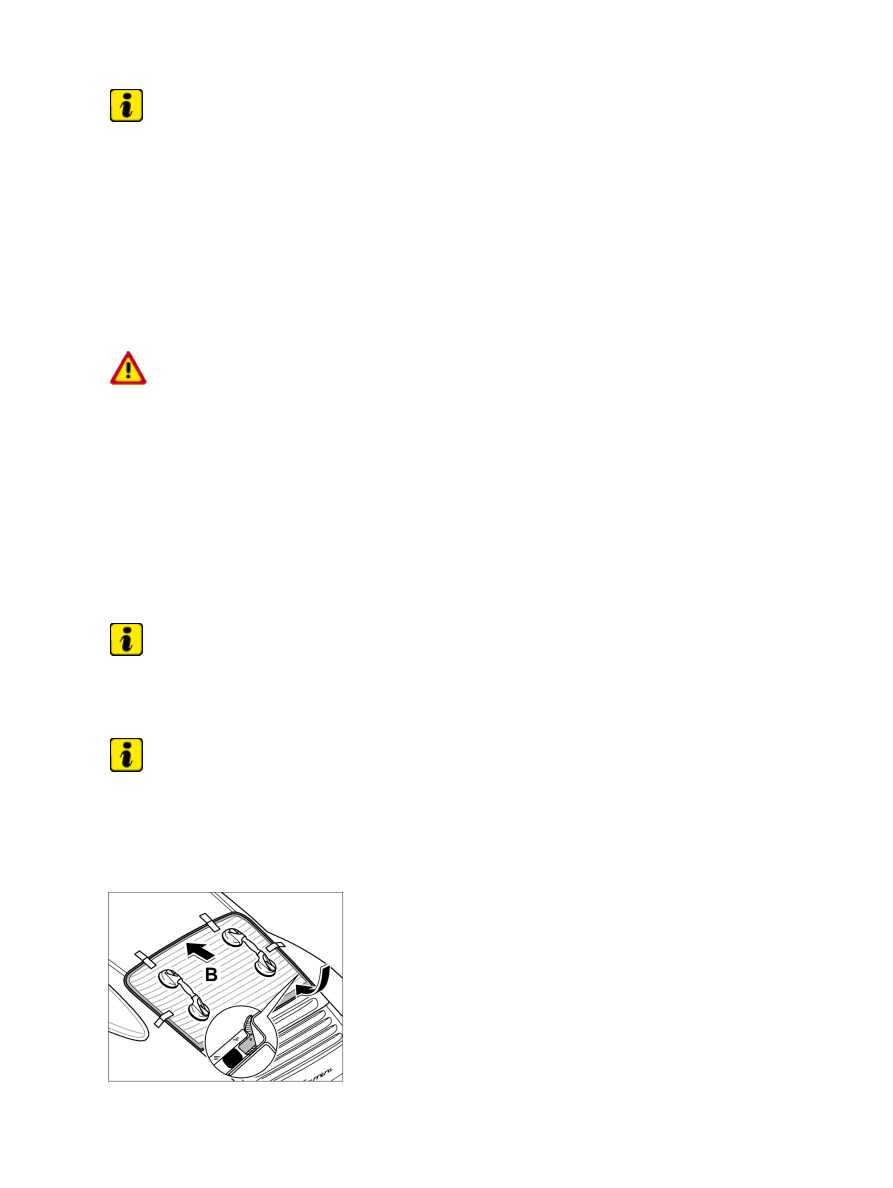

1. Apply suction cups -B- to the rear window and insert the rear window into the window aperture.

Aligning rear window

Note

Ensure that the rear window can no longer be aligned after it is inserted.

•

2. Align the rear window in the Z and Y directions. Mark the rear window with adhesive tape and remove.

Preparing 2-component adhesive for processing

Note

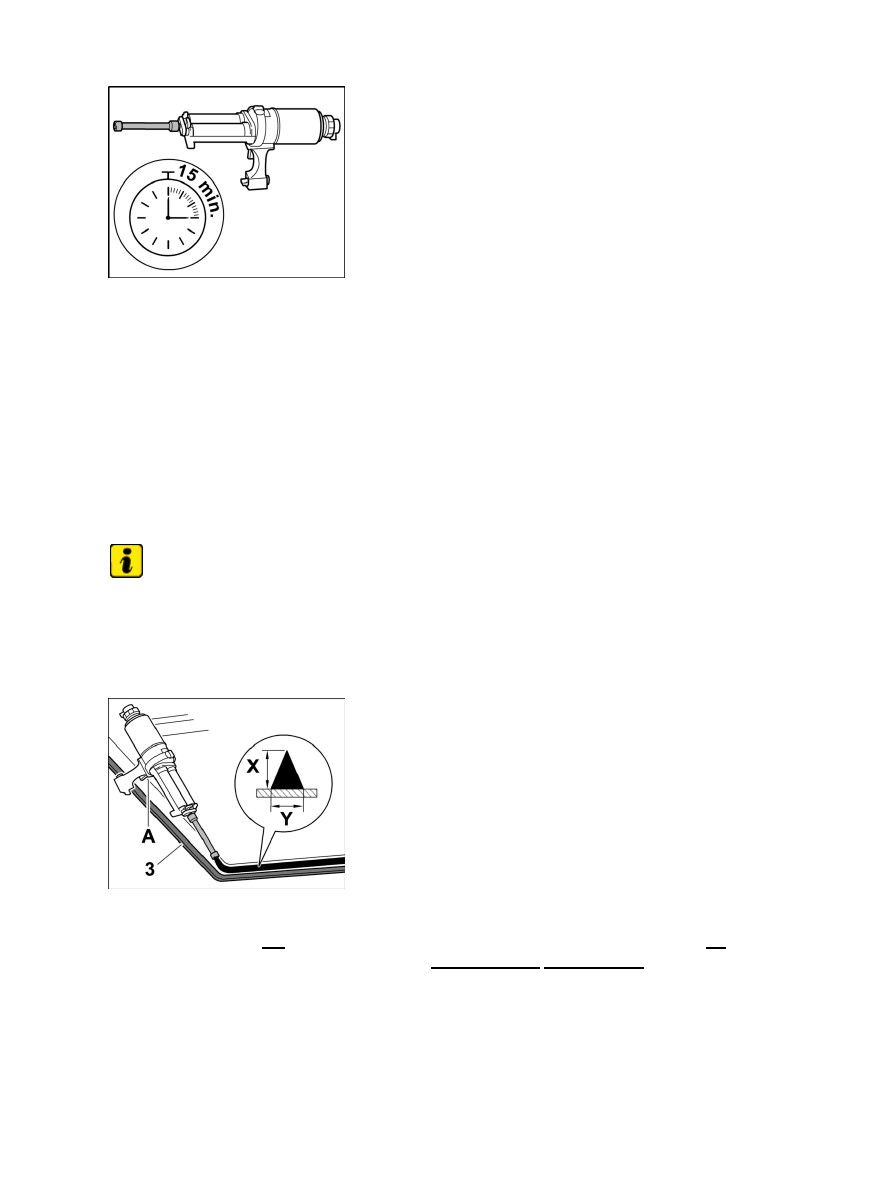

The adhesive has an open time of -15 min- , which means that the bonding material must be applied
and the car window must be assembled within this period of time.

•

Diagnostic system: reading out fault memory and activating systems

Applying activator to the bonding section of the rear window

2586

Preparing the adhesive

In order to ensure that the substance is completely mixed, apply a 30 mm long adhesive bead of fresh
adhesive to a piece of cardboard before processing.

•

1. Preparing 2-component adhesive for processing. →   Processing of Porsche 2-component window

bonding agents

Applying adhesive on the rear window

Note

When applying the adhesive, it is essential to ensure that the adhesive bead overlaps by approx. 30
mm at the beginning and at the end.

•

Applying adhesive

1. Using bonding gun -A- apply 2-component adhesive to the rear window along the seal -3- in the

form of a triangular bead with the dimension -X= ca. 15 mm- -Y= ca. 8 mm- .

Pulling off protective film

Diagnostic system: reading out fault memory and activating systems

Preparing 2-component adhesive for processing

2587

Note

Make sure that no further work is performed in the area of the seal once the protective film has been
removed.

•

1. Before gluing in the rear window, peel off the protective film on the seal without leaving

residues.

Inserting rear window into the body

ATTENTION

Danger of material damage if specified curing time of adhesive is not observed!

There will not be a proper adhesive bond if the prescribed curing time of the adhesive is not
observed!

•

→ The vehicle must not be used until the curing time has elapsed.

→ Curing time: 3 hours

→ Temperature: at least 10°C

→ Fixing time: approx. 1 hour

Note

Two persons are needed to insert and adjust the rear window.

•

Note

The rear window can no longer be aligned, because the bonding section on the seal immediately
sticks to the body when the rear window is installed.

•

Diagnostic system: reading out fault memory and activating systems

Pulling off protective film

2588
