Porshe 911 (997). Manual - part 600

Installation position of side window

Loosening side window

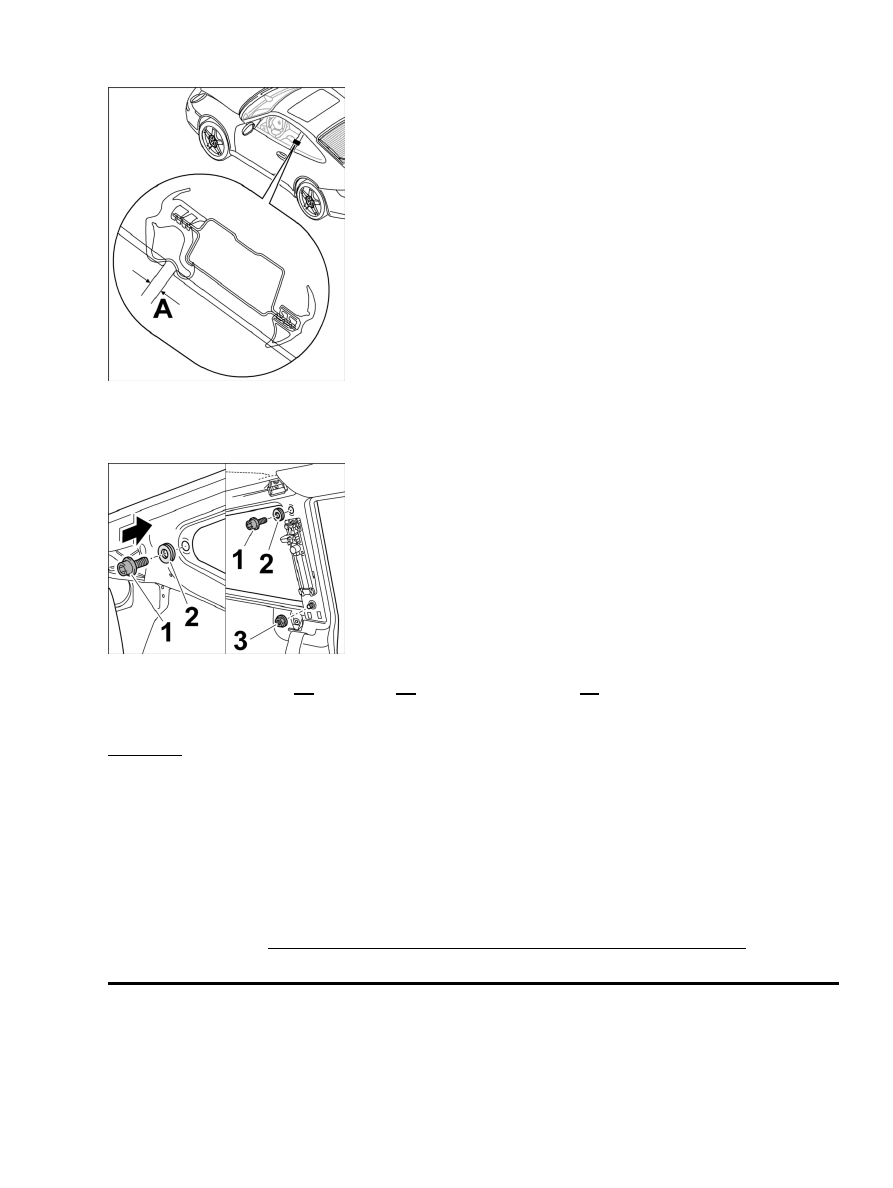

1. Unscrew fastening screws -1- and remove washer -2- . Unscrew fastening nuts

-3-

 .

Removing side window

2. Affix suction cups -1- to the side window. Pull out side window -2- downward in -direction of arrow- .

Installing rear side window

Installing side window

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing side window

2557

Installation position of side window

Note

The removed side window can be reinstalled if:

•

there is no prior damage to the side window.

•

the side window was removed without being damaged.

•

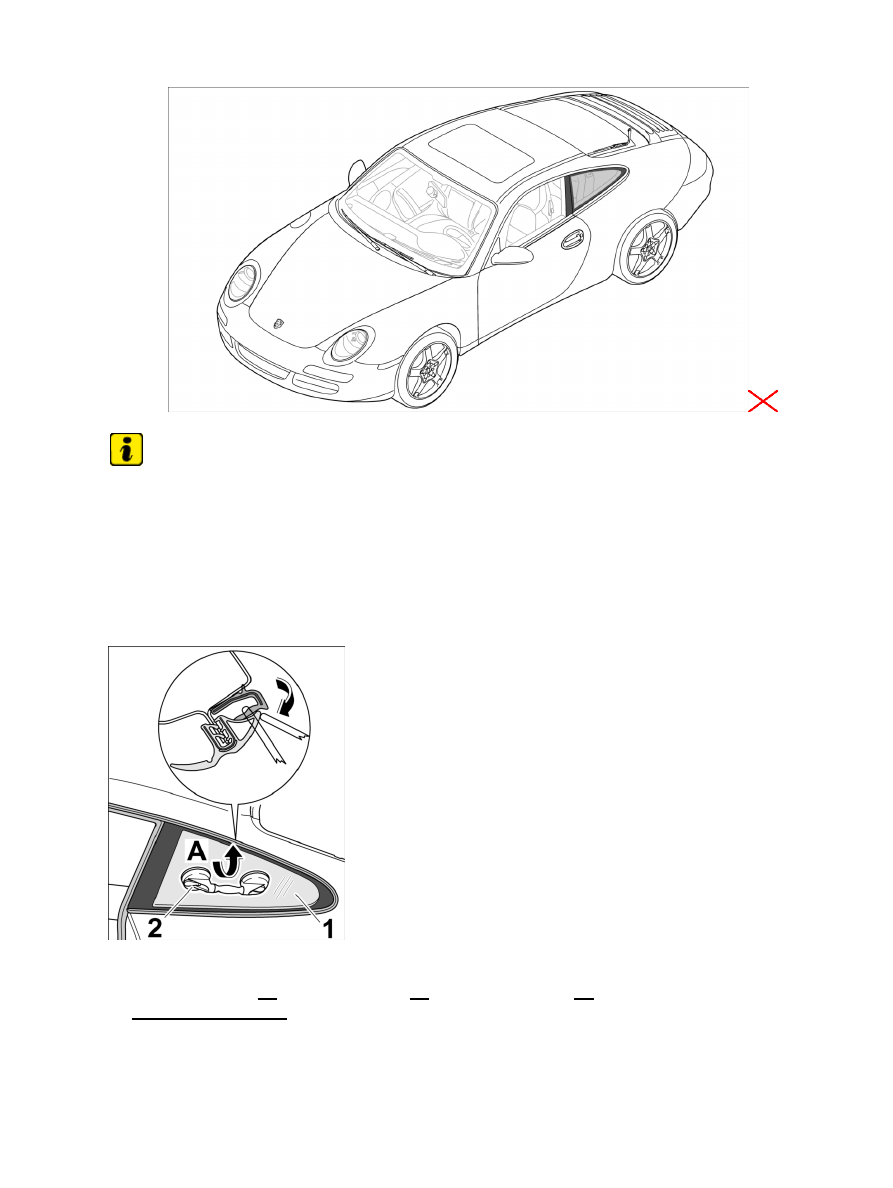

Positioning side window

1. Affix suction cups -2- to the side window -1- . Guide side window -1- up into the B-pillar opening

-direction of arrow A-

 .

Diagnostic system: reading out fault memory and activating systems

Installing side window

2558

Guiding side window into position

2. Press side window -1- up in -direction of arrow A- , hold it and insert it into the lower B-pillar opening

-arrow B-

 .

3. Slide side window -1- backwards using suction cups -arrow C- until the casing -2- engages in the

C-pillar.

Pulling rubber seal forward

4. Pull the lip of the seal forward under the side window -1- using a plastic

spatula.

Diagnostic system: reading out fault memory and activating systems

Installing side window

2559

Door window to side window

5. Adjust side window according to door window using the specified dimensions, tolerances and torques. →

Gap dimension A: 7 mm +/-1 mm

Securing side window

6. Tighten fastening screw -1- and washer -2- . Tighten fastening nuts -3- . Tightening torques →

Tightening torque: 9.7 (7.2 ftlb.) Nm → Tightening torque: 23 (17 ftlb.) Nm

Subsequent work

Subsequent work

1. Install C-pillar trim. → 706819 Removing and installing C-pillar trim - section on "Installing"

997110, 997111, 997120, 997121, 997410, 997411, 997430, 997431

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

2560
