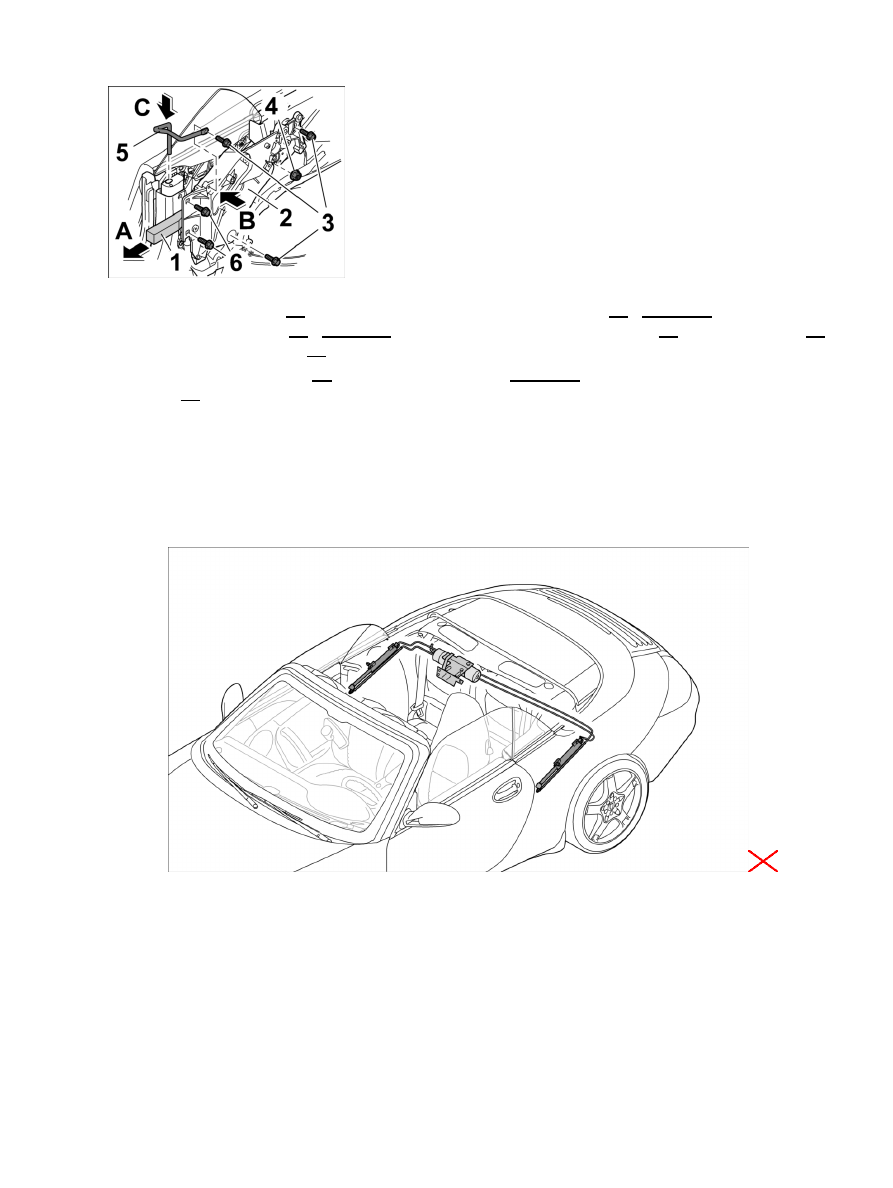

Securing convertible top support

3. Remove spacing block -1- between B-pillar and convertible top support -2- ( -arrow A- ). Position

convertible top support -2- ( -arrow B- ). Position and tighten fastening screws -3- and fastening nuts -4-
in convertible-top support -2- . → Tightening torque: 23 (17 ftlb.) Nm

4. Insert the deflection fitting -5- into the belt guide section -arrow C- . Screw in and tighten fastening

screws -6- . → Tightening torque: 50 (37 ftlb.) Nm

Installing hydraulic cylinder

Installation Location:

Installation position for hydraulic cylinder

Diagnostic system: reading out fault memory and activating systems

Installing rear window lifter

2549

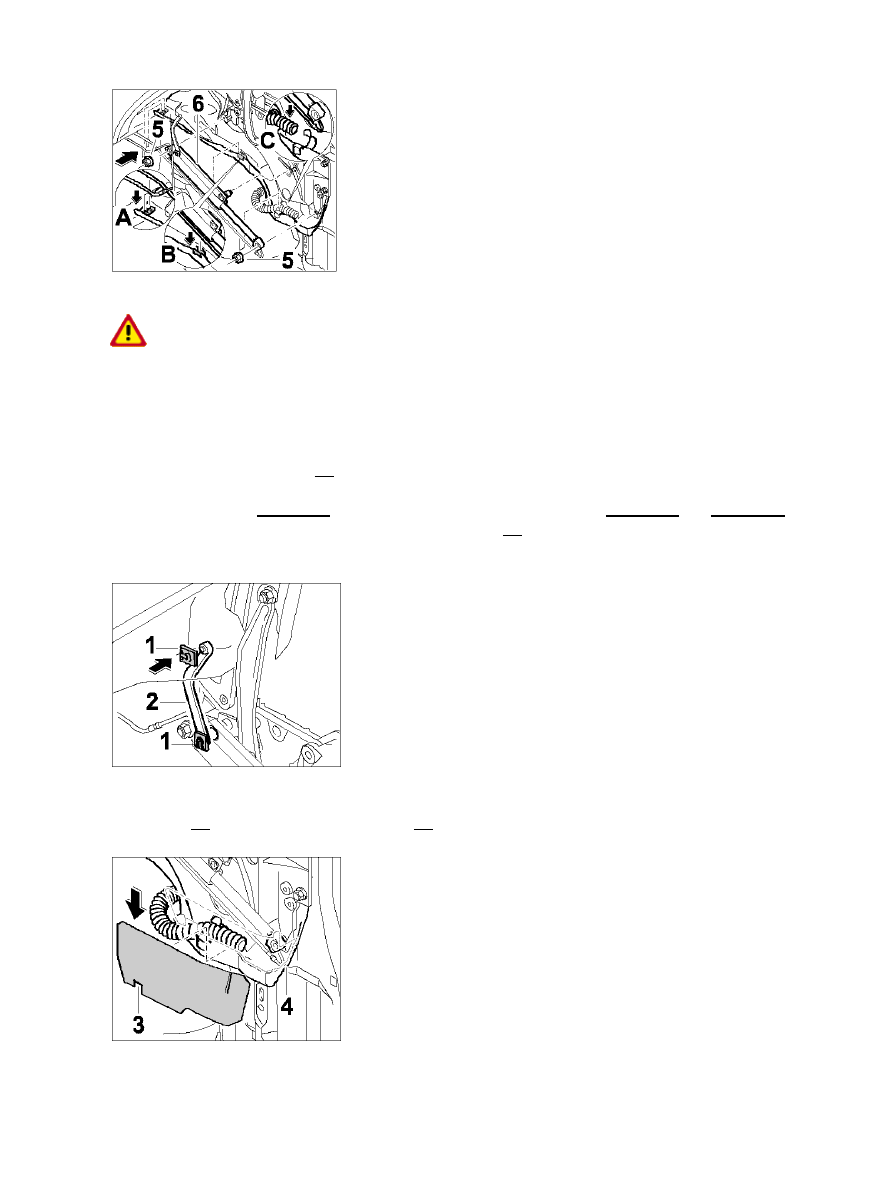

Installing hydraulic cylinder

ATTENTION

Damage to hydraulic lines.

→ Do not bend, trap or crush hydraulic lines when removing and installing.

→ Pay special attention when routing hydraulic lines in the clips.

1. Position hydraulic cylinder -6- with the lever on the convertible-top support. Insert potentiometer fork into

the pin of the hydraulic housing (on the left side only).
Lay hydraulic line -Figure A- in the clip under the water drain hose. In -Figure B- and -Figure C- press
the hydraulic lines into the clips. Tighten fastening nuts -5- . → Tightening torque: 17 (13 ftlb.) Nm +/-2
(1.5 ftlb.) Nm

Installing lever

2. Fit lever -2- and secure with retaining clip -1- .

Installing protection plate

Diagnostic system: reading out fault memory and activating systems

Installing hydraulic cylinder

2550

3. Insert protection plate -3- in chamber of water drip pan

-4-

 .

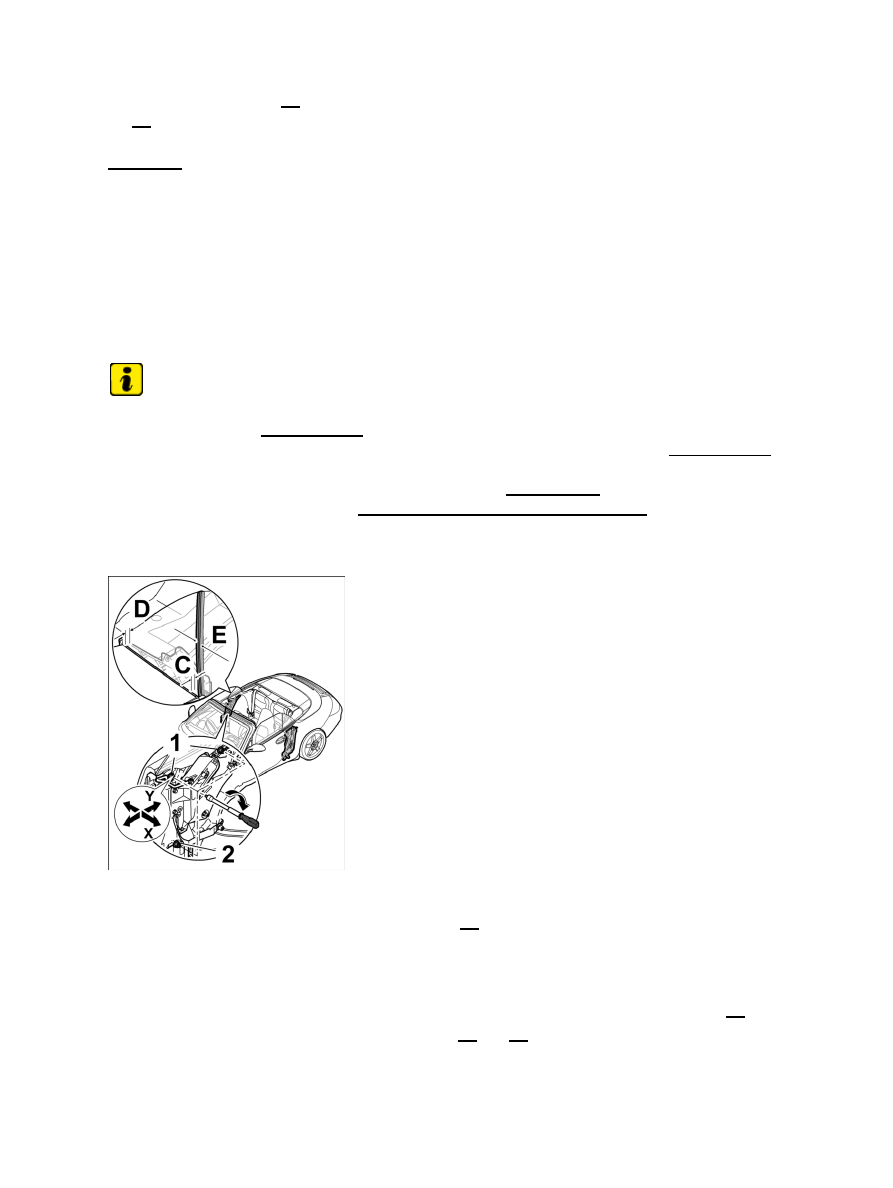

Adjusting rear window lifter

Adjusting rear window lifter

Note

By moving the window lifter with respect to the longitudinal axis of the vehicle, the power windows can be
adjusted by dimension -Y = ± 10 mm- . The contact pressure of the upper edge of the side window on the
convertible top is adjusted by screwing the adjusting element in or out by dimension -X = ± 10 mm- . The
contact pressure on the rear window inner seal or the offset from the door window is adjusted by screwing
both of the upper adjusting elements in or out by dimension -X = ± 5 mm- .
Adjusting tool for rear window lifter. Adjusting tool for rear window NR.123-1

Adjusting power windows

1. Adjust the basic setting of the adjusting elements -1- from the upper edge moulding of the rear side panel

to the side window. → Gap dimension C: 11 mm → Gap dimension D: 14 mm

2. Push the power window backwards or forwards to adjust the gap between the side window and door

window. → Gap dimension E: 9 mm +/-1 mm

3. Adjust the contour or the offset with respect to the door window on the adjusting element -2- .

4. Screw on adjusting elements for power windows -1- and -2- . → Tightening torque: 23 (17 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

 Adjusting rear window lifter

2551

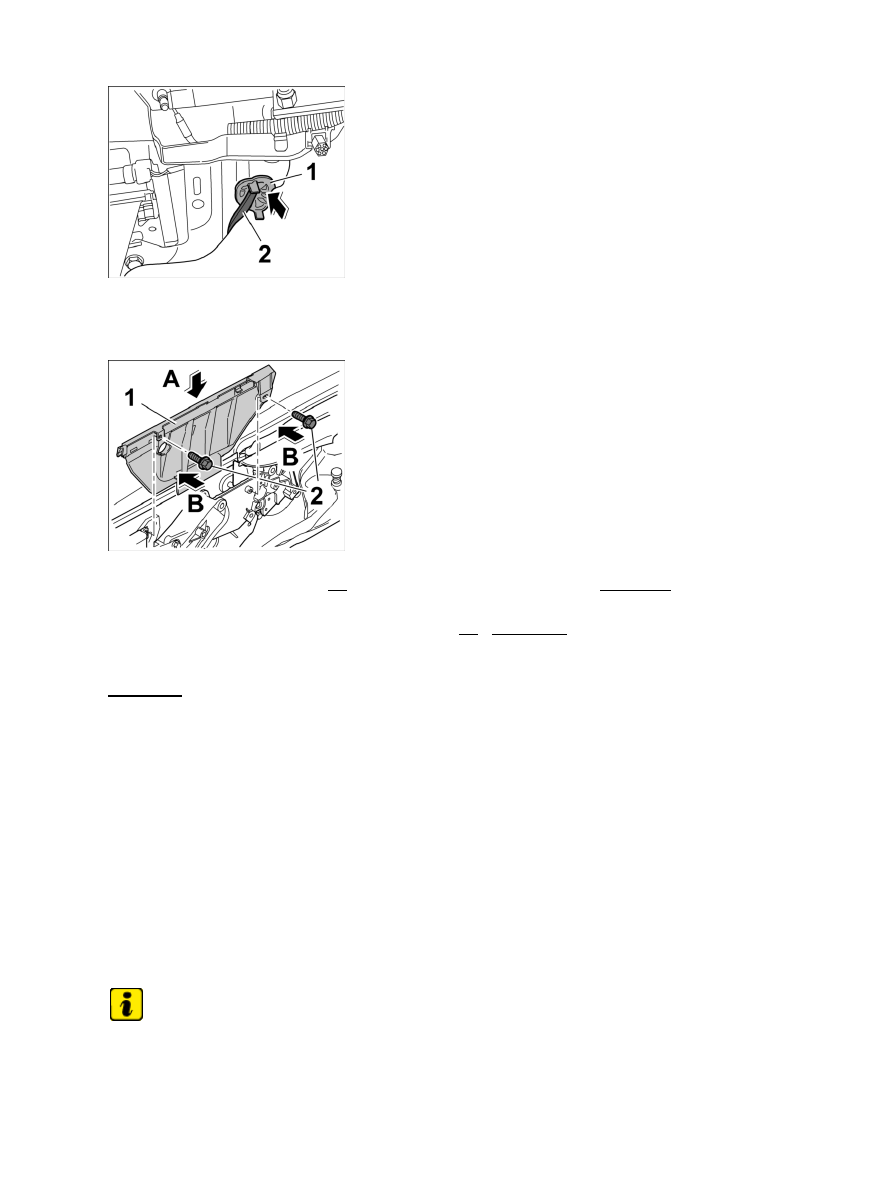

Fitting rubber sleeve

5. Fit rubber sleeve -1- on wire harness -2- for power windows

-arrow-

 .

Installing rear window inner seal

6. Insert rear window inner seal -1- into rear side section slot from above -arrow A- and position on the

convertible top support or belt guide section.

7. Insert and tighten front and rear fastening screws -2- ( -arrows B- ). → Tightening torque: 10 (7.5 ftlb.)

Nm

The rear power windows can be operated if:

1) the convertible top is closed.
2) the ignition is switched on.
3) the ignition key is not removed from the steering lock after the ignition is switched off.
4) after the ignition is switched off until a door is opened for the first time.
5) the door is open, USA vehicles do not have this function.

Note

The end positions of the power windows are deleted from the control unit when the electric connectors are
disconnected and connected.

Diagnostic system: reading out fault memory and activating systems

Adjusting rear window lifter
