Porshe 911 (997). Manual - part 507

Installation location of front mount

Removing centring journal

1. Unscrew fastening screws -1- and remove centring journal -2- .

Removing centring journal (hardtop)

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing centring journal

2185

Installation location of front mount

Removing centring journal

1. Unscrew fastening screws -1- and remove centring journal -2- with support

-2A-

 .

Removing convertible-top peg mount

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing centring journal (hardtop)

2186

Installation position of convertible-top peg mount

Removing convertible-top peg mount

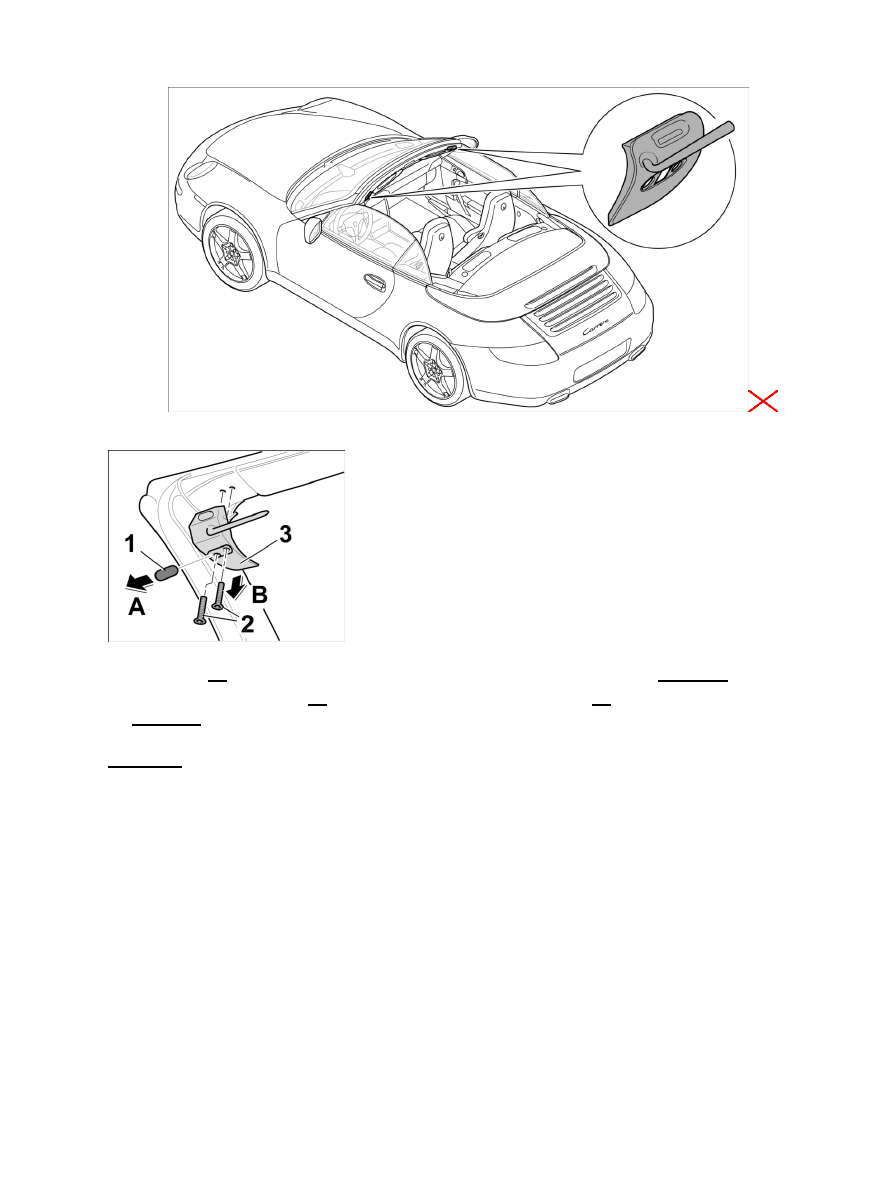

1. Unclip cap -1- in a downward direction with a small screwdriver and remove it -arrow A- .

2. Unscrew fastening screws -2- and remove convertible-top peg mount -3- downwards

-arrow B-

 .

Installing front convertible-top mount

Installing centring journal

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing convertible-top peg mount

2187

Installation location of front mount

Installing centring journal

1. Position centring journal -2- on convertible top frame -3- and screw down the fastening screws -1- .

Tightening torque → Tightening torque: 10 (7.5 ftlb.) Nm

Installing centring journal (hardtop)

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing centring journal

2188
