Porshe 911 (997). Manual - part 496

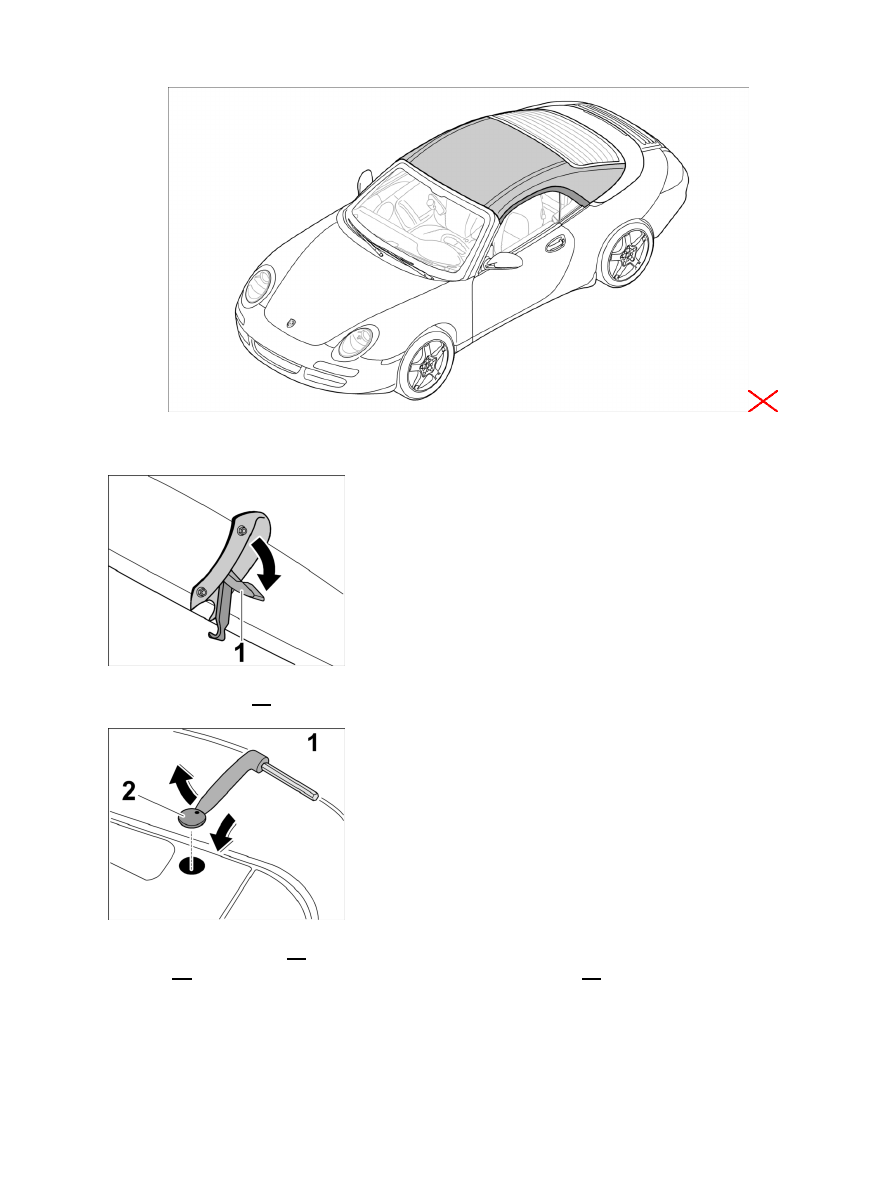

Main illustration, removing and installing hardtop

1. Open all four side windows.

Opening the locking lever

2. The locking lever -1- must be opened fully.

Lifting the plastic cover

3. Take unlocking handle -1- from the shelf between the two front seats. Carefully remove the plastic

cover -2- on both sides of the rear cover using the unlocking handle -1- .

Diagnostic system: reading out fault memory and activating systems

Installing hardtop

2141

Fitting the hardtop

ATTENTION

Hand can be trapped between the hardtop and convertible top compartment lid.

→ Evenly lift the hardtop at both sides.

4. Carefully lift the hardtop -1- over the vehicle from the rear and insert it first into the mounts of the

windscreen frame at the front -inset A- . Then carefully lower the hardtop into the locking elements
at the rear -inset B- .

Closing locking lever at the front

5. Swivel the locking lever for the front lock to the rear. When doing so, the locking hook must engage

in the windscreen frame. The white marking line on the red locking button -inset- must become
visible when the hardtop is locked properly.

Diagnostic system: reading out fault memory and activating systems

Installing hardtop

2142

Closing rear locking mechanism

6. Screw in fastening screw -1- by hand and then screw down at tightening torque → Tightening torque: 34

ftlb.

 .

7. Repeat procedure on the other side of the hardtop.

Inserting plastic cover

8. Press both plastic covers -1- into the trim panel of the hardtop

lock.

Pushing on cover of the locking lever

9. Push on the cover -1- of the front locking lever.
