Porshe 911 (997). Manual - part 480

Installing cover for sunroof motor

Plugging in connectors on interior light and sunroof switch

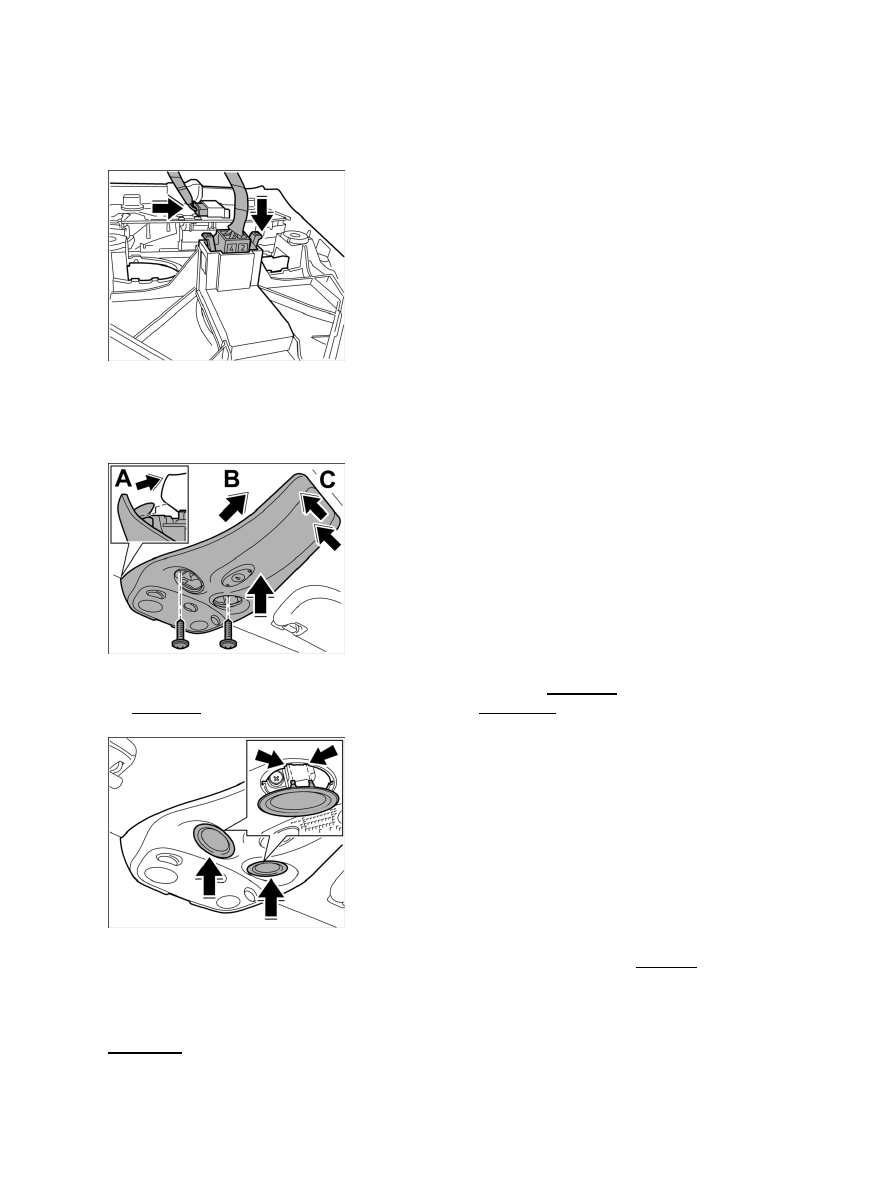

1. Position cover for sunroof motor. Plug in the connectors on the interior light and the sunroof switch until

they are felt to engage.

Clipping in cover of sunroof motor

2. Using the clips, engage cover for sunroof motor on roof frame -arrow A- , push back towards sunroof

-arrow B-

 and clip in at the rear to the left and right -arrows C- .

Clipping in cover for fastening screws

3. Insert cover of fastening screws into the mounts on the sunroof motor cover -arrows- and clip it in.

4. Switch on ignition and check that sunroof switch and interior light are

working.

Diagnostic system: reading out fault memory and activating systems

Installing cover for sunroof motor

2077

Information

Emergency operation on motor for sliding roof

Note

The angle screwdriver required for emergency operation is clipped on to the back of the cover for the motor
for sliding roof.
The motor for the sliding roof can be operated manually if the electric drive should fail. Check fuse E3 in row
E

 before emergency operation.

Note

The end positions of the motor for the sliding roof must be stored again following emergency operation.

1. Removing cover of motor for sliding roof

Emergency operation on motor for sliding roof

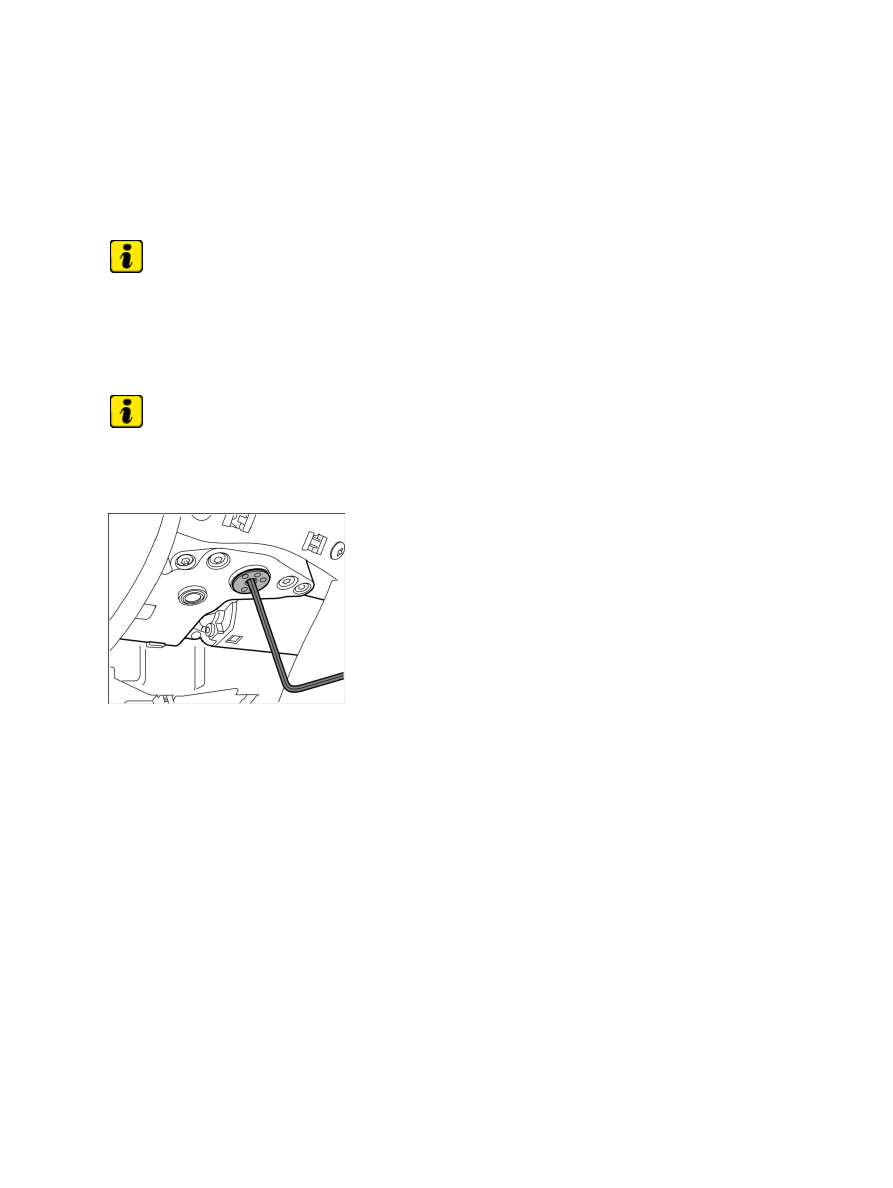

2. Insert the angle screwdriver into the drive axle of the motor for the sliding roof and actuate the motor for

sliding roof manually.

Storing end positions of motor for sliding roof

1. Actuate switch for sliding roof and close sliding roof fully.

2. Press the switch for the sliding roof again (Close).

The end position with the sliding roof closed is stored.

3. Actuate switch for sliding roof and open sliding roof fully.

4. Press the switch for the sliding roof again

(Open).

The end position with the sliding roof open is stored.

5. Press the switch for the sliding roof and open the sliding roof in tilting position.

6. Press the switch for the sliding roof again (Tilting

position).

The end position with the sliding roof in tilting position is stored.

Diagnostic system: reading out fault memory and activating systems

 Information

2078
