Porshe 911 (997). Manual - part 302

48 10 19 Removing and installing steering wheel - as
of MY 2005

- Preliminary work
- Removal
- Installation

Preliminary work

→  A5 Work instructions after disconnecting the battery - Disconnecting
→  21 Removing and installing driver's airbag unit - Removing

Warning notes for removing and installing steering wheel

WARNING

Danger of injury and material damage as a result of incorrect handling of airbag units! Always observe
the safety regulations for handling airbag units →   Safety regulations for airbag and belt tensioner units.

In the case of incorrect handling, system faults may occur resulting in the triggering of the
airbag or failure to do so.

•

→ The airbag unit must always be placed so that the airbag opening faces upwards.

→ If removed for an extended period, the airbag unit must be kept in a locked place.

→ Switch off ignition and leave ignition key inserted (steering must not be locked). Disconnect battery .

Route or isolate the ground strap so that all contact with a ground carrier (e.g. body, seat frame) is
avoided. →   Work instructions after disconnecting the battery.

→ After the battery is disconnected, always wait for 1 minute before disconnecting the airbag connectors.

Removal

1. Disconnect battery . → "Rep. Gr. 9 Work instructions after disconnecting the battery."

1365

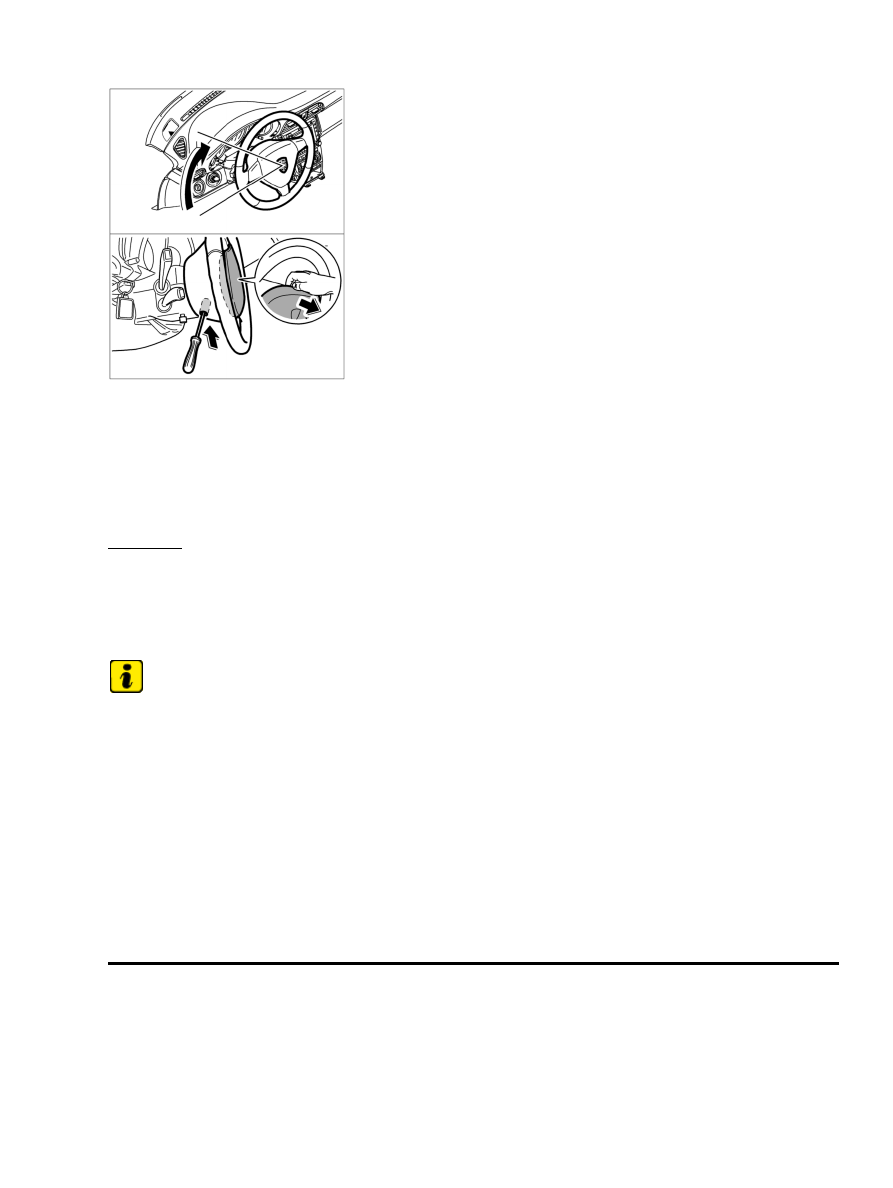

Releasing driver's airbag unit

2. Remove steering wheel airbag unit → "Rep.-Gr. 695819 Removing and installing steering wheel

airbag unit.".

3. Turn wheels to straight-ahead position. Before removing steering wheel, put a mark (e.g. colour

marking) on steering wheel and steering column (centring of airbag spiral spring).

4. Remove steering wheel by releasing multiple-tooth screw.

Installation

Note

The steering wheel is made of magnesium alloy. The tightening torques must be strictly observed.

•

Wheels straight ahead and observe the previously-applied marking.

•

Replace multiple-tooth screw after each removal (micro-encapsulated thread).

•

Observe tightening torque. → Tightening torque: 50 (37 ftlb.) Nm

•

Airbag unit must lock with an audible click! Check by pulling at airbag unit.

•

Installation of the steering wheel takes place in reverse order.
