Porshe 911 (997). Manual - part 200

Note

Vehicle must be horizontal in order to be filled and checked.

Technical values

Filling capacities

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Automatic transmission

total capacity

9 litre

Automatic transmission

change quantity

4.5 litre

Preliminary work

Preliminary work

1. Raise the vehicle at the prescribed jacking points. →   Lifting the vehicle

2. Remove the underbody panels. → 519419 Removing and installing rear trim - removing

3. Place oil collection pan under the transmission.

Changing ATF

Draining ATF

ATTENTION

Transmission cannot be filled, or only insufficiently with ATF.

Diagnostic system: reading out fault memory and activating systems

Notes

957

→ Do not start engine

→ Do not tow vehicle

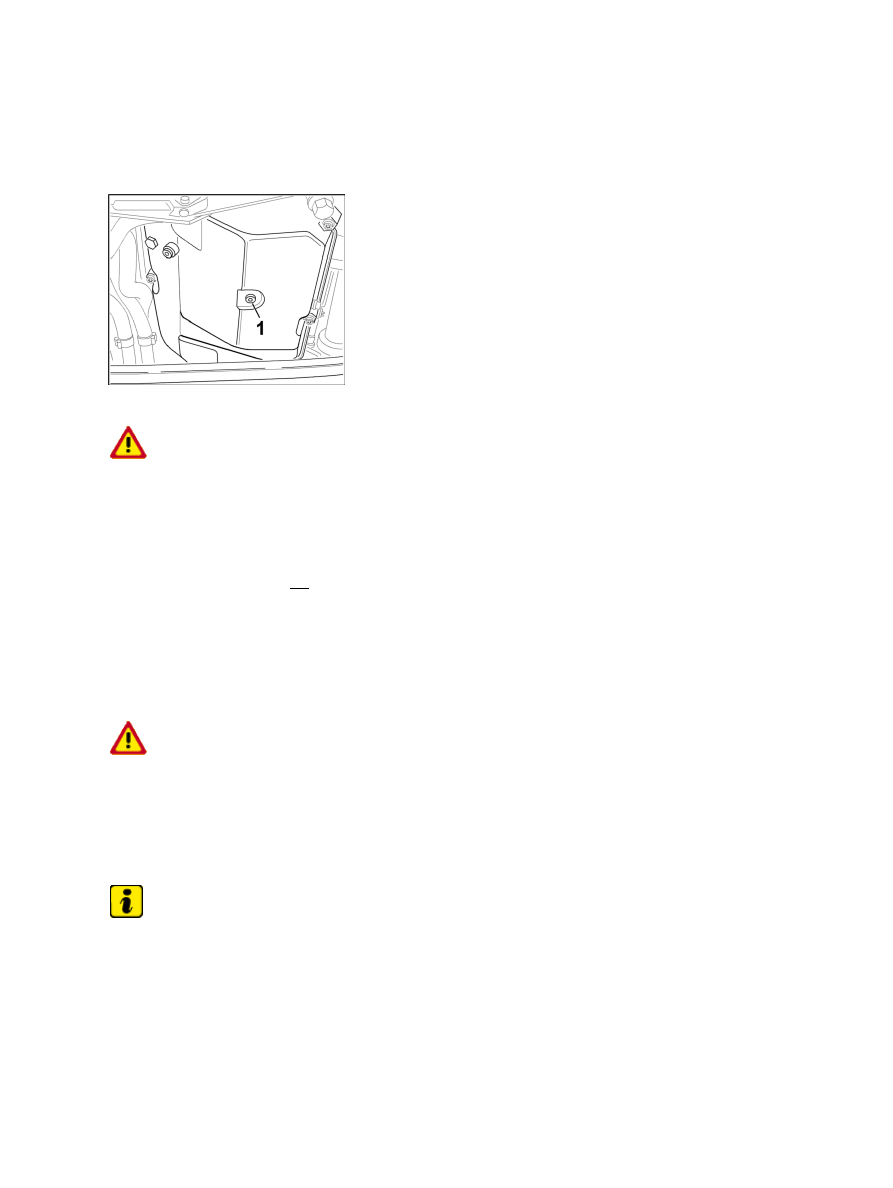

ATF - ATF drain screw

WARNING

Danger of scalding and chemical burns from hot ATF

→ Allow ATF to cool down

→ Wear personal protective gear (goggles, gloves)

1. Unscrew the drain plug -1- and drain the ATF.

2. Replace sealing ring for drain plug and tighten screw. → Tightening torque: 22 (16 ftlb.) Nm .

Topping up ATF

ATTENTION

Transmission cannot be filled, or only insufficiently with ATF.

→ Do not start engine

→ Do not tow vehicle

Note

To undo and tighten the cap nut for the charging valve, counter with a ring wrench!

Diagnostic system: reading out fault memory and activating systems

Draining ATF

958

ATF - control screw

1. Unscrew control screw

-2-

 .

Cap nut

2. Screw off cap nut -1- for the charging

valve.

Connection hose onto ATF - charging valve

3. Screw connection hose 95071 onto charging valve.

WARNING

Danger of scalding and chemical burns from hot ATF

→ Allow ATF to cool down

→ Wear personal protective gear (goggles, gloves)

4. Top up ATF via the charging valve until ATF runs out at the control

bore.

Diagnostic system: reading out fault memory and activating systems

Topping up ATF

959

Checking and topping up the ATF

The transmission must not be in the reduced driving program. The ATF temperature must be between → ATF
temperature: 30 degrees Celsius

 and → ATF temperature: 40 degrees Celsius . An ATF inspection when

the temperature is too high causes insufficient filling, while an inspection when the temperature is too low
causes over-filling. The selector lever must be in position "P" and the engine must be idling. The air
conditioning must be switched off. The vehicle must stand horizontally.

Note

The ATF temperature at the start of testing must not be higher than → ATF temperature: 40 gradCelsius .

1. Connect the PIWIS Tester 97180 and call up the ATF temperature.

2. Put selector lever in position "P", start vehicle, and allow engine to idle.

3. Top up ATF via the charging valve until ATF runs out at the control

bore.

4. With the brake pedal pressed, change through all selector lever positions, remaining in each

position for approximately → Time: 10 s .

WARNING

Danger of scalding and chemical burns from hot ATF

→ Allow ATF to cool down

→ Wear personal protective gear (goggles, gloves)

5. Top up with ATF again via the charging valve until ATF runs out at the control bore.

Subsequent work

Reworking

1. Unscrew connection hose 95071 from ATF - charging

valve.

2. Replace sealing ring for cap nut and screw on cap nut. → Tightening torque: 30 ftlb.

3. Replace sealing ring for ATF control screw and screw in ATF control screw. → Tightening torque: 16

ftlb.

4. Fit underbody panels. → 519419 Removing and installing rear trim -

installing

5. Lower the vehicle.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,

Diagnostic system: reading out fault memory and activating systems

Checking and topping up the ATF
