5. Screw off cap nut -1- for the charging

valve.

Connection hose onto ATF - charging valve

6. Screw connection hose 95071 onto charging valve.

Checking and topping up the ATF

Checking and topping up the ATF

The transmission must not be in the reduced driving program. The ATF temperature must be between → ATF
temperature: 30 degrees Celsius

 and → ATF temperature: 40 degrees Celsius . An ATF inspection when

the temperature is too high causes insufficient filling, while an inspection when the temperature is too low
causes over-filling. The selector lever must be in position "P" and the engine must be idling. The air
conditioning must be switched off. The vehicle must stand horizontally.

Note

The ATF temperature at the start of testing must not be higher than → ATF temperature: 40 gradCelsius .

1. Connect the PIWIS Tester 97180 and call up the ATF temperature.

2. Put selector lever in position "P", start vehicle, and allow engine to idle.

3. Top up ATF via the charging valve until ATF runs out at the control

bore.

4. With the brake pedal pressed, change through all selector lever positions, remaining in each

position for approximately → Time: 10 s .

WARNING

Danger of scalding and chemical burns from hot ATF

→ Allow ATF to cool down

→ Wear personal protective gear (goggles, gloves)

5. Top up with ATF again via the charging valve until ATF runs out at the control bore.

Diagnostic system: reading out fault memory and activating systems

Preliminary work

953

Reworking

Reworking

1. Unscrew connection hose 95071 from ATF - charging

valve.

2. Replace sealing ring for cap nut and screw on cap nut. → Tightening torque: 30 ftlb.

3. Replace sealing ring for ATF control screw and screw in ATF control screw. → Tightening torque: 16

ftlb.

4. Fit underbody panels. → 519419 Removing and installing rear trim -

installing

5. Lower the vehicle.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

Diagnostic system: reading out fault memory and activating systems

Checking and topping up the ATF

954

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Reworking

955

- Information
- Technical values
- Preliminary work
- Changing ATF
- Subsequent work

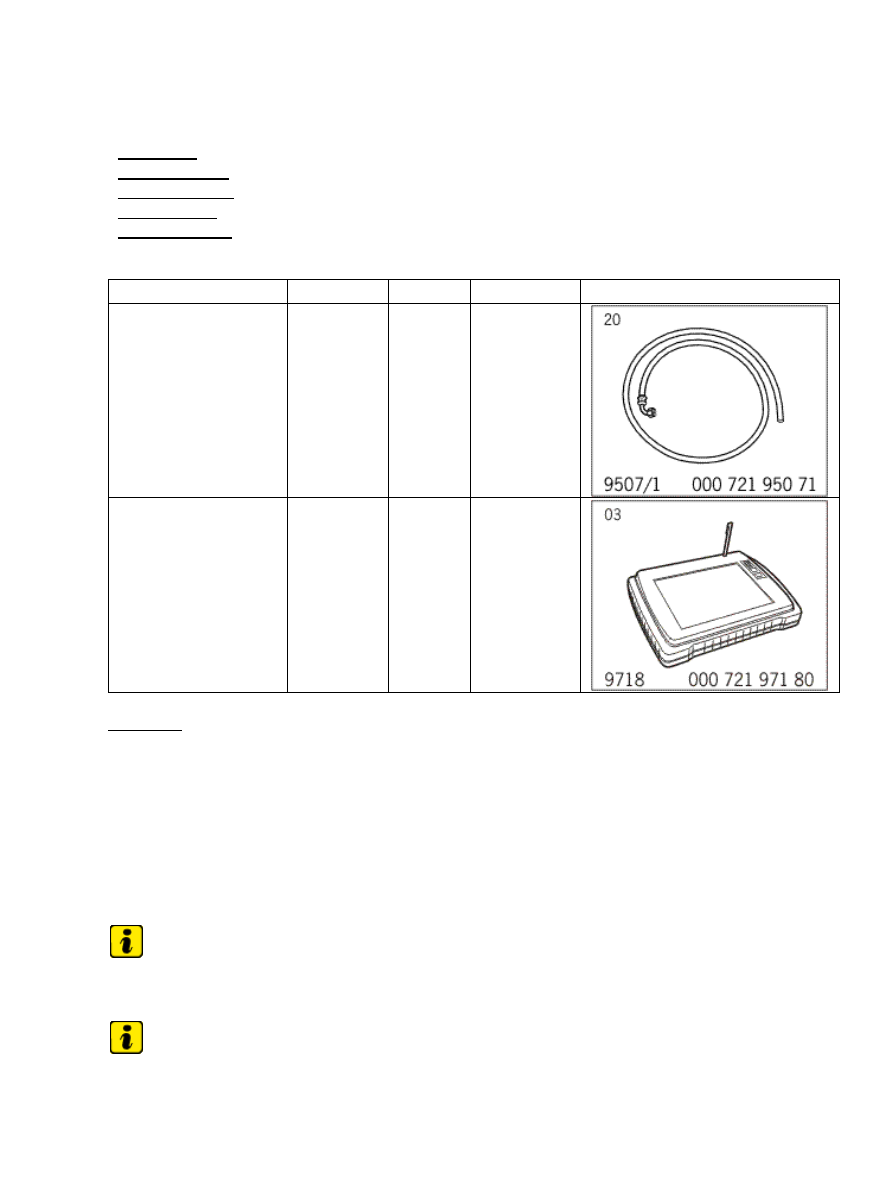

Tools

Designation

Type

Number

Explanation

Screw connection hose

special tool

95071

PIWIS Tester

special tool

97180

Information

Notes

Note

Fill only with ATF approved by Porsche. See Spare Parts Catalogue.

Note

Hot vehicles should cool down before beginning the activity.
