Porshe 911 (997). Manual - part 178

- Preliminary work
- Removing converter housing
- Installing converter housing
- Subsequent work

Preliminary work

Preliminary work

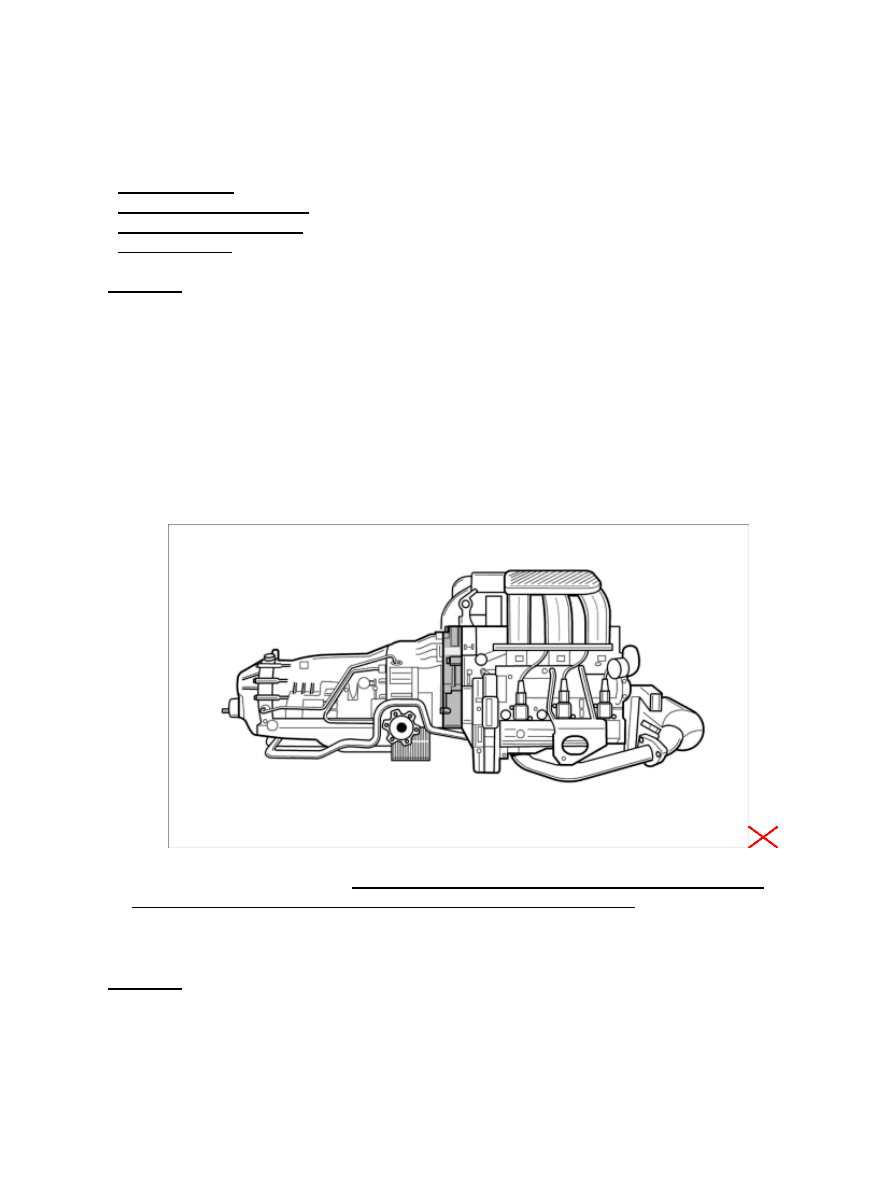

Installation Location:

Converter housing

1. Remove automatic transmission. → 373527 Removing and refitting the automatic transmission -

removing [997110 997111 997120 997121 997310 997311 997320 997321]→ 373527
A3 Removing and refitting the automatic transmission - removing [997410 997411 997430
997431 997610 997611 997620 997621]

869

Removing converter housing

Removing converter housing

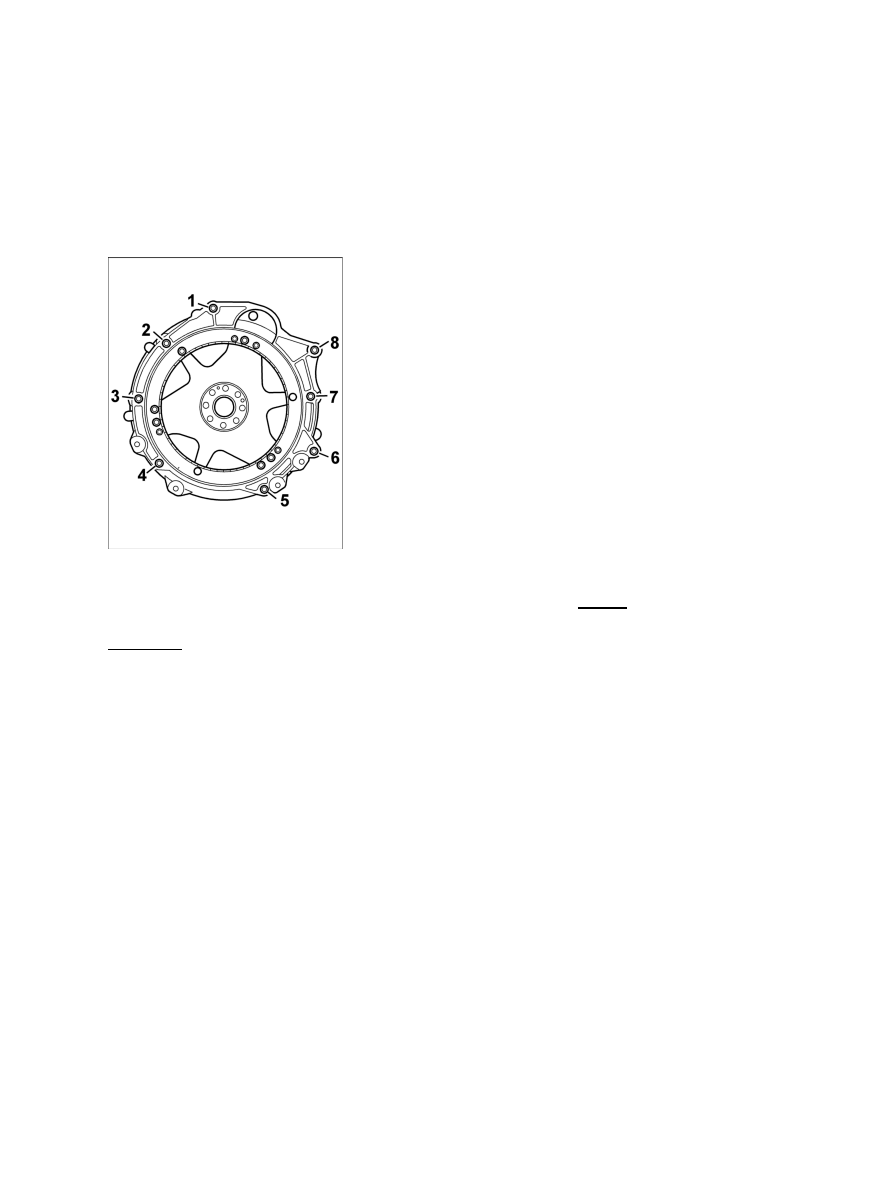

Converter housing threaded joint

1. Unscrew connecting screws between converter housing and engine -1 to 8- and remove converter housing.

Installing converter housing

Installing converter housing

Diagnostic system: reading out fault memory and activating systems

 Removing converter housing

870

Converter housing screw connections

1. Position converter housing and screw in connecting screws -1 - 8- .

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Converter
housing/engine
connection

Hexagon-head bolt no. 1 in
figure, M12 x 1.5 x 70

Tightening
torque

63 ftlb.

Converter
housing/engine
connection

Hexagon-head bolt no. 2 in
figure, M12 x 1.5 x 70

Tightening
torque

63 ftlb.

Converter
housing/engine
connection

Hexagon-head bolt no. 3 in
figure, M12 x 1.5 x 70

Tightening
torque

63 ftlb.

Converter
housing/engine
connection

Hexagon-head bolt no. 4 in
figure, M10 x 50

Tightening
torque

34 ftlb.

Converter
housing/engine
connection

Hexagon-head bolt no. 5 in
figure, M10 x 50

Tightening
torque

34 ftlb.

Converter
housing/engine
connection

Hexagon-head bolt no. 6 in
figure, M12 x 1.5 x 70

Tightening
torque

63 ftlb.

Converter
housing/engine
connection

Hexagon-head bolt no. 7 in
figure, M12 x 1.5 x 70

Tightening
torque

63 ftlb.

Converter
housing/engine
connection

Hexagon-head bolt no. 8 in
figure, M12 x 1.5 x 70

Tightening
torque

63 ftlb.

Diagnostic system: reading out fault memory and activating systems

Installing converter housing

871

Subsequent work

Subsequent work

1. Refit automatic transmission. → 373527 Removing and refitting the automatic transmission -

refitting [997110 997111 997120 997121 997310 997311 997320 997321]→ 373527
AG Removing and refitting the automatic transmission - refitting [997410 997411 997430
997431 997610 997611 997620 997621]

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
