30 56 01 Checking clutch plate for wear - as of MY
2005

- Preliminary work
- Checking clutch plate for wear
- Subsequent work

Preliminary work

Preliminary work

1. Remove clutch. → 305019 Removing and installing clutch - chapter on

"removing"

Checking clutch plate for wear

Checking clutch plate for wear

Note

It should be noted that the clutch lining does not wear linearly over the service life of the clutch. Due to the
settling behaviour of the clutch lining, wear can be expected to be greater at the beginning. However, pad
thickness wear will become less as mileage increases.

865

Measuring lining thickness

Note

Pad thickness measurement must only be done on the flanged side of the rivet head.

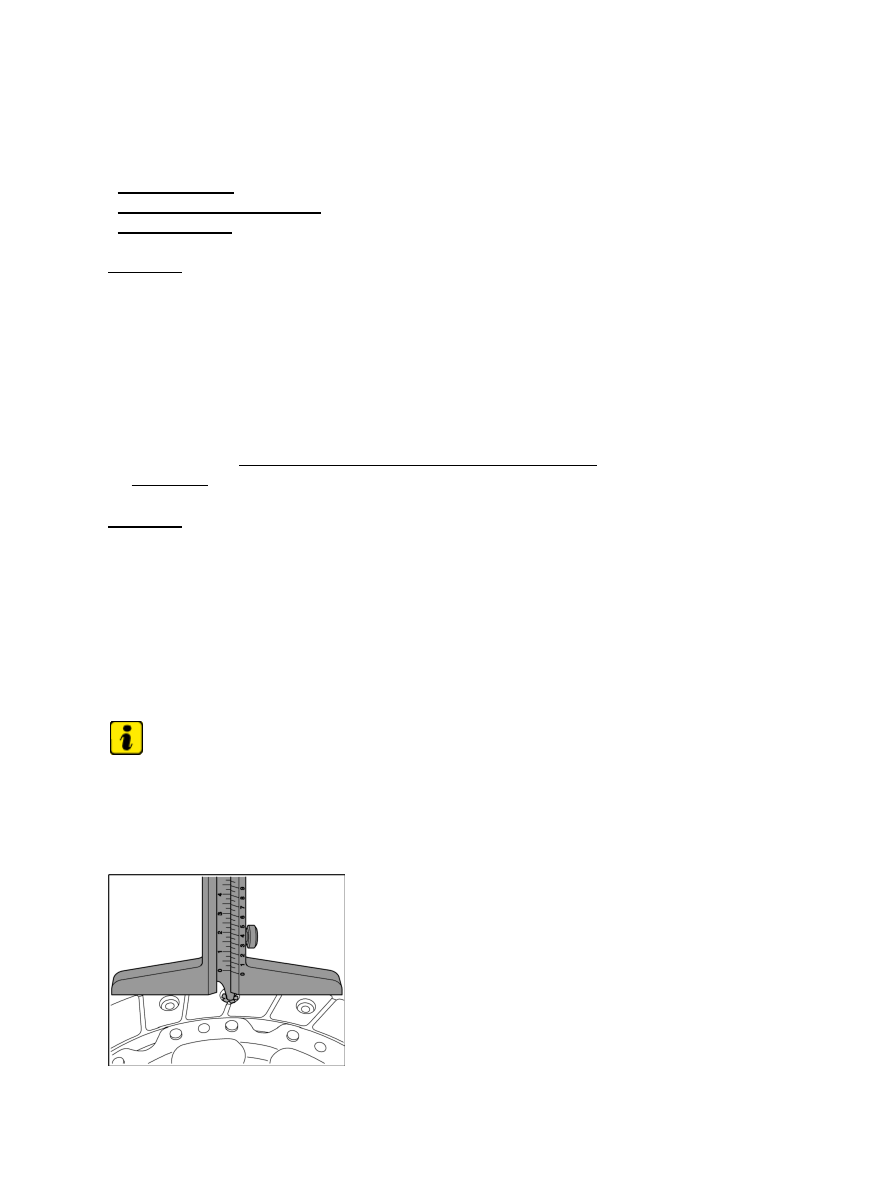

1. Place a commercially available depth gauge on the clutch lining -1- and measure the distance to the

rivet head.

Sectional view

The wear dimension -X- measures 0.3 mm. If a smaller value is measured, the clutch drive plate must be
replaced. When new the measured value is more than 1mm.

Subsequent work

Subsequent work

1. Install clutch. → 305019 Removing and installing clutch - chapter on

"installing"

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
