Diagnostic system: reading out fault memory and activating systems

Subsequent work

849

- Removing and installing

Removing and installing

Removing clutch slave cylinder

Note

The following tools can be used to undo and tighten the fastening screws:

For the lower screw, use a 3/8 inch changeover ratchet with an extension of approx. 100 mm and a 13
mm socket wrench insert.

•

For the upper screw, use a 3/8 inch changeover ratchet with an extension of approx. 250 mm, a
universal joint and a 13 mm socket wrench insert.

•

Clutch slave cylinder

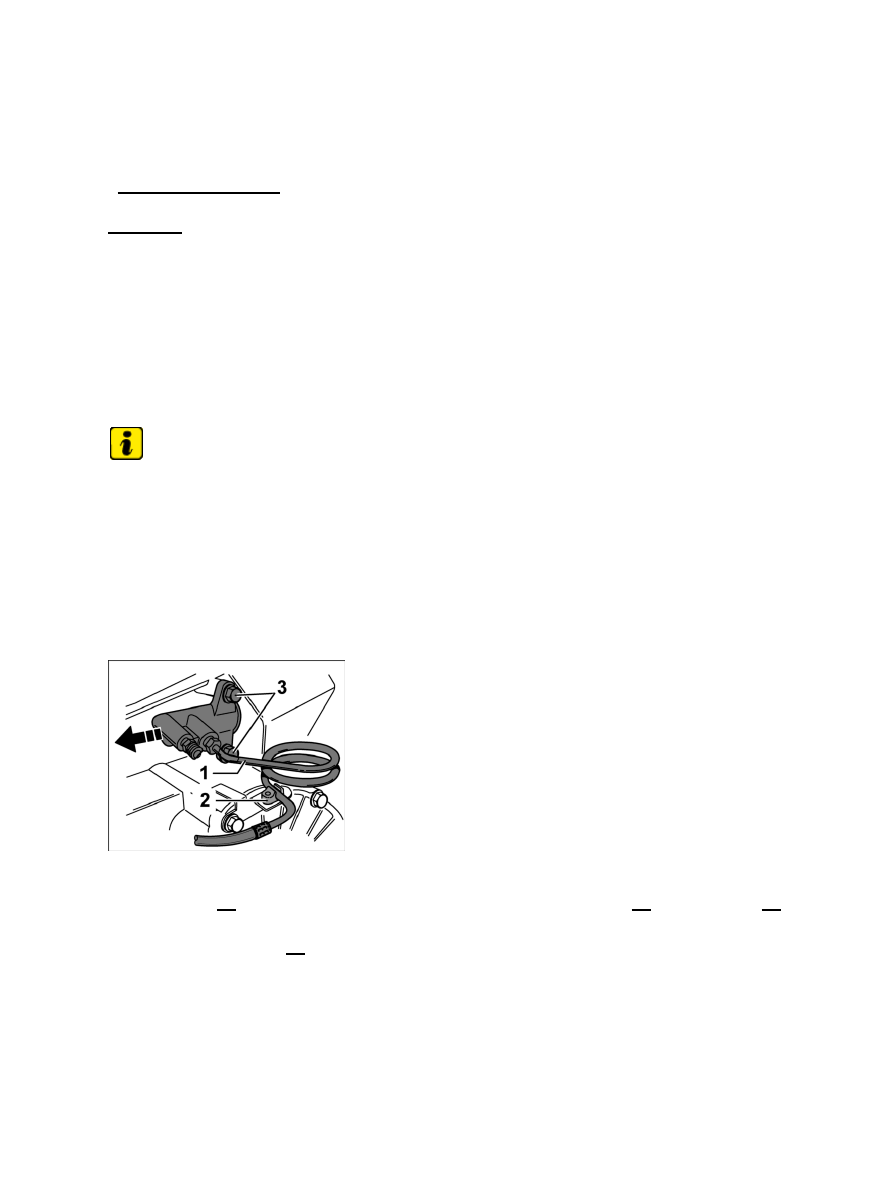

1. Detach hose -1- from the clutch slave cylinder and unclip hose from holder -2- . Block up hose -1- and the

connection hole in the clutch slave cylinder.

2. Undo fastening screws -3- and remove the clutch slave cylinder from the transmission

housing.

Installing clutch slave cylinder

850

Note

When inserting clutch slave cylinder, it is necessary to overcome the spring force acting on the push rod
whilst fitting a fastening screw.
Observe assembly instructions for inserting the clutch slave cylinder

1. Grease end of the push rod of the clutch slave cylinder -in the area located in the ball socket when

installed -with a thin coat of Olista Longtime 3 EP (available as a spare part)

2. Insert the clutch slave cylinder and tighten the fastening screws to 23 Nm (17 ftlb.).

Assembly instructions for inserting the clutch slave cylinder

Clutch slave cylinder in installation position

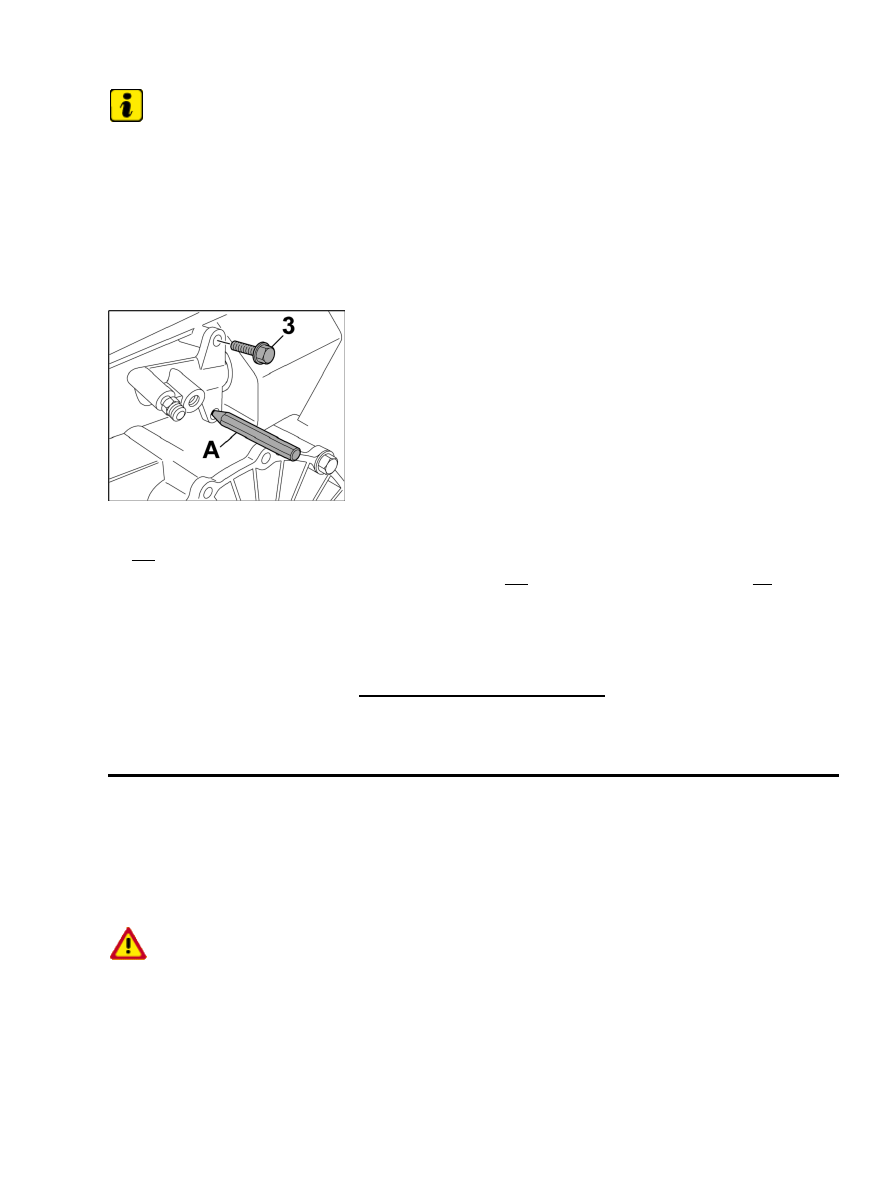

–  Position the clutch slave cylinder and fix it in the installation position using a drift punch 5 x 120 x 10 mm

-A-

 .

–  Align clutch slave cylinder with the drift punch in place -A- so that the upper fastening screw -3- can

be fitted. If necessary, also open the bleeder valve.

–  Insert lower fastening screw. Then tighten the 2 fastening screws (tightening torque 23 Nm (17 ftlb.)).

3. Fit the clutch line to the clutch slave cylinder and clip it into the holder. Tightening torque for the line, 20

Nm (15 ftlb.).

4. Bleed the clutch hydraulic system → 300107 Bleeding the clutch system.

5. Check operation of the clutch. Repeat the bleeding process if the clutch does not disengage

correctly.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
