24 74 19 Removing and installing tuning pipe - as of
MY 2005

- Preliminary work
- Removing tuning pipe
- Installing tuning pipe
- Subsequent work

Preliminary work

Preliminary work for removing tuning pipe

1. Disconnect the battery → 271000 A5  Work instructions after disconnecting the battery - chapter on

"disconnecting" .

2. Remove air cleaner housing → 242519 Removing and installing air cleaner housing - chapter on

"removing".

Removing tuning pipe

Removing tuning pipe

Throttle body

1. Remove distributor pipe. To do this, remove the fastening nut M6 of the throttle body from the

rubber mount of the servo pump -2- .

2. Release cable plug on throttle body, and pull out and release cable -1- .

754

3. Release crankcase venting pipe connection from distributor pipe and remove -3- .

Distributor pipe

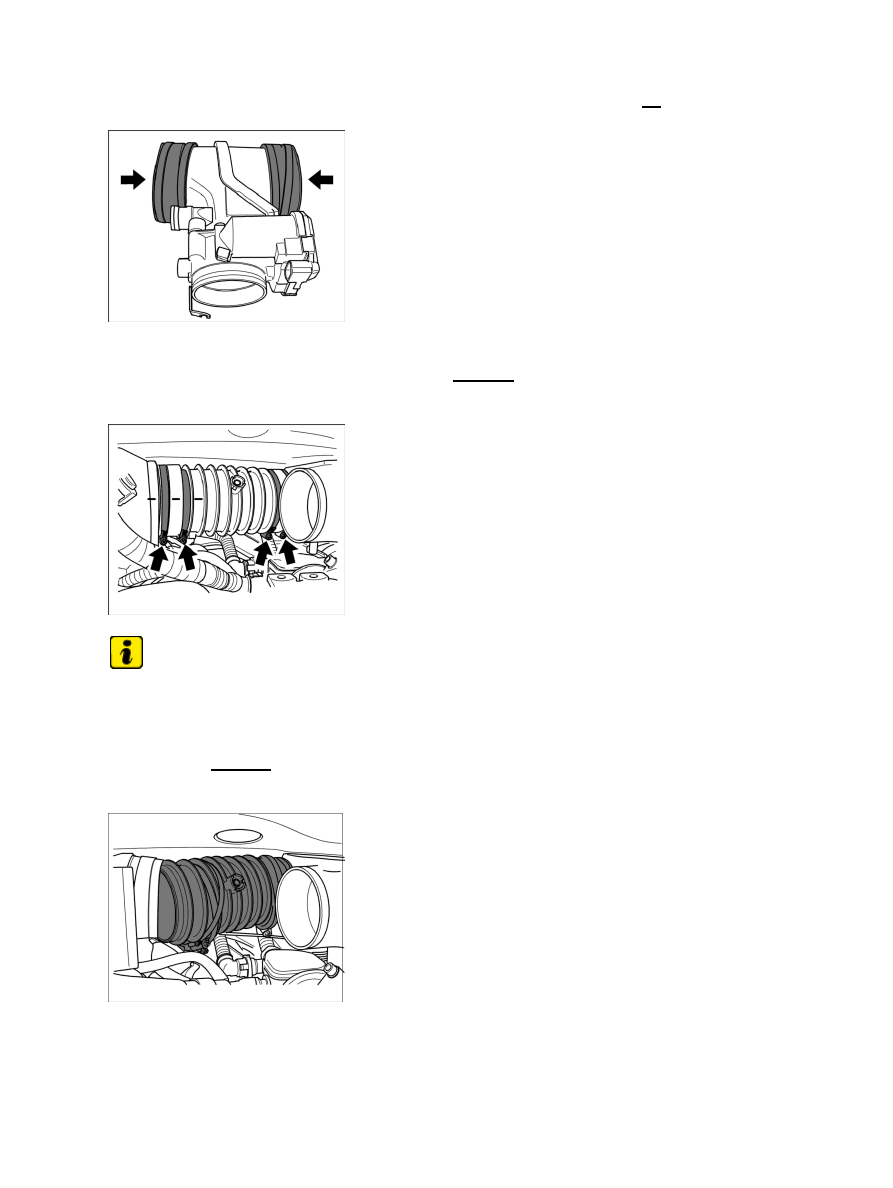

4. Loosen the four screw-type hose clamps on the rubber sleeves to the side intake distributors and

push the rubber sleeves onto the distributor pipe -arrows- . Remove distributor pipe together with
mounted throttle body. Remove distributor pipe from the engine compartment.

Tuning pipe

Note

Before removing tuning pipe, a mark should be made with a felt-tip pen on the intake distributor, rubber
sleeve and tuning pipe so that the position for re-installation is correct.

5. Loosen the four screw-type hose clamps of the tuning pipe on the rubber sleeves to the side intake

distributors -arrows- and push the rubber sleeves onto the intake distributor pipe as far to the side as
possible.

Removing tuning pipe

6. Pull tuning pipe out of the rubber sleeves and remove vacuum hose from the rear vacuum

modulator of the resonance flap. Remove tuning pipe from the engine compartment.

Diagnostic system: reading out fault memory and activating systems

Removing tuning pipe

755

Installing tuning pipe

Installing tuning pipe

1. Wipe out engine oil residues in the intake manifolds and sleeves with a cloth.

Removing tuning pipe

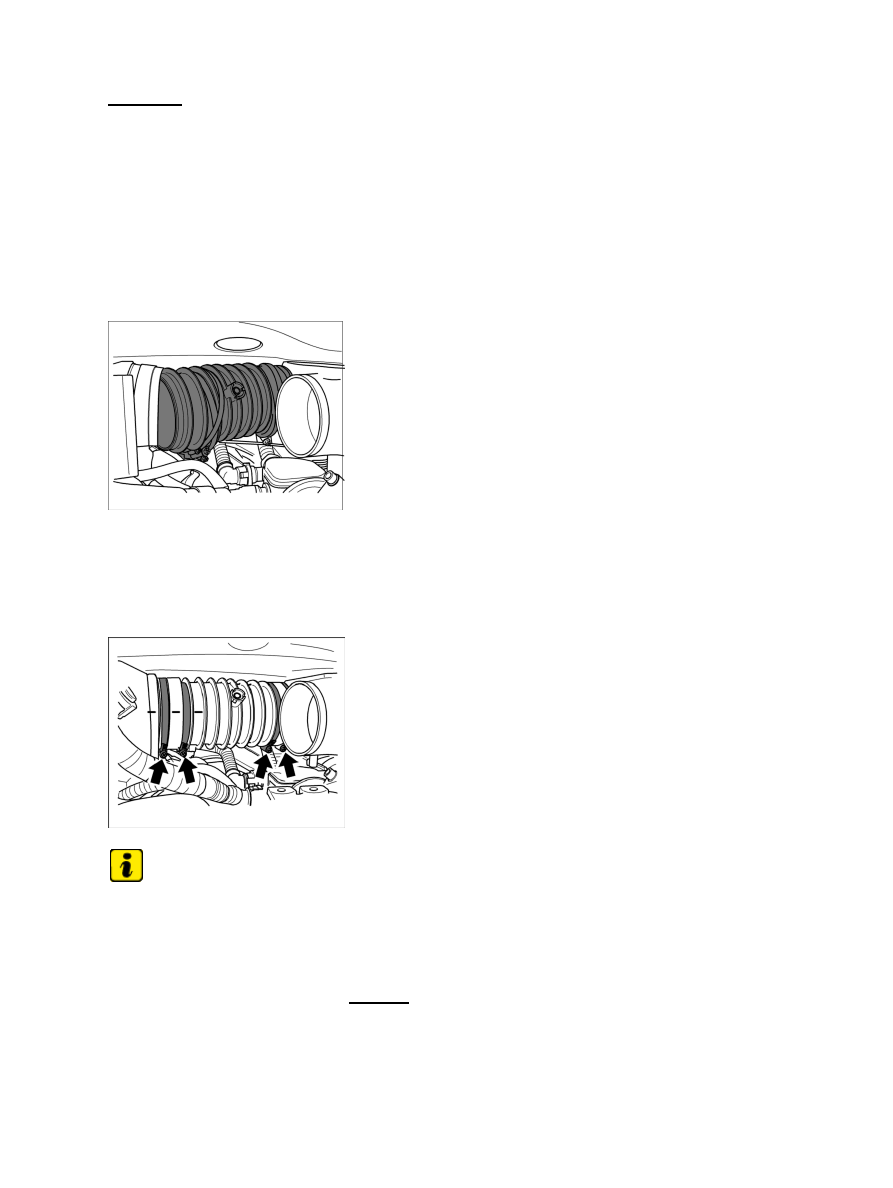

2. Loosen the four screw-type hose clamps of the tuning pipe and push the rubber sleeves as far as

possible onto the side intake distributors.

3. Guide tuning pipe between the intake distributors of both cylinder banks and connect vacuum line to

the vacuum modulator of the tuning pipe. If necessary, clip vacuum line into the rear holder.

Tuning pipe

Note

Before removing tuning pipe, a mark should be made with a felt-tip pen on the intake distributor, rubber
sleeve and tuning pipe so that the position for re-installation is correct.

4. Press tuning pipe between the side rubber sleeves and align with the marking. Make sure that the rubber

sleeves and screw-type hose clamps are pushed equally onto the tuning pipe and intake distributors.
Tighten screw-type hose clamps -arrows- .

Diagnostic system: reading out fault memory and activating systems

 Installing tuning pipe
