Centre roof frame to rear roof frame

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

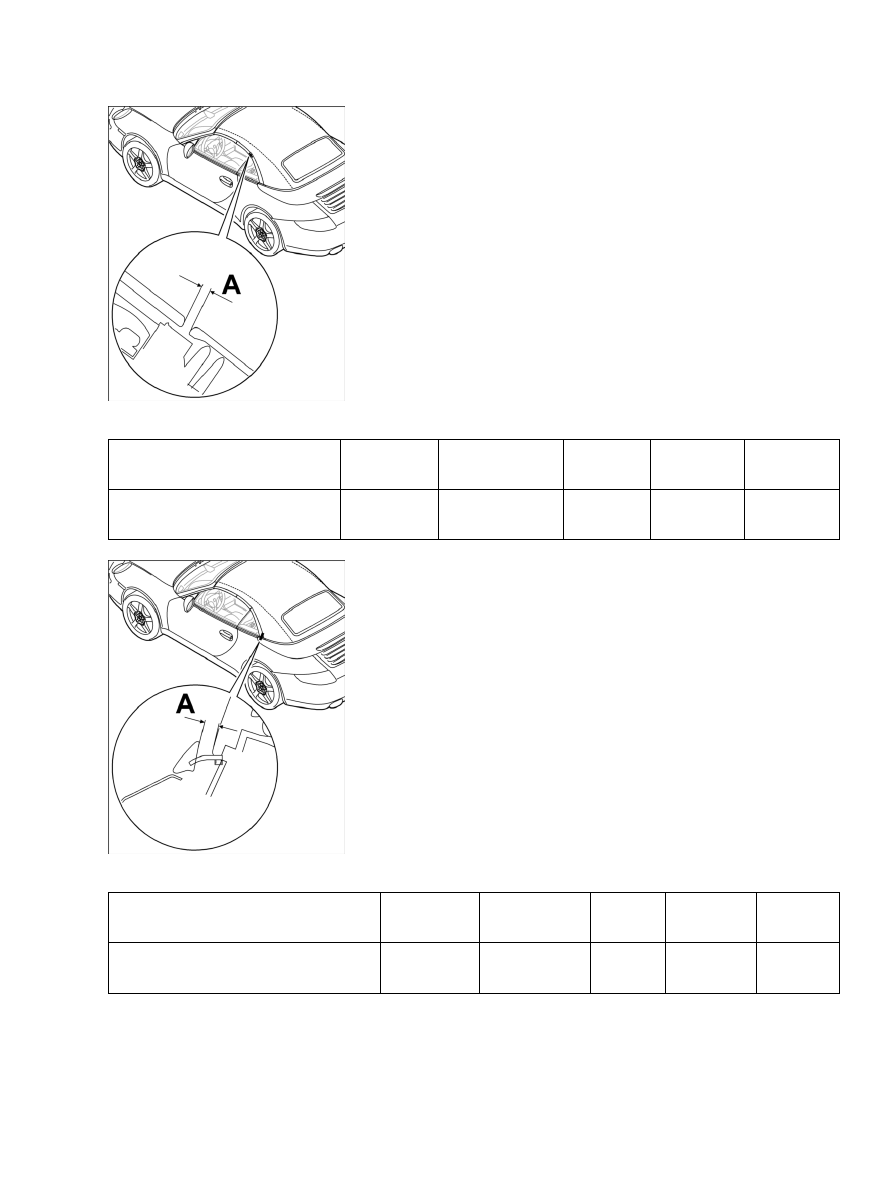

Centre roof frame to rear roof
frame

Gap dimension
A

3.2 mm

+0.5 mm

Rear roof frame to side of convertible-top compartment lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Rear roof frame to side of
convertible-top compartment lid

Gap
dimension A

5 mm

Diagnostic system: reading out fault memory and activating systems

Convertible-top gap dimensions

4681

Rear roof frame to side window

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

Rear roof frame to side
window

Max. closing
depth

Gap dimension
A

10 mm

+9 mm

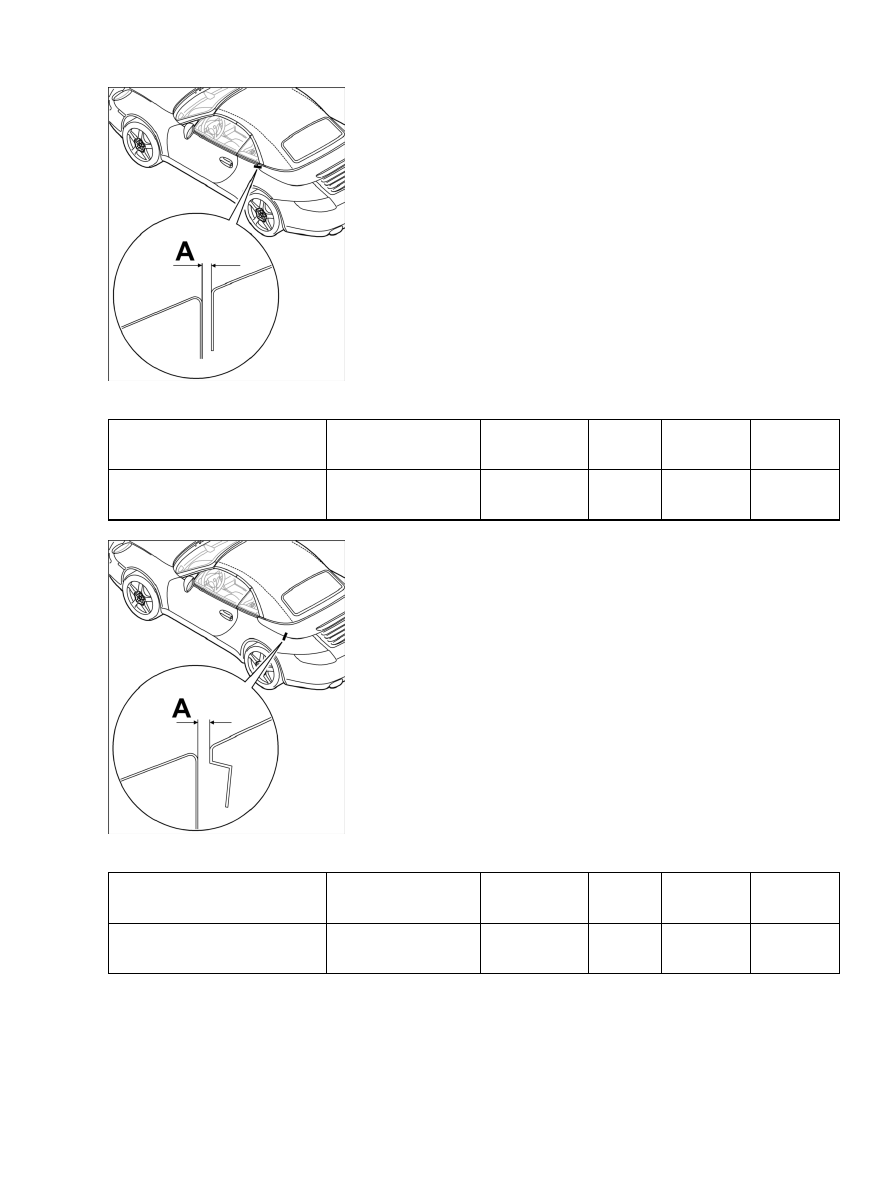

Door window to side window

Location

Explanation

Type

Basic value Tolerance 1 Tolerance 2

Door window to side window

Gap dimension A

9 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Convertible-top gap dimensions

4682

Convertible-top compartment lid to side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment
lid to side panel

Continuous seam
joining line

Gap
dimension A

4 mm

+/-1 mm

Convertible-top compartment lid to side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment
lid to side panel

Continuous seam
joining line

Gap
dimension A

4 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Convertible-top gap dimensions

4683

Convertible-top compartment lid to side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment
lid to side panel

Continuous seam
joining line

Gap
dimension A

5 mm

+/-1 mm

Convertible-top compartment
lid to side panel

Only lowered

Gap
dimension B

1.5 mm

Convertible-top compartment lid to rear lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment lid to
rear lid

Gap dimension
A

5 mm

+/-1 mm

Convertible-top compartment lid to
rear lid

Only lowered Gap dimension

B

0.4 mm
