Porshe 911 (997). Manual - part 1130

Rear centre panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

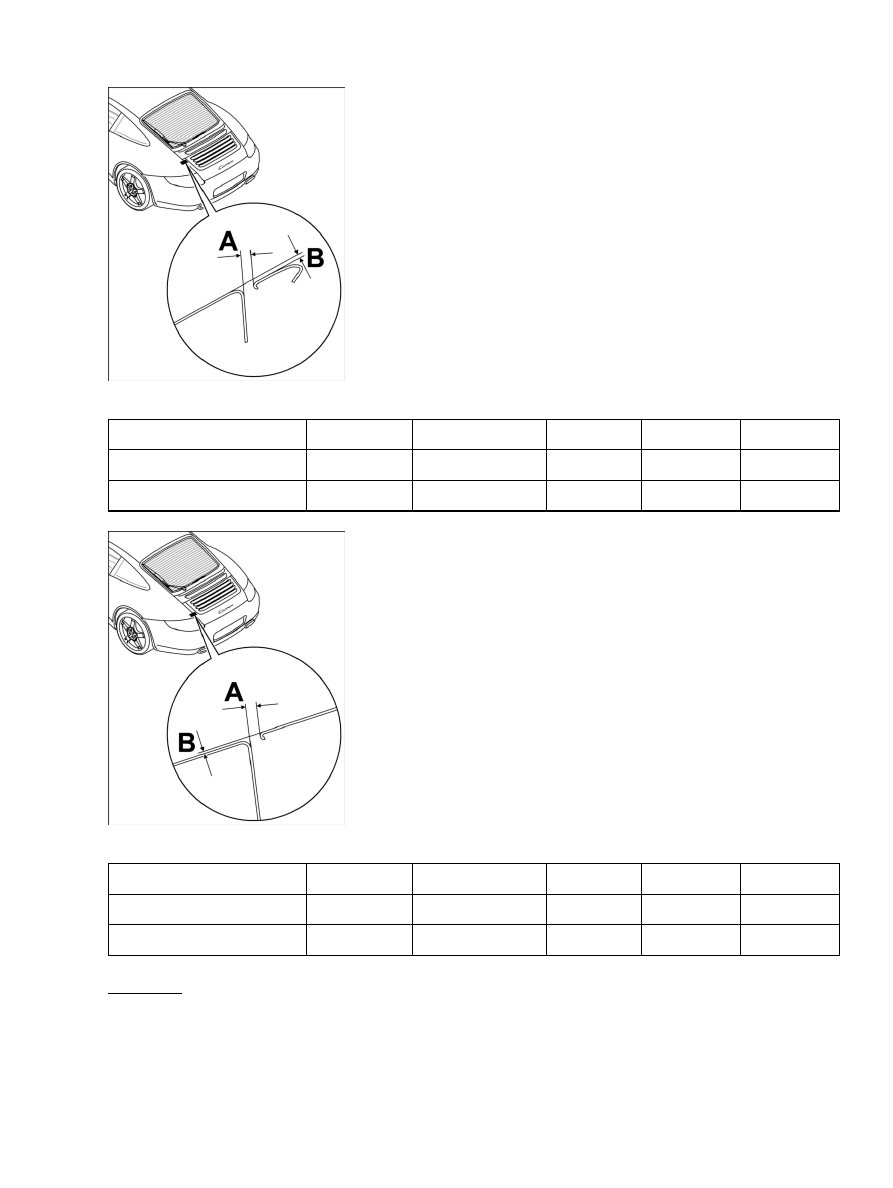

Rear centre panel to rear lid

Gap dimension A

4 mm

+/-1.5 mm

Outer side panel to rear centre panel lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Outer side section to rear centre
panel

Gap dimension
A

4 mm

+/-1 mm

Rear centre panel to outer side
panel

Only lowered Gap dimension

B

1.7 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4677

Outer side panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Outer side panel to rear lid

Gap dimension A

4 mm

+/-1 mm

Outer side panel to rear lid

Only lowered

Gap dimension B

1.7 mm

+/-1 mm

Outer side panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Outer side panel to rear lid

Gap dimension A

4.2 mm

+/-1 mm

Outer side panel to rear lid

Only lowered

Gap dimension B

0.3 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4678

Diagram - Cabriolet gap dimensions

Convertible-top gap dimensions

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

Cowl panel frame to front roof frame

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Cowl panel frame to front
roof frame

Roof frame only
lowered

Gap dimension
A

7 mm

+/-1 mm

1.7 mm

Diagnostic system: reading out fault memory and activating systems

 Diagram - Cabriolet gap dimensions

4679

Cowl panel frame to front
roof frame

Roof frame only
lowered

Gap dimension
B

Front roof frame to centre roof frame

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

Front roof frame to centre roof
frame

Gap dimension
A

3 mm

+/-0.5 mm

Door window to side of roof frame

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

Door window to side of roof
frame

Gap dimension
A

7 mm

+/-1 mm

Door window to side of roof
frame

Gap dimension
B

6 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Convertible-top gap dimensions

4680
