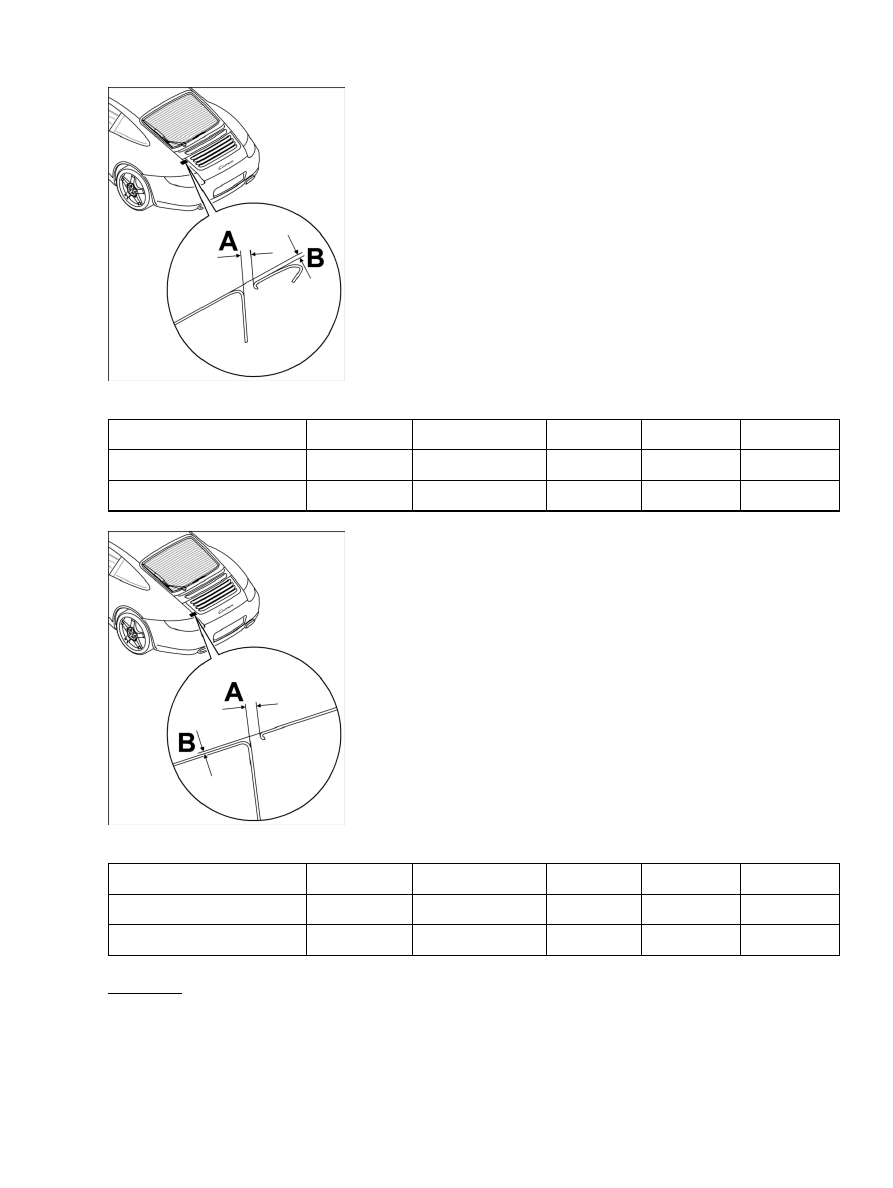

Outer side panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Outer side panel to rear lid

Gap dimension A

4 mm

+/-1 mm

Outer side panel to rear lid

Only lowered

Gap dimension B

1.3 mm

Outer side panel to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Outer side panel to rear lid

Gap dimension A

4.2 mm

+/-1 mm

Outer side panel to rear lid

Only lowered

Gap dimension B

0.6 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4653

Diagram - Cabriolet gap dimensions

Gap dimensions, hardtop

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

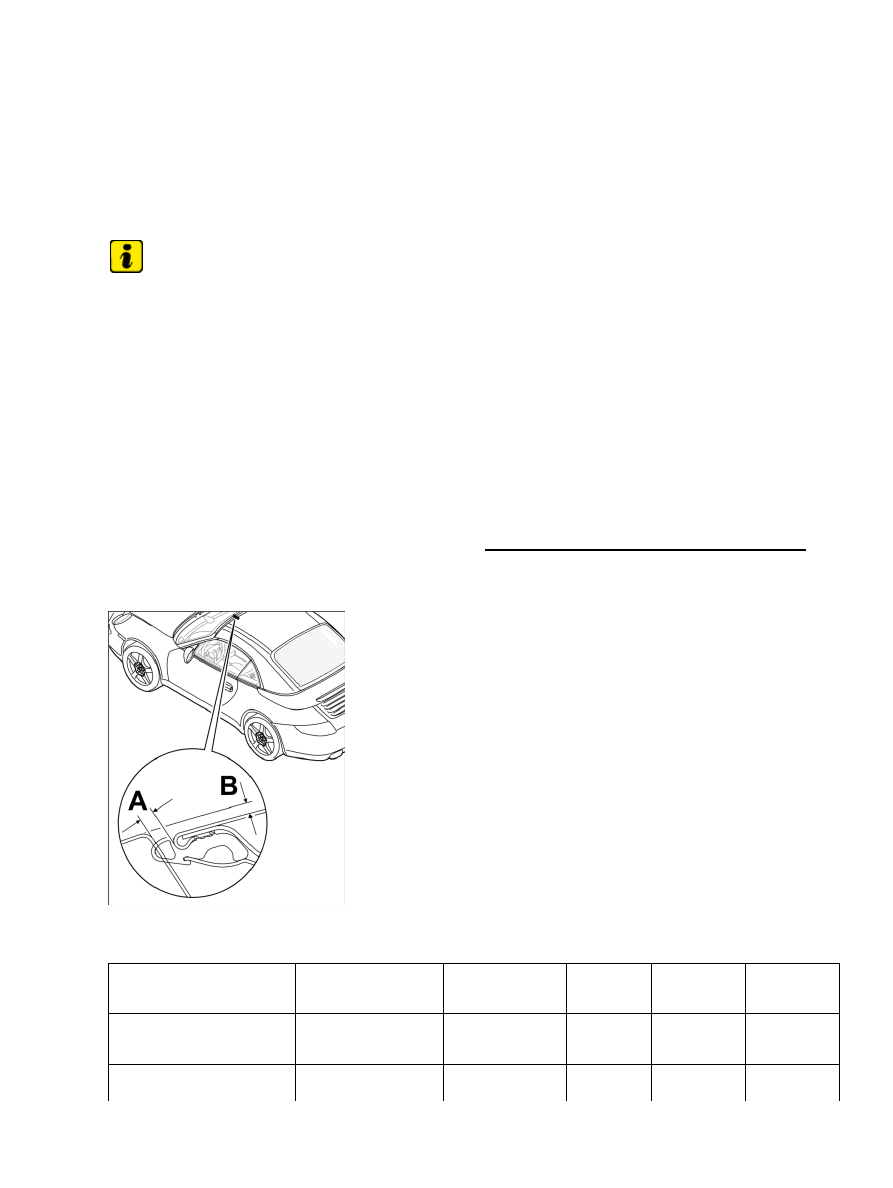

Windscreen frame to hardtop

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

Windscreen frame to
hardtop

Hardtop only
lowered

Gap dimension
A

5.5 mm

+/-1 mm

4 mm

-2 mm

Diagnostic system: reading out fault memory and activating systems

 Diagram - Cabriolet gap dimensions

4654

Windscreen frame to
hardtop

Gap dimension
B

Roof joint strip to hardtop

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Roof joint strip to hardtop

Only lowered

Gap dimension A

1 mm

Rear window to roof frame (hardtop)

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Rear window to roof frame
(hardtop)

Rear window only
lowered

Gap dimension
A

10 mm

Rear window to roof frame
(hardtop)

Gap dimension
B

3 mm

+/-1.5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, hardtop

4655

Hardtop to convertible-top compartment lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Hardtop to convertible-top
compartment lid

Gap dimension
A

8 mm

+/-4 mm

Hardtop to convertible-top compartment lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Hardtop to convertible-top
compartment lid

Gap dimension
A

8 mm

+/-4 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, hardtop
