Door window to side window
Location
Explanation
Type
Basic
value
Tolerance
1
Tolerance
2
Door window to side
window
Door window lowered by
max. 1 mm
Gap dimension
A
7 mm
+/-1 mm

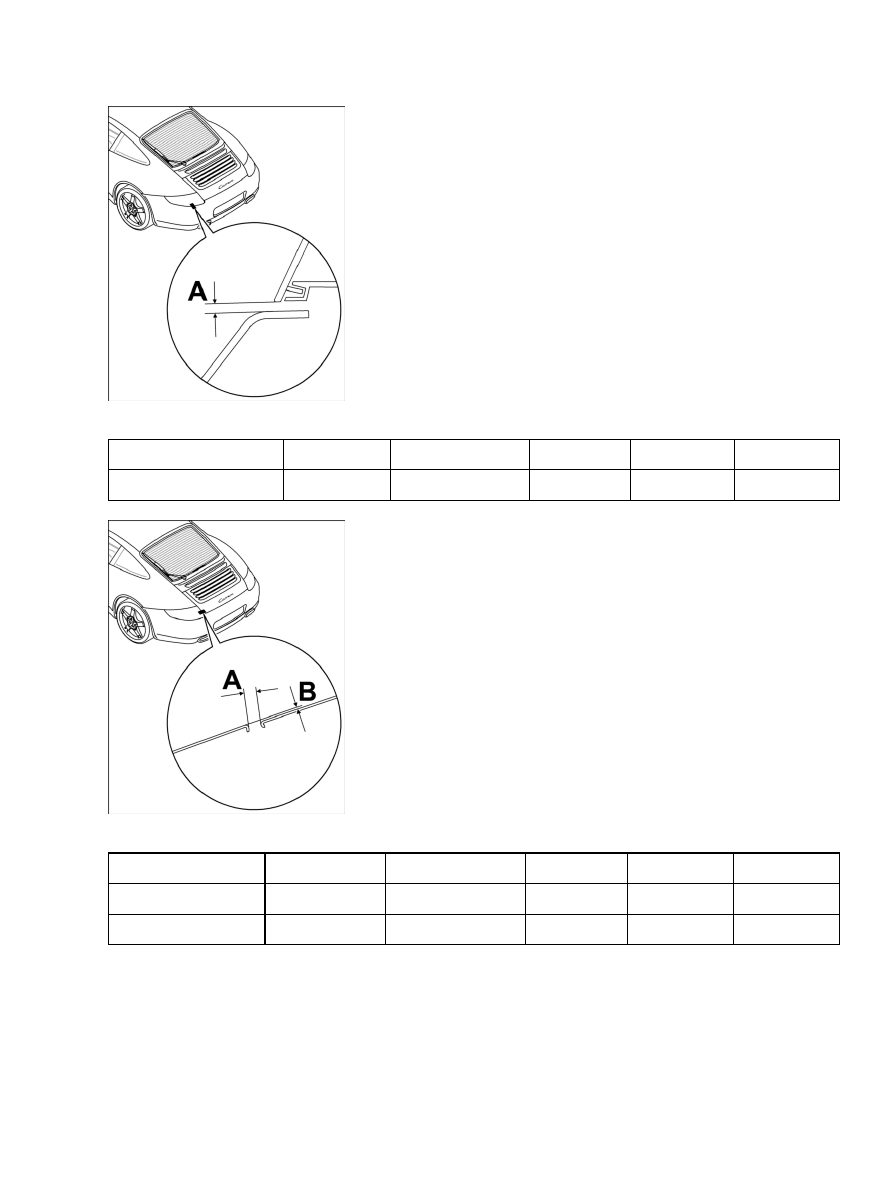

Diagram - body rear gap dimensions
Gap dimensions, body rear
Note
Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.
•
Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.
•
Ensure that the gaps do not taper or do not narrow at local points.
•
The given values are guidelines which should be observed as far as possible.
•
The guidelines apply to repair and assembly work.
•
Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1
•
Diagnostic system: reading out fault memory and activating systems
Diagram - body rear gap dimensions
