- Preliminary work
- Removing wire harness for Tiptronic transmission
- Installing wire harness for Tiptronic transmission
- Subsequent work

Preliminary work

Preliminary work

1. Remove rear underbody cover. → 519419 Removing and installing rear cover - section on "Removing"

Removing wire harness for Tiptronic transmission

Removing wire harness for Tiptronic transmission

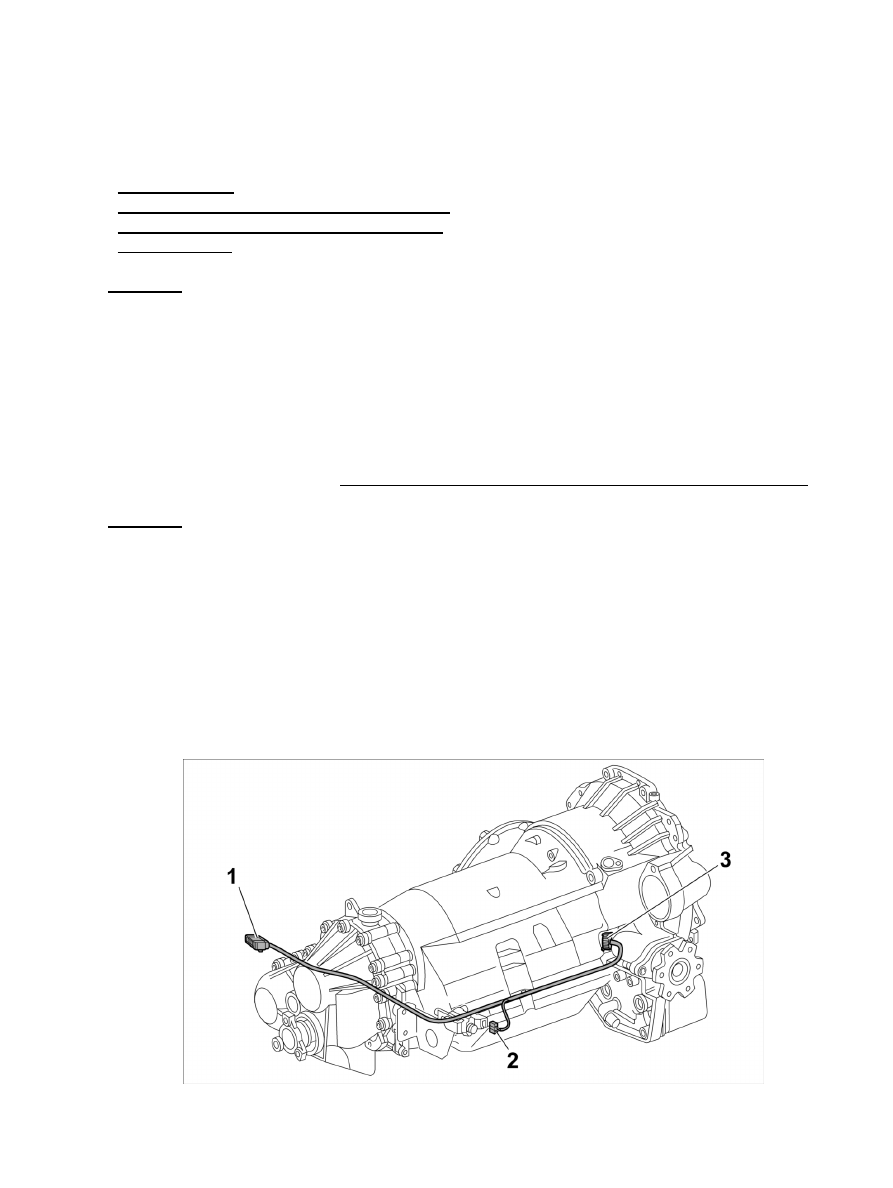

Installation Location:

4525

Installation position of wiring harness for Tiptronic transmission

1

- Plug connection between wire harness for Tiptronic transmission and rear wire harness

2

- Connector for change-over valve

3

- Connector for Tiptronic transmission

Disconnecting plug connection between wire harness for Tiptronic transmission and rear wire harness

1. Disconnect plug connection between wire harness for Tiptronic transmission and rear wire harness -1- .

1.1. Unclip plug connection between wire harness for Tiptronic transmission and rear wire harness -Arrow

B-

1.2. Disconnect plug connection between wire harness for Tiptronic transmission and rear wire harness

-Arrow a- -Arrows C-

 .

Pulling off connector on change-over valve

2. Pull off connector on change-over valve -2- .

2.1. Release connector on change-over valve -Arrow a- and pull off.

Pulling off connector on Tiptronic transmission

3. Pull off connector on Tiptronic transmission -3- .

3.1.

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for Tiptronic transmission

4526

Release connector on Tiptronic transmission by turning anti-clockwise -Arrow a- and remove
-Arrow B-

 .

Removing wire harness for Tiptronic transmission

4. Remove wire harness for Tiptronic transmission.

4.1. Unclip and remove wire harness for Tiptronic transmission from the sheetmetal clips.

Installing wire harness for Tiptronic transmission

Installing wire harness for Tiptronic transmission

Installation Location:

Installation position of wire harness for Tiptronic transmission

1

- Plug connection between wire harness for Tiptronic transmission and rear wire harness

2

- Connector for change-over valve

3

- Connector for Tiptronic transmission

Diagnostic system: reading out fault memory and activating systems

 Installing wire harness for Tiptronic transmission

4527

Installing wire harness for Tiptronic transmission

1. Install wire harness for Tiptronic transmission.

1.1. Lay wire harness for Tiptronic transmission and clip into the sheetmetal clips.

Pushing connector onto Tiptronic transmission

2. Push connector onto Tiptronic transmission -3- .

2.1. Push connector onto Tiptronic transmission -Arrow A- and lock by turning clockwise -Arrow B-

Pushing connector onto change-over valve

3. Push connector onto change-over valve -2- .

3.1. Push connector onto change-over valve until it is felt to engage.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for Tiptronic transmission
