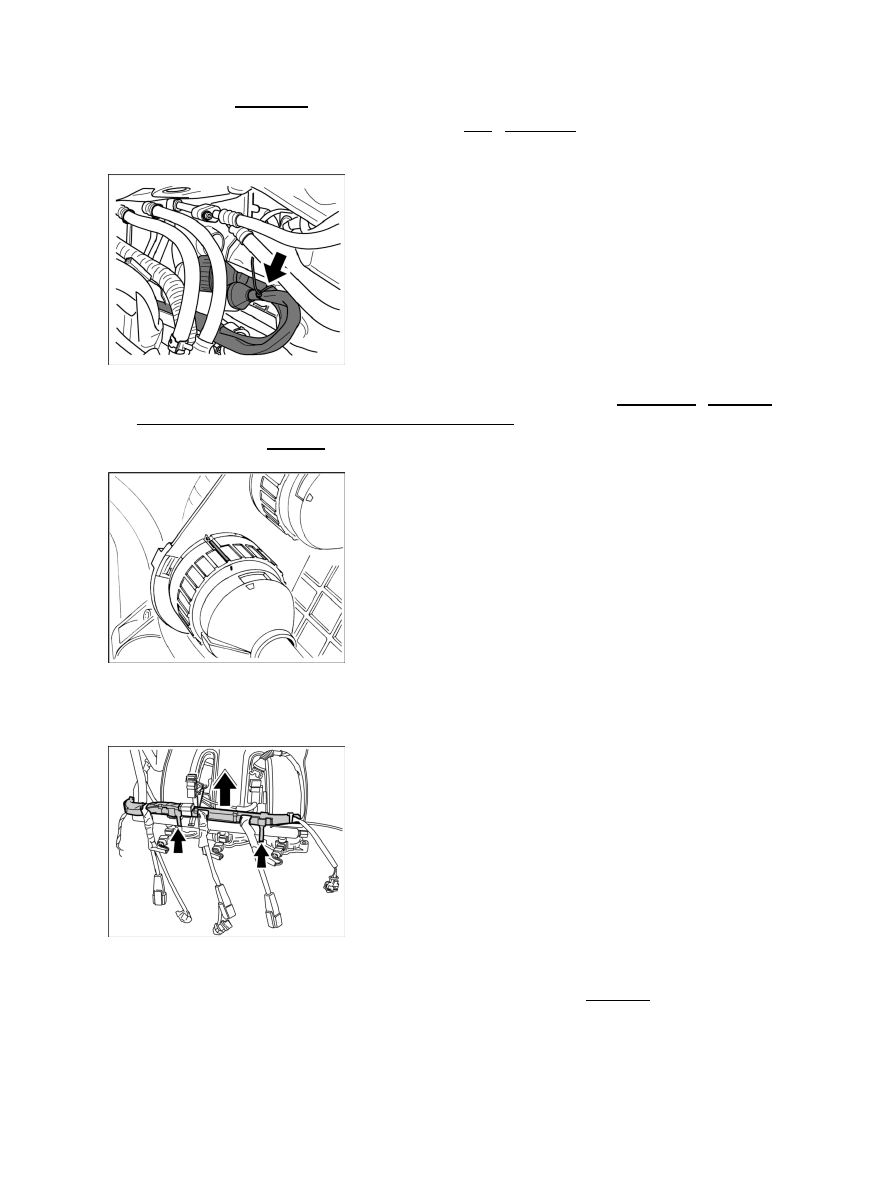

20 - Solenoid hydraulic-valve plug (valve lift control), cylinder row 4 - 6 21 - Ground strap 22 - Ground strap 23 - Speed sender 24 - Connector for intake-pipe change-over switch 25 - Secondary air blower plug 26 - Generator plug 27 - Tank vent connector 28 - Throttle valve connector 29A - Oil level sensor connector, M9605 29B - Oil level sensor connector, M9701 30 - Starter lead for terminal 30 31 - Starter lead for terminal 50 32-33 - Pressure sensor plug 34A - Engine-temperature sensor connector, M9605 34B - Engine-temperature sensor connector, M9701 35 - A/C compressor connector 36 - Water-temperature sensor connector 37-38 - Plug connections for engine wire harness to rear wire harness 1. Release plugs on the six ignition coils -1 to 6- and pull them off. → 287020 Removing and installing spark 2. Release plugs on the six fuel injectors -7 to 12- and pull them off. → 244019 Removing and installing fuel injector - section on "Removing" 3. Release connectors on both knock sensors -15 and 16- and pull them off. → 287219 Removing and installing knock sensor - section on "Removing" 4. Release plugs on both solenoid hydraulic valves (camshaft timing) -17 and 18- and pull them off. → 153719 Removing and installing solenoid hydraulic valve (camshaft timing) - section on "Removing" 5. Release plugs on both solenoid hydraulic valves (valve lift control) -19 and 20- and pull them off. Unscrewing ground straps on engine 6. Unscrew ground straps -22- . 6.1. Unscrew fastening screw and remove ground straps -22- . Diagnostic system: reading out fault memory and activating systems Removing wire harness for engine 4409 |
