2. Insert the fuse carrier cover -1- with both clips -4- into the lateral footwell trim panel -2- and clip in

-arrow B-

 .

Installing lateral footwell trim on passenger's side

Installation Location:

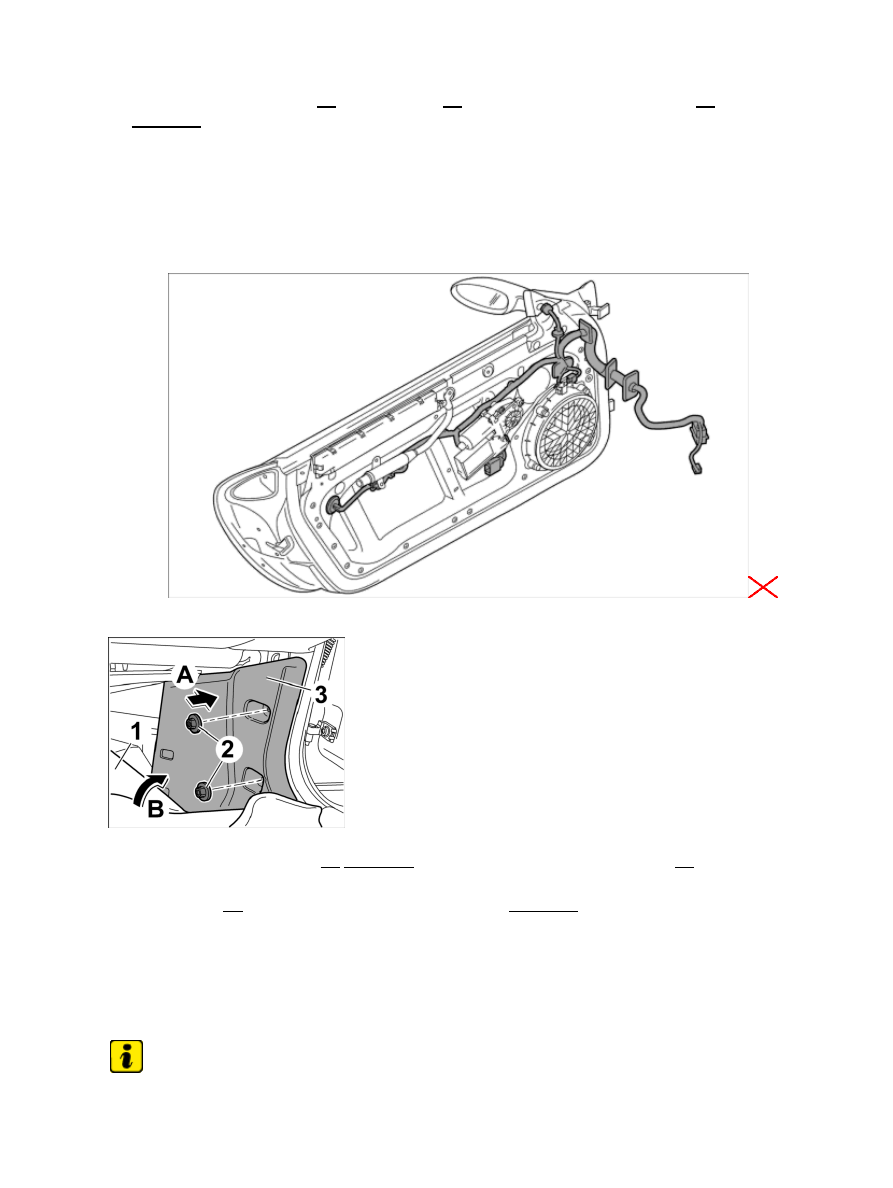

Overview of wiring harness for door

Installing lateral footwell trim on passenger's side

1. Position footwell trim panel -3- -arrow A- and screw down with both plastic nuts -2-

.

2. Fasten carpet -1- at the bottom in the area of the A-pillar -arrow B- Double-sided adhesive tape or

suitable adhesive

.

Installing wiring harness for door trim panel

Note

Diagnostic system: reading out fault memory and activating systems

Installing lateral footwell trim on passenger's side

4365

The wire harness for door trim panel spare parts scope means the scope for fully-equipped vehicles.
Depending on the vehicle equipment, connectors not required are tied to the wire harness for door trim panel
using tie-wraps.
When doing this, ensure the lines are routed correctly so that no line becomes trapped or damaged.

Installation Location:

Overview of wiring harness for door trim panel

1

- Mirror adjustment switch connector

2

- Overview of switch connector for power windows

3

- Midrange loudspeaker connector

4

- Switch connector for memory seat adjustment

5

- Wire harness plug connection for door trim panel to door wire harness

6

- Door control module connector

7

- Door warning light connector

Installing wiring harness for door trim panel

1. Insert wire harness in -direction of arrow- in the clips of the door trim

panel.

2. Clip connector of wire harness plug connection for door trim panel to door wire harness in the door trim

panel -arrow A- .

Diagnostic system: reading out fault memory and activating systems

Installing wiring harness for door trim panel

4366

3. Push connector on to door warning light -7- . → 961619 Removing and installing door warning light -

chapter on "Installing"

4. Attach connector to switch for memory seat adjustment -4- until it engages firmly. → 729419

Removing and installing switch for memory seat adjustment - chapter on "Installing"

5. Push connector on midrange loudspeaker -3- until it is felt to engage. → 914119 Removing and

installing loudspeakers for front doors - chapter on "Installing"

6. Push on connector to switch for power windows -2- until it is felt to engage. → 645819 Removing and

installing switch for power windows - chapter on "Installing"

Subsequent work

Subsequent work for door wiring harness

1. Install head airbag. → 696619 Removing and installing head airbag - chapter on

"installing"

2. Install power window motor. → 645419 Removing and installing power window motor - chapter on

"installing"

3. Install door trim panel. → 705919 Removing and installing door trim panel - chapter on "installing"

4. Connect the battery and carry out "Work instructions after disconnecting the battery". → 271000  Work

instructions after disconnecting the battery

Subsequent work for wiring harness for door trim panel

1. Install door trim panel. → 705919 Removing and installing door trim panel - section on "Installing"

2. Connect the battery and carry out "Work instructions after disconnecting the battery". → 271000  Work

instructions after disconnecting the battery

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
