Porshe 911 (997). Manual - part 1051

Locking wire harness for door (driver's side) at the A-pillar

Installation Location:

Overview of wiring harness for door

Installing rubber sleeve

1. Push wire harness for door -8- through the A-pillar and mount rubber sleeve -8- .

Diagnostic system: reading out fault memory and activating systems

Locking wire harness for door (driver's side) at the A-pillar

4361

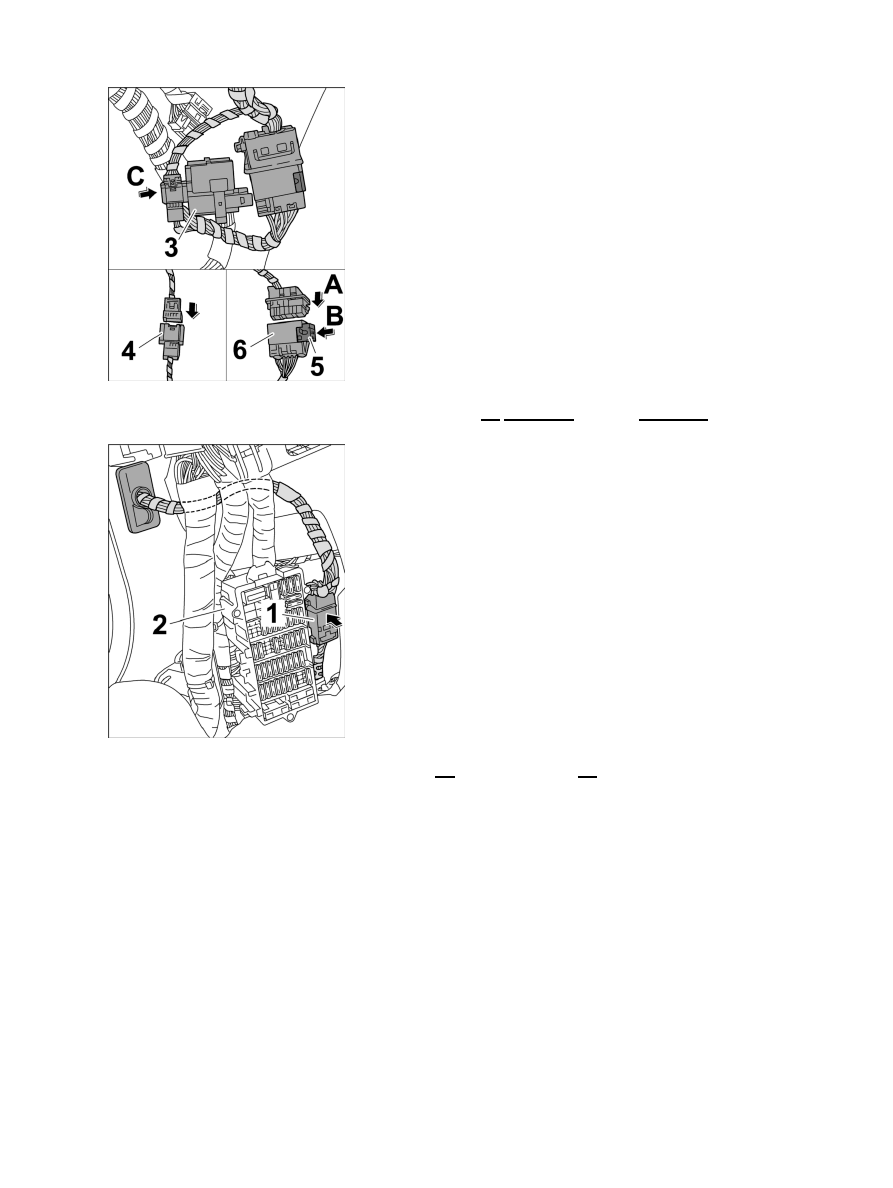

Connecting plug connection

2. Push together wire harness plug connection for door -6- -arrow A- and lock -arrow B-

Clipping in the plug connection

3. Unclip wire harness plug connection for door -1- at the fuse carrier -2- .

Locking wire harness for door (passenger's side) at the A-pillar

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Locking wire harness for door (passenger's side) at the A-pillar

4362

Overview of wiring harness for door

Fitting rubber sleeve

1. Push wire harness for door through the A-pillar and mount rubber

sleeve.

Connecting wire harness plug connection for door

2. Push together wire harness plug connection for door -arrow A- and lock -arrow B- .

Diagnostic system: reading out fault memory and activating systems

Locking wire harness for door (passenger's side) at the A-pillar

4363

Engaging wire harness plug connection for door to the body

3. Engage wire harness plug connection for door to the body.

Installing lateral footwell trim on driver's side

Installation Location:

Overview of wiring harness for door

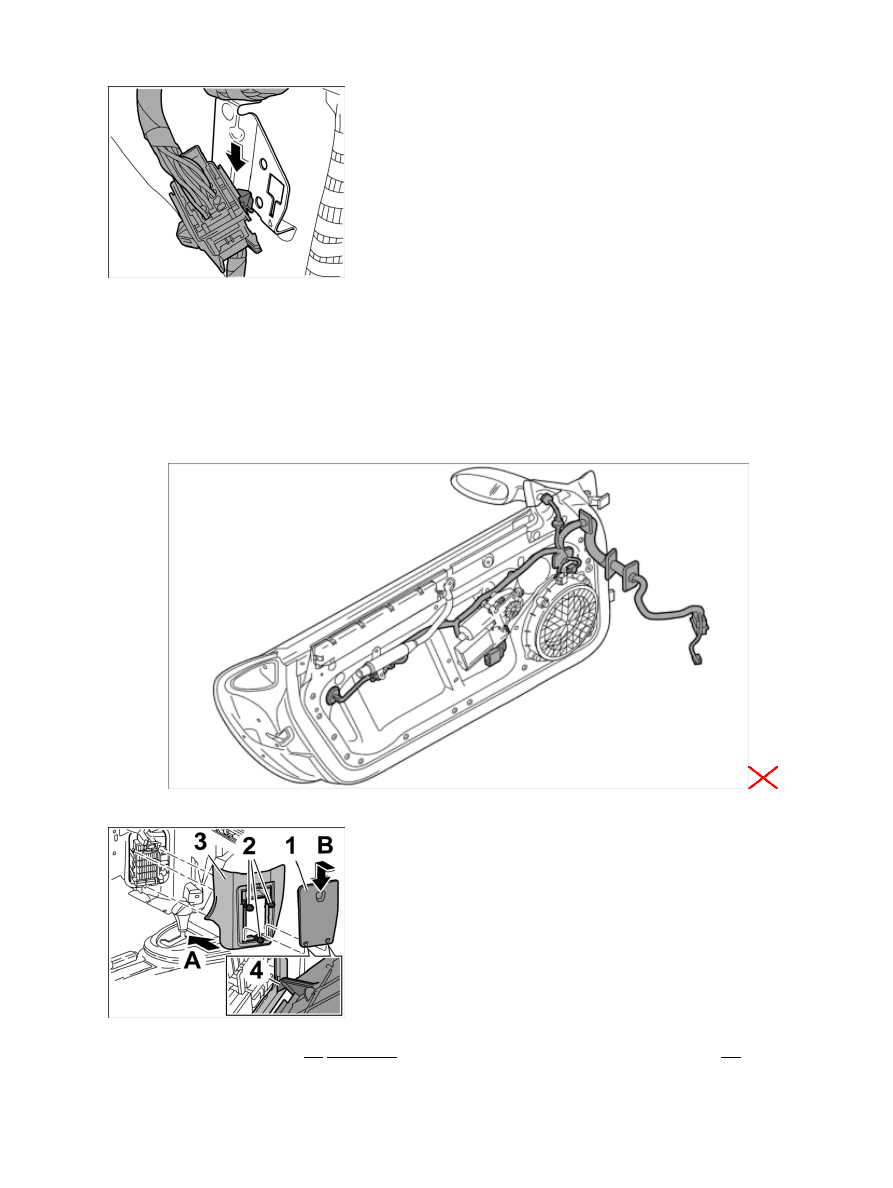

Installing lateral footwell trim on driver's side

1. Insert footwell trim panel -3- -arrow A- and screw down with the three fastening screws -2- . →

Tightening torque: 2 ftlb.

Diagnostic system: reading out fault memory and activating systems

Installing lateral footwell trim on driver's side

4364
