35

- Connector for fluid level indicator sender

36

- Connector for windscreen washer system pump

37

- Connector for headlight washer pump

38

- Connector for wiper motor

39

- Connector for alarm horn

40

- Connector for fuel level sensor

41

- Grommet

1. Push through main wire harness in direction of plenum

panel.

2. Fit grommets -41- centre, left and right.

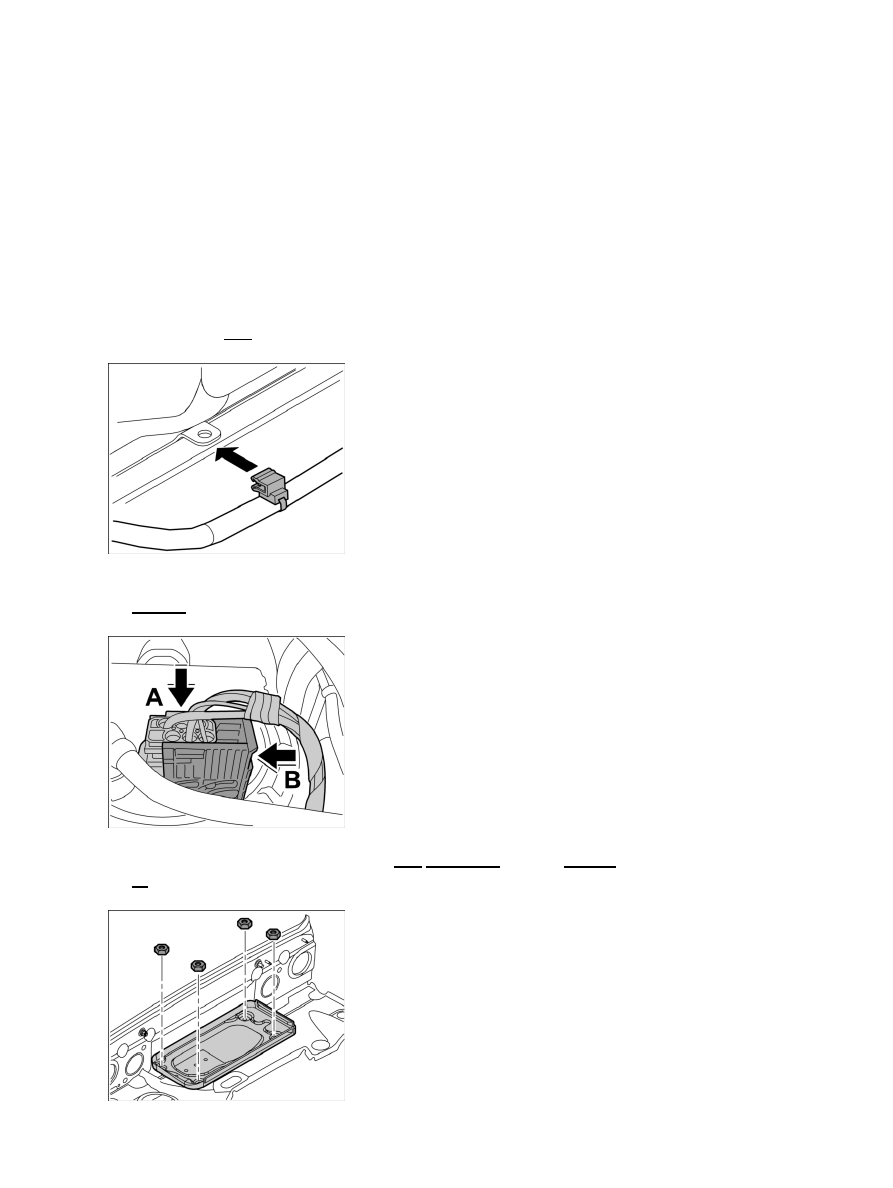

Clipping in wire harness

3. Clip in wire harness on end plate under windscreen at the two retaining clips

-arrow-

 .

Pushing on tank connector

4. Push on connector for fuel level sender -40- -Arrow A- and lock -Arrow

B-

 .

Diagnostic system: reading out fault memory and activating systems

Installing front main wire harness

4277

Removing and installing battery retaining bracket

5. Position battery retaining bracket and secure with the four fastening nuts. → Tightening torque: 10

(7.5 ftlb.) Nm

6. Push on connector for alarm horn -39- until it is felt to engage. → 966519 Removing and installing alarm

siren - chapter on "Installing"

7. Push on connector for wiper motor -38- until it is felt to engage. → 921519 Removing and installing wiper

motor - chapter on "Installing"

Note

Only for vehicles with HBA.

8. Push connector onto front angle sensor for headlight beam adjustment -34- until it is felt to engage.

→ 947819 Removing and installing front angle sensor for headlight beam adjustment - chapter on
"Installing"

9. Push on connectors for windscreen washer system spray nozzle, left and right -32 and 33- until they

are felt to engage. → 926619 Removing and installing spray nozzle for windscreen washer system -
chapter on "Installing"

Connecting PASM plug connection

10. Connect plug connections for PASM, front left and right -30 und 31- until they are felt to engage.

11. Push B+ line -29- onto mounting point at the power distributor as far as the stop. Check B+ line sits

firmly. → 978919 Removing and installing power distributor - chapter on "Installing"

Note

Only for vehicles with I number 536

12. Push on connector for alarm siren -28- until it is felt to engage. → 966519 Removing and installing alarm

siren - chapter on "Installing"

13. Push on connector for pressure switch -27- until it is felt to engage. → 878319 Removing and installing

pressure switch - chapter on "Installing"

14. Push on connector of vertical sensor -26- until it is felt to engage.

15. Push on connector for radio antenna -25- until it felt to engage. → 914719 Removing and installing radio

antenna - chapter on "Installing"

16. Push on connector for GPS antenna -24- until it is felt to engage. → 914719 Removing and installing radio

antenna - chapter on "Installing"

Diagnostic system: reading out fault memory and activating systems

Installing front main wire harness

4278

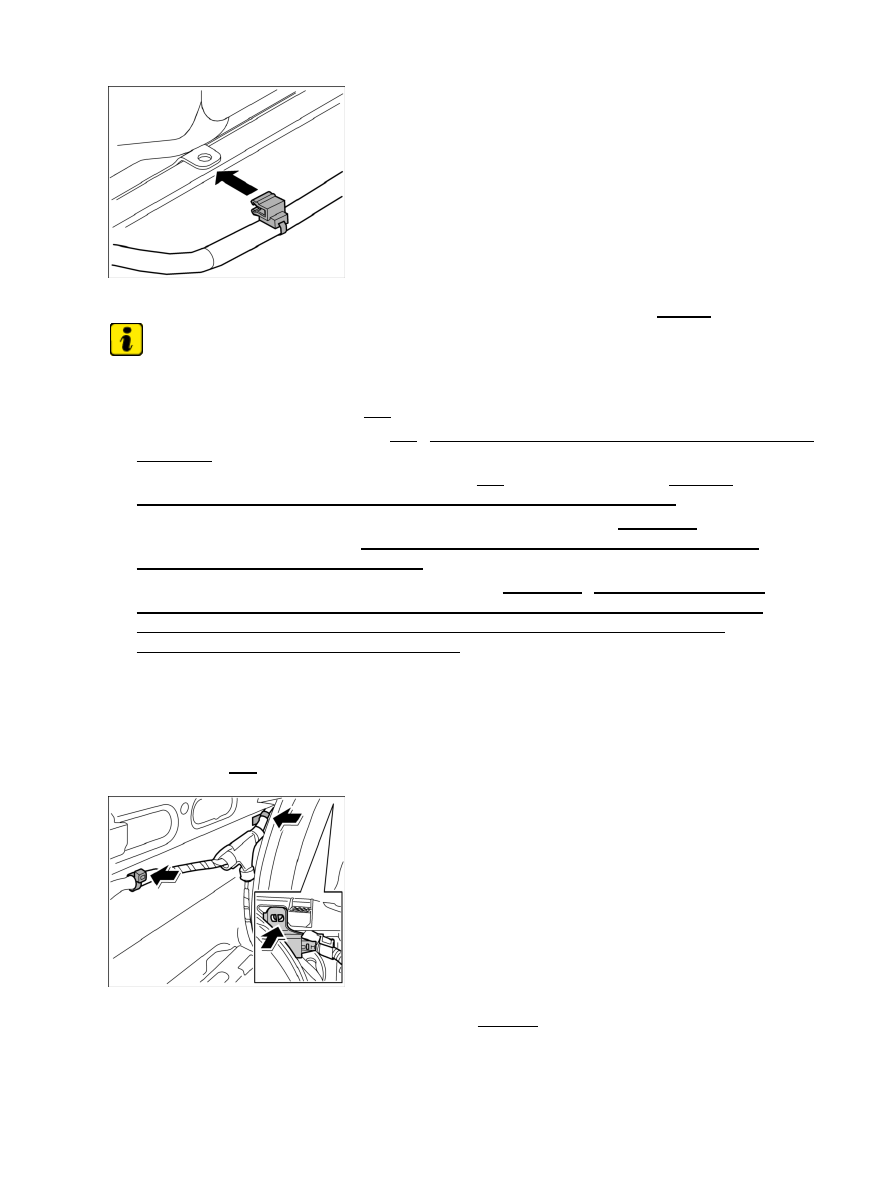

Clipping in wire harness

17. Clip in wire harness for end plate under windscreen at the three retaining clips -arrow- .

Note

Only in the cabriolet.

18. Push in connector for rod antenna -23- until it is felt to engage.

19. Push on connector for tank filler neck -22- . → 200719 Removing and installing filler neck - chapter on

"Installing"

20. Push on connector for filler flap switching element -21- until it is felt to engage. → 553819

Removing and installing switching element for filler flap - chapter on "Installing"

21. Push on connectors of front antenna for tyre pressure monitoring system -19 and 20- at left and

right until they are felt to engage. → 443819 Removing and installing antenna for tyre pressure
monitoring system - chapter on "Installing"

22. Lay and connect ABS wire harness, front left and right -17 and 18- . → 976555 Replacing ABS

wire harness - chapter on "Installing" [997110 997111 997120 997121 997310 997311 997320
997321]→ 976555 Replacing ABS wire harness - chapter on "Installing" [997410 997411
997430 997431 997610 997611 997620 997621]

22.1. Laying ABS wire harness

22.2. Tighten fastening screw of connector socket. → Tightening torque: 10 (7.5 ftlb.) Nm

22.3. Lock the plug connection securely.

23. Push through main wire harness in direction of luggage compartment.

24. Fit grommets -16- left and right.

Clipping in wire harness to CD changer/navigation unit.

25. Clip in wire harness to CD changer/navigation unit -arrows- .

Diagnostic system: reading out fault memory and activating systems

Installing front main wire harness

4279

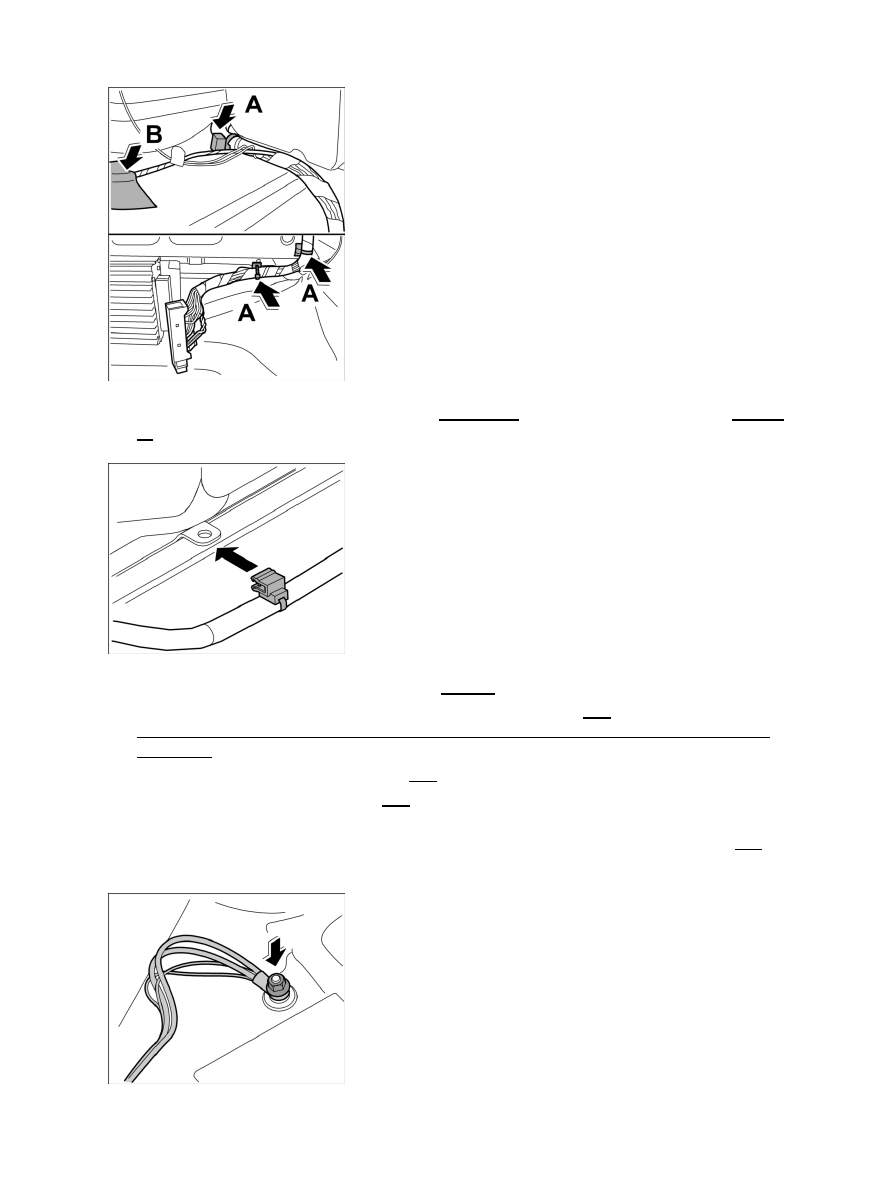

Clipping in wire harness to loudspeaker amplifier

26. Clip in wire harness to loudspeaker amplifier -Arrows A- and fix with new adhesive tape -Arrow

B-

 .

Clipping in wire harness

27. Clip in wire harness for front end control unit -arrow- .

28. Push on connector for tyre pressure monitoring system control unit -15- until it is felt to engage.

→ 443419 Removing and installing control unit for tyre pressure monitoring system - chapter on
"Installing"

29. Push on connector for brake fluid sender -14- until it is felt to engage.

30. Push on connector for hydraulic unit -13- and lock it. → 453019 23 Removing and installing hydraulic

unit - chapter on "Installing"

31. Push together plug connection between main wire harness and front-end wire harness, left -12- until it

engages securely. Clip in connector socket.

Diagnostic system: reading out fault memory and activating systems

Installing front main wire harness

4280
