Porshe 911 (997). Manual - part 1006

- Removing glove compartment light
- Installing glove compartment light

Removing glove compartment light

Removing glove compartment light

ATTENTION

Danger of damage to property if bulbs are used or handled incorrectly!

Risk of damage to bulbs and bulb housing.

•

→ Switch off ignition and remove ignition key.

→ To prevent short circuits, the load in question must be switched off while changing bulbs.

→ Only bulbs specified in the bulb table may be used.

→ Bulbs with a higher wattage may damage the bulb housing.

→ New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands.

Use a cloth or soft paper when changing bulbs.

→ In certain states, it is compulsory to carry spare light bulbs.

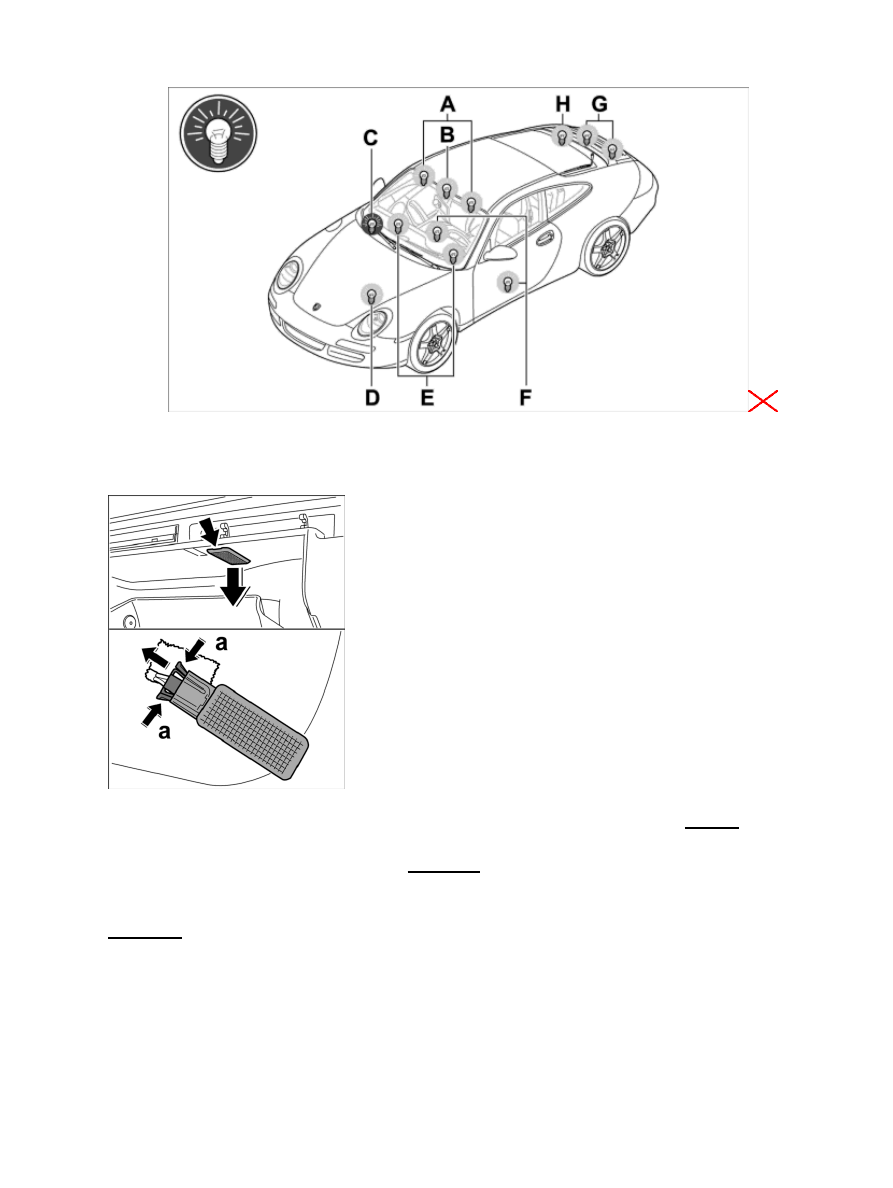

Installation Location:

4181

Glove compartment light overview

C

- Glove compartment light

Removing glove compartment light

1. Press glove compartment light carefully out of the glove compartment at the cutout -arrow- using a

screwdriver.

2. Release plug on glove compartment light -arrows a- and pull it off.

3. Remove glove compartment light.

Installing glove compartment light

Diagnostic system: reading out fault memory and activating systems

Removing glove compartment light

4182

Installing glove compartment light

Note

Only use the relevant bulb specified in the bulb table →  IN IN - Bulb table and installation instructions -
"Information" chapter.

Installation Location:

Glove compartment light overview

C

- Glove compartment light

Installing glove compartment light

1. Push plug on to glove compartment light until the plug is felt to

engage.

2. Press glove compartment light into the glove compartment.

Diagnostic system: reading out fault memory and activating systems

Installing glove compartment light

4183

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

Diagnostic system: reading out fault memory and activating systems

Installing glove compartment light

4184
