Porshe 911 (997). Manual - part 74

Chain tensioner, cylinders 1 - 3

6. Insert chain tensioner for cylinder 1 - 3 with new sealing ring (hexagon a/f 32) and tighten to the

specified torque. → Tightening torque: 80 (59 ftlb.) Nm

7. Secure coolant pipe on cylinder side 4 - 6 with two M6 x 12 hexagon-head bolts. → Tightening torque:

10 (7.5 ftlb.) Nm

8. Fit new closure caps on cylinder head cover.

9. Pull locating pin out of crankshaft belt pulley.

Installing bearing cover for intermediate shaft - from engine number 695 07
476

ATTENTION

Risk of damage due to particles of dirt.

Oil bores/oil ducts can become blocked up.

•

→ When working on the engine, absolute cleanliness is essential.

→ Lay removed engine parts on a clean base and cover them without fail.

→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.

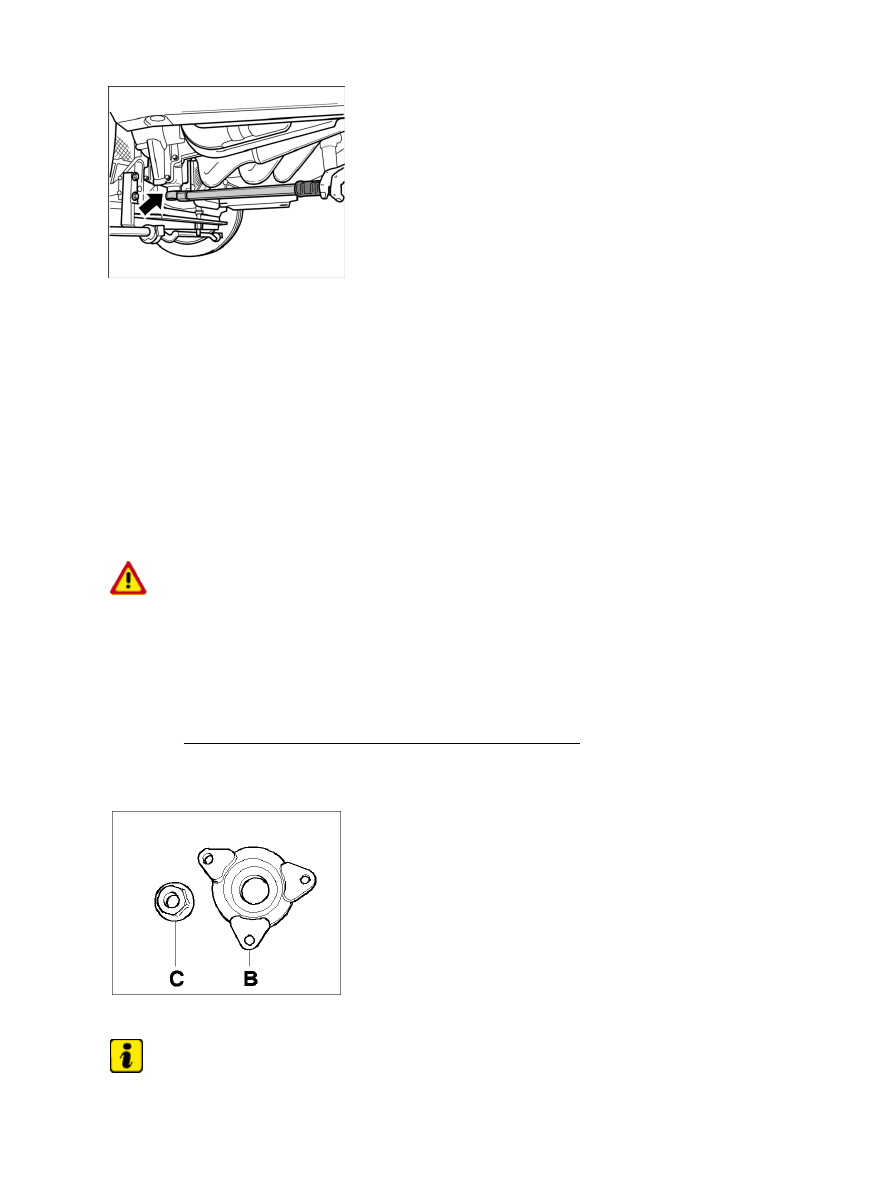

New bearing cover for intermediate shaft

Note

Always observe specified engine number range.

Diagnostic system: reading out fault memory and activating systems

Installing bearing cover for intermediate shaft - from engine number 695 07 476

453

New bearing cover.

B - Bearing cover 996.105.024.06

•

C - Collar nut, M12 x 1.25

•

Note

Clean working area of bore for bearing cover and crankcase thoroughly using acetone or solvent
naphtha.

•

1. Before installing the new bearing cover, check the fitted bore (axial attachment surface, bore chamfers) on

the crankcase for sharp edges and burrs. They should be removed with an oilstone or a polishing cloth.
Remove any existing residue and clean the bore with a clean cloth soaked in solvent naphtha or acetone.

Note

Replace bearing cover or sealing ring for bearing cover → 152355 Replacing sealing ring for
intermediate shaft.

•

2. Grease fitted bore in crankcase and new bearing cover (with new sealing ring) with special grease

Optimoly MP3 (available from Porsche Parts Service) and place bearing cover in position.

Note

Replace collar nut M12 and coated M6 screws for bearing cover.

•

3. Position three new, coated M6 x 20 screws on the crankcase and pull in the bearing cover by

screwing in the screws uniformly. Tighten the screws. → Tightening torque: 10 (7.5 ftlb.) Nm

Threaded joint with collar nut on bearing cover for intermediate shaft

4. Position new M12 x 1.25 collar nut on the threaded pin of the intermediate shaft. Then tighten the nut

using special tool assembly tool P 9673/1. At the same time, counter with an angle screwdriver in the
slotted threaded pin of the intermediate shaft. → Tightening torque : 20 (15 ftlb.) Nm +/-1 (0.5 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

Installing bearing cover for intermediate shaft - from engine number 695 07 476

454

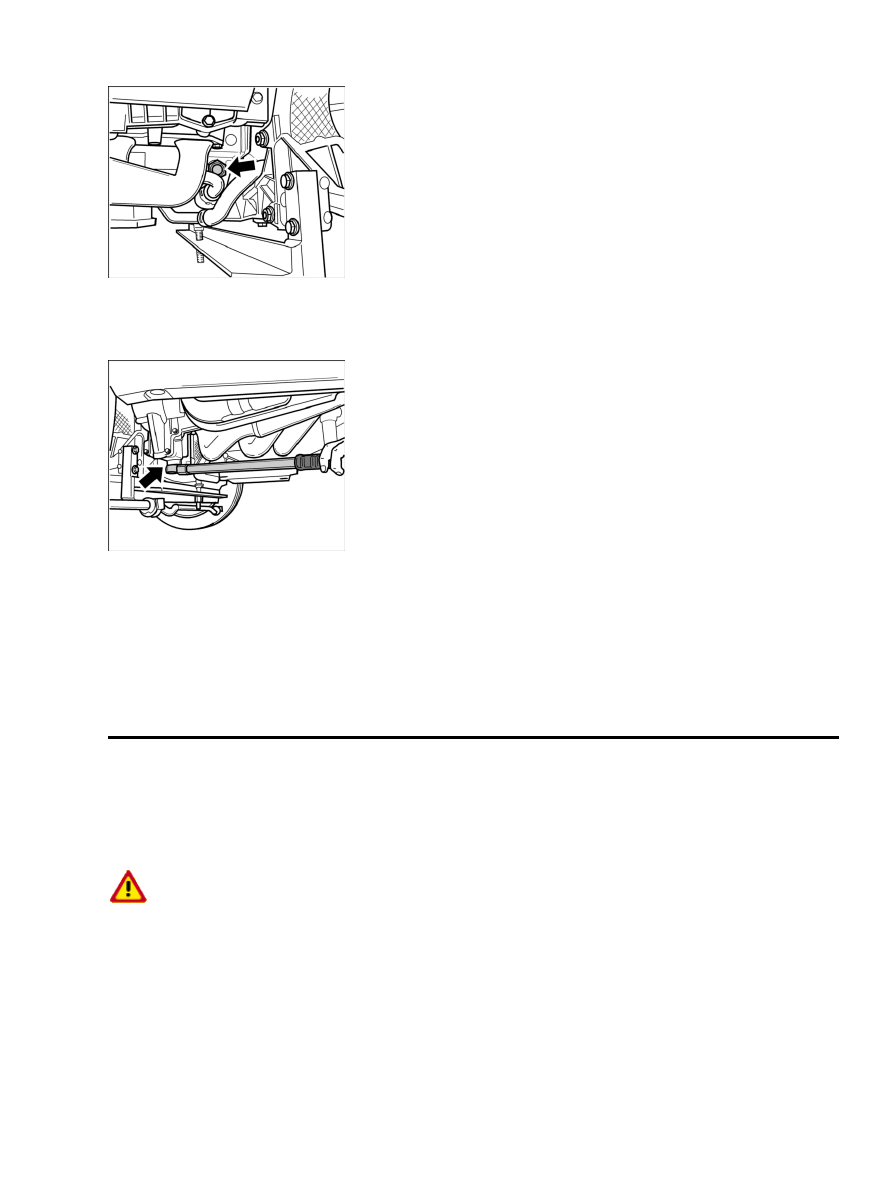

Primary chain tensioner

5. Insert primary chain tensioner with new sealing ring (hexagon a/f 32) and tighten to the specified torque.

→ Tightening torque: 80 (59 ftlb.) Nm

Chain tensioner, cylinders 1 - 3

6. Insert chain tensioner for cylinder 1 - 3 with new sealing ring (hexagon a/f 32) and tighten to the

specified torque. → Tightening torque: 80 (59 ftlb.) Nm

7. Secure coolant pipe on cylinder side 4 - 6 with two M6 x 12 hexagon-head bolts. → Tightening torque:

10 (7.5 ftlb.) Nm

8. Fit new closure caps on cylinder head cover.

9. Pull locating pin out of crankshaft belt pulley.

997110, 997111, 997310, 997311, 997410, 997411, 997610, 997611

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

Diagnostic system: reading out fault memory and activating systems

Installing bearing cover for intermediate shaft - from engine number 695 07 476

455

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Diagnostic system: reading out fault memory and activating systems

Installing bearing cover for intermediate shaft - from engine number 695 07 476
