Diagnostic system: reading out fault memory and activating systems

Installing bearing cover for intermediate shaft - from engine number 695 07 476

457

- Preliminary work for bearing cover sealing ring
- Replacing sealing ring for bearing cover for intermediate shaft
- Subsequent work for bearing cover sealing ring

Preliminary work for bearing cover sealing ring

Preliminary work for bearing cover sealing ring

1. Remove bearing cover for intermediate shaft → 152119 Removing and installing bearing cover for

intermediate shaft - chapter on "removing" [997110 997111 997310 997311 997410 997411 997610
997611]→ 152119 Removing and installing bearing cover for intermediate shaft - chapter on
"removing" [997120 997121 997320 997321 997430 997431 997620 997621].

Replacing sealing ring for bearing cover for intermediate shaft

Replacing sealing ring for bearing cover for intermediate shaft

Installation position of sealing ring

458

Sealing ring on bearing cover

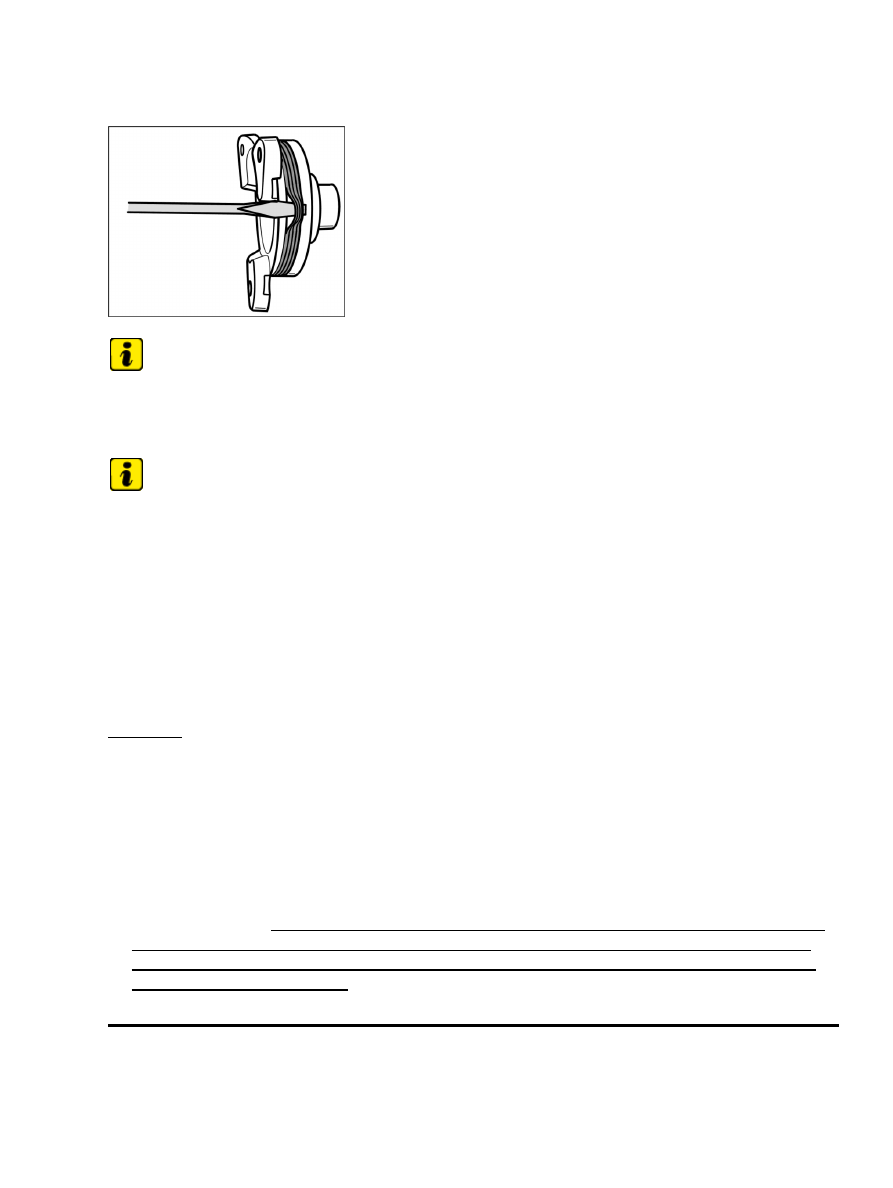

Levering off sealing ring

Note

Do not use a sharp object to lever off the sealing ring.

1. Carefully lever off sealing ring with a small piece of wood or a plastic spatula in order to avoid damaging

the groove.

Note

Before fitting the new sealing ring, check the edges of the bearing cover for burred spots. Carefully
remove these using an oilstone or polishing cloth. Clean bearing cover (without sealing ring)
thoroughly using acetone or solvent naphtha.

•

2. Insert new sealing ring into the groove on the bearing cover by hand. The sealing ring can be fitted in any

direction since the sealing lips are facing vertically upwards and do not therefore have to be fitted in a
specific direction.

3. Before installation, grease the new sealing ring on the bearing cover and the fitting bore in the crankcase

with special grease Optimoly MP3 (available from Porsche Parts Service).

Subsequent work for bearing cover sealing ring

Subsequent work for bearing cover sealing ring

1. Install bearing cover → 152119 Removing and installing bearing cover for intermediate shaft - chapter on

"installing" [997110 997111 997310 997311 997410 997411 997610 997611]→ 152119 Removing and
installing bearing cover for intermediate shaft - chapter on "installing" [997120 997121 997320 997321
997430 997431 997620 997621].

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

Replacing sealing ring for bearing cover for intermediate shaft
