Porshe 911 (997). Manual - part 14

mounting elements

commercially
available tool

9590

retaining device

commercially
available tool

9593

socket wrench insert

commercially
available tool

9594

retaining tool

special tool

9685

Diagnostic system: reading out fault memory and activating systems

Tools

213

adjusting gauge

special tool

9686

holding wrench

special tool

9732

cover for dust protection
when fitting the engine

commercially
available tool

NR.165

Preliminary work for disassembling engine

Preliminary work for disassembling engine

1. Remove engine → 101019 21 Removing and installing engine - section on "Removing".

2. Remove transmission → 373527 Removing and refitting automatic transmission - section on

"Removing" [997110 997111 997120 997121 997310 997311 997320 997321]→ 373527 A3 Removing
and refitting automatic transmission - section on "Removing" [997410 997411 997430 997431 997610
997611 997620 997621] or → 343527 Removing and refitting transmission - section on "Removing".

Tiptronic transmission:

3. Remove converter housing → 324319 Removing and installing converter housing - section on

"Removing".

4. Remove drive plate for converter → 136319 Removing and installing drive plate for converter - section on

"Removing".

Diagnostic system: reading out fault memory and activating systems

 Preliminary work for disassembling engine

214

Manual transmission:

5. Remove clutch → 305019 Removing and installing clutch - section on "Removing".

6. Remove double-mass flywheel → 136019 Removing and installing double-mass flywheel - section on

"Removing" [997110 997111 997310 997311 997410 997411 997610 997611]→ 136019 Removing and
installing double-mass flywheel - section on "Removing" [997120 997121 997320 997321 997430
997431 997620 997621].

7. Remove rear silencer and catalytic converters.

Component overview - engine

Component overview - engine

Note

The overview graphics are shown schematically and may be slightly different to how the components actually
look.

Peripheral engine component 1

Intake system, belt drive

1 - Intake distributor

•

2 - Belt drive

•

3 - Belt guide and belt tensioner

•

Diagnostic system: reading out fault memory and activating systems

Preliminary work for disassembling engine

215

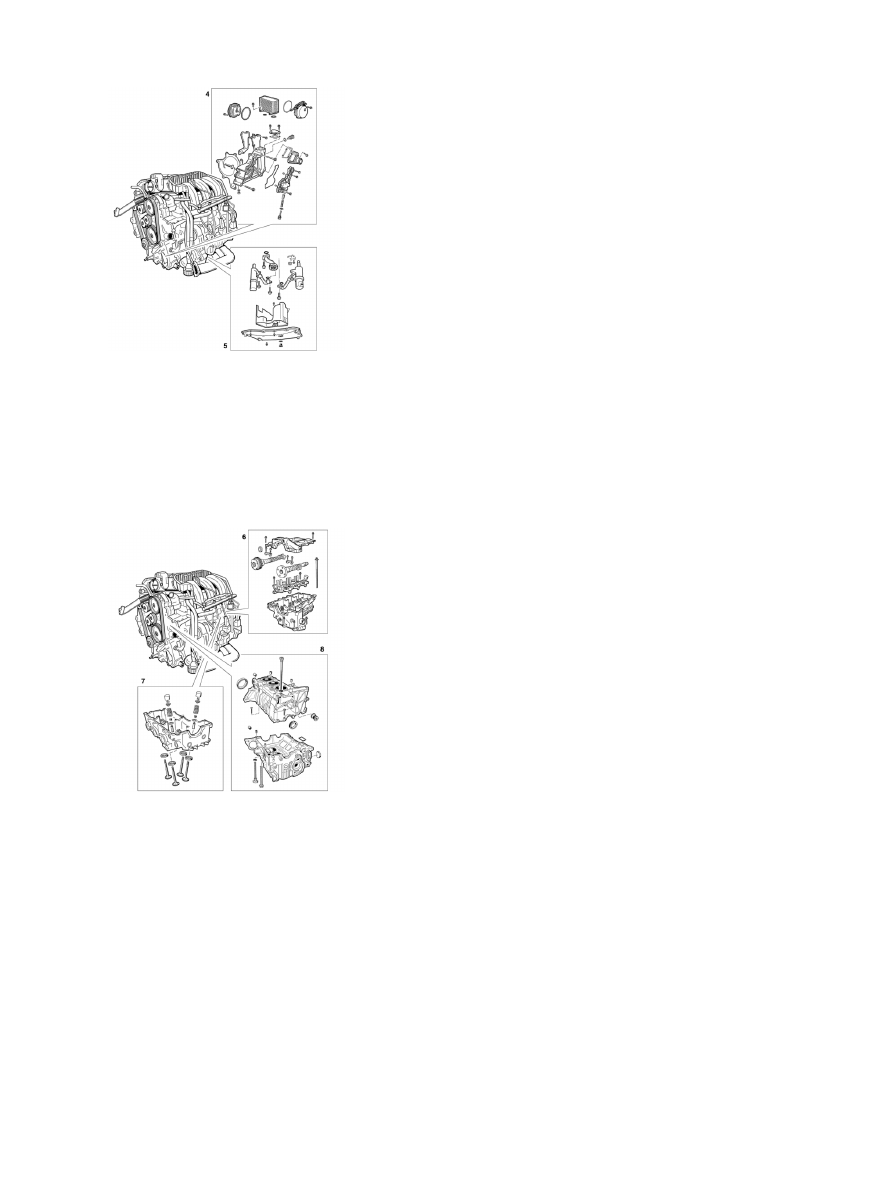

Engine - lubrication

Engine - lubrication

4 - Oil pumps, heat exchanger, coolant guide housing

•

5 - Oil pan, oil separator

•

Cylinder head, crankcase

Cylinder head, crankcase

6 - Cylinder-head cover, camshafts, flat-base tappet housing, cylinder head

•

7 - Cylinder head, flat-base tappets

•

8 - Crankcase halves

•

Diagnostic system: reading out fault memory and activating systems

Component overview - engine
