Section 07 ELECTRICAL SYSTEM
Subsection 05 (TESTING PROCEDURE)
HEADLIGHT AND ACCESSORIES SYSTEM TESTING
360 W Models Only

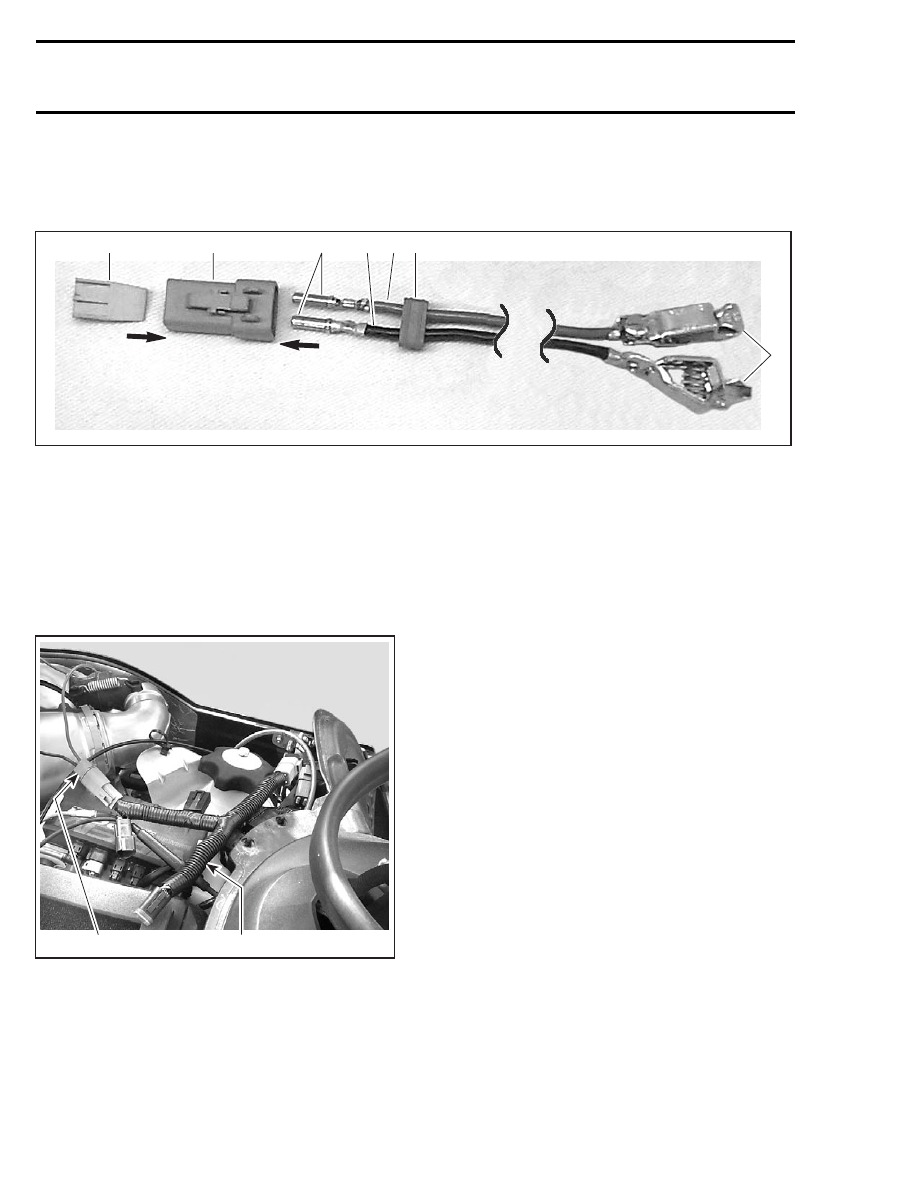

Make an homemade adaptor as shown below.
A32E2WS
3
4
5
2 6
7
1
1. Black wire in position no. 1
2. Red wire in position no. 2
3. P/N 278 001 671
4. P/N 278 001 673
5. P/N 515 175 567 (2)
6. Seal (included with housing)
7. Alligator clips
Connect 12-Volt supply to the 2 position hous-
ing of the supply cable (P/N 529 035 869). Re-
spect polarity by connecting 12V to RED wire and
ground to BLACK wire.
1
A32E2XA
529 035 869
1. Homemade adaptor
Connect supply cable (P/N 529 035 869) to diag-
nostic connector, located on right side of the vehi-
cle. Now the headlight and accessories systems
are supplied with 12 volts. Refer to appropriate
wiring diagram in wiring diagram section to trou-
bleshoot headlight system.
Once headlight system testing is done, discon-
nect supply cable from vehicle and then 12-Volt
supply from the supply cable.
480 W Models (SDI engines)
Connect VCK (P/N 529 035 981). In BUDS, click on
the relay 2 (R2) button to supply headlight system
with 12 volts.
To supply 12 volts in the accessories system, click
on the relay 3 (R3) button.
Use the wiring diagram in WIRING DIAGRAM
section to troubleshoot headlight and accessories
systems.
