2006 Panther 570

35

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

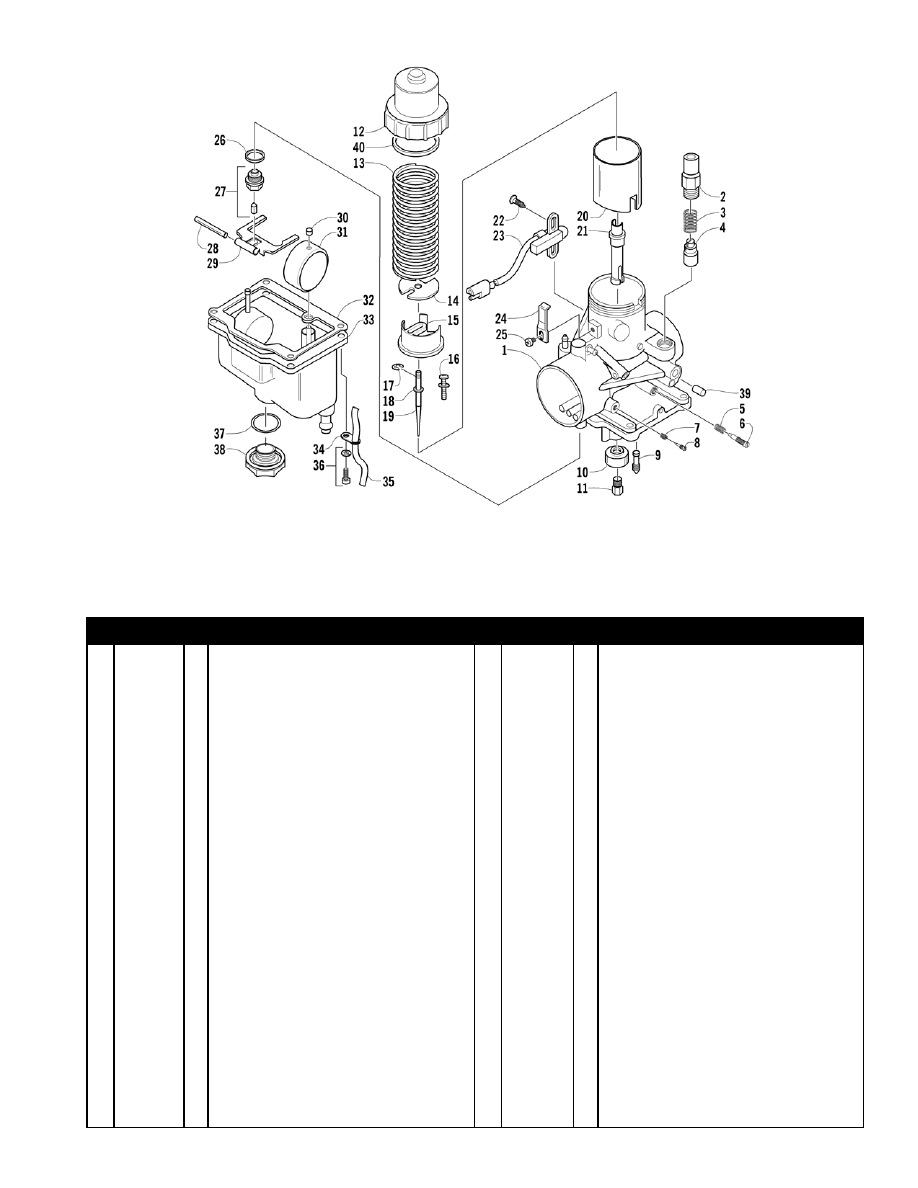

CARBURETOR

 VM34-588 (Complete Carburetor Assembly p/n 0770-622)

0738-474 *Not a Service Part

1

*

1

Mixing Body Assembly

2 6505-188

1

Cap, Starter Plunger

3 6505-033

1

Spring, Starter Plunger

4 6505-035

1

Starter Plunger

5 6505-021

1

Spring, Throttle Stop Screw

6 6505-022

1

Screw, Throttle Stop

7 6505-020

1

Spring, Pilot Air Screw

8 6505-019

1

Screw, Pilot Air

9 6505-047

1

Pilot Jet 40

10 6505-620

1

Ring, Baffle

11 6505-068

1

Main Jet 250**

12 6505-558

1

Top, Mixing Body

13 6505-392

1

Spring, Piston Valve

14 6505-630

1

Plate

15 0770-037

1

Block, Magnet

16 6505-559

1

Screw w/Washer

17 6505-610

1

E-Clip

18 6505-437

1

Washer, E-Clip

19 6506-297

1

Jet Needle 6DF7-3

20 6505-614

1

Piston Valve CA 2.5

21 6505-540

1

Needle Jet P-4 (480)

22 0623-137

2

Screw, Self-Tapping

23 0630-076

1

Switch, Magnetic - Carburetor

24 6505-186

1

Plate

25 6505-036

1

Screw w/Spring Washer

26 6505-024

1

Washer

27 6505-160

1

Needle Valve Assembly 1.5

28 6505-153

1

Pin, Float Arm

29 6505-027

1

Arm, Float

30 6505-010

2

Cap

31 6505-009

2

Float

32 6505-030

1

Gasket, Float Chamber

33 6505-632

1

Chamber, Float

34 6505-608

2

Plate, Hose

35 6505-629

2

Hose

36 6505-014

4

Screw w/Spring Washer

37 6505-622

1

O-Ring

38 6505-617

1

Screw, Drain

39 6505-569

1

Cap

40 6505-607

1

Washer

**Alternate Carburetor Parts on Page 45

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

36

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

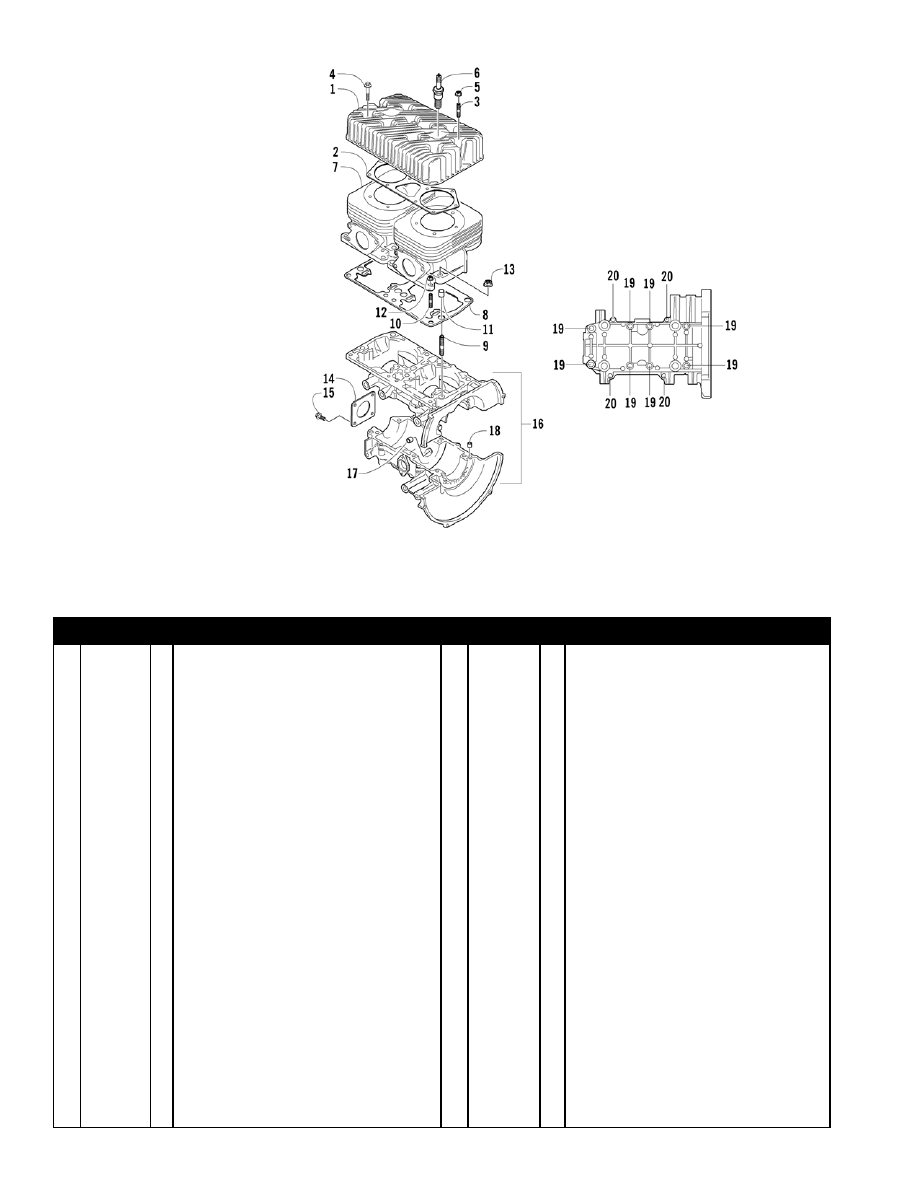

CRANKCASE AND CYLINDER



0739-400

1 3005-997

1

Head, Cylinder

2 3005-998

1

Gasket, Head

3 3006-082

2

Bolt, Stud

4 0693-303

8

Bolt

5 3004-326

2

Nut

6 0217-709

2

Plug, Spark (BR9EYA)

7 3005-999

2

Cylinder Assembly

8 3006-001

1

Gasket, Cylinder

9 3005-207

8

Bolt, Stud

10 3423-089

4

Bolt, Stud

11 3004-975

4

Pin, Dowel

12 3004-488

4

Nut

13 3004-491

4

Nut

14 3004-775

1

Plate, Oil Seal

15 3004-377

4

Bolt

16 3006-461

1

Crankcase Assembly (inc. 17-20)

17 3003-289

1

‹ Bushing

18 3005-206

2

‹ Pin, Dowel

19 3005-410

8

‹ Screw, Cap

20 3004-369

4

‹ Screw, Cap

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

37

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

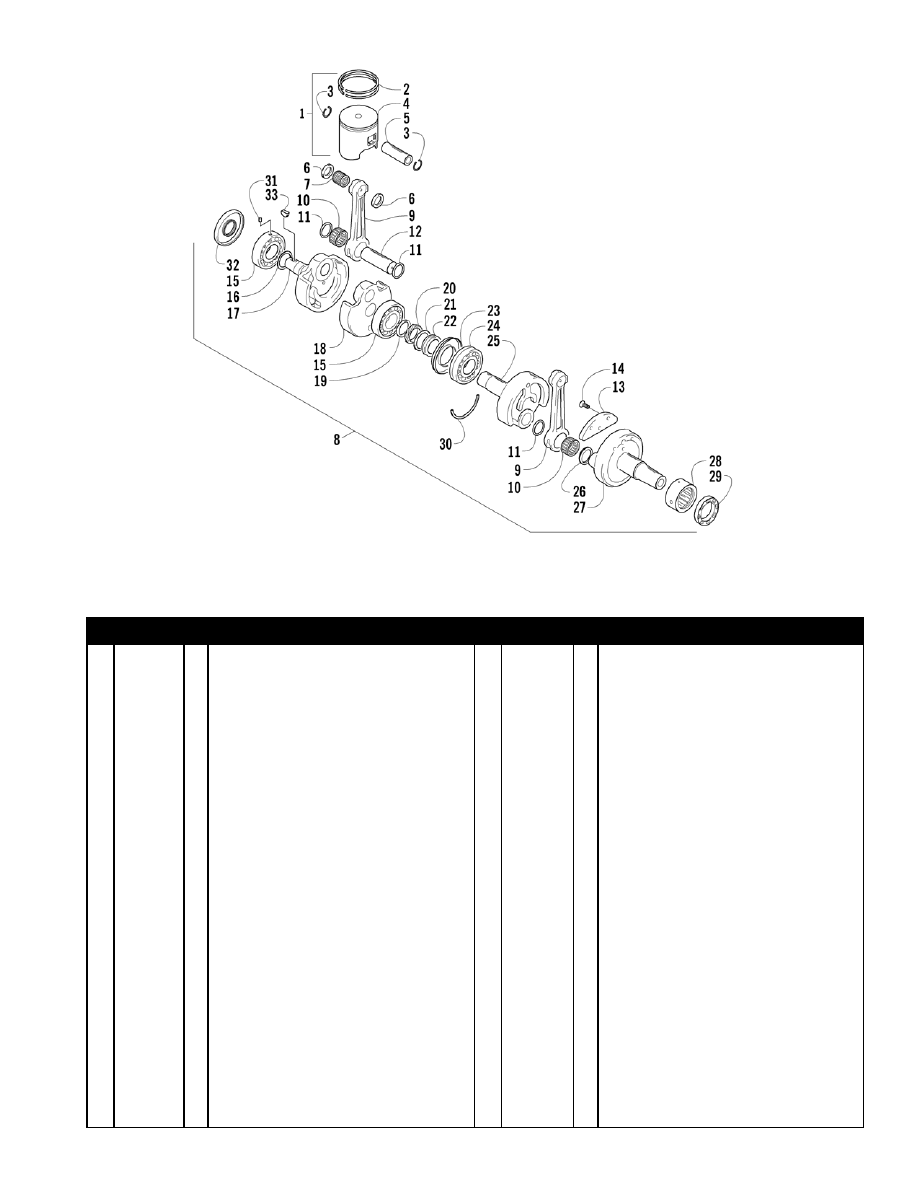

PISTON AND CRANKSHAFT

0739-401 *Not a Service Part

1 3006-921

2

Piston Assembly (inc. 2-4)

2 3006-004

2

‹ Ring Set, Piston

3 3003-537

4

‹ Circlip, Piston Pin

4

*

2

‹ Piston

5 3004-830

2

Pin, Piston

6 3004-780

4

Washer

7 3005-993

2

Bearing, Piston Pin

8 3006-462

1

Crankshaft Assembly (inc. 9-28)

9 3003-305

2

‹ Rod, Connecting

10 3004-514

2

‹ Bearing, Crank Pin

11 3005-989

3

‹ Shim

12 3006-006

1

‹ Pin, Crank

13 3006-011

1

‹ Balancer

14 3004-372

3

‹ Screw, Machine

15 3006-464

2

‹ Bearing, Crankshaft

16 3008-501

1

‹ Washer

17 3006-007

1

‹ Crankshaft - Right

18 3006-008

1

‹ Wheel, Crankshaft

19 3002-827

1

‹ Spacer

20 3005-373

1

‹ Gear, Oil Pump Drive

21 3003-112

1

‹ Ring, Seal

22 3003-171

1

‹ Race, Crankshaft Seal

23 3003-306

1

‹ Retainer, Crankshaft Seal

24 3005-992

1

‹ Bearing

25 3006-009

1

‹ Crankshaft - Center

26 3003-800

1

‹ Washer, Crank Pin Bearing

27 3006-010

1

‹ Crankshaft - Left

28 3005-994

1

‹ Bearing, Crankshaft - Left

29 3006-465

1

Seal, Oil

30 3003-216

1

C-Ring, Crankshaft

31 3003-658

4

Pin, Alignment

32 3005-995

1

Seal, Oil

33 3010-070

1

Key

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

38

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

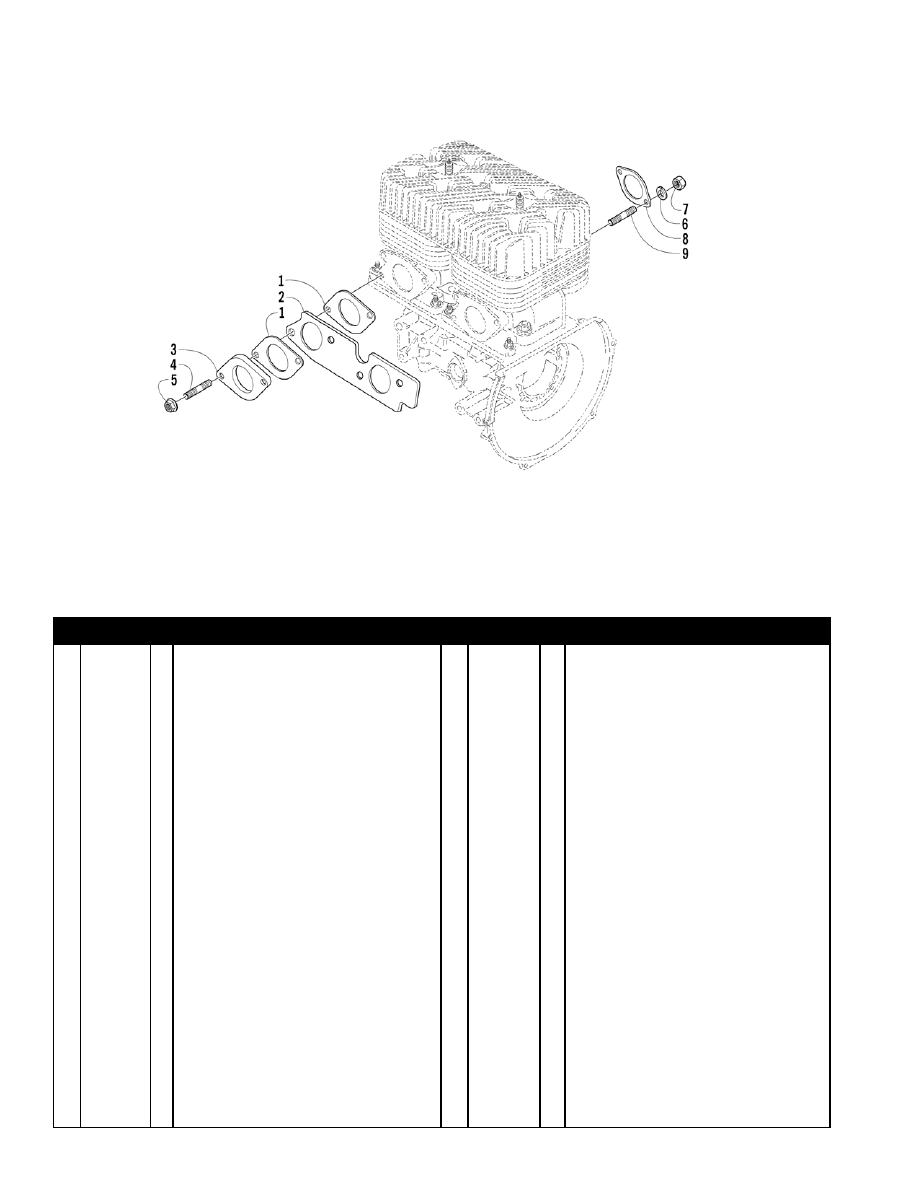

INTAKE ASSEMBLY

0739-378

1 3006-615

4

Gasket, Intake Manifold

2 3006-466

1

Deflector, Heat

3 3006-075

2

Insulator, Intake Manifold

4 3006-074

4

Bolt, Stud

5 3004-326

4

Nut

6 3004-280

4

Washer, Lock

7 3004-334

4

Nut

8 3003-503

4

Gasket, Exhaust

9 3004-301

4

Bolt, Stud

Parts available from    www.Worldofpowersports.com     217-233-1245
