2006 Panther 570

27

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

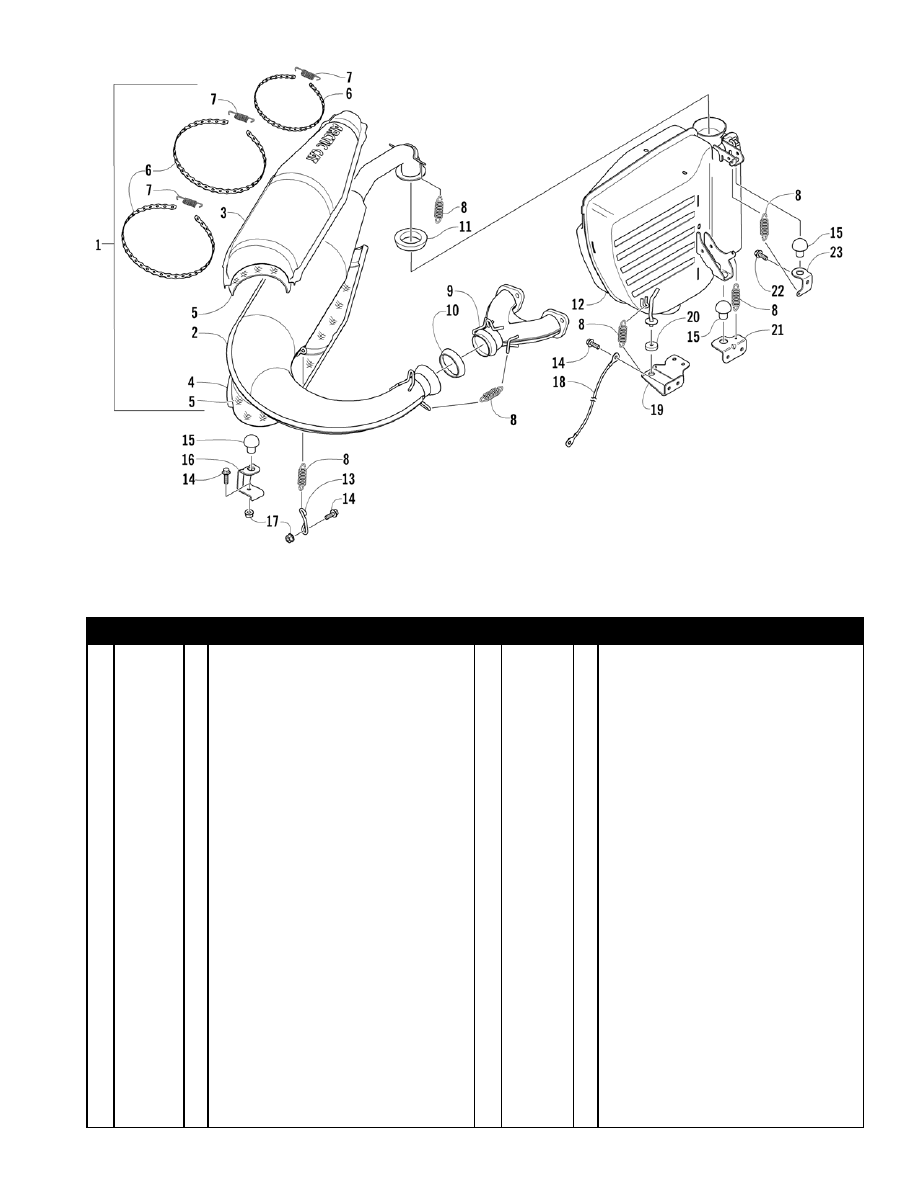

EXHAUST ASSEMBLY



0739-470

1 0712-990

1

Expansion Chamber Assembly (inc. 2-7)

2 0712-732

1

‹ Chamber, Expansion

3 1612-436

1

‹ Cover, Upper

4 1612-435

1

‹ Cover, Lower

5 1612-550

2

‹ Insulation

6 0624-526 AR ‹ Tie, Perforated Band - 5 ft

0624-541 AR ‹ Tie, Perforated Band - 25 ft

7 1612-178

3

‹ Spring, Exhaust

8 0612-471

9

Spring, Exhaust

9 1712-055

1

Manifold, Exhaust

10 0612-131

1

Gasket, Exhaust

11 1612-066

1

Gasket, Exhaust - Tailpipe

12 0712-995

1

Resonator

13 0712-913

1

Bracket, Wire Form

14 8020-040

6

Screw, Cap

15 0612-111

3

Bumper, Rubber

16 1612-508

1

Bracket, Mounting - Expansion Chamber

17 8048-366

2

Nut, Lock

18 0686-126

1

Wire, Ground

19 0712-834

1

Bracket, Mounting - Resonator

20 1612-319

1

Bushing, Stem - Resonator Mounting

21 0712-992

1

Bracket, Mounting - Resonator

22 8020-134

1

Screw, Cap

23 0712-993

1

Bracket, Mounting - Resonator

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

28

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

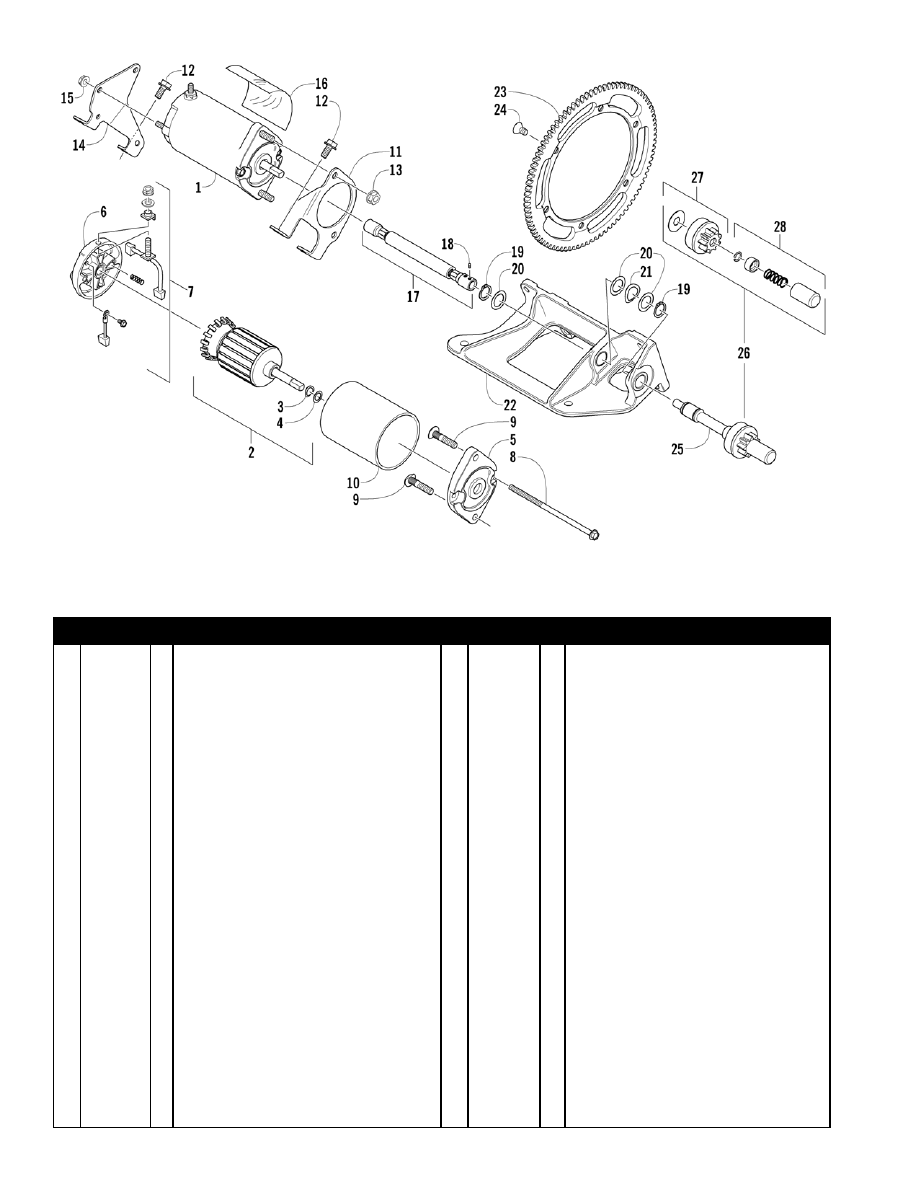

FLEX-DRIVE STARTER MOTOR ASSEMBLY



0738-465 *Not a Service Part

1 0745-143

1

Motor, Starter (inc. 2-10)

2 0645-296

1

‹ Armature Assembly (inc. 3-4)

3 0645-131

1

‹ ‹ Washer, Wave

4 0645-293

1

‹ ‹ Washer, Thrust

5 0645-297

1

‹ Cap, Drive

6 0645-313

1

‹ Cap, Commutator (inc. 7)

7 0645-275

1

‹ ‹ Kit, Brush and Spring

8 0645-128

2

‹ Through-Bolt

9 0623-093

2

‹ Bolt, Ribbed

10

*

1

‹ Case, Starter Motor

11 0745-193

1

Bracket, Mounting - Starter Motor

12 0623-765

4

Screw, Self-Tapping

13 8048-426

2

Nut, Lock

14 0745-194

1

Bracket, Mounting

15 8048-366

2

Nut, Lock

16 0716-344 AR Tape, Foil
17 0745-167

1

Shaft, Flex-Drive (inc. 18)

18 0623-891

4

‹ Screw, Set - Socket

19 0645-256

2

Ring, Snap

20 0645-254

3

Washer, Thrust

21 0645-255

1

Washer, Wave

22 0745-154

1

Bracket, Engine Mounting - Front

23 0645-329

1

Ring Gear

24 1623-128

6

Screw, Machine

25 0745-253

1

Drive, Pinion - Flex-Drive Shaft

(inc. 26-28)

26 0745-224

1

‹ Kit, Pinion Drive Assembly (inc. 27-28)

27 0645-380

1

‹ ‹ Pinion Drive Assembly

28 0645-186

1

‹ ‹ Pinion Stopper Assembly

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

29

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

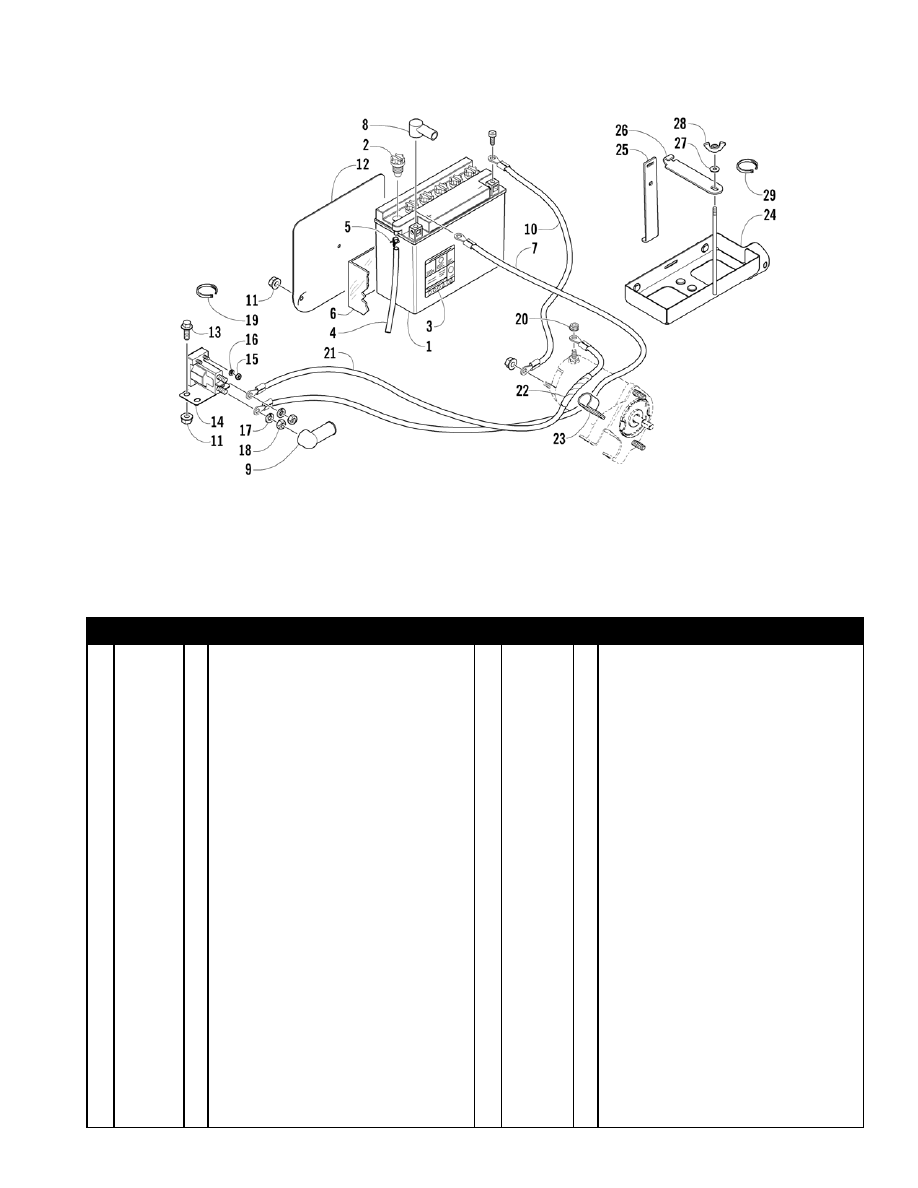

BATTERY, SOLENOID, AND CABLES

0738-467

1 0745-059

1

Battery (inc. 2-6)

2 0645-246

6

‹ Cap, Battery

3 0645-151

1

‹ Decal, Warning - Battery

4 0645-179

1

‹ Hose, Battery Vent

5 0645-152

1

‹ Clamp, Hose

6 0645-082

1

‹ Wrap, Heat - Battery

7 0645-374

1

Cable, Battery/Solenoid (inc. 8-9)

8 0645-019

1

‹ Boot, Terminal - Battery

9 0645-327

1

‹ Boot, Terminal - Solenoid

10 0645-136

1

Cable, Battery/Ground

11 8048-366

6

Nut, Lock

12 0745-139

1

Shield, Heat

13 8020-040

2

Screw, Cap

14 0645-196

1

Solenoid (inc. 15-18)

15 8042-272

2

‹ Nut

16 8051-152

2

‹ Washer, Lock

17 8051-242

2

‹ Washer, Lock

18 8043-452

2

‹ Nut

19 0623-144

1

Cable Tie - 17.5 in.

20 0623-122

1

Nut, Lock

21 0645-373

1

Cable, Solenoid/Starter

22 0645-181

1

Tube, Heat Protection

23 3008-040

2

Clamp, Wire

24 0745-166

1

Tray, Battery

25 0645-311

1

Strap, Battery - Side

26 0645-243

1

Strap, Battery - Top

27 8050-217

1

Washer

28 0623-325

1

Nut, Wing

29 0123-788 AR Cable Tie - 7 in.

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

30

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

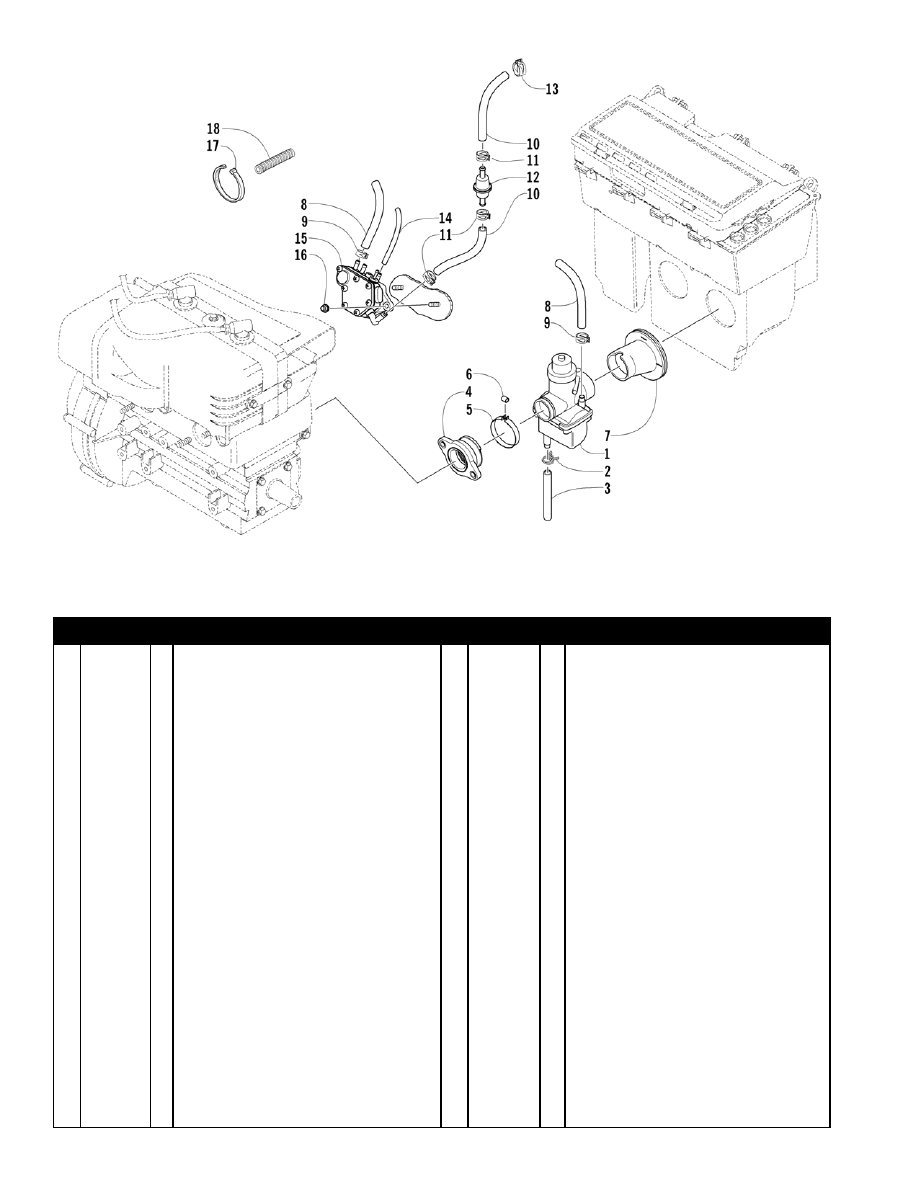

CARBURETOR AND FUEL PUMP ASSEMBLY



0739-473

1 0770-622

2

Carburetor Assembly - VM34-588

2 0623-652

2

Clamp, Hose

3 0610-442

2

Hose, Drain

4 0115-544

2

Flange, Carburetor (inc. 5)

5 0109-709

2

‹ Clamp, Carburetor Flange

6 0670-210

2

Spacer, Clamp

7 1670-310

1

Boot,  - Right

1670-263

1

Boot, Air Silencer - Left

8 6101-001 AR Hose, Gasline - 100 ft

6101-009 AR Hose, Gasline - 50 ft

9 1623-233

4

Clamp, Hose

10 0610-629 AR Hose, Gasline - 100 ft

0610-628 AR Hose, Gasline - 25 ft

11 1623-351

3

Clamp, Hose

12 1670-166

1

Filter, Fuel

13 1623-234

1

Clamp, Hose

14 0610-007 AR Hose, Impulse - 25 ft
15 1670-262

1

Pump, Fuel

16 8048-366

2

Nut, Lock

17 0123-811 AR Cable Tie - 4 in.
18 0716-558 AR Conduit, Flexible - 10 ft

Parts available from    www.Worldofpowersports.com     217-233-1245
