2006 Panther 570

19

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

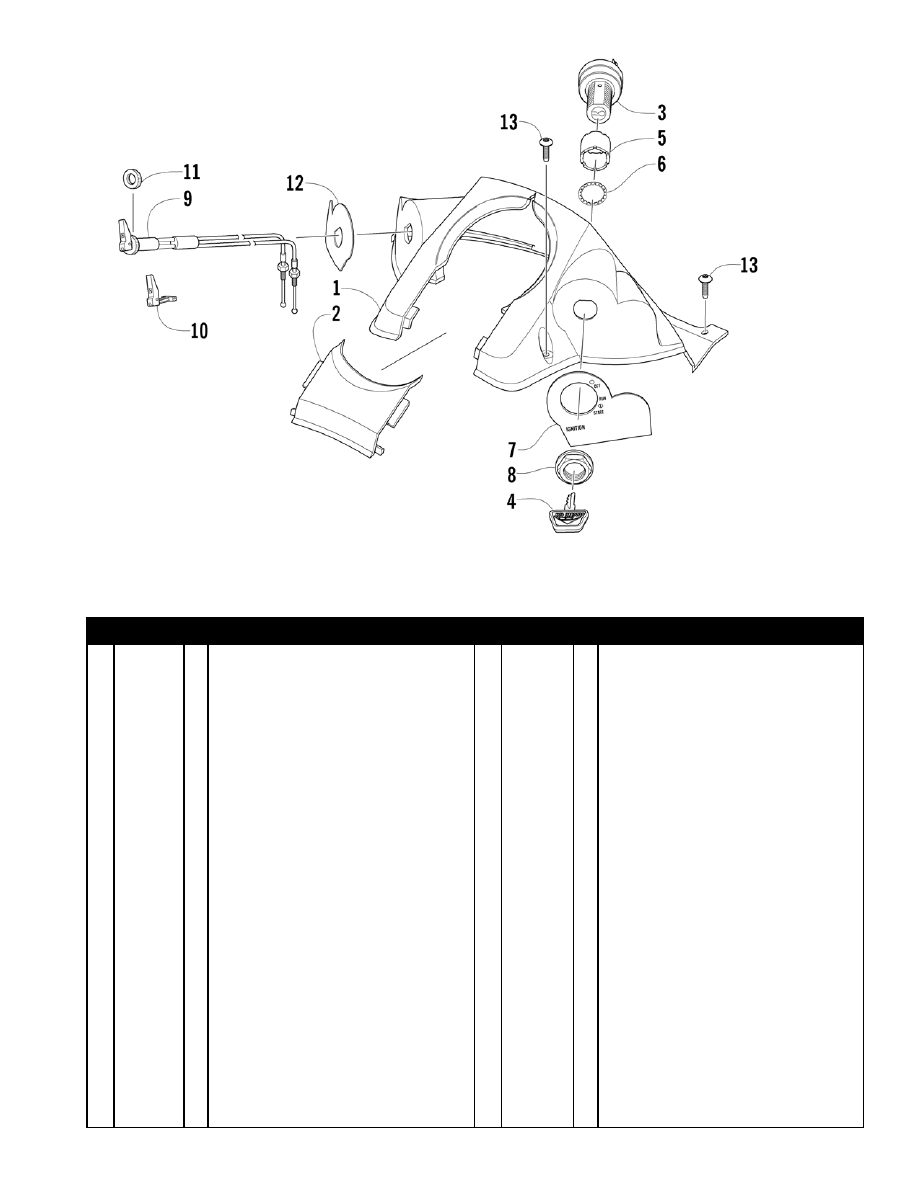

CONSOLE AND SWITCH ASSEMBLY



0740-430

1 1606-735

1

Console

2 1606-105

1

Door, Console

3 0609-449

1

Switch, Ignition (inc. 4)

4

*

2

‹ Key

5 0609-450

1

Spacer, Ignition Switch

6 0123-899

1

Washer, Lock - Internal Tooth

7 2611-744

1

Decal, Console - Right

8 0609-113

1

Nut, Retaining - Plastic

9 0687-007

1

Cable, Choke (inc. 10-11)

10 0636-062

1

‹ Choke Lever Kit

11 0623-054

1

‹ Nut, Choke

12 2611-867

1

Decal, Console - Left

13 1623-175

4

Screw, Self-Tapping

*Key is coded to switch; see dealer to
  determine part number.



Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

20

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

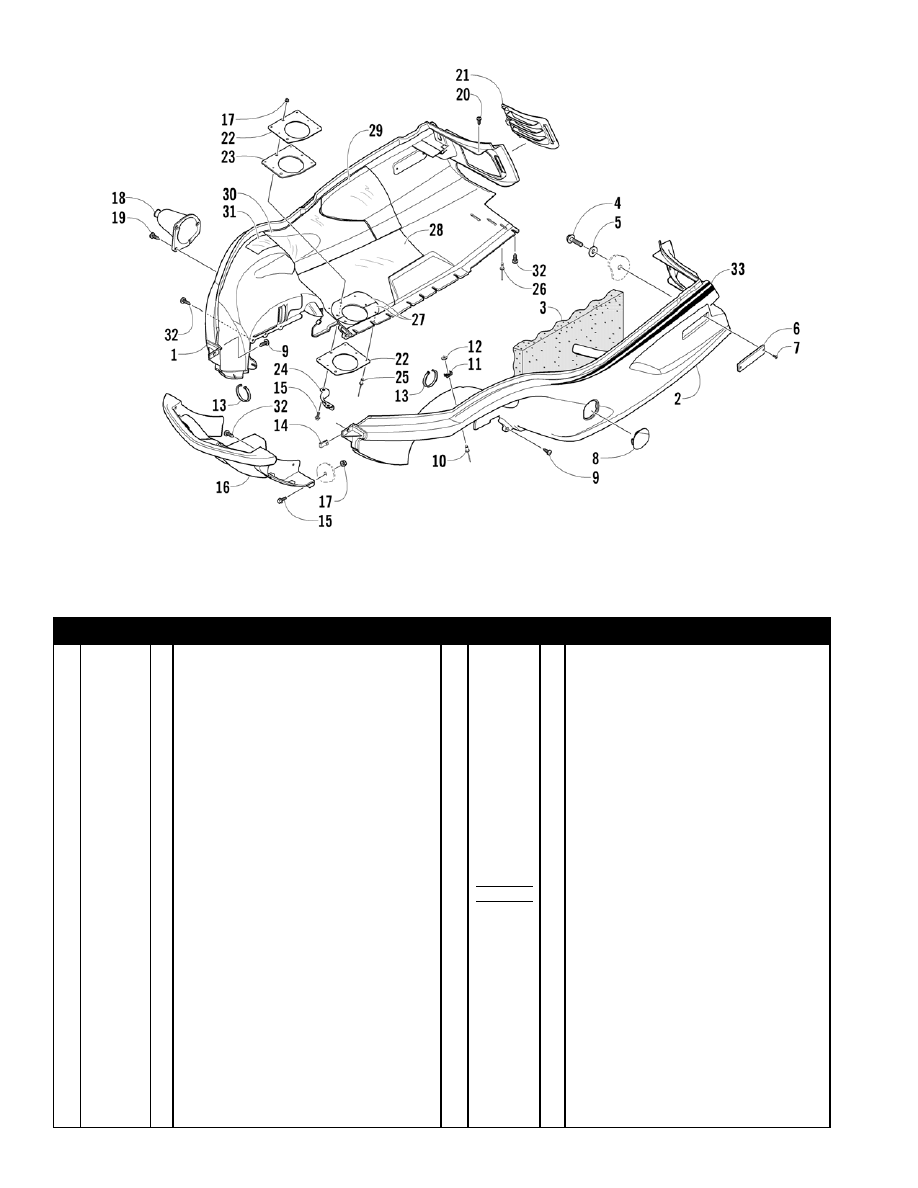

BELLY PAN AND FRONT BUMPER ASSEMBLY



0740-433

1 1706-846

1

Belly Pan - Right - Black

2 1706-141

1

Belly Pan - Left - Black

3 0617-315

1

Foam, Belly Pan - Left

4 0623-647

2

Screw, Self-Tapping

5 0623-184

2

Washer

6 0606-526

2

Reflector, Front - Amber

7 0623-269

4

Clip, Retaining

8 1606-767

1

Panel, Clutch Access - Black

9 0623-784

4

Screw, Self-Tapping

10 8060-506

1

Rivet

11 0623-228

1

Mount, Cable Tie

12 0123-149

1

Washer

13 0123-788

2

Cable Tie - 7.5 in.

14 0623-427

2

Nut, U

15 8020-040

6

Screw, Cap

16 1606-949

1

Bumper, Front

17 8048-366

6

Nut, Lock

18 0605-332

1

Boot, Steering - Right

0605-333

1

Boot, Steering - Left

19 0623-564

8

Screw, Self-Tapping

20 0623-378

2

Screw, Self-Tapping

21 1606-044

1

Louver, Air-Intake - Right - Black

1606-045

1

Louver, Air-Intake - Left - Black

22 0712-939

2

Shield, Exhaust

23 1612-514

1

Seal, Exhaust

24 0712-879

1

Deflector, Exhaust

25 8060-508

6

Rivet

26 8061-508

8

Rivet

27 0619-206 AR Tape, Foil
28 2606-374

1

Foil, Protective - Lower Rear

29 2606-375

1

Foil, Protective - Upper Rear

30 2606-376

1

Foil, Protective - Upper Front

31 2606-387

1

Foil, Protective - Lower Front

32 1623-129

16 Screw, Self-Tapping

33 6611-608

1

Decal, Belly Pan - Right

6611-609

1

Decal, Belly Pan - Left

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

21

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

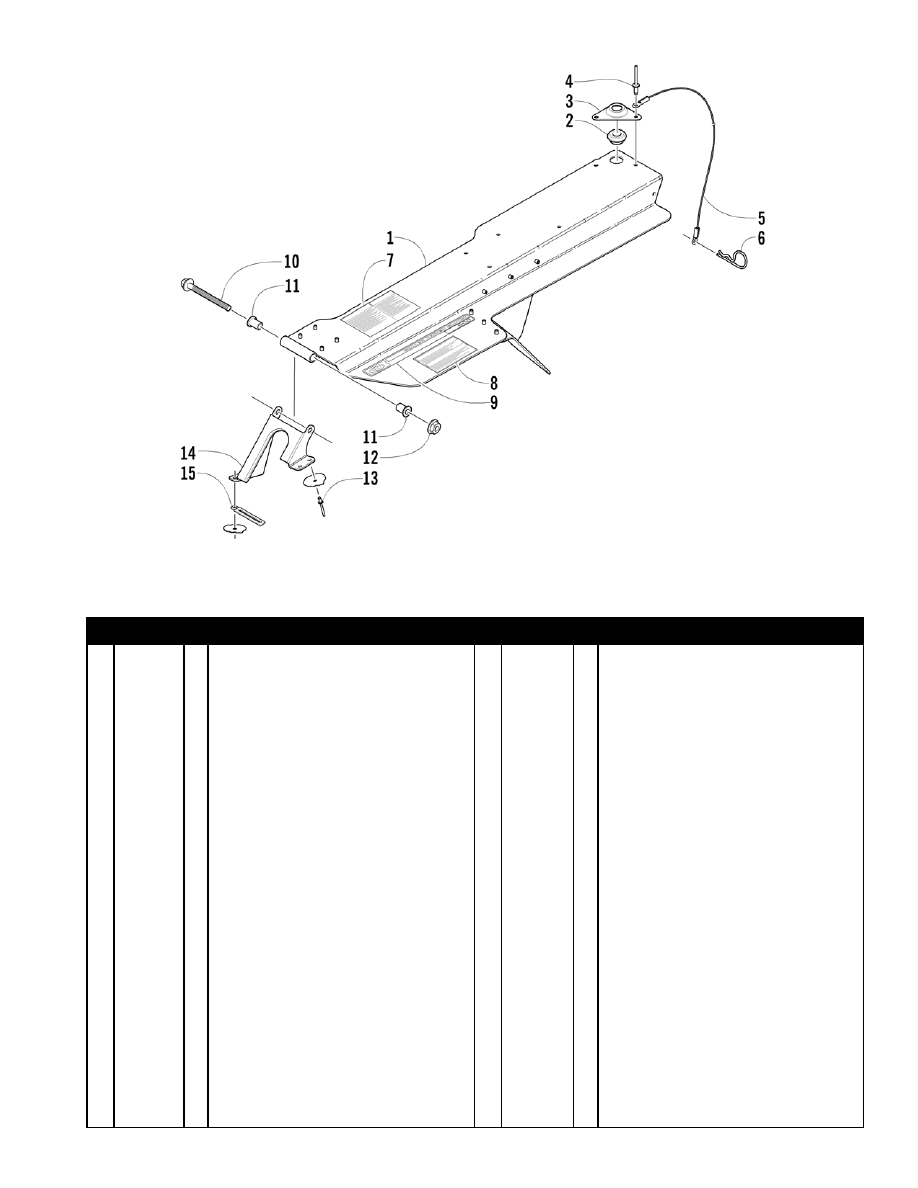

BELT GUARD ASSEMBLY



0739-876

1 0707-574

1

Belt Guard Assembly (inc. 2-6)

2 0607-549

1

‹ Bushing, Belt Guard

3 0607-550

1

‹ Plate, Bushing - Belt Guard

4 8060-504

2

‹ Rivet

5 0607-447

1

‹ Cable

6 0605-283

1

‹ Clip, Hairpin

7 1611-582

1

Decal, Caution - Jetting/Storage

8 1611-565

1

Decal, Warning - Belt Guard

9 3611-969

1

Decal, “ACT - Roller Driven Clutch”

10 8020-050

1

Screw, Cap

11 0607-094

2

Insert, Hinge

12 8048-366

1

Nut, Lock

13 8061-508

4

Rivet

14 0707-707

1

Bracket, Mounting - Belt Guard

15 3002-964

1

Clamp, Wire

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

22

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

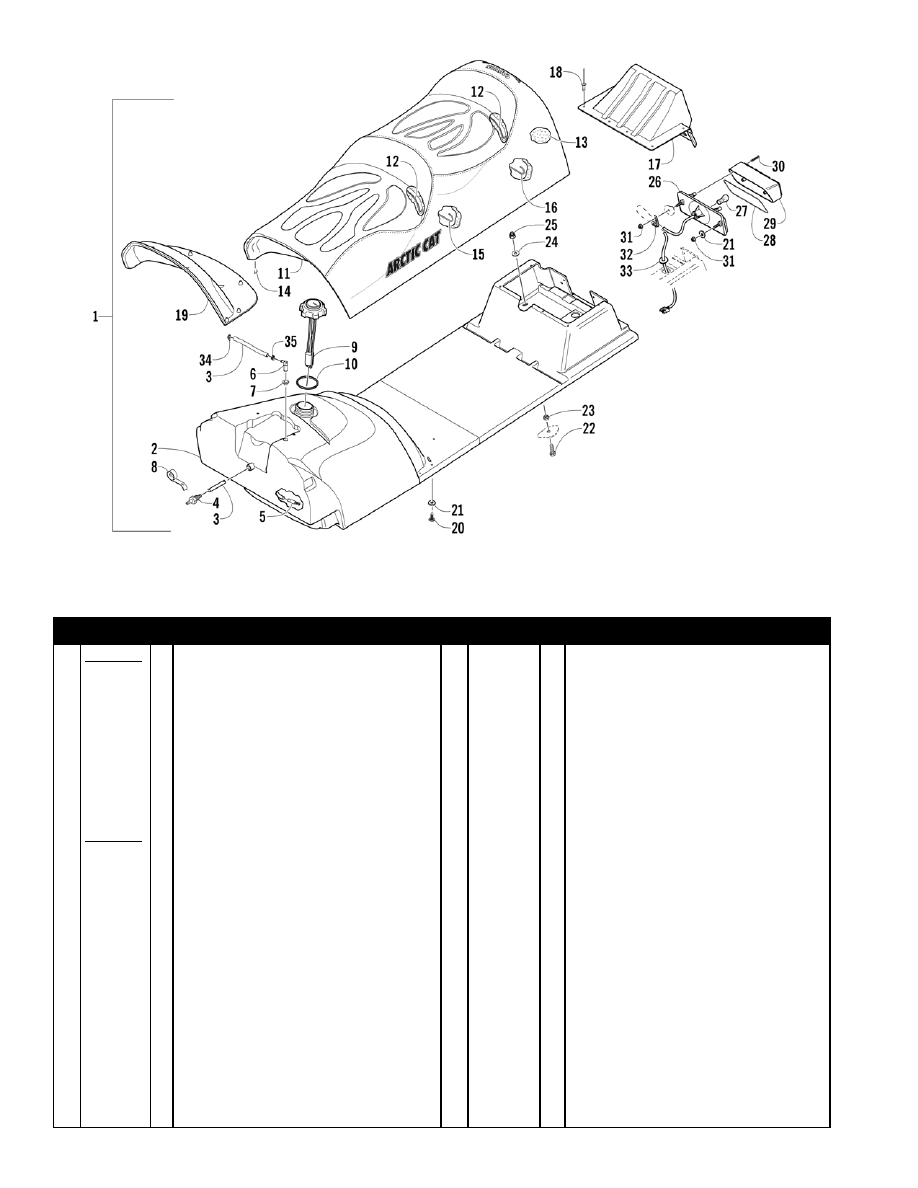

GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY



0740-425

1 1718-909

1

Complete Seat Assembly

(inc. 2-20 and two No. 21)

2 0770-691

1

‹ Tank, Gas/Seat-Base (inc. 3-10)

3 6101-001 AR ‹ ‹ Hose, Gasline - 100 ft

6101-009 AR ‹ ‹ Hose, Gasline - 25 ft

4 1670-173

1

‹ ‹ Outlet, Tank

5 0510-358

1

‹ ‹ Strainer, Gas Tank

6 1670-494

1

‹ ‹ Vent, Gas Tank

7 1670-325

1

‹ ‹ Grommet

8 0670-289 AR ‹ ‹ Tape, Teflon
9 0670-658

1

‹ ‹ Cap, Gas Tank (inc. 10)

10 0109-733

1

‹ ‹ ‹ Seal, Gas Tank Cap

11 3706-076

1

‹ Cover, Seat (inc. 12)

12 3606-363

2

‹ ‹ Wire, Seat

13 0716-991

1

‹ Foam, Seat Cushion

14 0624-528 AR ‹ Staple, Seat Cover
15 2606-943

1

‹ Wire, Seat

16 2606-942

1

‹ Wire, Seat

17 1606-191

1

‹ Extension, Toolbox

18 0623-853

8

‹ Rivet

19 1606-612

1

‹ Insert, Seat Foam

20 0623-309

6

‹ Screw, Self-Tapping

21 8050-217

3

‹ Washer

22 8020-040

2

Screw, Cap

23 8048-366

2

Nut, Lock

24 0623-184

2

Washer

25 0123-108

2

Nut, Cap

26 0609-091

1

Taillight w/Socket Assembly

27 0109-460

1

Bulb

28 0609-092

1

Gasket, Taillight Lens

29 0609-090

1

Lens, Taillight

30 0609-093

4

Screw, Retaining

31 0623-038

2

Nut w/Washer

32 3002-964

1

Clamp, Wire

33 0617-136

1

Seal, Foam - Seat-Base

34 0623-101

3

Clip, Routing - Snap-In

35 1623-042

1

Clamp, Hose

Parts available from    www.Worldofpowersports.com     217-233-1245
