Snowmobile Polaris Widetrak LX (2014 year). Manual - part 16

65

MAINTENANCE

Lubrication

Suspension and Steering

Lubricate the suspension and steering components with POLARIS
Premium All-Season Grease at 500 miles (800 km) and annually or
every 1000 miles (1600 km) thereafter. A grease gun kit, complete with
grease and adaptors, is available to lubricate all fittings on POLARIS
snowmobiles. See page 106 for the part numbers of POLARIS products.

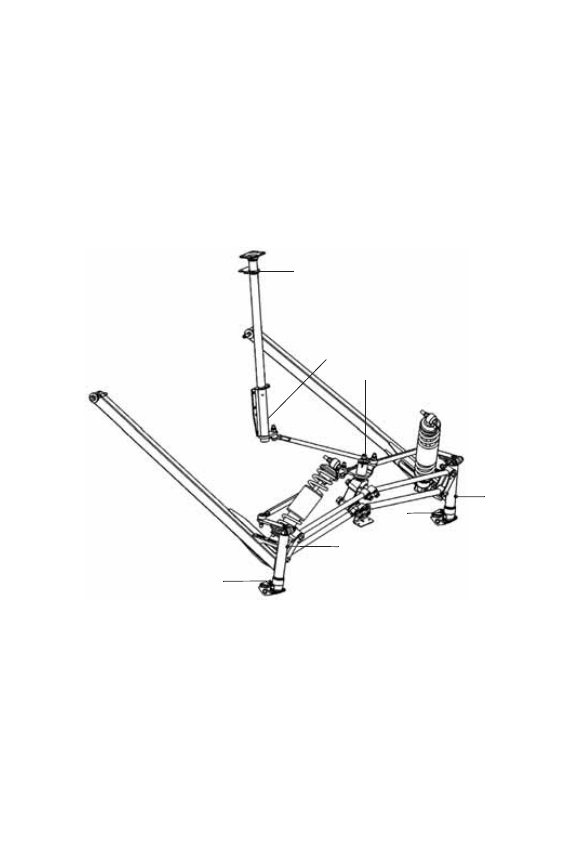

The illustration shows the lubrication points of suspension and steering
components.

1.

Steering Post Support Bracket (use aerosol lubricant)

2.

Steering Post Lower Pivot

3.

Center Steering Arm

4.

Left and Right Spindle (raise front end for better grease entry)

5.

Front Ski Pivot

4

5

4

5

1

2

3

66

MAINTENANCE

Lubrication

Rear Suspension

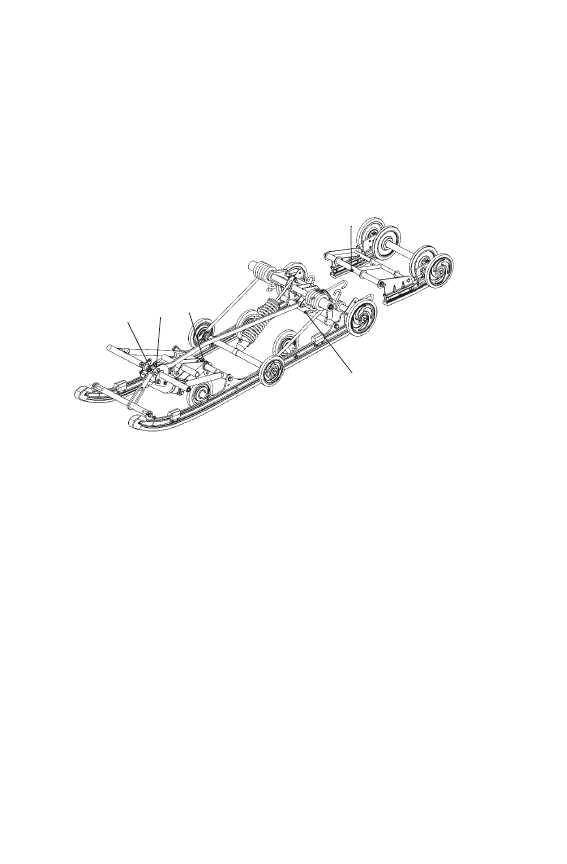

Grease the rear suspension pivot shafts (raise the rear of unit). Locations
are shown below.

An (X) indicates a grease point or fitting.

x

x

x

x

x

67

MAINTENANCE

Lubrication

Jackshaft Bearing

The jackshaft bearing on your model may be equipped with a grease
fitting, but this component is greased for life at the factory. Additional
lubrication is not required.

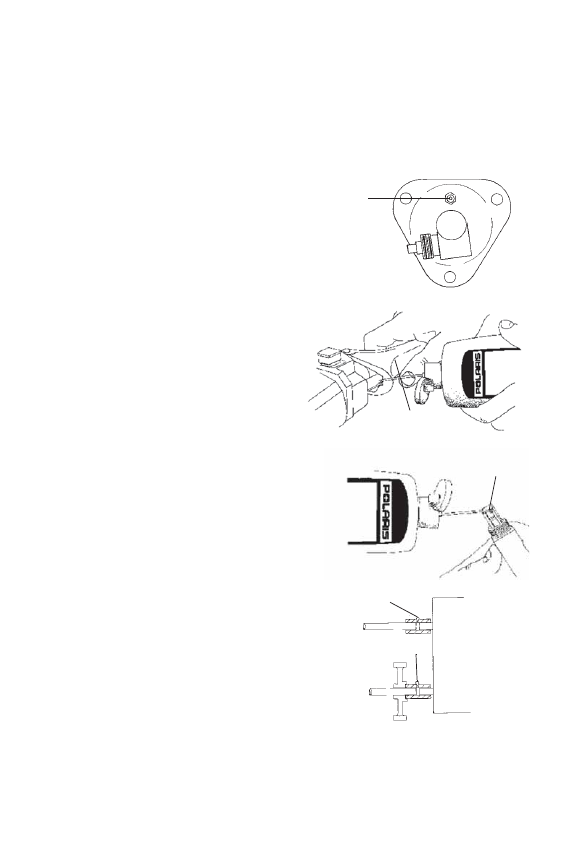

Driveshaft Bearing

Inject grease into the fitting on the
speedometer drive adaptor until
grease purges from inside or outside
the bearing seal (approximately two
pumps).

Throttle Cable

Lubricate the throttle cable lightly
with grease or oil. With the engine
off, turn the handlebars to the left
and lubricate liberally as shown.

Choke and Cable

Lubricate the choke slide and cables
lightly with oil or grease. Before
turning the engine off, operate the
choke intermittently to draw
moisture out of the choke plunger
area and reduce the possibility of
the choke becoming frozen.

Coupler Greasing

Grease the couplers on the
jackshaft (1) and driveshaft (2).

x

x

x

1

2

68

MAINTENANCE

Lubrication

Gearcase Oil Level

Check the gearcase oil level at the
intervals outlined in the maintenance
charts beginning on page 64. Change
the gearcase oil after the first 500 miles
(800 km), then every 1000 miles (1600
km) or seasonally.

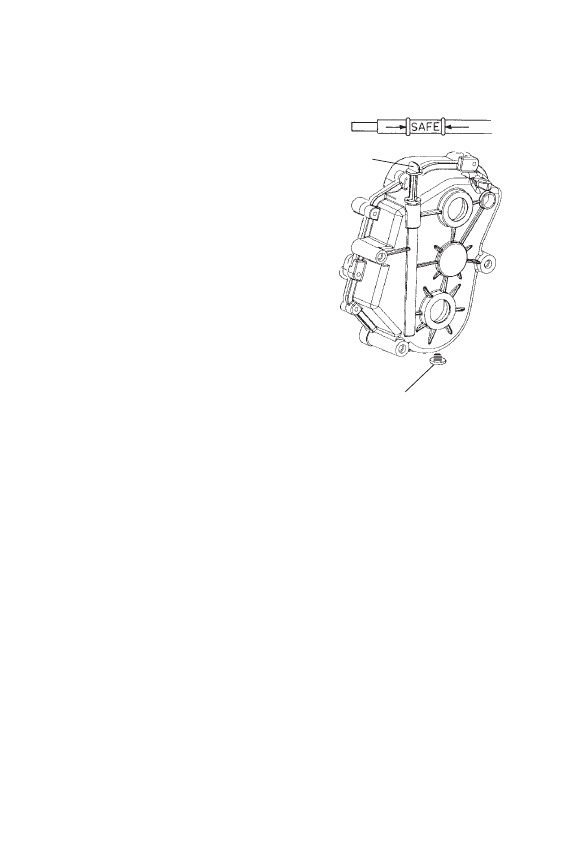

To check the oil level, place the
snowmobile on a level surface. The oil
level should be between the “safe”
marks on the dipstick (1). Do not
overfill.

POLARIS recommends the use of
POLARIS Synthetic Chaincase Lube.
See page 106 for the part numbers of
POLARIS products.

Clean the magnetic plug (2) every 500
miles (800 km) and whenever checking
or changing lubricant.

NOTICE: Mixing brands or using non-recommended lubricants could result in

excessive wear to chain, sprockets and bearings. Always use
POLARIS-recommended products for your vehicle.
