Snowmobile Polaris Widetrak LX (2014 year). Manual - part 6





25

SAFETY

Safety Labels and Locations

Operation Warning

An operation warning label is present on the console of all POLARIS
snowmobiles:

WARNING

• To avoid serious injury or death, read and understand all warnings

and the Owner’s Manual before operation. If manual is missing,
contact a POLARIS dealer for a replacement.

• This vehicle is capable of high speeds. Buried objects or uneven

terrain can cause loss of control. Reduce speed and use extreme
caution when operating in unfamiliar terrain.

• Excessive speed, especially at night or with limited visibility, can

result in insufficient time for you to react to terrain changes, to
avoid unexpected obstacles, or to stop safely.

• Never consume alcohol or drugs before or while operating this

vehicle.

• In an emergency, push down the Auxiliary Shut-Off Switch, located

on the top of the throttle control assembly, to stop the engine. Then
pull the brake lever to stop.

• Always wear an approved helmet, eye protection, and adequate

clothing while operating this vehicle.

• This vehicle is designed for adult use only. Check local laws for age

requirements.

• When operating with a passenger (on approved models only),

reduce speed and allow extra space for steering and stopping. A
passenger reduces your ability to control the vehicle.

• When operating on hard-packed snow, ice, or when crossing roads,

steering and braking ability are greatly reduced. Reduce speed and
allow extra space to turn or stop.

• To maintain vehicle control on ice or hard-packed surfaces, you

should have a proper balance of ski carbides to track studs. See
Owner’s Manual for proper use of traction products.

• Repeated stops from high speed may cause fading or sudden loss

of braking ability.

• Parking brake may relax when used for long periods. Do not leave

brake engaged for more than five minutes.

• Before starting the engine, check throttle, brake, and steering for

proper operation. Make sure hood is latched. Be seated and in
position to control the vehicle.

Oil injection system: Use unmixed fuel only. Check oil level when
refueling.

26

FEATURES AND CONTROLS

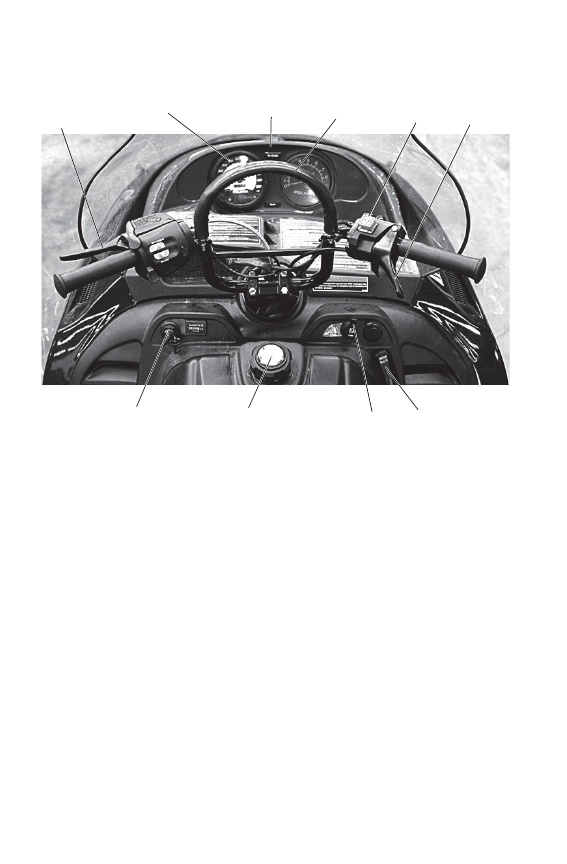

1.

Fuel Filler Cap (may include a fuel gauge)

2.

Ignition Switch

3.

Brake Lever

4.

Speedometer (may include indicator/warning lights)

5.

Reverse Indicator

6.

Mountain Bar

7.

Engine Stop Switch (see page 55)

8.

Throttle Control

9.

Recoil Starter Handle

10. Choke

5

4

3

2

1

9

7

8

6

General Representation

10

27

FEATURES AND CONTROLS

Some POLARIS snowmobiles are
equipped with special features.
Controls for these features are
illustrated on this page. Not all
models come with these features.

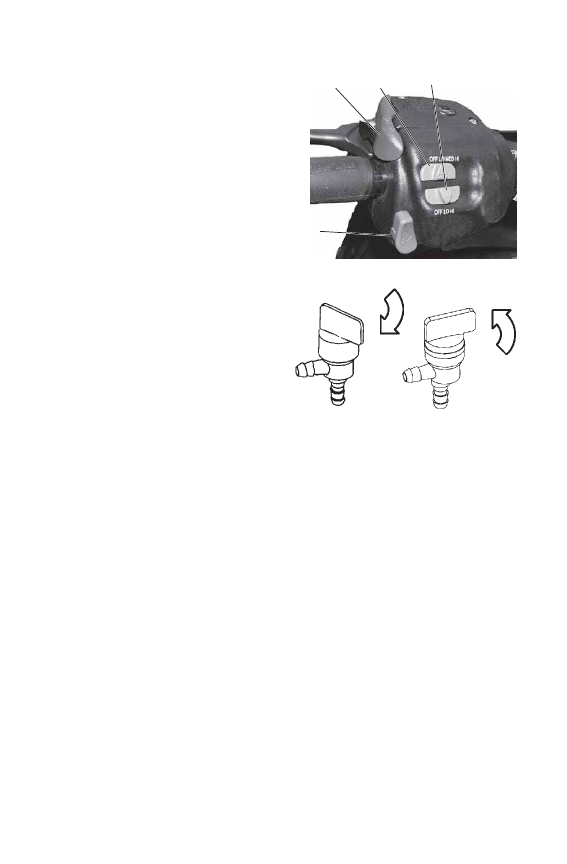

1.

Headlight Dimmer Switch

2.

Parking Brake Lock

3.

Handlebar Grip Warmer
Switch

4.

Thumbwarmer Switch

Fuel Valve

The fuel valve is located under
the hood. Turn the fuel valve
off whenever the snowmobile
is stored or parked.

1. Turn the valve clockwise to

turn off the fuel supply.

2. Turn the valve counter-

clockwise to turn on the
fuel supply.

2

4

3

1

ON

OFF

28

FEATURES AND CONTROLS

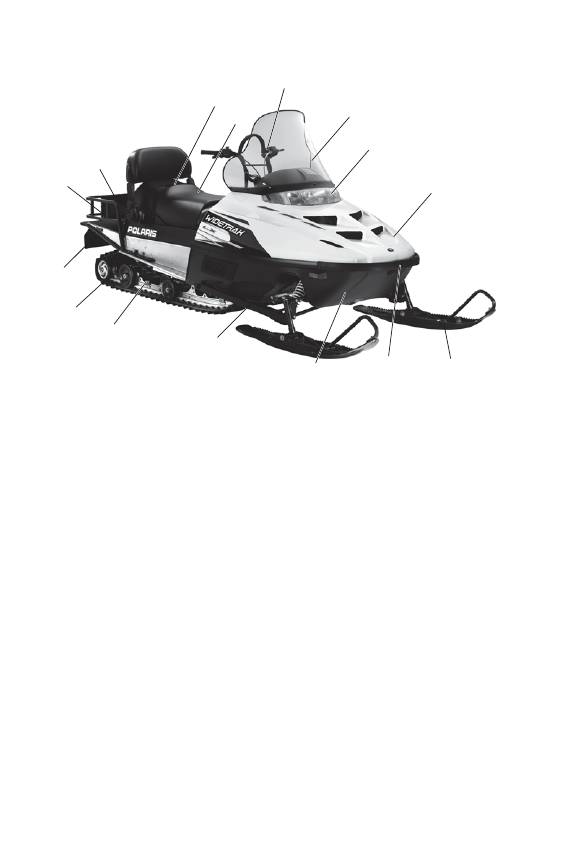

1.

Hood

2.

Headlight

3.

Windshield

4.

Handlebar

5.

Operator Seat

6.

Passenger Hand Hold Strap

7.

Cargo Rack

8.

Taillights

9.

Snow Flap

10. Track
11. Suspension
12. Trailing Arm
13. Nosepan
14. Front Bumper (do not use for pulling or dragging the snowmobile)
15. Skis

14

1

2

3

4

5

6

8

9

11

10

12

15

13

7
