CLUTCHING

4.44

P-85 Drive Clutch Cover Bushing Removal Cont.

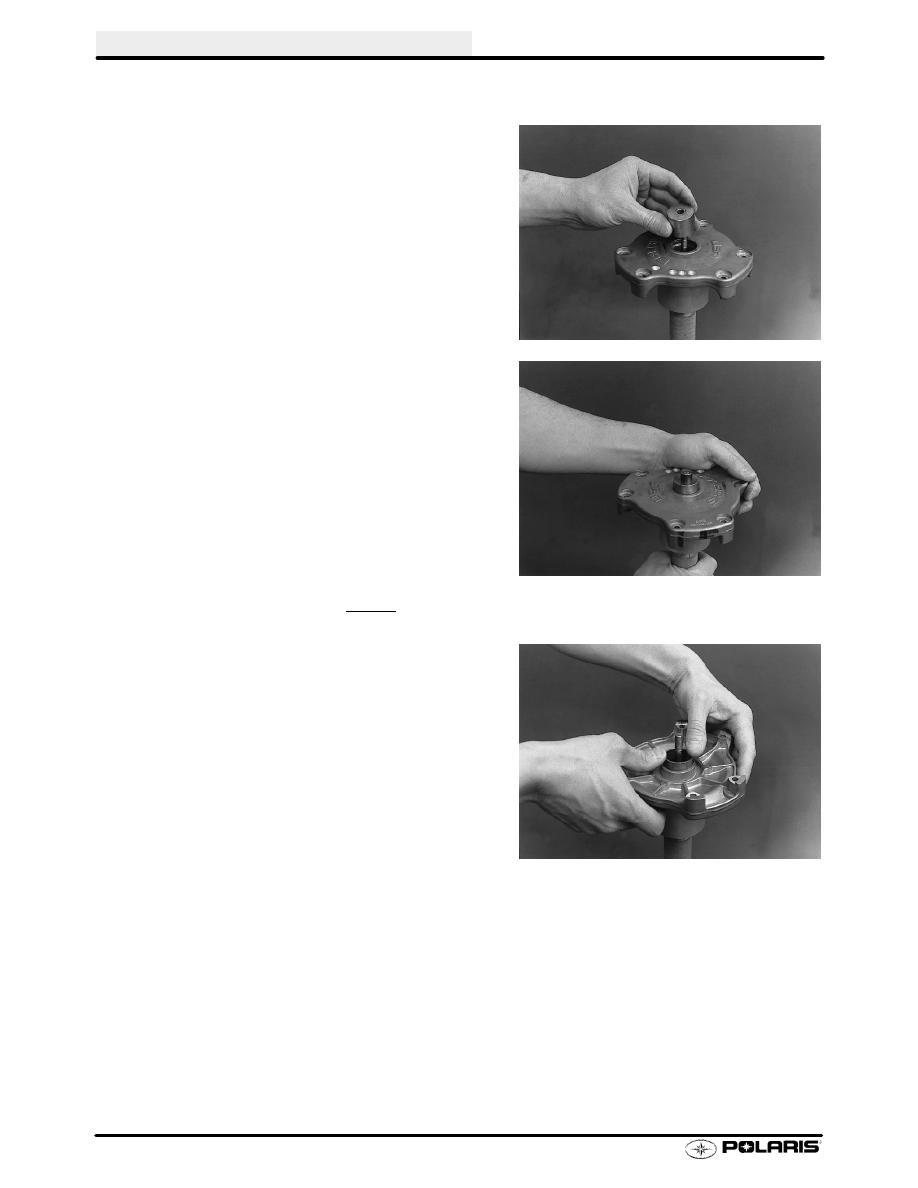

3.

On models equipped with snap ring, remove round wire
snap ring from inside of clutch cover using a small
scribe or pick and set aside.

4.

Install main adapter (Item 8) on puller.

5.

From outside of clutch cover, insert removal tool (Item
3) into cover bushing.

6.

With inside of cover toward vise, slide cover onto puller.

7.

Install nut onto puller rod and hand tighten. Turn puller
barrel to increase tension as needed.

8.

Turn clutch cover counterclockwise on puller rod until
bushing is removed.

9.

Remove nut from puller rod and set aside.

10. Remove bushing and bushing removal tool from puller.

Discard bushing.

P-85 Drive Clutch Cover Bushing Installation

1.

On Garmax

style bushings (PN 3576516) apply

Loctite

t

680 retaining compound (PN 2870584) to

the outer surface of the bushing. Do not lubricate
bushings, or premature wear will result.

2.

Working from inside of cover, insert bushing and
bushing installation tool into center of clutch cover.

3.

With main adapter on puller, insert cover onto puller
rod, placing outside of cover toward vise.

4.

Install nut on rod and hand tighten. Turn puller barrel
to apply more tension if needed.

5.

Turn clutch cover counterclockwise on puller rod until
bushing is seated.

6.

Remove nut from puller rod and take installation tool
and clutch cover off rod.

7.

Squeezing ends of snap ring, gently fit ring into clutch
cover.

CLUTCHING

4.45

P-85 Drive Clutch Movable Sheave Bushing Removal

1.

Inspect bushing and replace if excessively worn.

2.

Install handle end of piston pin puller (PN 2870386)
securely into bench vise and lightly grease puller
threads.

3.

Remove nut from puller rod and set aside.

4.

Install main adapter (Item 8) onto puller. See Ill. 1.

5.

Working from inside of moveable sheave, insert
removal tool (Item 1) into center of sheave.

With

towers pointing away from vise, slide sheave onto
puller rod.

6.

Install nut removed in step 2 onto end of puller rod and
hand tighten. Turn puller barrel to increase tension on
sheave if needed.

7.

Turn sheave counterclockwise on puller rod until it
comes free.

8.

Remove nut from puller rod and set aside.

9.

Pull bushing removal tool and adapter from puller rod.
Remove bushing from tool and discard.

10. Remove retaining ring from inside adapter and set

aside.

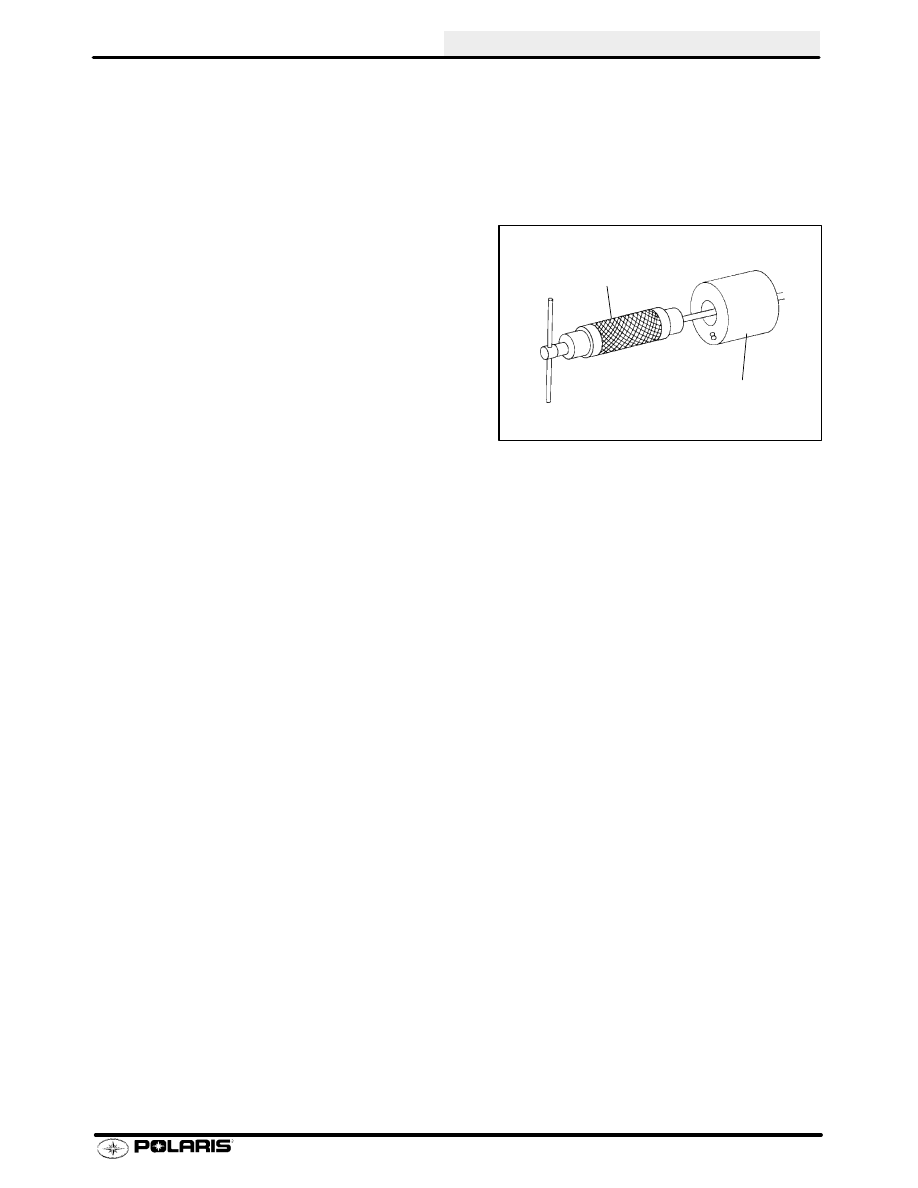

Ill. 1

Piston Pin
Puller

Main Adaptor

CLUTCHING

4.46

P-85 Drive Clutch Movable Sheave Bushing Installation

1.

Place main adapter (Item 8) on puller.

2.

Push new bushing into center of sheave by hand.

3.

Insert installation tool (Item 1) into center of sheave and
with towers pointing toward vise, slide sheave onto
puller rod.

4.

Install nut on puller rod and hand tighten. Turn barrel to
apply additional tension if needed.

5.

Turn sheave counterclockwise until bushing is seated.

6.

Remove nut from puller rod and set aside.

7.

Remove sheave from puller.

8.

Remove installation tool.

9.

Insert retaining ring removed in step 9 and installation
tool into center of sheave.

10. With towers pointing toward vise, install sheave onto

puller rod.

11. Install nut on puller rod and hand tighten. Turn barrel to

apply additional tension if needed.

12. Turn sheave counterclockwise until ring is seated.

13. Remove nut from puller rod and set aside.

14. Remove sheave from puller.

15. Remove installation tool. Do not lubricate bushings,

or premature wear will result.

CLUTCHING

4.47

P-85 Driven Clutch Movable Sheave Large Bushing Removal

NOTE: The P-85 driven moveable has a split bushing.
Note the position of this split during bushing removal.
See Ill. 2.

1.

Inspect bushing and replace if excessively worn.

2.

Insert bushing removal tool (Item 6) into sheave,
centering split on tool. NOTE: The split must be
touching the tool. See Ill. 2.

3.

Install main adapter as illustrated.

Install bridge

(Item 7) onto puller with legs pointing toward clutch.
See Ill. 3.

4.

From the outside, insert thumb through center of
sheave. Using downward pressure, hold bushing
removal tool tightly in place.

5.

With back side toward vise, slide sheave onto puller.

6.

Install nut onto puller rod and hand tighten. Slowly
align clutch with bridge and turn puller barrel to
increase tension if needed.

7.

Turn sheave counterclockwise until bushing is
removed and sheave comes free.

8.

Remove nut from puller and set aside.

9.

Remove tool and bushing from puller.

Discard

bushing.

10. Remove bridge and adapter from puller.

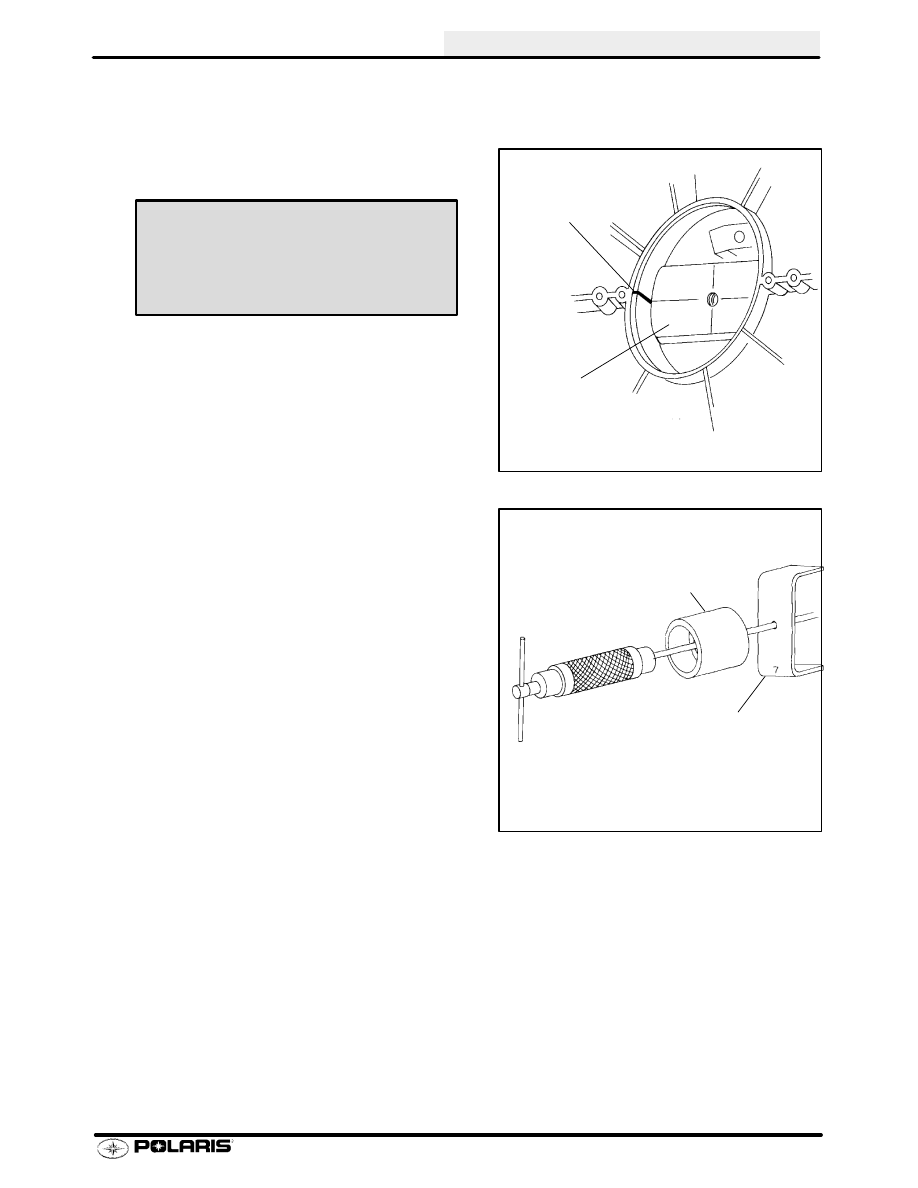

Ill. 2

Note posi-
tion
of split

Bushing
removal tool

Moveable Sheave Bushing Inspection:

Replace the cover bushing if more
brass than Teflon

is visible on the

bushing.

Ill. 3

Main Adaptor

Bridge
