37

FEATURES AND CONTROLS

Parking Brake

1. Apply the brakes.
2. When the vehicle is fully stopped, pull the parking brake lever

rearward as far as possible to set the parking brake.

3. Stop the engine.
4. To release the parking brake, apply the brakes and push the lever

toward the outside of the vehicle and forward.

5. See page 70 for parking brake adjustment procedures.

Tip: Always set the parking brake whenever the vehicle is left unattended.

Operating the vehicle while the parking brake is engaged could cause

an accident resulting in serious injury or death. It could also result in

driveline or engine damage. Always be sure to disengage the parking

brake before operating the vehicle.

38

FEATURES AND CONTROLS

Brake Pedal

Depress the brake pedal to slow or

stop the vehicle. Apply the brakes

while starting the engine.

Throttle Pedal

Push the pedal down to increase

engine speed. Spring pressure returns

the pedal to the rest position when

released. Always check that the

throttle pedal returns normally before

starting the engine.

Throttle

Pedal

Brake

Pedal

39

FEATURES AND CONTROLS

Speed Control System

This vehicle has an adjustable speed control system that controls the

speed of the vehicle. The speed of this vehicle is restricted to 10 MPH

(16 km/h) at manufacture. The speed limiting device may be adjusted

by supervising adults when they determine that their child is capable

of safely handling additional speed.

Electronic Speed Control System

Adjust speed modes by moving the jumper fuse between the assigned

speed slots inside the fuse box.

Jumper Condition

Restricted

Maximum Speed of Vehicle

Speed 1

29 MPH (47 km/h)

Speed 2

22 MPH (35 km/h)

Speed 3

15 MPH (24 km/h)

Speed 4

10 MPH (16 km/h)

40

FEATURES AND CONTROLS

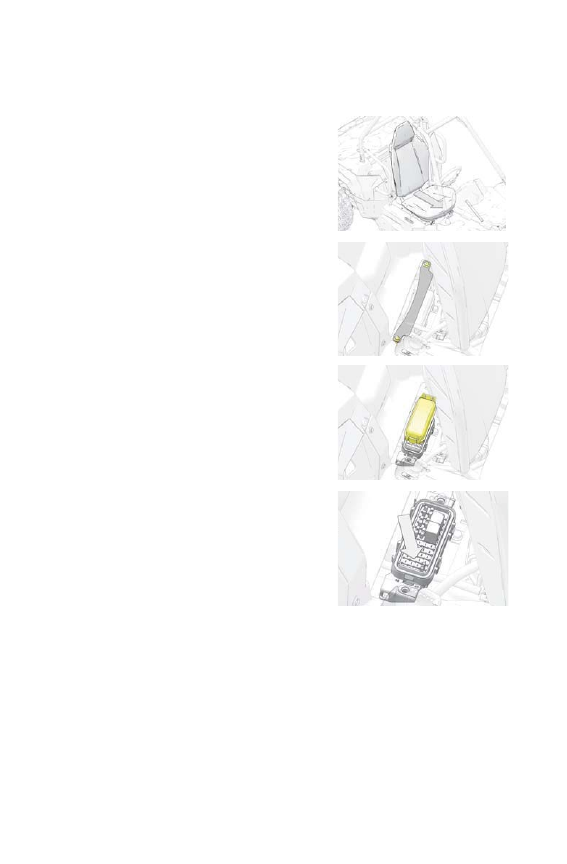

Electronic Speed Control System

1. Slide the driver’s seat forward to

access the fuse box.

2. Remove the two push rivets from the

retention bracket. Remove bracket.

3. Remove fuse box cover.

4. Move fuse jumper to desired speed

mode slot.

5. Replace fuse box cover.
6. Replace fuse box bracket and replace push rivets.
7. Reposition the seat.
