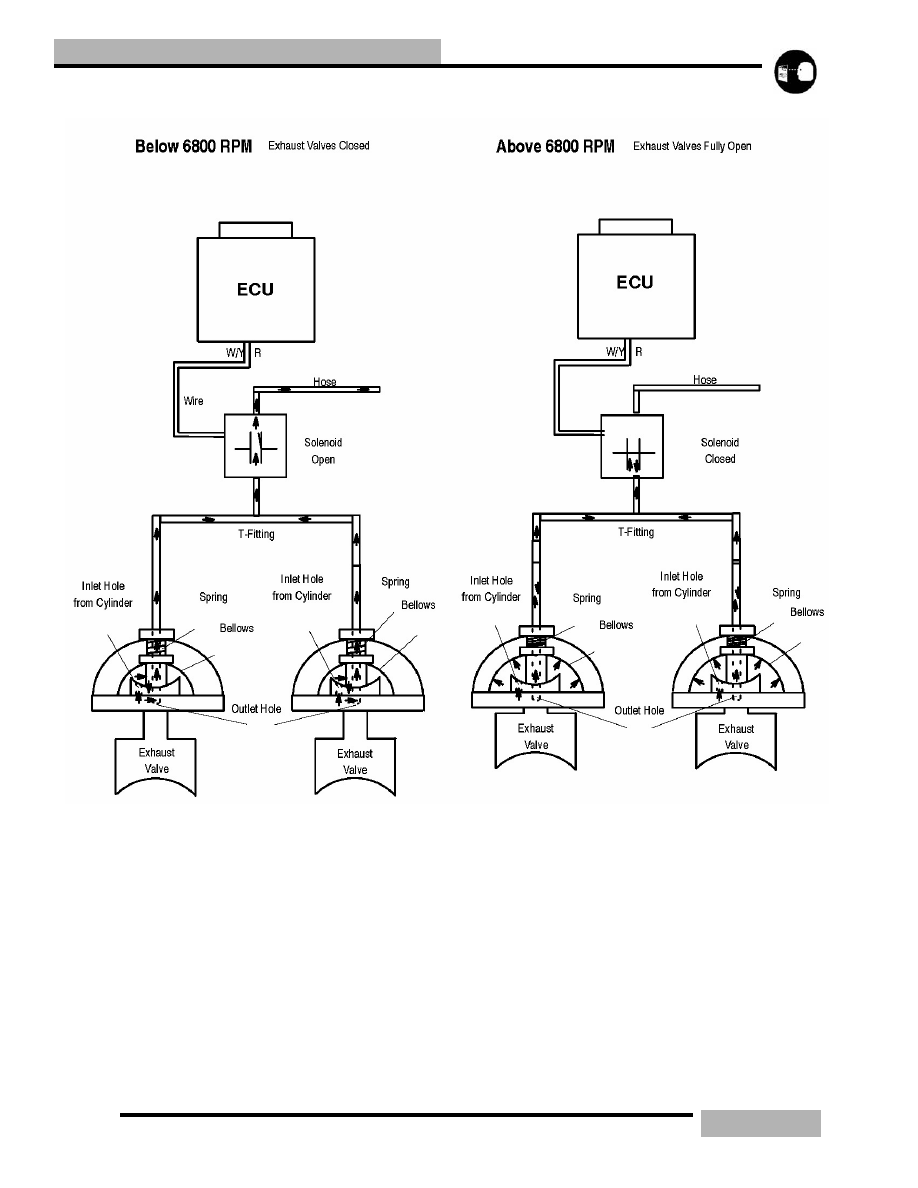

13.26

ELECTRICAL

13.27

ELECTRICAL

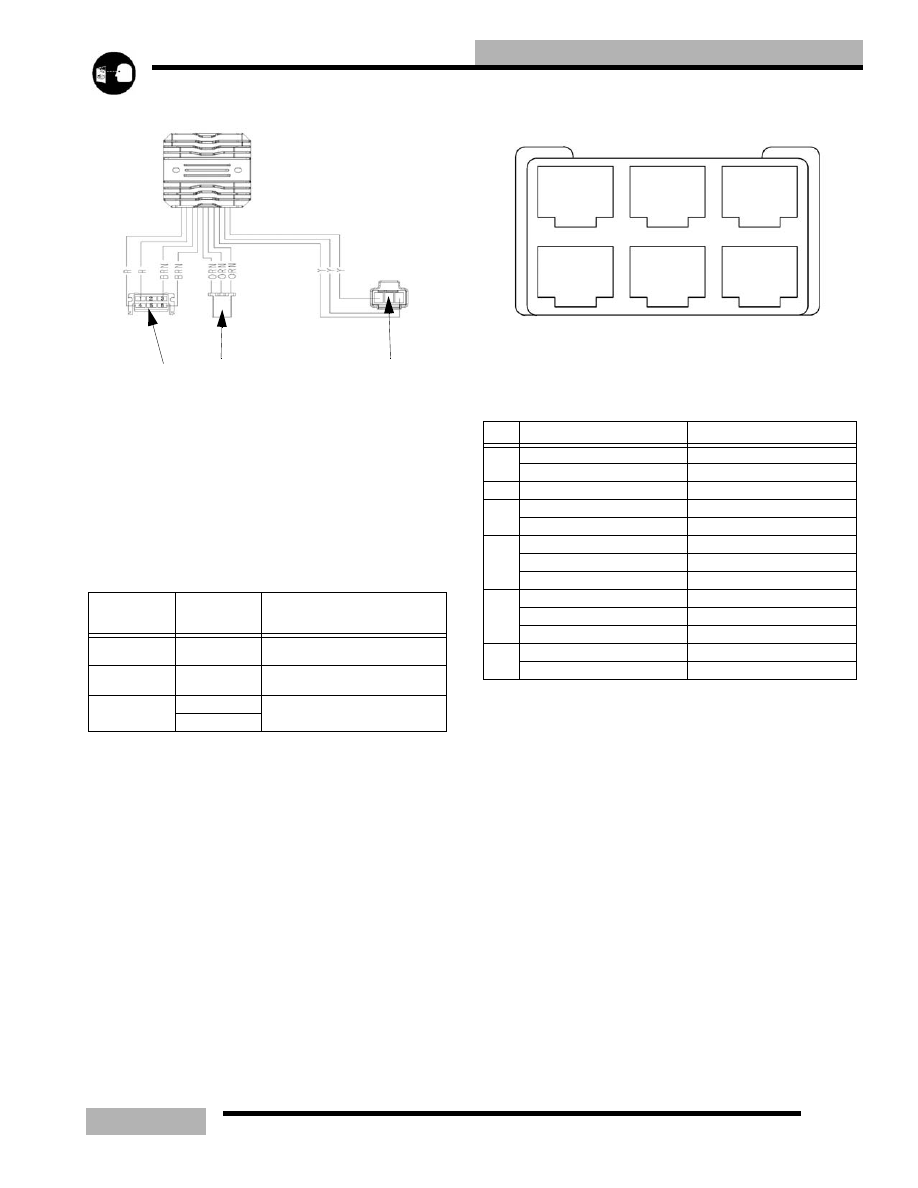

REGULATOR RECTIFIER

The rectifier converts the AC current to DC current by passing
the AC signal from the stator through diodes in a bridge
configuration. The regulator is used to limit the DC voltage to
a stable 14.5 Volts. This is necessary because the AC Voltage
can range from 0 - 80+ volts that is directly proportional to
engine RPM.

Table 13-21: Regulator Rectifier

connections

CONNECTO

R

WIRE

COLORS

ITEM

STATOR

YELLOW

AC Power from stator charge coils to the
Reg Rec for converting it to DC voltage

ECU

ORANGE

Provides DC power to ECU for low
voltage situations

CHASSIS

BROWN

Provides DC power to the chassis

RED

From

To

To

Stator

ECU

Chassis

Table 13-22: Chassis connector from Reg

Rec

PIN

COLOR

TO/FROM

1

Red (23)

To Chassis Relay

Red (52)

To Chassis Relay

2

-

-

3

Brown (12)

Ground

Brown (46)

To Chassis/Hood #1

4

Red (05)

To engine/chassis connector

Red (65)

To Chassis relay (power)

Red (66)

To Fuel Pump (power)

5

Orange (06)

To Chassis/Hood #1

Orange (09)

To Tail light

Orange (24)

To Brake light switch

6

Brown (39)

Diagnostic (ground)

Brown (67)

Fuel Pump (ground)

1

2

3

4

5

6

Chassis connector from Regulator Rectifier

13.28

ELECTRICAL

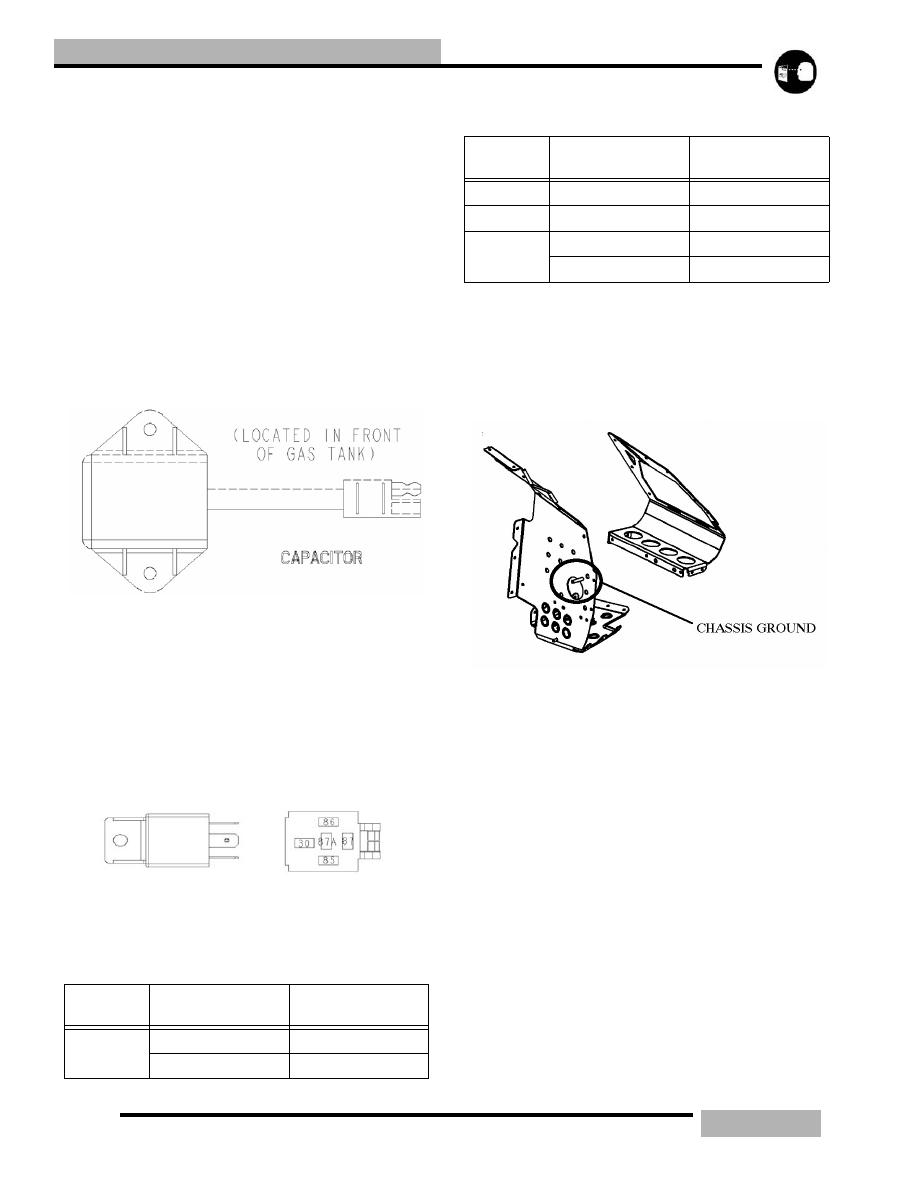

CAPACITOR

The function of the capacitor is to act like a battery in a non-
battery system. The capacitor makes the chassis side power
signal stable. WIth out the capacitor in the system the unit will
not run correctly at idle.

TESTING THE CAPACITOR

1.

Use a 12 volt battery and hook up the positive (+) to the
Red/White wire and the negative (-) to the brown wire. Let
the capacitor take a charge for 10 seconds.

2.

Using a multi meter check the power that is in the
capacitor. The power may slowly go down.

CHASSIS RELAY

Controls the power distribution to the chassis separate from
the rest of the system. The relay will close at a set RPM, when
the system can support the chassis load, and open when
engine RPM drops past a calibrated histories or 700 RPM.
Voltage Boost kicks in at 700 RPM, the relay opens, the stator
power is boosted and allocated to the fuel system and ignition
components.

CHASSIS GROUND

Located behind the left hand foot well the chassis ground
provides current path to ground. If ground is disconnected, all
the current will run through ECU and damage the internal
components of the ECU.

Table 13-23: From Chassis Relay

CONNECTO

R #

COLOR

TO/FROM

30

Red (23)

From Regulator

Red (65)

From Regulator

Chassis Relay

Chassis Relay Connector

85

Red (52)

From Regulator

86

White/Blue (73)

To Engine/Chassis

87

Red/White (17)

To Left Handlebar switch

Red/White (68)

To Red/White splice saver

Table 13-23: From Chassis Relay

CONNECTO

R #

COLOR

TO/FROM

13.29

ELECTRICAL

GENERAL ELECTRICAL ITEMS

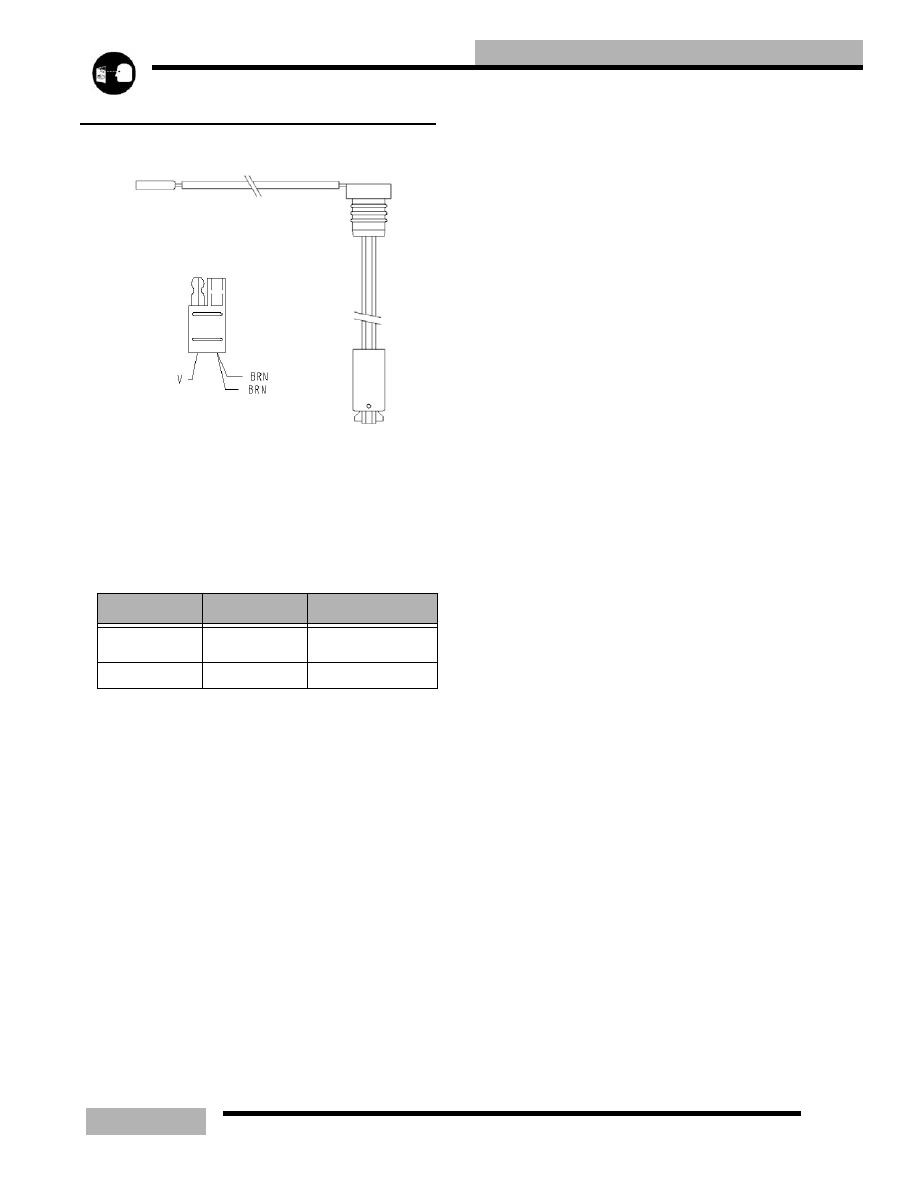

OIL LEVEL SENDER

The float (A) moves up and down the sender shaft (B) and
ECU sends a signal to the MFD when the level get to the point
where you need to add more oil. The oil level signal is
measured in resistance, FULL is open and <10

Ω at lower

level.

Table 13-24:

COLOR

ITEM

VALUE

Violet

Oil Level

Turns on lamp in gauge
when at low level

Brown

Ground

Ground
