Air Governor

8-16

627333-A

AIR GOVERNOR INSTALLATION

NOTE: Use an approved thread locking compound on

all plugs and fittings.

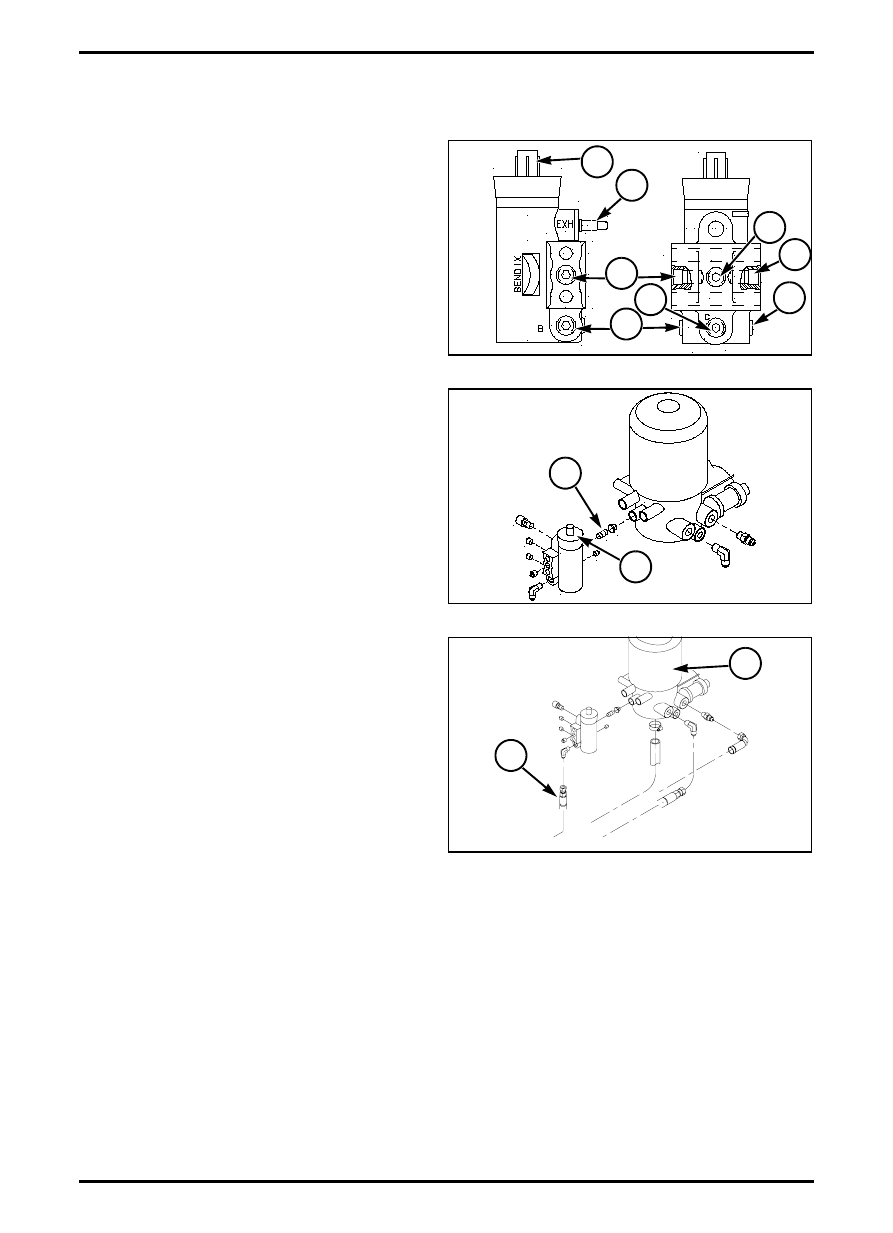

FIG. 3: Install 1/8 NPT plugs in ports (B), (C), (D), and

(E). Install breather in EXH port (1). Install elbow

adapter in port (F).

Pressure adjusting cover (2) is on top of governor.

Port-A (A) is where governor connects to air dryer.

FIG. 4: Install governor on to 1/8 pipe nipple (1) from

port 4 on air dryer to port A with pressure adjusting

cover (2) on top.

FIG. 5: Mount air dryer/governor assembly in cabinet

using three mounting bolts.

Reconnect air hose (1) from air tank to elbow on RES

port.

Reconnect air hoses to air dryer (2).

FIG. 3

M6235008

C

1

E

F

A

B

D

2

FIG. 4

M6205001

1

2

FIG. 5

N080712009

1

2

627333-A

8-17

Cab Air Suspension

CAB AIR SUSPENSION

THEORY OF OPERATION

The cab has air ride suspension. The air ride

suspension has twin air bags that are filled with

compressed air from the air system. A height control

valve regulates the amount of air pressure in the air

bags.

A lateral control rod keeps the cab located in the center

of the machine while allowing the cab to move up and

down. There are two shock absorbers that control the

bounce of the cab.

The front of the cab is mounted in rubber bushings to

allow the cab to move and pivot with the suspension.

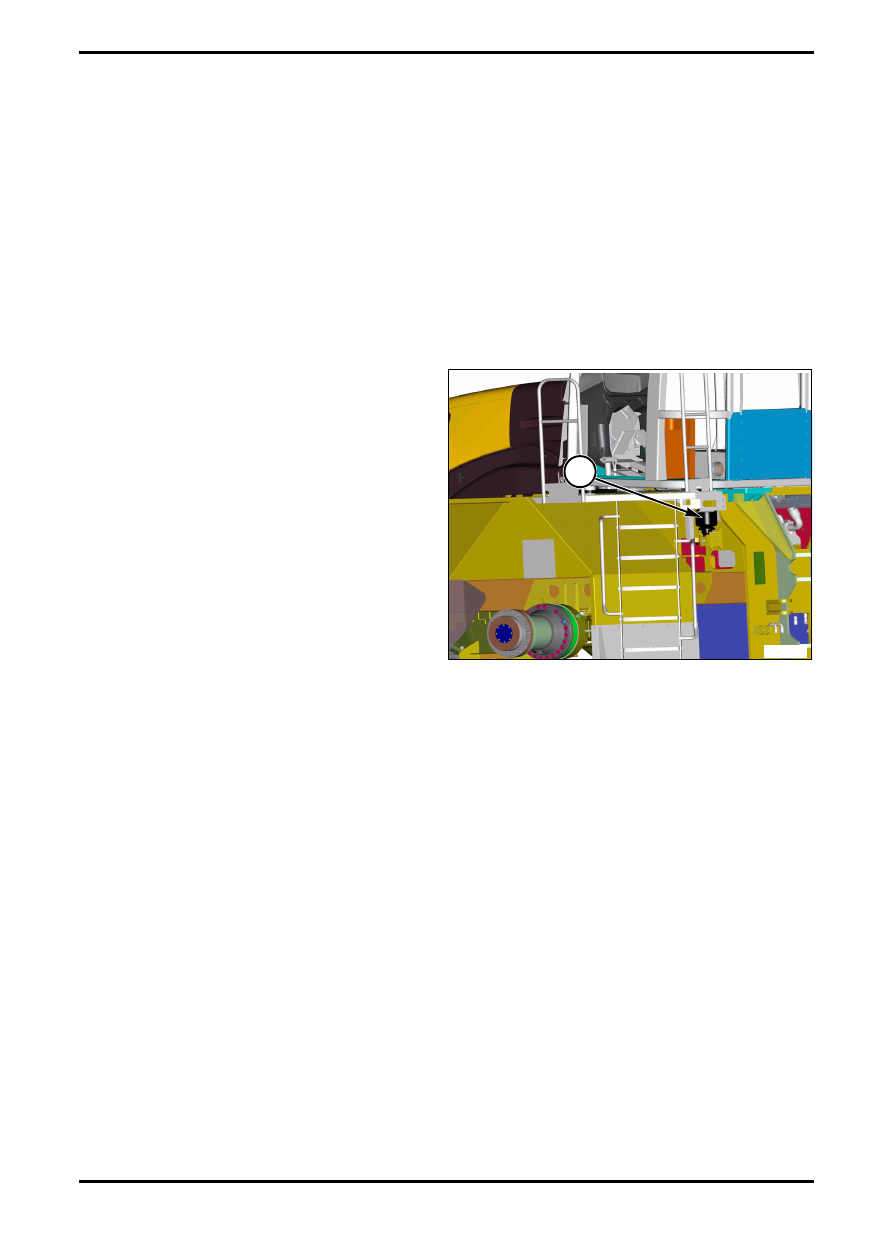

FIG. 1: Cab air suspension (1) is located at the rear of

the cab.

FIG. 1

1

q000179s

Cab Air Suspension

8-18

627333-A

CAB AIR SUSPENSION REMOVAL

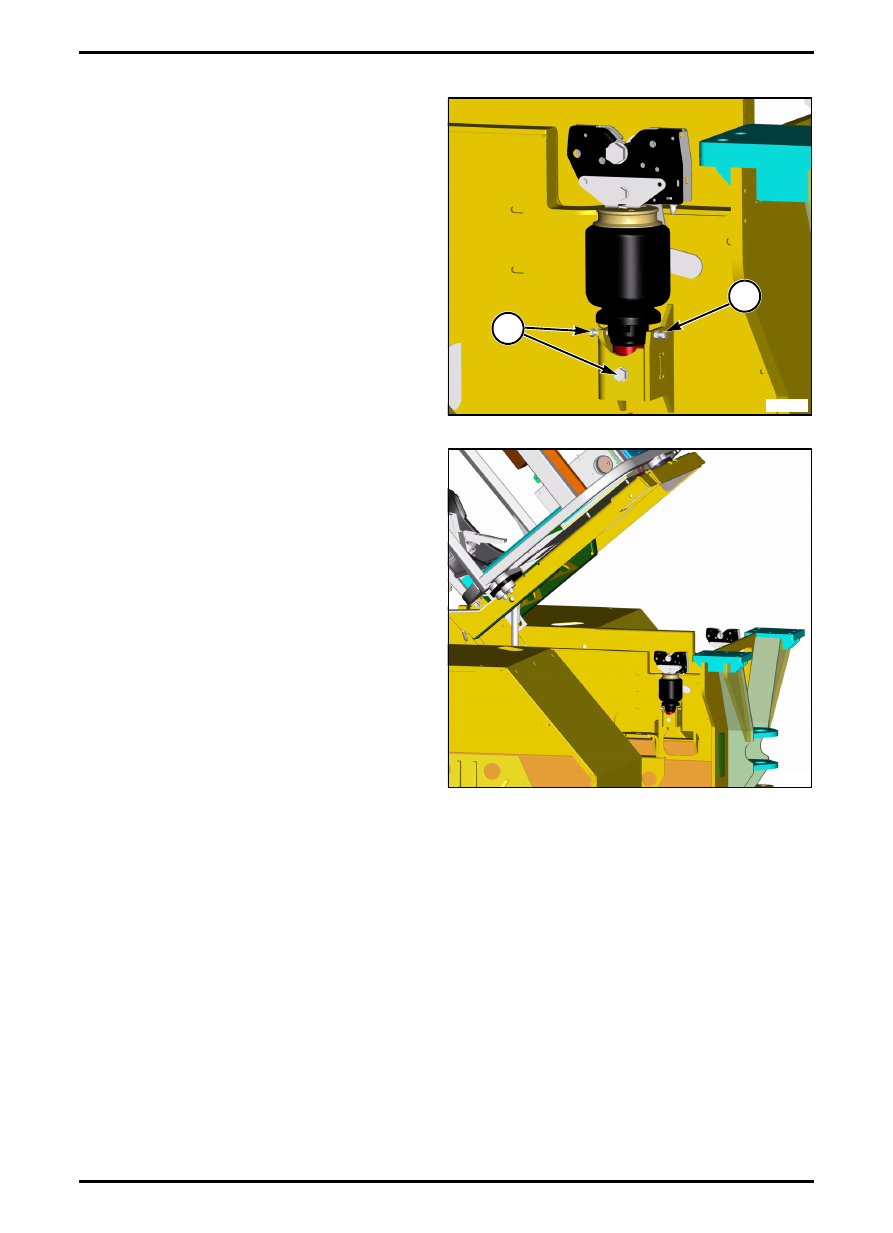

FIG. 2: Tip over the cab.

IMPORTANT: Don’t leave any loose obkects in the

cabin which can cause any damage during

tipping over the cabin.

1. Remove side panels engine hood;

2. Take the lock pin with retainer out of his locking

position underneath the can. And place the lock pin

on the left platform, near the roatating point of the

cabin;

3. Open the engine hood;

IMPORTANT: Keep a clearence of 2 meter (80 inch)

front of the vehicle.

4. Close the knob on the handpump (CW);

5. Place pump lever in the pump and pump up the

cab. While pumping up the cab suspension lock

will be automatically opened for tipping over.

6. After tipping over the cab put in the lock pin with

reatiner immediatly.

m

DANGER: When the locking pin is not in

position, nobody is allowed under the

cab.

FIG. 3: Mark and disconnect air line to height control

valve.

m

WARNING: Remove all air pressure from

air system before disconnecting any air

hoses. Pressurized air can cause serious

personal injury.

Loosen and remove the three bolts (1) holding the

suspension to the chassis.

FIG. 2

q000180s

FIG. 3

q000181s

1

1

627333-A

8-19

Cab Air Suspension

CAB AIR SUSPENSION INSTALLATION

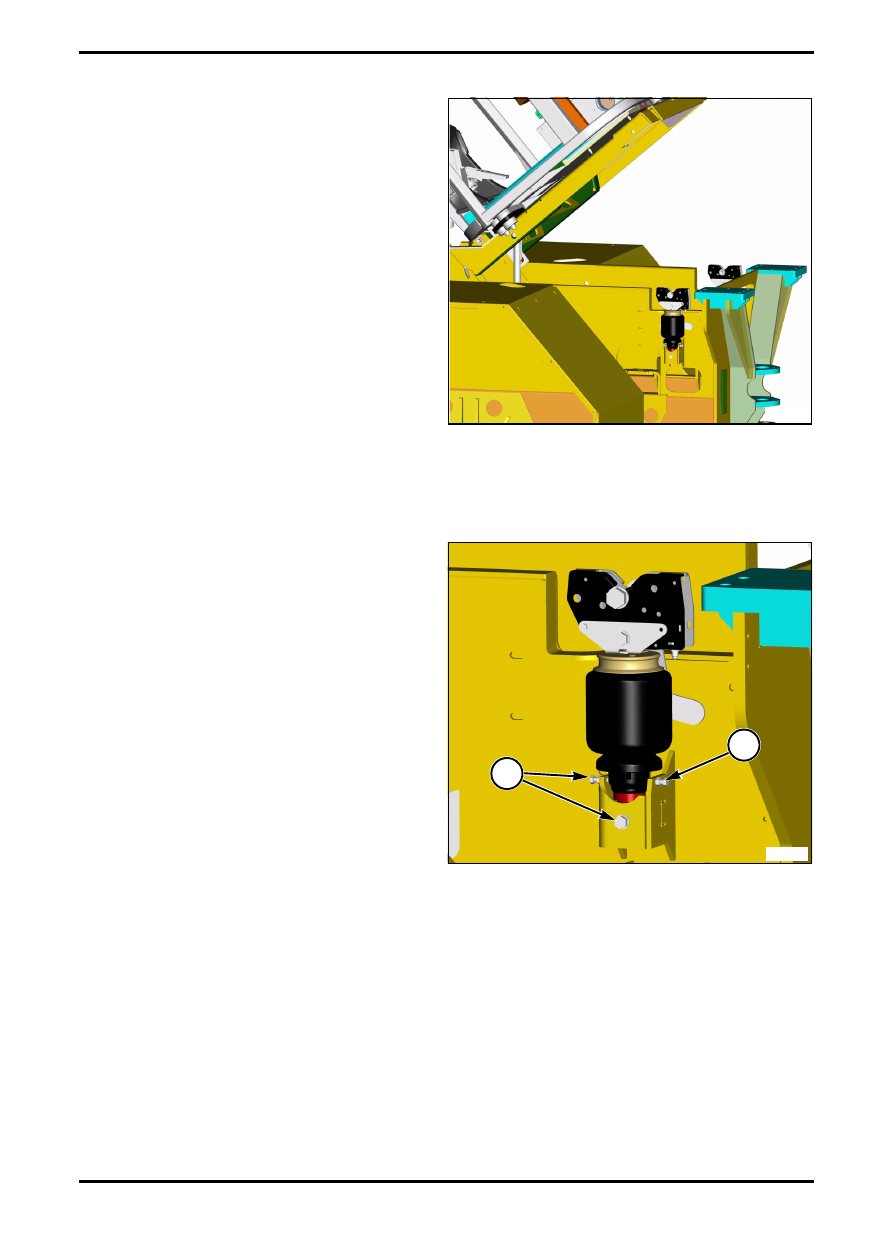

FIG. 4: Place the suspension in the support on the

chassis. Place and thighten the three bolts (1) holding

the suspension to the chassis.

Connect air line to height control valve.

FIG. 5: Lower the cab.

1. Remove the lock pin from it’ locking position;

m

DANGER: Make sure there’s nobody

under the cab.

2. Open the knob (CCW) on the handpump, to

depressurize the system. The cab will lower by its

weight;

The rear cab suspension will lock its self.

Have the knob in the “open” position.

3. Restore the lock pin with retainer in his locking

positon underneath the cab;

4. Remove the pump lever of the pump. Place the

pump lever back to the storage compartment;

5. Close the engine hood;

6. Place back the side panels.

FIG. 4

q000181s

1

1

FIG. 5

q000180s
