Electrical outlets (p. 578)

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do not
place keys, phones or similar items on sensi-
tive surfaces.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

577

Related information

•

•

Using the glove compartment (p. 581)

•

Sun visors (p. 582)

•

Tunnel console (p. 577)

•

Connecting a device via the USB port
(p. 509)

Tunnel console

The tunnel console is located between the front
seats.

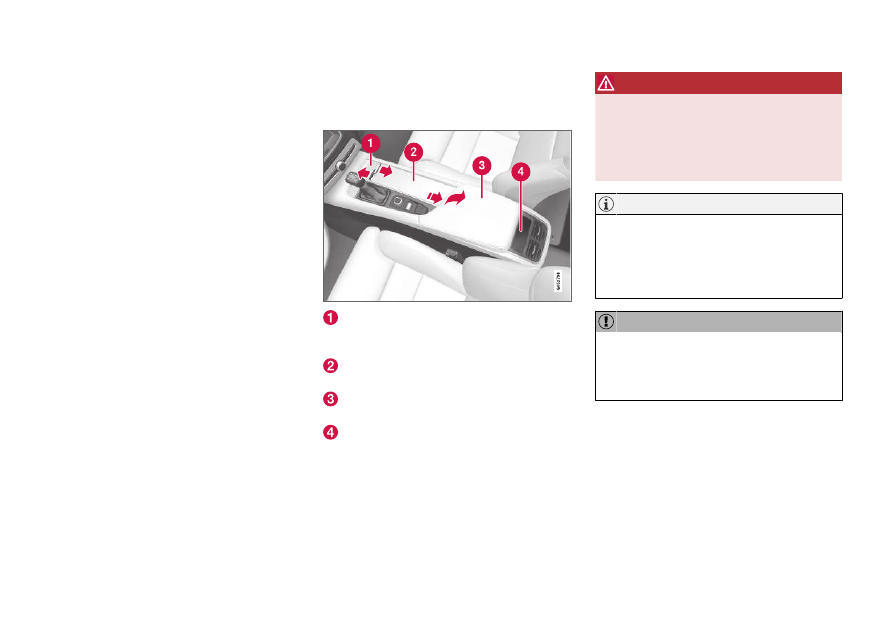

Storage compartment with cover*. The cover
can be opened/closed by pressing the han-
dle.
Storage compartment with cup holder and
12 V socket.
Storage compartment and USB port under
the armrest.
Climate control panel for the rear seats* or
storage compartment.

WARNING

Store loose objects, such as cell phone, cam-

era, remote control for extra equipment, etc.,

in the glove compartment or another compart-

ment. Otherwise, these could injure people in

the vehicle in the event of hard braking or a

collision.

One of the sensors for the alarm* is located
under the cup holder in the center console.
Avoid placing coins, keys and other metal
objects in the cup holder as this could trigger
the alarm.

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do not
place keys, phones or similar items on sensi-
tive surfaces.

Related information

•

Electrical outlets (p. 578)

•

•

Climate system controls (p. 219)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

578

Electrical outlets

There are two 12 V electrical outlets and one
120 V electrical outlet* in the tunnel console,
and one 12 V electrical outlet* in the trunk/cargo
compartment.

If a problem occurs with an electrical socket,
contact a workshop - an authorized Volvo work-
shop is recommended.

12 V outlets

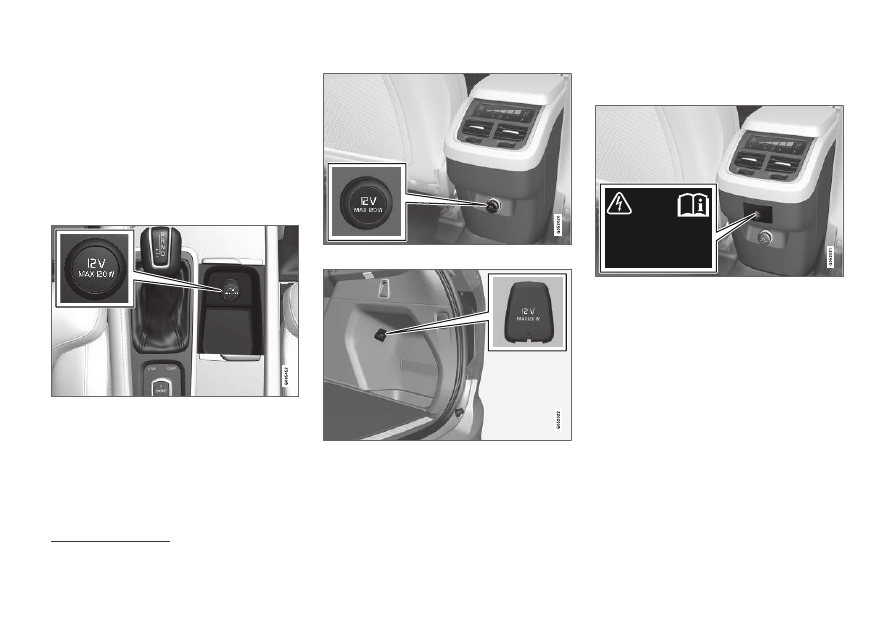

12 V outlet in the tunnel console, front seat.

The 12 V outlets can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

12 V outlet in the tunnel console, second row of seats.

12 V outlet in the cargo compartment*.

Electrical outlets in the tunnel console -
rear seat*

Electrical outlet in the tunnel console, second row of
seats.

The high-voltage outlet* can be used for devices
intended for this, such as chargers, laptops, etc.

High-voltage outlet status indicator
light

An LED

light on the outlet indicates its status:

LED (Light Emitting Diode)

LOADING, STORAGE AND PASSENGER COMPARTMENT

579

Status indicator light

Cause

Action

Steady green light

The outlet is providing electrical current to a connected device.

None.

Flashing orange light The outlet's voltage converter is too hot (e.g. if the device draws too much cur-

rent or if the temperature in the passenger compartment is very high).

Unplug the device, let the voltage converter cool
down and plug in the device again.

The connected device is drawing too much current (at the moment or con-
stantly) or is not functioning properly.

None. The device cannot be used in the outlet.

Indicator light off

The outlet has not detected a device plugged into the outlet.

Make sure the device is correctly plugged into
the outlet.

The outlet is not active.

Make sure the vehicle's ignition is in at least
mode I.

The outlet has been active but has been deactivated.

Start the engine and/or charge the start battery.

Related information

•

Using the electrical outlets (p. 580)

•

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

580

Using the electrical outlets

The 12 V outlet can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

The high-voltage outlet* can be used for devices
intended for this, such as chargers, laptops, etc.

The ignition must be in at least mode I for the
outlets to supply current. The outlets will then be
active as long as there is sufficient charge in the
start battery.

If the engine is turned off and the vehicle is
locked, the outlets will be deactivated. If the
engine is turned off and the vehicle remains
unlocked, the sockets will remain active for up to
7 minutes.

Bear in mind that using the electrical outlets
when the engine is off could cause the starter
battery to have too low of a charge level,
which could limit other functionality.

Accessories connected to the electrical out-
lets can be activated even when the vehicle
electrical system is off or if preconditioning is
used. For this reason, disconnect plugs when
they are not in use to prevent the starter bat-
tery from becoming discharged.

WARNING

•

Do not use accessories with large or
heavy plugs – they could damage the out-
let or come loose while you are driving.

•

Do not use accessories that could cause
disruptions to e.g. the vehicle's radio
receiver or electrical system.

•

Position the accessory so that there is no
risk of it injuring the driver or passengers
in the event of heavy braking or a colli-
sion.

•

Pay attention to connected accessories
as they can generate heat that could burn
passengers or the interior.

Using 12 V outlets

1. Remove the stopper (tunnel console) or fold

down the cover (trunk/cargo compartment)
over the socket and plug in the device.

2. Unplug the device and put the stopper back

in (tunnel console) or fold up the cover
(trunk/cargo compartment) when the socket
is not in use or left unattended.

The maximum power is 120 W (10 A) per
outlet.

Using high-voltage outlets

The ignition must be in at least mode I for outlets
to supply current. The outlets will then be active
as long as there is sufficient charge in the start
battery.

1. Slide down the cover over the outlet and plug

in the device.
> The LED

light on the outlet will indicate

its status.

2. The outlet is supplying electrical current

when the light is glowing steadily green.

3. Disconnect the device by pulling out the plug

(do not pull on the cord).

Pull up the cover when the outlet is not in
use or is left unattended.

Electrical outlets (p. 578)

The maximum power is 150 W.

WARNING

Do not attempt to alter or repair the high-volt-

age outlet on your own. Volvo recommends

contacting an authorized Volvo workshop.

LED (Light Emitting Diode)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

581

WARNING

•

Only use accessories that are not dam-
aged or malfunctioning. The accessories
must be designed for 120 V and 60 Hz,
with plugs intended for the outlet. The
accessories must be CE marked, UL
marked or have an equivalent safety
marking.

•

New let outlets, plugs or accessories
come into contact with water or another
fluid. Do not touch or use the outlet if it
appears damaged or has been in contact
with water or another fluid.

•

Do not connect power strips, adapters or
extension cords to the outlet has this
could cause the outlet's safety functions
to malfunction.

•

The outlet is equipped with a pet guard.
Make sure that no one picks at or dam-
ages the outlet in such a way that the
guard is disabled. Children should not be
left unsupervised in the vehicle when the
outlet is active.

Failure to follow the above could lead to

severe or fatal electrical shocks.

Related information

•

•

Using the glove compartment

The glove compartment is located on the pas-
senger side. The glove compartment can be
used to store the Owner's Manual, maps, etc.
There is also room for a pen and a card holder.

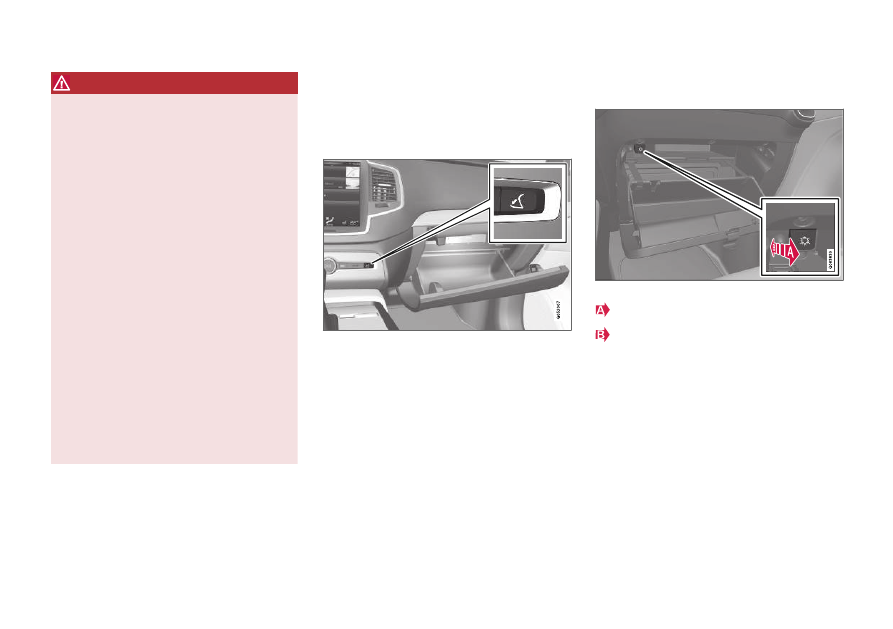

Glove compartment and opening button on the center
console.

The glove compartment is opened by pressing
the opening button in the center console.

Locking and unlocking the glove box

The glove compartment can be locked ("private
locking") when the vehicle is left at a workshop,
hotel, etc. When private locking is activated, the
tailgate is also locked.

Using the glove box as a cooled area*

The glove compartment can be used to cool e.g.
drinks or food. Cooling is possible when the cli-

mate system is active (i.e. when the ignition is in
mode II or when the engine is running).

The illustration is generic – the design may vary.

Activate cooling

Deactivate cooling

–

Activate or deactivate cooling by moving the
control as far as possible toward the passen-
ger compartment/glove compartment.

Related information

•

•

Private Locking (p. 273)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

582

Sun visors

In the ceiling in front of the driver and front pas-
senger, there are sun visors that can be lowered
and angled to the side as necessary.

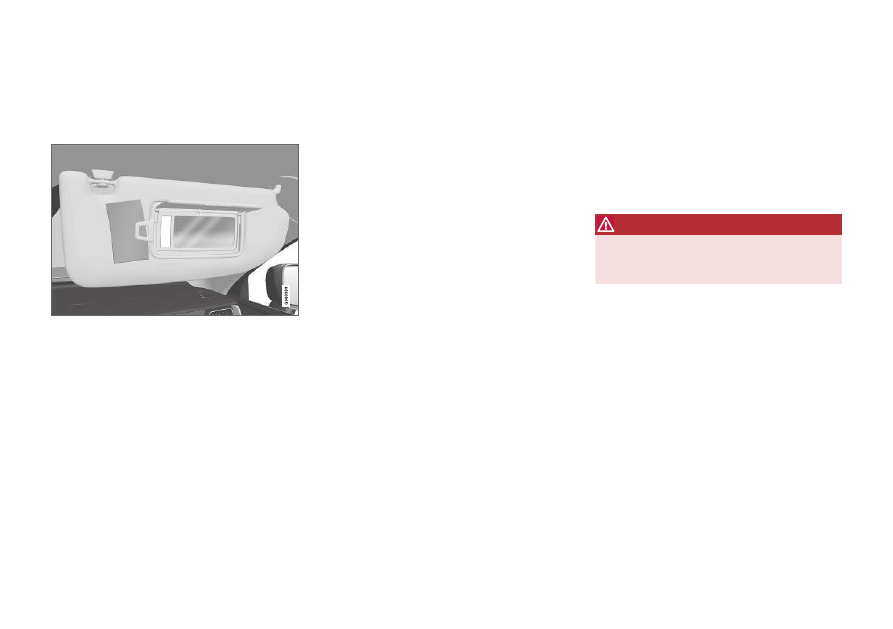

The illustration is generic – the design may vary.

The mirror lighting* comes on automatically when
the cover is lifted up.

The mirror frame has a holder for e.g. cards or
tickets.

Related information

•

Cargo compartment

The vehicle has a flexible cargo compartment
that makes it possible to carry and secure large
objects.

The cargo compartment capacity can be consid-
erably increased by folding down the backrests in
the second and third rows* of seats. To make
loading and unloading easier, the rear section of
the vehicle can be raised and lowered using the
level control function*. Use the load anchoring
eyelets or grocery bag holders to help secure
objects in place, and the retractable cargo com-
partment cover* to help conceal objects in the
cargo compartment.

The towing eyelet and tire sealing system, or the
temporary spare tire*, are located under the
cargo compartment floor.

Related information

•

Grocery bag holders (p. 584)

•

•

Load anchoring eyelets (p. 585)

•

Installing and removing the cargo compart-
ment cover* (p. 586)

Loading recommendations

There are a number of things to consider when
carrying loads in or on the vehicle.

Load-carrying capacity is determined by the vehi-
cle's curb weight. The total weight of all passen-
gers and any installed accessories reduces the
vehicle's load-carrying capacity by the corres-
ponding amount.

WARNING

The vehicle's driving characteristics change

depending on the weight and position of the

load.

Loading the cargo compartment/trunk

•

Position objects so they are pressing against
the rear seat backrests.

•

Distribute the load evenly.

•

Heavy objects should be positioned as low
as possible. Avoid placing heavy objects on
folded-down seat backrests.

•

Cover sharp corners with a soft cloth or simi-
lar to help prevent damage to the upholstery.

•

Use the load anchoring eyelets and tension-
ing straps or similar to secure all objects.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

583

WARNING

In a head-on collision at a speed of 50 km/h

(30 mph), an unsecured object weighing 20

kg (44 pounds) can reach a projectile weight

equivalent to 1000 kg (2200 pounds).

WARNING

If objects are loaded higher than the upper

edge of the side windows, leave a 10 cm (4

in.) space between the objects and the win-

dow. Objects placed closer to this could

impede the function of the inflatable curtain

concealed inside the headlining.

WARNING

Always secure the load. Otherwise, it may shift

during heavy braking and injure people in the

vehicle.
Cover sharp edges and sharp corners with

something soft.
Turn off the engine and apply the parking

brake when loading/unloading long objects.

Otherwise, it is possible for the load to reach

the gear lever or gear selector and move it to

a drive position – which could cause the vehi-

cle to begin rolling.

Extra cargo space

The rear seat backrests can be folded down to
increase cargo compartment space and simplify
loading. If the rear seat backrests are folded

down, make sure that no objects loaded into the
vehicle prevent the WHIPS system for the front
seats from functioning correctly.

Raising/lowering the rear end of the
vehicle*

The rear end of the vehicle can be lowered or
raised for easier loading or to facilitate attaching
a trailer*.

The controls for raising/lowering are located at
the rear edge of the cargo compartment's right
side panel.

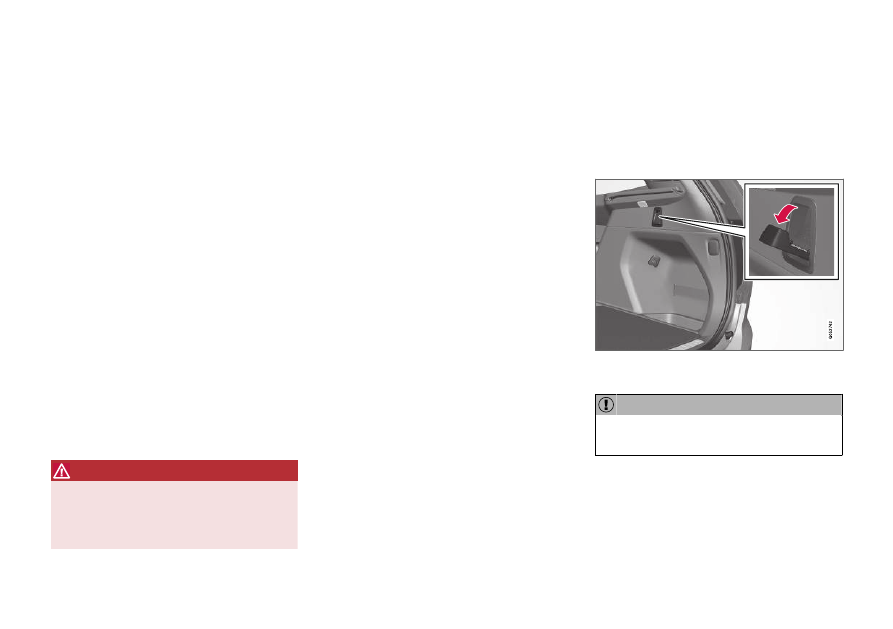

Controls for raising/lowering the rear end of the vehicle.

The controls consist of two buttons

‒ one button

for lowering and one button for raising the rear
end. Press and hold the relevant button until the
desired height is reached.

The rear end of the vehicle cannot be raised
higher than its normal height.

The rear end will return to the normal height
when the vehicle begins driving.

Load anchoring eyelets (p. 585)

It is not possible to adjust the height of the
vehicle's rear when one or more of the doors
or the hood is open. This does not apply to
the tailgate.

WARNING

Make sure that no people, animals or objects

are found under the vehicle when it is low-

ered. This could endanger life and cause

damage to the vehicle or objects.

Related information

•

•

Folding the second row backrests (p. 197)

•

Roof loads and load carriers (p. 584)

•

Leveling control* and suspension (p. 448)

•

Weights (p. 659)

LOADING, STORAGE AND PASSENGER COMPARTMENT

584

Roof loads and load carriers

Volvo-developed load carriers are recommended
for carrying loads on the roof of the vehicle.

Volvo load carriers are specially designed to help
prevent damage to your vehicle and help ensure
maximum safety while driving. Volvo load carriers
are available from authorized Volvo retailers.

Carefully follow the installation instructions provi-
ded with the load carriers.

•

Distribute the load evenly throughout the
load carriers. Place heavier cargo at the bot-
tom of the load.

•

Check periodically to ensure that the load
carriers and load are properly secured.
Secure the load firmly using tie straps or
similar.

•

If the load is longer than the vehicle, such as
a canoe or kayak, attach the towing eyelet in
its front outlet and secure the tie straps in it.

•

The vehicle's wind resistance and fuel con-
sumption increase with the size of the load.

•

Drive smoothly. Avoid rapid acceleration, hard
braking and fast cornering.

WARNING

The vehicle's center of gravity and driving

characteristics are altered by roof loads.
Follow the vehicle's specifications regarding

weights and maximum permitted load.

Related information

•

•

Weights (p. 659)

Grocery bag holders

Grocery bag holders (hooks) help keep shop-
ping bags in place and prevent them from falling
over and spilling their contents in the cargo
compartment.

On the sides of the cargo compartment

There are two fold-out holders in the side panels,
one on each side of the cargo compartment.

The grocery bag holders are only intended to
hold weights up to 5 kg (11 lbs).

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

585

Under the floor hatch*

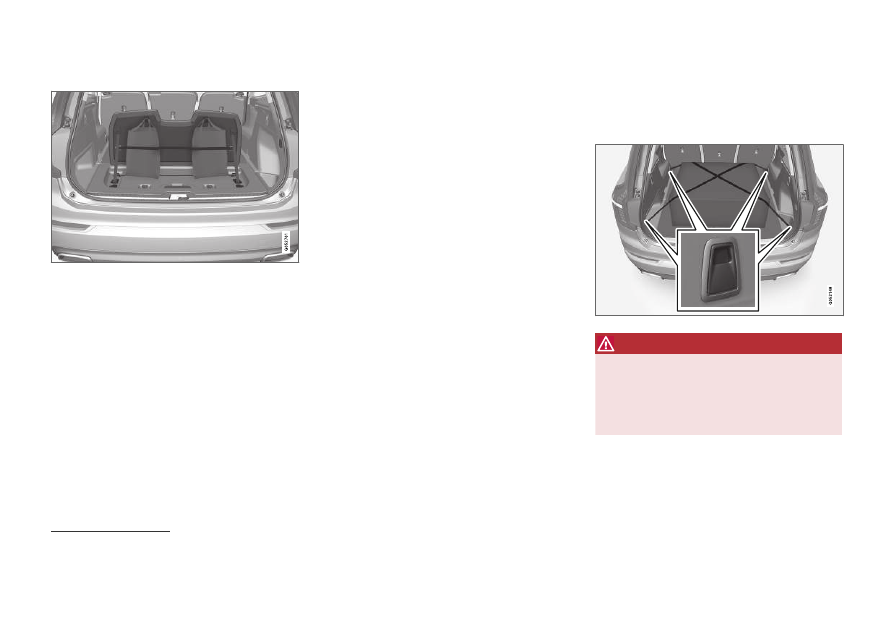

There are two grocery bag holders and an elastic
band

in the hatch in the cargo compartment

floor. The strap can be attached in four different
positions.

Open the hatch to access the grocery bag hold-
ers. Use the provided elastic strap to secure
shopping bags in a suitable position. Bags with
handles of a suitable size can also be hung on
the hooks.

Related information

•

Installing and removing the cargo net*
(p. 590)

•

•

Installing and removing the cargo compart-
ment cover* (p. 586)

•

Installing and removing the steel cargo grid*
(p. 589)

Load anchoring eyelets

The load anchoring eyelets in the cargo com-
partment can be used to secure objects with
straps, a net, etc.

WARNING

Hard, sharp and/or heavy objects in or pro-

truding from the vehicle can cause injury in

the event of hard braking.
Always secure large and heavy objects with a

seat belt or cargo retaining straps.

Related information

•

Operating the cargo compartment cover*
(p. 586)

•

Weights (p. 659)

5-seat models only.

Additional elastic straps can be ordered from a Volvo retailer.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

586

Installing and removing the cargo

compartment cover*

The cover can be rolled out to conceal objects
in the cargo compartment.

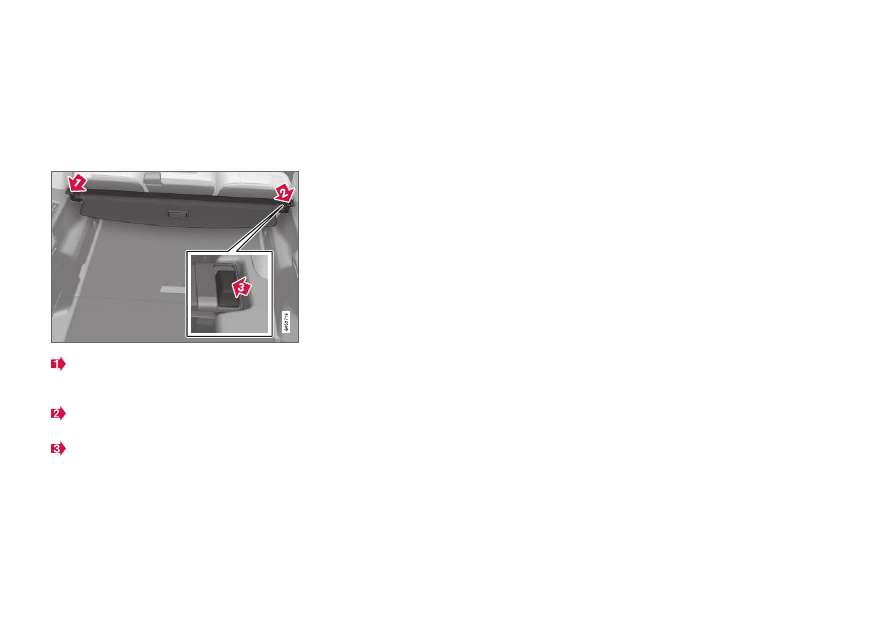

Installing the cargo compartment cover

Press the end piece on one side of the cover
into the retaining bracket in the side panel of
the cargo compartment.

Then put the other end piece in the recess in
the side panel on the opposite side.

Push the end piece down on both sides, one
at a time.
> When a click is heard and the red marks

on each end piece are no longer visible,
the cover is in place. Check that it is
secure.

Removing the cargo compartment
cover

In retracted position:

1. Press the button on one of the cover's ends

and lift out that end.

For 7-seat models - remove the third row
seat belt latches from the hooks above the
side panels.

2. Carefully lift the cover up and out.

> The other end will release automatically

and the cover can then be lifted out of the
cargo compartment.

Related information

•

•

Operating the cargo compartment

cover*

The cover can be used in two positions: fully
open to completely cover the cargo compart-
ment or partially retracted to make it easier to
reach further into the cargo compartment.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

587

Fully open

7-seat models

Hang the third-row seat belt latches in the
hooks provided in the side panels.

Grasp the handle and pull the cover out and
above the side panels in the cargo compart-
ment. Pull the cover to its end position.

With the cover completely open (covering the
cargo compartment), press the attaching
pins at the end of the cover into the grooves
on the side panels and release the cover
slightly while pressing the handle lightly
downward to hook the pins into the grooves.
> The cover will be secured in the fully open

position.

5-seat models

Grasp the handle and pull the cover out and
above the side panels in the cargo compart-
ment. Pull the cover to its end position.

position.

Installing and removing the cargo compart-
ment cover* (p. 586)

Do not place objects on top of the cargo
compartment cover.

WARNING

In 7-seat models - never have a cargo com-

partment cover mounted when there are pas-

sengers in the rear seats. This could lead to

serious injury in the event of a collision.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

588

Loading mode

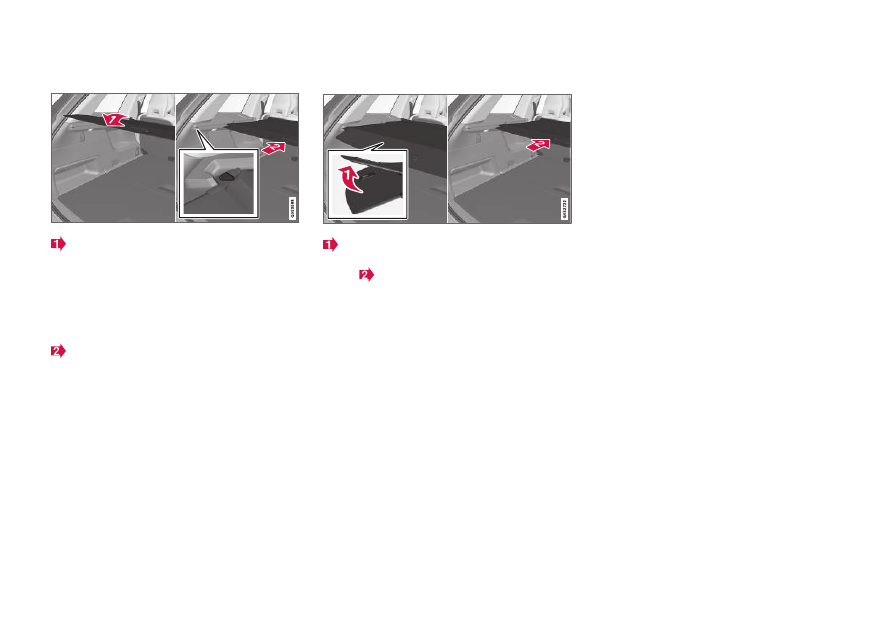

From the fully retracted position - grasp the
handle and pull the cover up and over the
side panels in the cargo compartment. Pull to
the end position and press the attaching pins
at the end of the cover into the grooves in
the side panels of the vehicle. (If the cover is
already fully open, see next section.)

From the fully open position - grasp the han-
dle and press the cover's attaching pins
down into the grooves in the side panels and
then release.
> Retract the cover until it stops in the parti-

ally retracted position.

If your hands are full:

In the fully open position, push the cover's
handle slightly upward with e.g. your elbow.
>

The cover will retract until it stops in

the partially retracted position.

To fully open the cover from the partially retrac-
ted position:

1. Grasp the handle and pull the cover out as

far as possible.

2. Let the cover retract slightly and press the

handle slightly downward.
> The cover will be secured in the fully open

position.

Retracting the cover

1. From the fully opened position:

Lift the cover's handle and pull it rearward to
release the cover's attaching pins from the
grooves. Let the cover retract.

From the partially retracted position:

Grasp the handle and pull the cover out of
the groves to the fully open position. Lift the
handle and pull it rearward to release the
cover's attaching pins from the grooves. Let
the cover retract.

2. Let the cover retract with its attaching pins

above the side panels until it stops in the
fully retracted position.

Related information

•

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

589

Installing and removing the steel

cargo grid*

The steel cargo grid helps prevent loads or pets
in the cargo compartment from being thrown for-
ward into the passenger compartment.

For safety reasons, the steel grid must always be
installed and secured correctly.

WARNING

Under no circumstances may a person be in

the cargo compartment when the vehicle is

moving. Heavy braking or a collision could

lead to serious injury.

The steel grid consists of the grid itself and two
separate mounting brackets. Each of the mount-

ing brackets has a screw cover and two plastic
sleeves for the grid.

WARNING

The steel cargo grid may only be used in the

rear position described here. The ceiling

attachment points behind the front seats are

not intended to anchor the steel grid.

WARNING

For safety reasons, the third-row seats

must

be folded down when the steel cargo grid is

mounted in the vehicle.

The steel cargo grid and the cargo compart-
ment cover cannot be mounted at the same
time.

Installation

1. Fold down the rear seats and lift in the steel

grid through one of the rear doors or the tail-
gate. The curved (convex) side of the grid
should face toward the cargo compartment
and the hooks on each side of the grid
should face upward. The mounting brackets
and plastic sleeves are not needed in this
step.

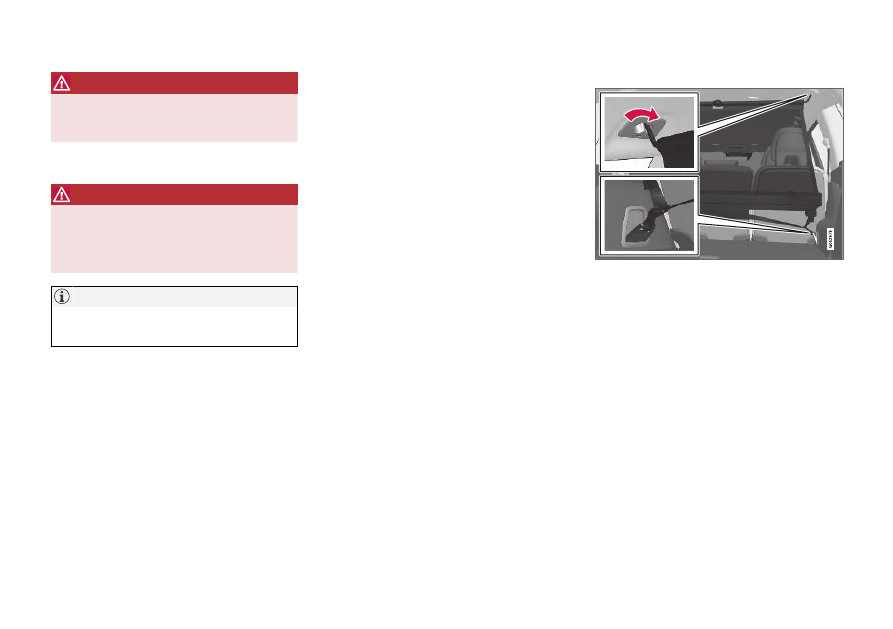

Press one of the grid's hooks into the larger
hole in the ceiling attachment point (1).

Grasp the grid near the hook and pull/push it
into the smaller hole (2).
> The hook is now secured in the attach-

ment point.

3. Repeat step 2 above to secure the other

hook in the attachment point on the opposite
side.

WARNING

Make sure the cargo grid's hooks are securely

attached in the ceiling attachment points to

help ensure the grid does not come loose.

7-seat models only.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

590

Attach the mounting bracket's hook through
the cargo anchoring eyelet near the floor of
the cargo compartment and insert the threa-
ded section of the bracket through the grid's
lower attachment hole (1).

Slide the plastic sleeve onto the threaded
section of the mounting bracket with the
sleeve's flange turned upward and press it
down through the hole. Screw the screw
cover into place until its underside is approxi-
mately 5 mm from the grid (2).

5. Repeat step 4 for the opposite side.

6. Center the grid and then tighten both mount-

ing brackets, moving back and forth between
them until the grid is securely in place.

Removing the cover

Remove the steel grid by performing the above
steps in reverse order.

It can be a good idea to remove the mounting
brackets before removing the plastic sleeves
from the holes in the grid.

Related information

•

Load anchoring eyelets (p. 585)

•

Installing and removing the cargo

net*

The cargo net helps prevent objects in the cargo
compartment from entering the passenger com-
partment in the event of a sudden stop or hard
braking.

The cargo net is attached at four points.

For safety reasons, the cargo net must always be
mounted and secured according to the following
description.

The net is made of strong nylon weave and can
be attached in two different locations in the vehi-
cle:

•

Rear mounting - behind the second row of
seats.

•

Front mounting - behind the front seats.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

591

WARNING

Objects in the cargo compartment must

always be securely anchored, even with a cor-

rectly installed cargo net.

Installing the cargo net

WARNING

All of the cargo net's upper consoles, hooks

and straps must be securely mounted and

attached before the net is used.
Never use the net if it is damaged.
