MAINTENANCE AND SERVICE

* Option/accessory.

655

Cleaning exterior plastic, rubber and

trim components

The vehicle should be washed as soon as it
becomes dirty. This makes the vehicle easier to
clean because dirt does not attach as strongly. It
also reduces the risk of scratches and keeps the
vehicle looking new. Wash the vehicle in a car
wash or garage with an oil separator and use car
washing detergent.

Exterior plastic, rubber and trim
components

A special cleaning agent available from Volvo
retailers is recommended for the cleaning and
care of colored plastic parts, rubber and trim
components, e.g. glossy trim. Follow the usage
instructions for the cleaning agent carefully.

Avoid using car washing detergents with a pH
value lower than 3.5 or higher than 11.5. Doing
so could result in the discoloring of anodized alu-
minum surfaces* (as shown in the illustrations
below). Abrasive polishing agents are not recom-
mended for these areas (as shown in the illustra-
tions below).

Components that should be washed with a cleaning
product with a pH value between 3.5 and 11.5.

CAUTION

Avoid waxing and polishing plastic and rubber.

If using degreaser on plastic and rubber, only
rub (if necessary) with slight pressure. Use a
soft sponge.

Polishing glossy trim moldings can wear away
or damage the glossy surface layer.

Polish containing abrasives must not be used.

CAUTION

Avoid washing the vehicle with cleaner with a
pH value below 3.5 or above 11.5. This could
cause discoloration of anodized aluminum
components like the roof rail and around the
side windows.

Never use metal polishing agent on anodized
aluminum components. This could cause dis-
coloration and destroy the surface treatment.

Related information

•

Cleaning the exterior (p. 650)

•

Polishing and waxing (p. 651)

•

Hand washing (p. 651)

•

Automatic car washes (p. 653)

•

High-pressure washing (p. 654)

•

Cleaning the wiper blades (p. 654)

•

Cleaning rims (p. 656)

•

Corrosion protection (p. 656)

MAINTENANCE AND SERVICE

656

Cleaning rims

Rims

Only use rim cleaning products recommended by
Volvo.

Strong rim cleaning agents could damage the
surface and stain the chromed aluminum rims.

Related information

•

Cleaning the exterior (p. 650)

•

Polishing and waxing (p. 651)

•

Hand washing (p. 651)

•

Automatic car washes (p. 653)

•

High-pressure washing (p. 654)

•

Cleaning exterior plastic, rubber and trim
components (p. 655)

•

Cleaning rims (p. 656)

•

Corrosion protection (p. 656)

Corrosion protection

Your vehicle is constructed with effective protec-
tion against corrosion.

Corrosion protection for the body consists of
modern metallic protective coatings on the sheet
metal, a high-quality painting process, corrosion-
protected and minimized metal overlap, and
shielding plastic components, abrasion protection
and supplemental rust inhibitor in exposed areas.
In the chassis, exposed components of the wheel
suspension are made of corrosion-resistant cast
aluminum.

Inspection and maintenance

The corrosion protection does not normally
require maintenance but keeping the vehicle
clean is always a good way to further reduce the
risk of corrosion. The use of strong alkaline or
acidic cleaning fluids should always be avoided
on shiny body components. Any stone chips in
the paint should be touched up as soon as they
are discovered.

Related information

•

Cleaning the exterior (p. 650)

•

Polishing and waxing (p. 651)

•

Hand washing (p. 651)

•

Automatic car washes (p. 653)

•

High-pressure washing (p. 654)

•

Cleaning the wiper blades (p. 654)

•

Cleaning exterior plastic, rubber and trim
components (p. 655)

•

Cleaning rims (p. 656)

MAINTENANCE AND SERVICE

}}

657

Paintwork

The paintwork consists of multiple layers. It is an
important part of the vehicle's corrosion protec-
tion and therefore needs to be checked regu-
larly.

The most common types of paint damage are
minor stone chips, scratches and damage to e.g.
the edges of fenders, doors and bumpers. To
help prevent corrosion, paint damage should be
rectified immediately.

Related information

•

Touching up minor paint damage (p. 657)

•

Color codes (p. 658)

Touching up minor paint damage

The paintwork is an important part of the vehi-
cle's corrosion protection and therefore needs
to be checked regularly. The most common
types of paint damage are minor stone chips,
scratches and damage to e.g. the edges of
fenders, doors and bumpers.

Touching up paint damage

To help prevent corrosion, paint damage should
be rectified immediately.

NOTE

Make sure the surface is clean and dry before
performing any touch-ups to the paint. The
surface temperature should be at least 15
°C (59 °F).

Materials that might be needed

•

Primer

‒ special adhesive primer is availa-

ble in a spray can for e.g. plastic-covered
bumpers.

•

Base coat and clear coat

‒ available in spray

cans or as a touch-up pen/stick

•

Masking tape.

•

Fine-grain sandpaper

If the damage has not reached all the way down
to the metal, then touch-up paint can be applied
immediately after the surface has been cleaned.

1. Place a strip of masking tape over the dam-

aged surface. Pull the tape off so that any
loose flakes of paint adhere to it.

If the damage goes down to the bare metal,
you may need to use primer first. If the paint
damage is on a plastic surface, an adhesive
primer should be used for better results.
Spray the primer into the lid of the spray can
and brush on thinly.

2. Light sanding with a very fine-grained sand-

paper or similar may be required before
painting (e.g. if there are uneven edges).
Clean the area carefully and let it dry.

If required.

Follow the instructions on the packaging for the touch-up pen/stick carefully.

MAINTENANCE AND SERVICE

658

3. Thoroughly mix the primer and apply it with a

small brush, toothpick or similar. When the
primer is dry, apply one or more coats of
paint and then a clear coat, letting the paint
dry between each application.

If there is a longer scratch, follow the same pro-
cedure as above, but first mask off the surround-
ing area to protect the undamaged paint.

Touch-up pens and spray paints are available at
Volvo retailers.

NOTE

If the stone chip has not gone down to the
bare metal and an undamaged coat of paint
remains, apply base coat and clear coat
immediately after cleaning the surface.

Related information

•

Paintwork (p. 657)

•

Color codes (p. 658)

Color codes

Color code

The color code label is located on the left door
pillar and is visible when the left front door is
opened.

Sample color code (1): US models.

Vehicle paint code

Sample color code (1): Canadian models.

Vehicle paint code

It is important to use the right color.

Related information

•

Paintwork (p. 657)

•

Touching up minor paint damage (p. 657)

MAINTENANCE AND SERVICE

659

Changing rear window wipers

The wiper blades help remove water from the
windshield and rear window. Along with the
washer fluid, they clean the glass and help
improve visibility while driving. The windshield
and rear window wiper blades can be replaced.

Changing rear window wipers

Lift the wiper arm from the window and pull the lower
section of the blade to the right.

Grasp the center of the wiper blade and lift it
from the window to the stop position.

NOTE

When the wiper arm is halfway folded out, it
will stop in a locking position that helps pre-
vent the arm from falling back onto the rear
window. The wiper arm must be pulled past
the locking position stop in order to change
the wiper blade.

Grip the lower part of the blade and pull to
the right until the blade loosens from the
arm.

3. Press the new wiper blade until it clicks into

place. Check to make sure the blade is
securely in place.

4. Fold the wiper arm back toward the window.

CAUTION

Check the blades regularly. Neglected main-
tenance shortens the life of the blades.

Related information

•

Using the rain sensor (p. 177)

•

Using the windshield and headlight washers
(p. 179)

•

Using automatic rear window wiping when
backing up (p. 181)

•

Using the rain sensor's memory function
(p. 178)

•

Using the rear window wiper/washer
(p. 180)

•

Filling washer fluid (p. 662)

•

Windshield wipers in the service position
(p. 661)

•

Replacing windshield wiper blades (p. 660)

•

Using the windshield wipers (p. 176)

•

Wiper blades and washer fluid (p. 176)

MAINTENANCE AND SERVICE

660

Replacing windshield wiper blades

Replacing wiper blades

Raise the wiper arms to the service position.
Service position is activated/deactivated via
the function view in the center display when
the car is stationary and the windshield wip-
ers are not on. Press the button on the wiper
blade attachment and pull the wiper blade
straight out, parallel with the wiper arm.

Slide in a new wiper blade until it clicks into
place.

3. Check to make sure the blade is securely in

place.

4. Press the wiper blade back against the wind-

shield.

Wiper blades come in varying lengths

NOTE

When changing wiper blades, make sure that
the blades are of different lengths. The blade
on the driver's side is longer than the one on
the passenger side.

Related information

•

Using the rain sensor (p. 177)

•

Using the windshield and headlight washers
(p. 179)

•

Using automatic rear window wiping when
backing up (p. 181)

•

Using the rain sensor's memory function
(p. 178)

•

Using the rear window wiper/washer
(p. 180)

•

Filling washer fluid (p. 662)

•

Windshield wipers in the service position
(p. 661)

•

Changing rear window wipers (p. 659)

•

Using the windshield wipers (p. 176)

•

Wiper blades and washer fluid (p. 176)

MAINTENANCE AND SERVICE

661

Windshield wipers in the service

position

The windshield wiper blades must be in the serv-
ice (vertical) position for certain operations, e.g.
replacing the blades.

Windshield wipers in the service position.

The windshield wipers must be in the service
position when replacing, washing or lifting the
blades (e.g. to scrape ice or snow from the wind-
shield).

CAUTION

Before placing the wipers in service position,
ensure that they have not frozen to the wind-
shield.

Activating/deactivating service position

The service position can be activated/deactivated
when the vehicle is stationary and the windshield
wipers are switched off. Service position is acti-
vated/deactivated via Function view in the center
display:

Tap the

Wiper Service

Position

button. The indicator

light in the button will illuminate
when service position is acti-
vated. The windshield wipers
will move to the vertical posi-
tion when service position is

activated. To deactivate the service position, tap

Wiper Service Position

once. The indicator light

in the button will go out when service position is
deactivated.

The wiper blades will also move out of service
position if:

•

The windshield wipers are turned on.

•

The windshield washers are turned on.

•

The rain sensor is activated.

•

The vehicle begins moving.

CAUTION

If the wiper arms in service position are raised
from the windshield, they must be folded back
against the windscreen before activating wip-
ing, washing or rain sensor as well as before
departure. This is to prevent scratching the
paint on the hood.

Related information

•

Using the rain sensor (p. 177)

•

Using the windshield and headlight washers
(p. 179)

•

Using automatic rear window wiping when
backing up (p. 181)

•

Using the rain sensor's memory function
(p. 178)

•

Using the rear window wiper/washer
(p. 180)

•

Filling washer fluid (p. 662)

•

Replacing windshield wiper blades (p. 660)

•

Changing rear window wipers (p. 659)

•

Using the windshield wipers (p. 176)

•

Wiper blades and washer fluid (p. 176)

MAINTENANCE AND SERVICE

* Option/accessory.

662

Filling washer fluid

Washer fluid is used to keep the headlights,
windshield and rear window clean. Washer fluid
containing anti-freeze should be used in very
cold weather (below-freezing temperatures).

Fill washer fluid into the reservoir with the blue
cover. The reservoir is used for the windshield
washer, tailgate window washer and headlight
washer*

NOTE

When there is approximately 1 liter (1 qt) of
washer fluid remaining, the message

Washer

fluid

Level low, refill

and the

symbol

will be displayed in the instrument panel.

Recommended grade: Washer fluid recom-
mended by Volvo, with frost protection during
cold weather and temperatures below the freez-
ing point.

CAUTION

Use Volvo's original washer fluid or an equiva-
lent fluid with the recommended pH value
between 6 and 8, diluted as recommended,
e.g. in a 1:1 solution with pH-neutral water.

CAUTION

Use washer fluid with anti-freeze when tem-
peratures are below the freezing point to help
keep the pump, reservoir and hoses from
freezing.

Volume:

•

Vehicles with headlight washing: 5.5 liters
(5.8 qts).

•

Vehicles without headlight washing: 3.5 lit-
ers (3.7 qts).

Related information

•

Using the rain sensor (p. 177)

•

Using the windshield and headlight washers
(p. 179)

•

Using automatic rear window wiping when
backing up (p. 181)

•

Using the rain sensor's memory function
(p. 178)

•

Using the rear window wiper/washer
(p. 180)

•

Windshield wipers in the service position
(p. 661)

•

Replacing windshield wiper blades (p. 660)

•

Changing rear window wipers (p. 659)

•

Using the windshield wipers (p. 176)

•

Wiper blades and washer fluid (p. 176)

SPECIFICATIONS

}}

665

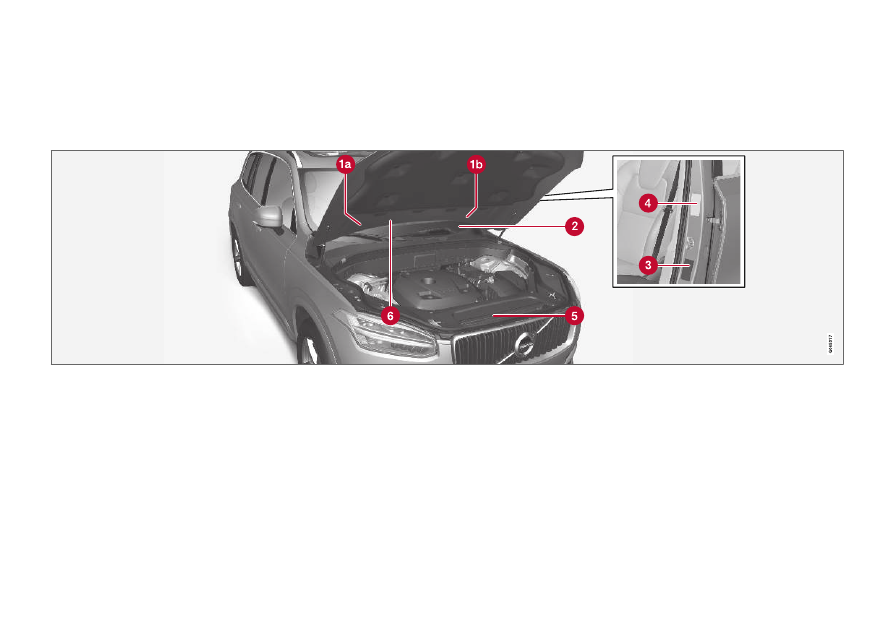

Vehicle Emission Control Information. US

models. Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by the
certification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.

Vehicle Emission Control Information.

Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi-
denced by the certification label on the underside
of the hood. For further information regarding
these regulations, please consult your Volvo
retailer.

Vehicle Identification Number (VIN). The

VIN plate is located on the top left surface of the
dashboard. The Vehicle Identification Number
(VIN) should always be quoted in all correspond-
ence concerning your vehicle with the retailer and
when ordering parts.

Tire inflation pressures. This label indicates

the correct inflation pressures for the tires that
were on the vehicle when it left the factory.

Federal Motor Vehicle Safety Standards

(FMVSS) specifications (USA) and Ministry of
Transport (CMVSS) standards (Canada). Your
Volvo is designed to meet all applicable safety
standards, as evidenced by the certification label
on the driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of the
driver's door opening). This label also includes
codes for paint color, etc. For further information
regarding these regulations, please consult your
Volvo retailer. U.S. models have the upper decal;
Canadian models have the lower one.

SPECIFICATIONS

}}

* Option/accessory.

667

Dimensions

The vehicle's length, height, etc. are shown in
the table.

Dimensions

inches

Ground clear-
ance

227

8.9

Wheelbase

2984

117.5

Length

4950

194.9

Load length,
floor, folded
backrest

2040

1260

80.3

49.6

Dimensions

inches

Load length,
floor

761/898

1220

554

30.0/35.4

48.0

21.8

Height

1776

69.9

Load height

816

32.1

Dimensions

inches

H Wheel track,

front

1665

1673

65.6

65.9

Wheel track,
front

1668

1676

65.7

66.0

SPECIFICATIONS

668

Dimensions

inches

Wheel track,
rear

1667

1675

65.6

65.9

Wheel track,
rear

1671

1679

65.8

66.1

Load width,
floor

1192

46.9

Width

1923

1931

1958

75.7

76.0

77.1

Dimensions

inches

Width incl.
rearview mir-
rors

2140

84.3

M Width incl.

folded rear-
view mirrors

2008

79.1

At curb weight + 2 people. (Varies slightly depending on tire

dimensions, chassis, etc.)

Does not apply to vehicles with 3 or 4 seats.

From the second row of seats in 7-seat models*.

Vehicles with 3 or 4 seats.

Vehicles with 5 seats.

Vehicles with 7 seats.

Including roof antenna, at curb weight.

Vehicles without pneumatic suspension.

Vehicles with 19-inch wheels.

Vehicles with 20, 21 and 22-inch wheels.

Vehicles with pneumatic suspension.

Chassis width.

Width for vehicles with 19-inch wheels.

Width for vehicles with 20, 21 and 22-inch wheels.

Related information

•

Weights (p. 669)

SPECIFICATIONS

669

Weights

The following table lists important weight data
for your vehicle.

Volvo XC90 Twin Engine (2019 year). Instruction - part 39
