Front seats

106

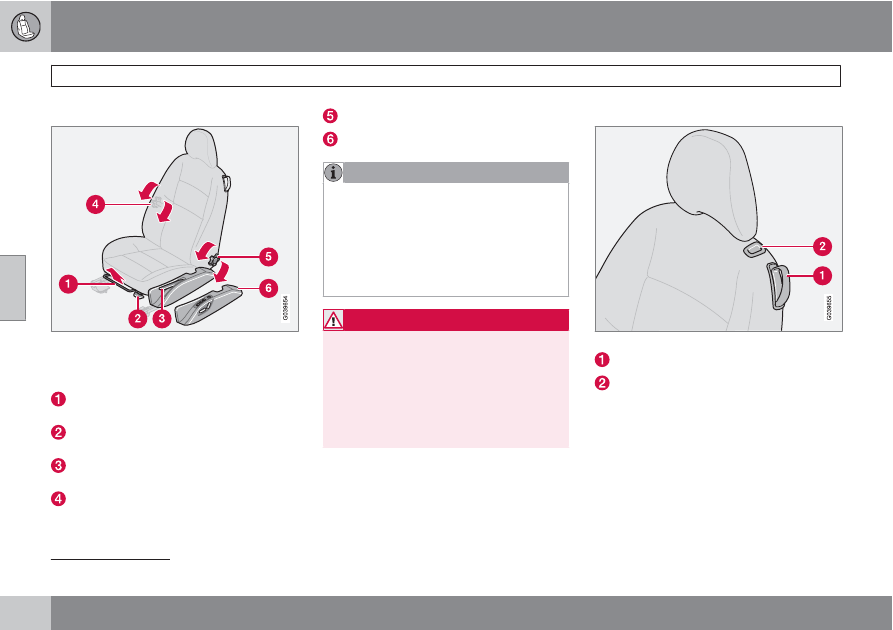

Manual seat adjustment

The driver's and passenger's seats can be
adjusted in a number of ways to provide a
comfortable driving and sitting position.

Forward-rearward: Pull the lever up and
slide the seat to the position of your choice.

Use this control to raise or lower (pump up
or down) the front edge of the seat cushion.

Use this control to raise or lower (pump up
or down) the rear edge of the seat cushion.

Turn this knob (optional on some passeng-
er's seats) to adjust the firmness of the
lumbar support

Turn this knob to adjust the backrest tilt.

Control panel for the optional power seats.

NOTE

Both front seats are equipped with head
restraints that can be adjusted vertically to
suit the height of the passenger. The upper
edge of the head restraint should be at least
on a level with the upper-most point of the
seat occupant's ear (see the section
"Adjusting the front seat head restraints" on
page 111).

WARNING

•

Do not adjust the seat while driving.

•

Adjust the driver’s seat and seat belt
(see page 20) before driving. The seat
should be adjusted so that the brake
pedal can be depressed fully.

•

Position the seat as far rearward as
comfort and control allow.

Accessing the rear seat

Seat access buttons (power seat shown)

Seat adjustment handle

Seat adjustment button

Also applies to the optional power seat.

04 Interior

Front seats

107

Manual seat

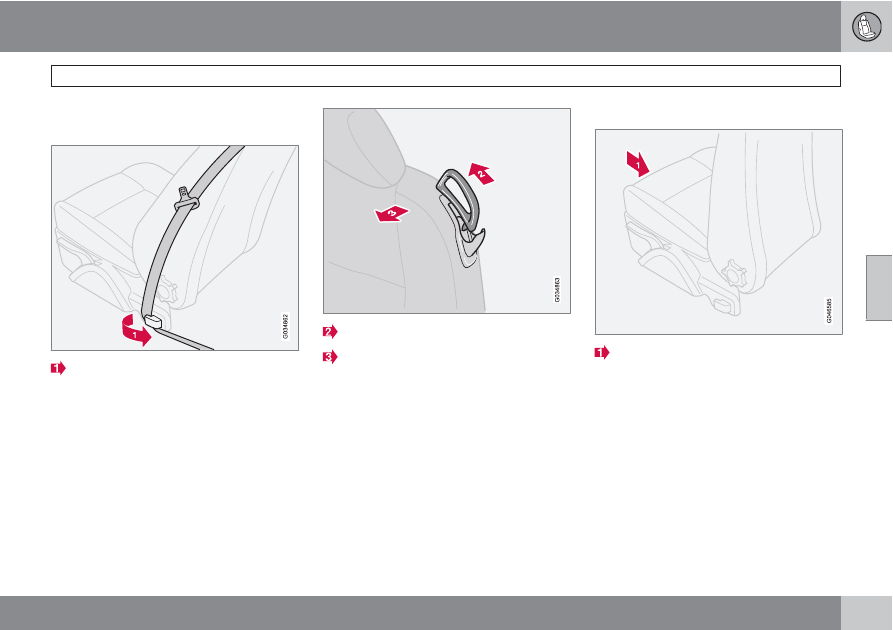

Moving the seat forward:

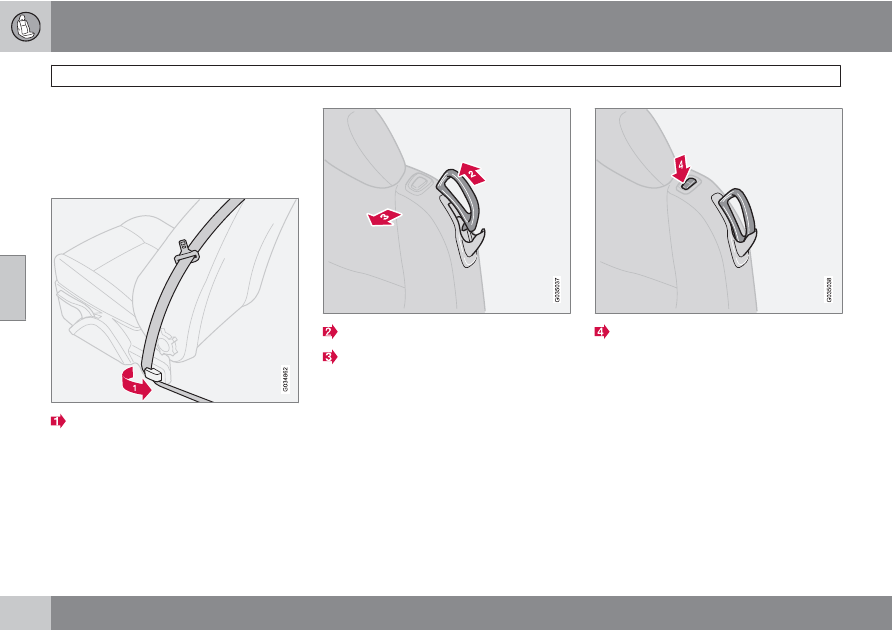

Remove the seat belt from its guide (see
page 21).

Pull up the handle.

Fold down the backrest and move the seat
forward.

Moving the seat rearward:

Push the seat rearward to the desired posi-
tion.

Fold up the backrest.

Put the seat belt back in its guide.

When the seat has been pushed rearward, if it
doesn't return to the position it was in before it
was moved forward, do as follows:

Sit in the seat.

Lift handle 1 (see the illustration on page
106) and move the seat as far back as pos-
sible.

04 Interior

Front seats

108

While holding the handle up, move the seat
forward to the desired position and release
the handle.

Power seat

Moving the seat forward:

Remove the seat belt from its guide (see
page 21).

Pull up the handle.

Fold down the backrest until it locks in
position.

Hold down the front section of the button.

If the seat is in a high position, it will be
lowered automatically so that the head
restraint does not come in contact with the
sun visor.

04 Interior

Front seats

Option/accessory, for more information, see Introduction.

109

Moving the seat rearward:

Lift the handle and fold up the backrest.

Hold down the rear section of the button.

Return the seat belt to its guide.

The front passenger's seat belt should be in its
guide while the vehicle is being driven, even if
the seat is not occupied.

NOTE

The seat can only be moved as far forward
as possible (approx. 2.5 in./6 cm) to allow
access to the rear seat with the backrest
folded down. If the backrest is folded up
when the seat is in the forward position, the
seat will automatically move rearward
(approx. 2.5 in./6 cm) after several seconds.

WARNING

After the seat has been returned to its orig-
inal position, be sure that the backrest is
securely locked in the upright position.

Power seats*

The power driver's seat can be adjusted:

•

If the ignition key is in position I or II.

•

During a 10 minute period after the doors
have been unlocked if the door remains
open.

•

If the door is closed and the ignition key is
not yet in the ignition, or if the key is in
position 0, the seat can be adjusted or dur-
ing a period of 40 seconds. The power
passenger's seat can only be adjusted if
the ignition key is in position I or II, or if the
engine is running.

Adjusting the seat

G020199

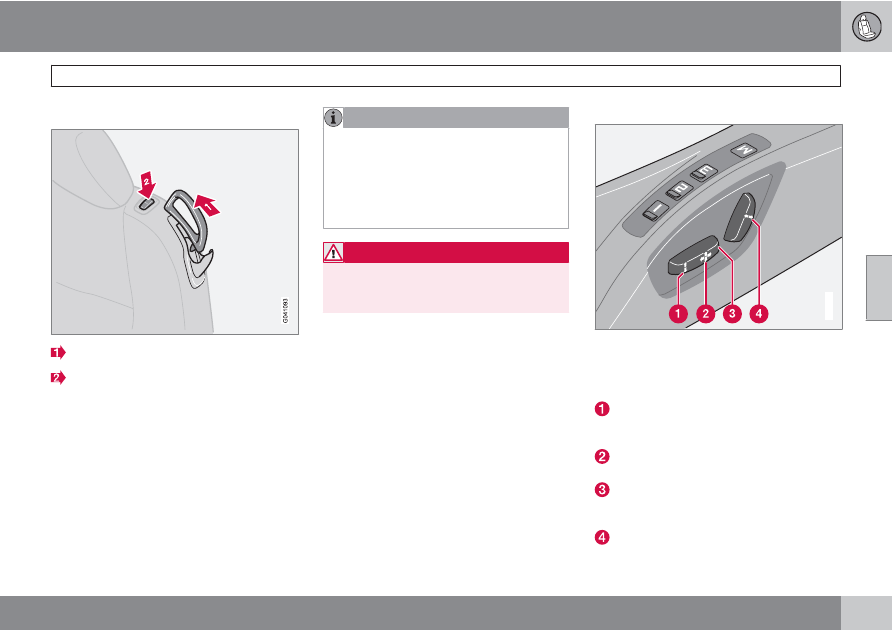

Seat adjustment controls

Seat adjustment controls 1, 2, 3, and 4 on the
side of the seat can be used to move the seat
to the position of your choice.

Move this section of the control up or down
to raise/lower the front section of the seat
cushion.

Move the control forward/rearward to
move the seat forward or rearward.

Move this section of the control up or down
to raise/lower the rear section of the seat
cushion.

Backrest tilt.

04 Interior

Front seats

110

Option/accessory, for more information, see Introduction.

NOTE

The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0) and wait for approxi-
mately 20 seconds before operating the
seat again.

Emergency stop

If the seat inadvertently begins to move, press
any of the buttons to stop the seat.

Programming the seat memory, driver's
seat only*

G020200

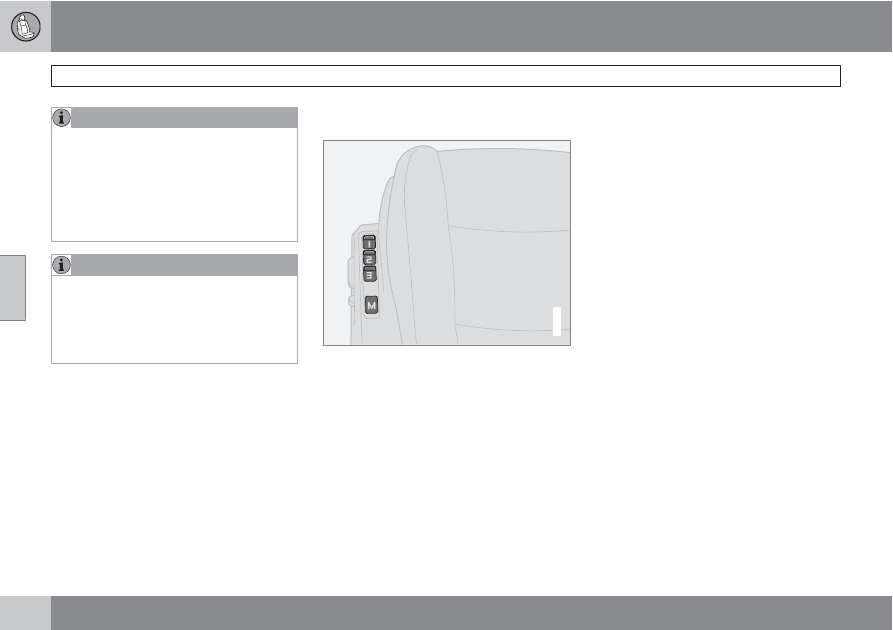

Power seat memory buttons

Three different seating positions can be stored
in the seat's memory. The memory buttons are
located on the outboard side of the driver's
seat (see the illustration above). The following
example explains how memory button 1 can be
programmed. Buttons 2 and 3 can be pro-
grammed in the same way.

To program (store) a seat position in memory
button 1:

Adjust the seat to the desired position.

Press and hold down the "M" (Memory)
button.

With the "M" button depressed, press
memory button 1 to store the seat's current
position.

To move the seat to the position that it was in
when memory button 1 was programmed,
press and hold down button 1 until the seat
stops moving.

As a safety precaution, the seat will stop auto-
matically if the button is released before the
seat has reached the preset position.

Central locking system remote key and
driver's seat memory

The remote key transmitter can also be equip-
ped with an optional function that controls the
electrically operated driver's seat in the follow-
ing way:

Adjust the seat to the desired position.

When you leave the car, lock it using the
remote key.

The next time the driver's door is unlocked
with the same remote key and that door is
opened within 2 minutes, the driver's seat
and side door mirrors will automatically
move to the position that they were in when
the doors were most recently locked with
the same remote key.

04 Interior

Front seats

111

NOTE

The memory function in the remote key
operates independently the memory func-
tion in the seat.

WARNING

•

Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
car.

•

Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.

•

Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.

•

The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.

Adjusting the front seat head restraints

The front seat head restraints are designed so
that they can be adjusted to two different
height positions.

NOTE

•

When the vehicle leaves the factory, the
front seat head restraints will be in the
lower position.

•

It is advisable to have the front seat
head restraints in the lower position if
you wish to fold down the seat's back-
rest.

The head restraints should be put in the upper
or lower position according to the height of the
occupant of the seat.

The upper edge of the head restraint should be
at least on a level with the upper-most point of
the seat occupant's ear (see illustration).

To raise or lower a head restraint:

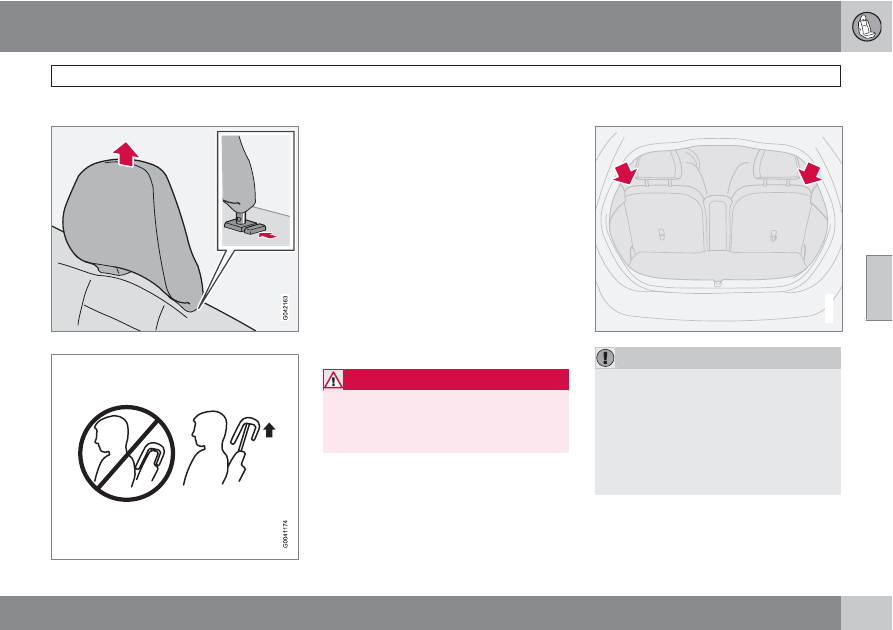

Raising or lowering a head restraint

Release the head restraint by pressing the
button underneath its left side, at the base
of the support (see the illustration).

Move the head restraint until it clicks
(locks) into the upper or lower position.

04 Interior

Front seats

112

WARNING

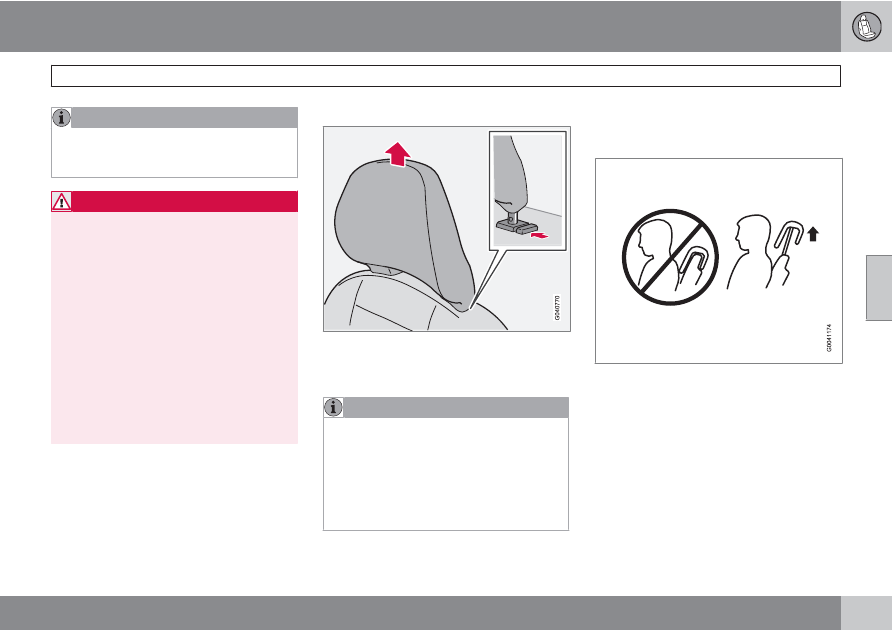

After adjusting the head restraint, be sure
that it is securely locked in the new position
by pressing and/or pulling it.

Removing a head restraint

The front seat head restraints can be removed,
for example, when cleaning the upholstery or if
the front passenger's seat backrest is folded
down to accommodate a long load. To do so:

Release the head restraint by pressing the
release button underneath its left side, at
the base of the support.

While holding in the release button, press
the locking button at the base of the head
restraint's right support with a screw
driver, etc., and lift the head restraint until
it can be removed completely.

WARNING

•

If a front seat head restraint has been
removed, it must be put properly back
in place and it must lock (click) into one
of the available adjustment positions
before the seat is occupied.

•

The front seat head restraints must be
in position and properly adjusted to the
height of the person sitting in the seat
when the vehicle is driven and when the
front passenger's seat is occupied.

04 Interior

Interior lighting

113

Interior lighting

G020201

Front courtesy lights and reading lights

Front driver's side reading light, on/off

Courtesy lighting

Front passenger's side reading light, on/off

The front seat reading lights can be switched
on and off by pressing buttons (1) or (3) when
the ignition key is in position I or II, or when the
engine is running.

The courtesy lighting (2) can be set to three
positions:

–

Press the left side of the button: the interior
courtesy lighting turns on.

–

Neutral position: the interior courtesy light-
ing comes on when a door is opened, and
is switched off 10 seconds after the door is
closed.

–

Press the right side of the button: the inte-
rior courtesy lighting stays off.

Courtesy lighting – automatic function

The interior lighting has a built-in automatic
function that switches on the courtesy lighting
for 30 seconds when:

•

the car is unlocked from the outside using
the key blade or remote key

•

the engine is switched off and the ignition
key is turned to the 0 position.

The courtesy lighting lights up or remains on
for 5 minutes when:

•

one of the doors is opened and left open.

•

the courtesy lighting has not been
switched off (the right side of button 2
depressed).

The automatic lighting goes out when:

•

the engine is started

•

the car is locked from the outside using the
key blade or remote key.

If the courtesy lighting is not switched off man-
ually, it will be turned off automatically

5 minutes after the engine has been switched
off.

Footwell lighting

The footwell (and courtesy lighting) comes on
or goes off when one of the side doors is
opened or closed.

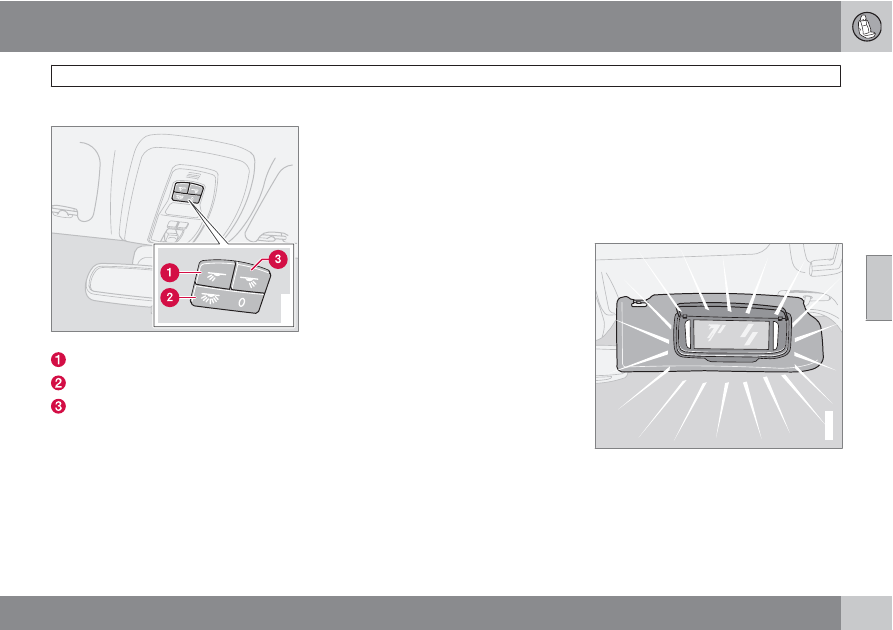

Vanity mirror

G020210

Raise the cover to switch on the light.

04 Interior

Storage compartments

114

04 Interior

Storage compartments

115

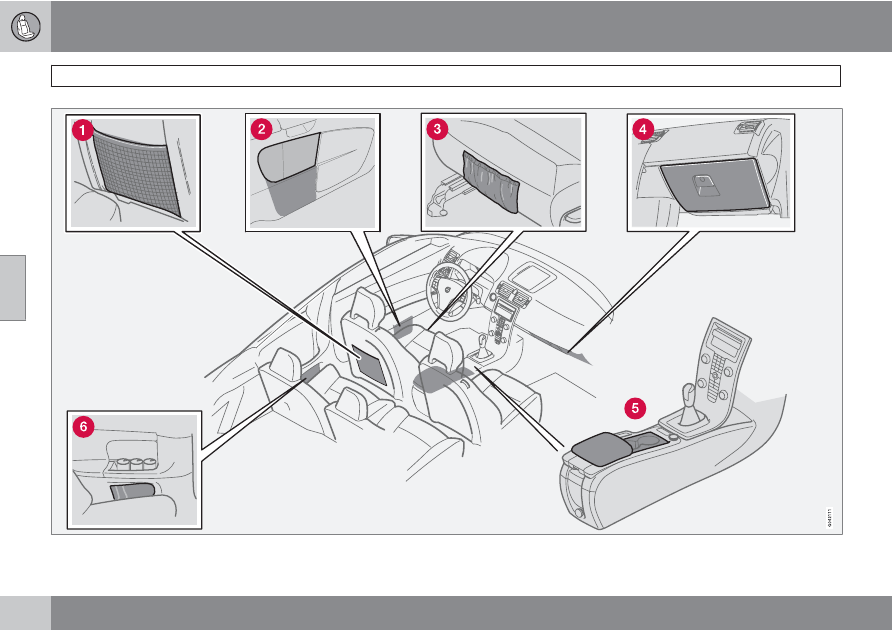

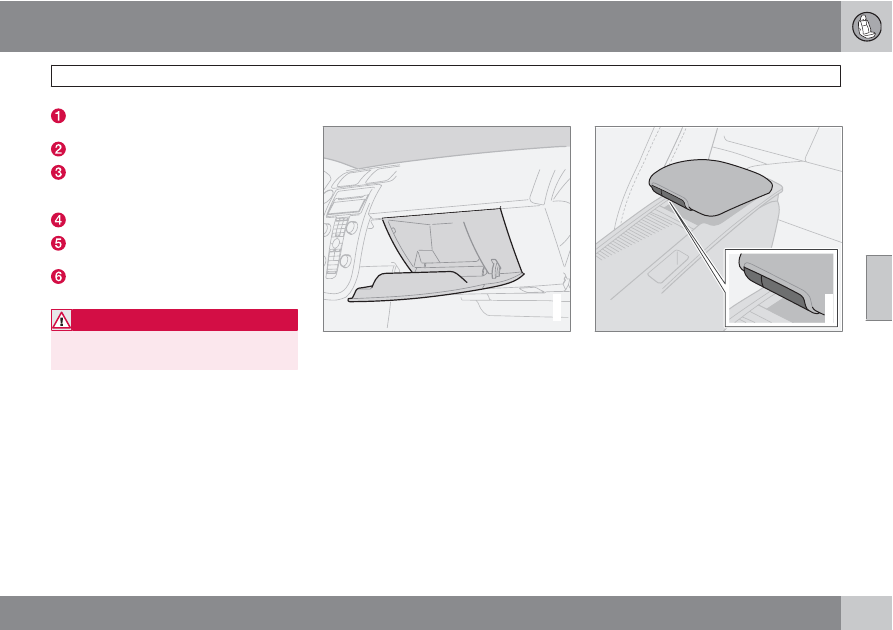

Compartment on rear side of front seat
backrests

Compartment in door panel

Storage pocket (on the front side of the
front seat cushion, depending on choice of
upholstery)

Glove compartment

Storage compartment for e.g., CDs and
cup holders

Compartment in rear side panels, with
space for up to three beverage cans

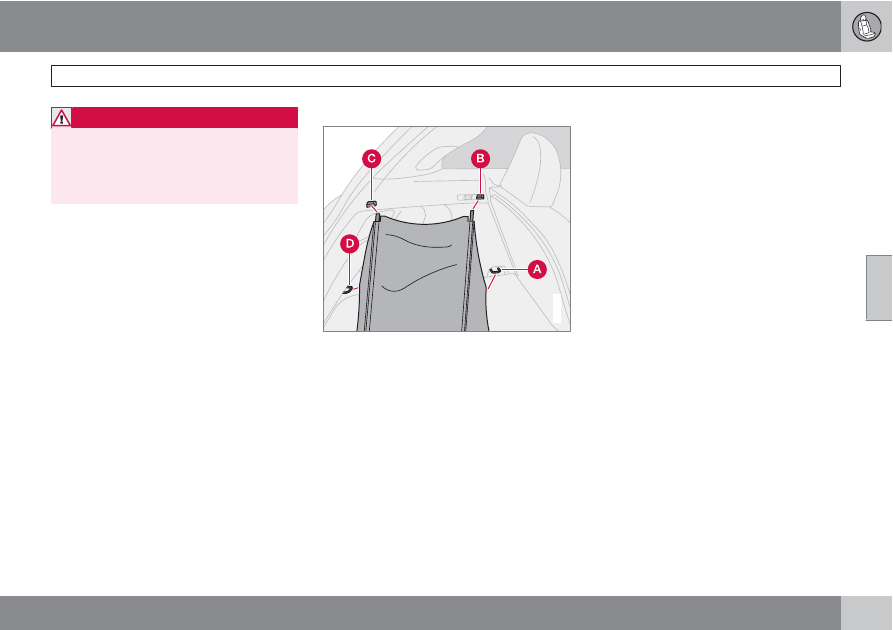

WARNING

•

Anchor any heavy objects to prevent
them from moving during sudden stops.

Glove compartment

G024208

The owners manual and maps can be stored
here. There are also holders for coins, pens and
fuel cards. The glove compartment can only be
locked and unlocked using the detachable key
blade from the central locking system's remote
key. See page 128 for information on removing
the key blade from the remote key, and page
136 for information about locking the glove
compartment.

Storage under the front, center armrest

G018371

There are two storage compartments under the
front, center armrest.

•

Press the smaller button on the front edge
of the armrest and lift the armrest cover to
access a shallow storage compartment.

•

Press the larger button and lift the entire
armrest to access a deeper compartment.

04 Interior

Storage compartments

116

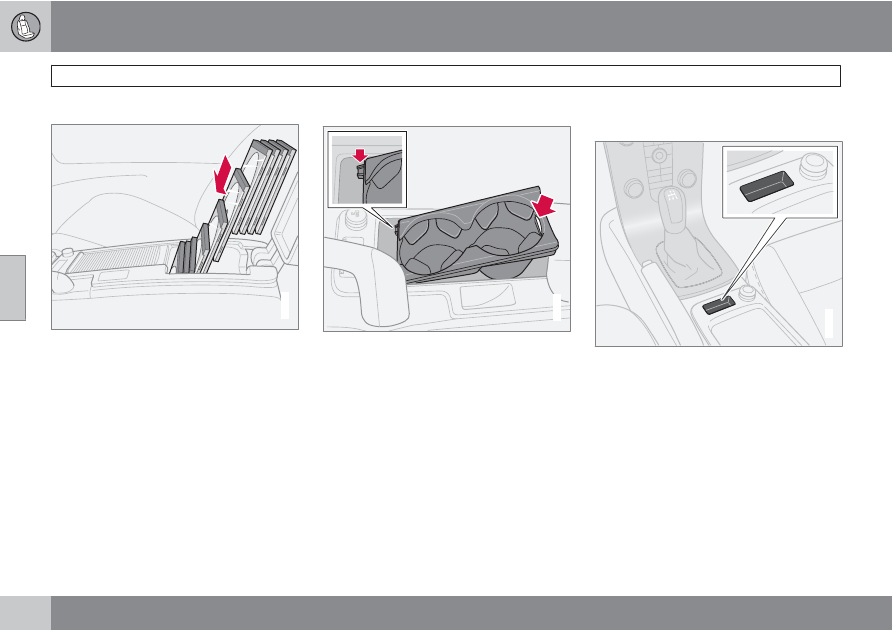

CD storage

G026704

The deep storage compartment has room for
10 CD jewel cases. These cases must be
inserted with their spines upward in order to
allow space for 10 cases in the storage com-
partment

Cup holders in the center console

G018372

Two cup holders are located under the sliding
cover in the center console.

The cup holders can be lifted out if necessary.
To do so, grasp the indentation on the rear
edge of the cup holder and lift.

To put the cup holder back in place:

Slide the two locating tabs in the front side
of the cup holder into the two correspond-
ing recesses in the center console storage
space.

Press down the rear edge of the cup
holder.

To close the sliding cover, grasp the underside
of the front edge and pull.

Storage compartment behind the gear
lever

G019623

If the buttons for optional equipment are not
installed, the recess behind the gear lever can
be used as a storage compartment for coins,
etc.

04 Interior

Rear seat

117

Rear seat head restraints

Adjust the head restraint vertically

Both of the rear seating positions are equipped
with a head restraint that can be adjusted ver-
tically to two different positions to help suit the
height of the passenger. The upper edge of the
head restraint should be at least on a level with
the upper-most point of the seat occupant's
ear (see illustration).

–

To raise: Slide the head restraint up to the
desired height.

–

To lower: Press the catch at the base of the
right support and press the head restraint
down.

–

To remove: Pull the head restraint up far as
possible. Press the catch at the base of the
right support and pull the head restraint out
of the its holders.

WARNING

If a head restraint has been removed, it must
be put properly back in place and it must
lock (click) into one of the available adjust-
ment positions before the seat is occupied.

Folding down the rear seat backrests

G009109

CAUTION

•

When the backrests are folded down,
the head restraints may be damaged if
they are not removed.

•

To help prevent damage to the uphols-
tery when the backrest is folded down,
be sure that there are no objects on the
seat and that the seat belt is not buck-
led.

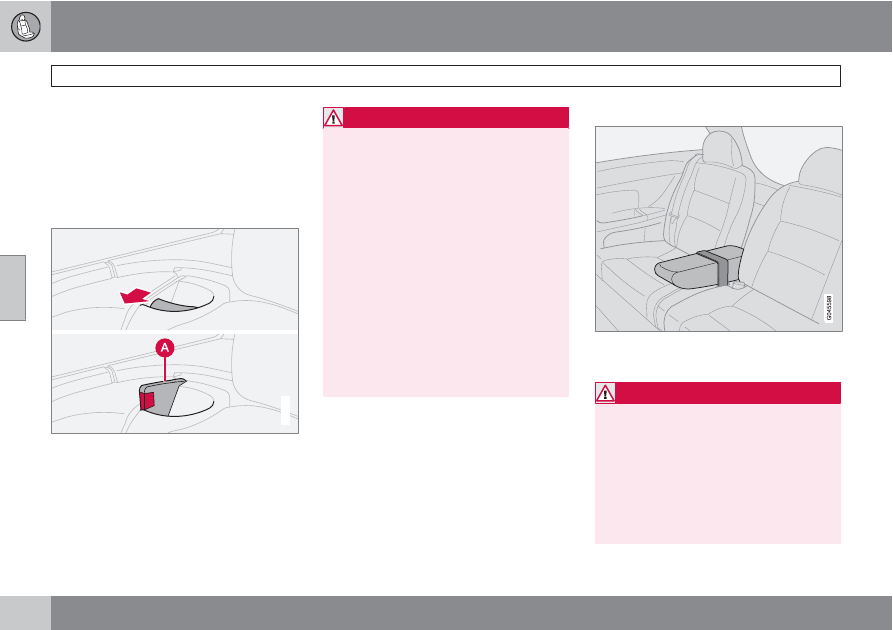

Both sections of the rear seat backrest can be
folded down, together or separately, to enable
you to transport long objects.

04 Interior

Rear seat

118

To fold down one or both sections:

Pull the catch on the upper outboard edge
of the backrest upward and forward to
release the backrest lock. A red lock indi-
cator (A) is visible when the backrest is not
locked in the upright position.

Fold the backrest down.

G007608

WARNING

•

The red lock indicator is VISIBLE when
the backrest is NOT locked in position
and hidden when the backrest is cor-
rectly locked in place. When the back-
rest is in the upright position, push and
pull it to make sure that it is correctly
locked in place.

•

When the rear seat is folded down, do
not place heavy objects against the
backs of the front seats. This places a
severe strain on the folded down back-
rest of the rear seat. Be sure to secure
cargo.

•

Cargo must not be stacked higher than
the top of seat backs. This will reduce
the possibility of luggage, etc. becom-
ing projectiles during sudden maneu-
vers, rapid braking or an accident.

Rear seat armrest

The space between the rear seats can be used
for transporting long objects.

WARNING

•

The center of the rear seat is not a seat-
ing position. This space is not equipped
with a seat belt or ISOFIX anchors. No
one should attempt to sit in this position
and child seats should never be placed
in the center of the rear seat.

•

The rear seat center armrest is fixed in
the folded down position and cannot be
folded up.

04 Interior

Rear seat

119

WARNING

Long loads should be securely anchored.

04 Interior

Cargo area

120

Option/accessory, for more information, see Introduction.

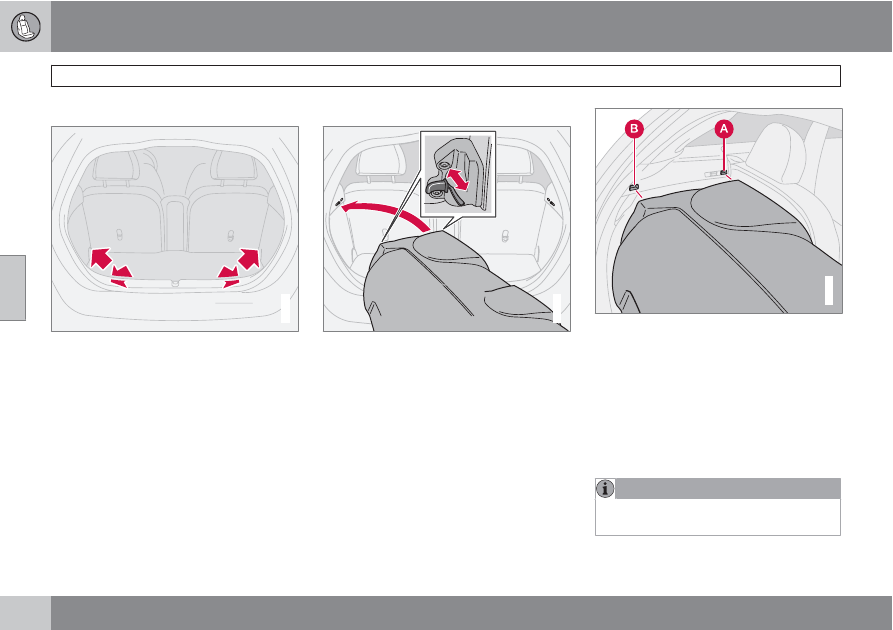

Load anchoring eyelets

G007602

The eyelets in the cargo area can be used to
fasten accessory load nets and lashing straps,
load nets, and other load anchors.

Hard cargo area cover*

G009475

Installing the cargo area cover

Before lifting cover into the vehicle, retract
all four lock pins by pulling back the lock
buttons as far as possible. The pins will
remain retracted.

Lift the cover into the vehicle at an angle,
turn it back and raise the front edge
slightly.

Place the front section of the cover on the
two support pins behind the locking points
(A) on both sides of the vehicle.

G00761

Place one of the rear locks at (B) and slide
the lock pin into position by moving the
lock button forward.

Put the other rear lock into position in the
same way and slide the lock pin into posi-
tion by moving the lock button forward.

Slide the front lock buttons forward, one at
a time, so that the lock pins move into
position (A).

NOTE

The rear section of the cover can be folded
up when loading items into the cargo area.

04 Interior

Cargo area

Option/accessory, for more information, see Introduction.

121

WARNING

The cargo area cover does not have a load
anchoring function. No item should be place
on top of the cargo area cover. These items
could move forward and cause injury during
braking.

Removing the cover

Retract the front lock pins at (A) by pulling
back the lock buttons on both sides as far
as possible.

Retract the rear lock pins at (B) by pulling
back the lock buttons on both sides as far
as possible.

Lift up and turn the cover before lifting it out
of the vehicle.

Soft cargo area cover*

G007614

The cargo area cover is pulled over the cargo
area and fastened to the eyelets with the hooks
on the corners of the cover.

Installing the cover

Attach the front lower hooks on the cover
to the lower eyelets (A) on opposite sides
of the vehicle.

Insert the front upper attachments (B) by
pressing together the spring-loaded rails
and pressing them into place on opposite
sides of the vehicle.

Insert the upper rear rails (C) in the same
way.

Attach the rear lower hooks on the cover to
the lower eyelets (D) on opposite sides of
the vehicle.

Hanging the cover when it is not in use

Remove the rear hooks (D) from the eye-
lets.

Press together the rear rails (C) and remove
them from their attachments. Place them
at the front of the cargo area floor.

Attach the hooks in the rail next to the
attachments (B).

The cargo area cover is now hanging near the
rear seat backrests until it is needed again.

Removing the cargo area cover

Remove the hooks and remove the rails
one at a time by pressing them together
and removing them from their attach-
ments.

When all attachments have been removed,
the cover can be rolled up and placed on
the rear part of the cargo area floor to make
room for cargo.

Content .. 4 5 6 7 ..
