CLIMATE CONTROL

196

Activating/deactivating air

recirculation

Air recirculation shuts out bad air, exhaust
gases, etc. from outside the car by the climate
control system reusing the air in the passenger
compartment.

The air recirculation button in the climate view.

1. Open the climate view in the centre display.

2. Press

Recirc

> Air recirculation is activated/deactivated

and the button illuminates/extinguishes.

IMPORTANT

If the air in the car is recirculated for too long
then there is a risk of misting on the insides
of the windows.

NOTE

It is not possible to activate air recirculation
when max defroster is activated.

Activating/deactivating the timer for air
recirculation

It is possible set whether the air recirculation
timer should be activated/deactivated. When the
timer is activated, air recirculation is automatically
switched off after 20 minutes.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Select

Recirculation Timer

to activate/

deactivate the air recirculation timer.

Related information

•

Climate controls in the centre display
(p. 186)

•

Auto-regulating the climate (p. 189)

Air distribution

The climate control system distributes the
incoming air via a number of different vents in
the passenger compartment.

Overview of air distribution

Air distribution in the passenger compartment with 4-

zone climate.

Automatic and manual air distribution

With auto-regulated climate running the air distri-
bution takes place automatically. If necessary, the
air distribution can be controlled manually.

Adjustable air vents

There are 6 adjustable air vents in the passenger
compartment.

CLIMATE CONTROL

197

Location of adjustable air vents in the passenger com-

partment.

Four on the instrument panel and one on
each of the door pillars between the front
and rear doors.

Related information

•

Climate control (p. 182)

•

Changing the air distribution (p. 197)

•

Opening/closing and aiming the air vents
(p. 198)

•

Table of air distribution options (p. 200)

•

Auto-regulating the climate (p. 189)

Changing the air distribution

The air distribution can be changed manually if
required.

The air distribution buttons in the climate view.

Air distribution - windscreen defroster vents

Air distribution - air vents in instrument panel
and centre console
Air distribution - air vents in the floor

1. Open the climate view in the centre display.

2. Press one or more of the air distribution but-

tons in order to open/close the correspond-
ing air flow.
> The air distribution is changed and the

buttons illuminate/extinguish.

Related information

•

Air distribution (p. 196)

•

Opening/closing and aiming the air vents
(p. 198)

•

Table of air distribution options (p. 200)

•

Climate controls in the centre display
(p. 186)

•

Auto-regulating the climate (p. 189)

CLIMATE CONTROL

198

Opening/closing and aiming the air

vents

Some air vents in the passenger compartment
can be opened, closed and aimed individually.

If the door pillar vents and instrument panel outer
vents are aimed toward the side windows, then
misting can be removed.

If the door pillar vents are aimed inwards then, in
a hot climate, a comfortable environment is
obtained in the passenger compartment.

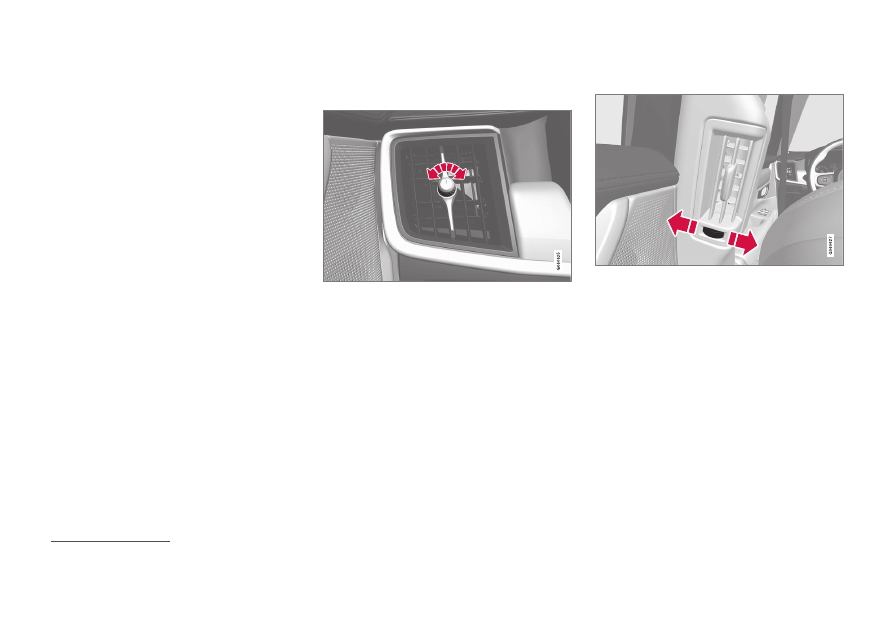

Opening/closing the air vents

Air vents for the front seat:

Air vent knob

–

Turn the knob in order to open/close the air
flow from the vent.

The air flow is at maximum when the marking
on the knob is in vertical position.

Air vents for the rear seat:

The air vent's thumbwheel

–

Roll the thumbwheel in order to open/close
the air flow from the nozzle.

The longer the white lines on the thumb-
wheel that are visible, the higher the air flow.

The illustration is schematic - nozzle design varies depending on location.

CLIMATE CONTROL

199

Aiming the air vents

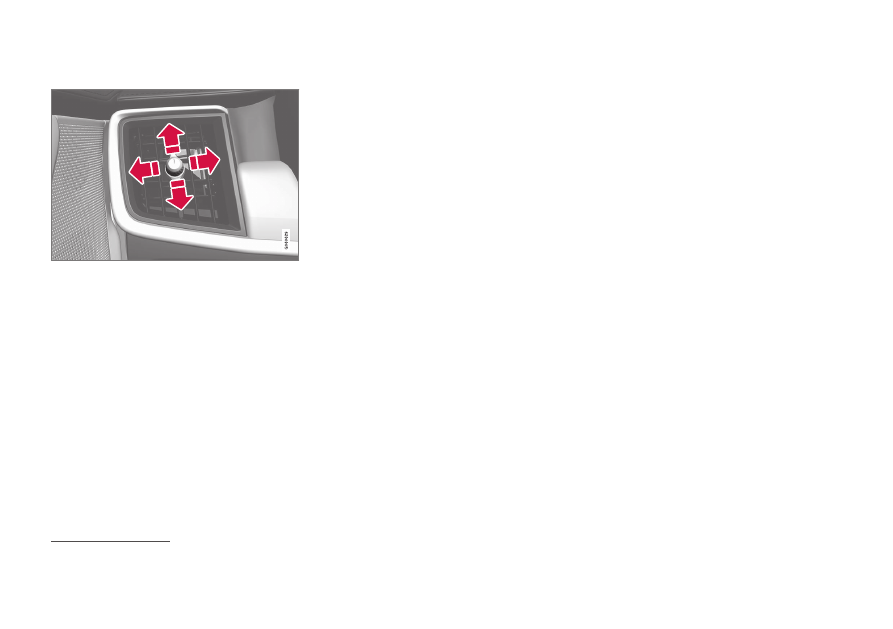

The air vent's lever

–

Move the lever sideways/vertically in order to
aim the air flow from the nozzle.

Related information

•

Air distribution (p. 196)

•

Changing the air distribution (p. 197)

•

Table of air distribution options (p. 200)

The illustration is schematic - nozzle design varies depending on location.

CLIMATE CONTROL

200

Table of air distribution options

The air distribution can be changed manually if
required. The following options are available for
setting.

Air distribution

Purpose

If all air distribution buttons are deselected in manual mode, the climate control system returns to automatically regulated climate control.

Main air flow from the defroster vents. Some air flows from other air vents.

Counteracts misting and icing in a cold and humid climate
(to achieve this, fan level must not be low).

Main air flow from the air vents in the instrument panel. Some air flows from
other air vents.

Provides efficient cooling in a hot climate.

Main air flow from the air vents at the floor. Some air flows from other air
vents.

Provides heat or cooling to the floor.

CLIMATE CONTROL

201

Air distribution

Purpose

Main air from the defroster vents and air vents in the instrument panel.
Some air flows from other air vents.

Provides good comfort in hot and dry climates.

Main air flow from the defroster vents and air vents at the floor. Some air
flows from other air vents.

Provides good comfort and good demisting in a cold or
humid climate.

Main air flow from the air vents in the instrument panel and air vents at the
floor. Some air flows from other air vents.

Provides good comfort in sunny weather with cool outdoor
temperatures.

Main air flow from the defroster vents, from the air vents in the instrument
panel and air vents at the floor.

Gives balanced comfort in the passenger compartment.

Related information

•

Air distribution (p. 196)

•

Changing the air distribution (p. 197)

•

Opening/closing and aiming the air vents
(p. 198)

•

Climate controls in the centre display
(p. 186)

CLIMATE CONTROL

* Option/accessory.

202

Activating/deactivating heating of

the seats

The seats can be heated in order to increase
comfort for driver and passengers when it is
cold.

Activating/deactivating heating of the
front seat

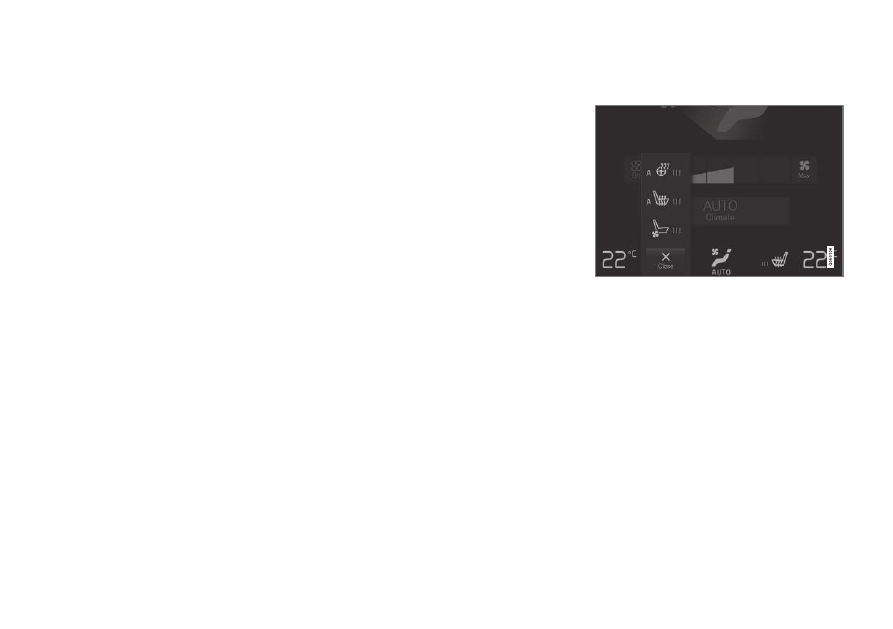

Steering wheel and seat buttons in the climate row.

1. Press the left or right-hand side's steering

wheel and seat button in the climate row in
the centre display in order to open the con-
trols for seat and steering wheel.

If the car is not equipped with ventilated
seats or heated steering wheel, the button
for heated seats is immediately available in
the climate row.

2. Repeatedly press the button for heated seats

in order to change between the four levels:

Off

High

Medium

and

Low

> The level changes and the button shows

the set level.

Activating/deactivating heating of the
rear seat

From the front seat

Buttons for heated seats in the group Rear climate in

the climate view.

1. Open the climate view in the centre display

and select the tab for

Rear climate

2. Repeatedly press the button for heated seats

in order to change between the four levels:

Off

High

Medium

and

Low

> The level changes and the button shows

the set level.

From the rear seat

Seat heating indication and controls on the climate

panel at the rear of the tunnel console.

–

Press repeatedly on the left or right-hand
side's buttons for heated seats on the tunnel
console's climate panel to switch between
the four levels:

Off

High

Medium

and

Low

> The level changes and the screen in the

climate panel shows the set level.

WARNING

Heated seats must not be used by people

who find it difficult to perceive an increase in

temperature due to a lack of sensation or who

otherwise have problems operating the con-

trols for the heated seats. Otherwise they may

suffer burn injuries.

CLIMATE CONTROL

}}

* Option/accessory.

203

Activating/deactivating automatic start
of heated seats

It is possible to set whether automatic start of
heated seats should be activated/deactivated
when the engine is started. With automatic start
activated, heating will start in the event of low
ambient temperature.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Under

Auto Driver Seat Heating Level

and

Auto Passenger Seat Heating Level

select

Off

Low

Medium

High

in order to

activate/deactivate the automatic starting of
the heating for the driver and passenger
seats and to select the level.

Related information

•

Climate controls (p. 186)

•

Climate controls in the centre display
(p. 186)

•

Climate controls at the rear of the tunnel
console (p. 188)

Activating/deactivating ventilation of

the seats

The seats can be ventilated to provide increased
comfort in a hot climate, for example.

The ventilation system consists of fans in the
seats and backrests that draw air through the
seat upholstery. The cooling effect increases the
cooler the passenger compartment air becomes.
The system can be activated when the engine is
running.

Activating/deactivating ventilation of
the front seat

Steering wheel and seat buttons in the climate row.

1. Press the left or right-hand side's steering

wheel and seat button in the climate row in
the centre display in order to open the con-
trols for seat and steering wheel.

If the car is not equipped with heated seats
or heated steering wheel, the button for ven-
tilated seats is immediately available in the
climate row.

2. Repeatedly press the button for ventilated

seats in order to change between the four
levels:

Off

High

Medium

and

Low

> The level changes and the button shows

the set level.

CLIMATE CONTROL

* Option/accessory.

204

Related information

•

Climate controls (p. 186)

•

Climate controls in the centre display
(p. 186)

Activating/deactivating heating of

steering wheel

The steering wheel can be heated in order to
increase comfort for the driver when it is cold.

Activating/deactivating heating of
steering wheel

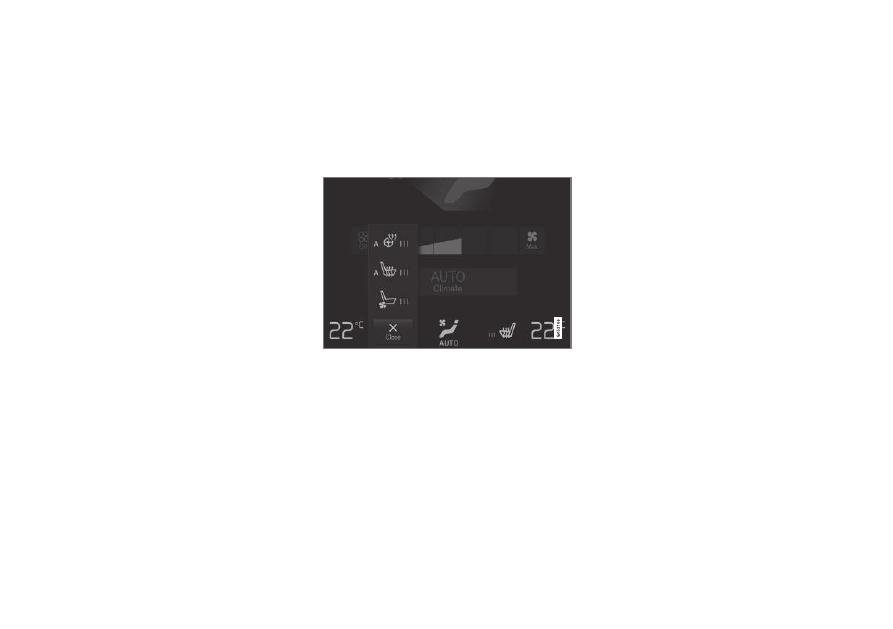

Steering wheel and seat buttons in the climate row.

1. Press the driver's side steering wheel and

seat button in the climate row of the centre
display in order to open the controls for seat
and steering wheel.

If the car is not equipped with heated seats
or ventilated seats, the button for heated
steering wheel is immediately available in the
climate row.

2. Repeatedly press the button for heated

steering wheel in order to change between
the four levels:

Off

High

Medium

and

Low

> The level changes and the button shows

the set level.

Activating/deactivating automatic start
of heated steering wheel

It is possible to set whether automatic start of
heated steering wheel should be activated/deac-
tivated when the engine is started. With auto-
matic start activated, heating will start in the
event of low ambient temperature.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Under

Auto Steering Wheel Heating

Level

, select

Off

Low

Medium

High

order to activate/deactivate the automatic
starting of steering wheel heating and to
select the level.

Related information

•

Climate controls (p. 186)

•

Climate controls in the centre display
(p. 186)

•

Steering wheel (p. 135)

CLIMATE CONTROL

}}

* Option/accessory.

205

Parking climate

The climate of the car's passenger compartment
can be preconditioned or maintained while the
car is parked.

Preconditioning and climate comfort retention are con-

trolled from the Parking climate tab in the centre dis-

play's climate view.

Preconditioning

Preconditioning of the car before driving can
reduce wear and energy needs during a journey.

Preconditioning can use direct start or be set via
the timer.

The function utilises several systems in different
cases:

•

In a cold climate, the parking heater warms
up the passenger compartment to a comfort-
able temperature.

•

The air conditioning, in a hot climate, cools
the passenger compartment to the comfort
temperature.

•

Activation of heated steering wheel

* and

heated seats

* for driver and passenger can

be selected.

•

Heated windscreen, rear window and door
mirrors are automatically activated as
required.

During preconditioning in a hot climate, conden-
sation from the air conditioning may drip under
the car. This is normal.

NOTE

Preconditioning is available only when the car
is connected to an electrical socket

. A

charging station which is not always active,
e.g. on account of a timer, may cause precon-
ditioning to malfunction.

If the car is not connected to an electrical
socket, it is still possible to cool the passen-
ger compartment briefly in a warm climate by
starting preconditioning directly.

NOTE

During preconditioning of the passenger
compartment, the car works to reach comfort
temperature and not the temperature set in
the climate control system.

Climate comfort retention

The climate in the car's passenger compartment
can be maintained while the car is parked, e.g. if
the engine needs to be switched off but the
driver or passenger(s) wants to remain in the car
and maintain the level of climate comfort.

Starting climate comfort retention is only possible
via direct start.

Applicable to electric heater.

CLIMATE CONTROL

206

The function utilises several systems in different
cases:

•

Residual heat from the engine, in a cold cli-
mate, heats the passenger compartment to
comfort temperature.

•

When it is warm, the ventilation cools the
passenger compartment by blowing in air
from outside the car.

NOTE

Climate comfort retention is switched off
when the car is locked from the outside to
avoid using residual heat unnecessarily. Use
of the function is intended to maintain climate
comfort when driver or passengers remain
inside the car.

Related information

•

Climate control (p. 182)

•

Starting/stopping preconditioning (p. 206)

•

Timer for preconditioning (p. 208)

•

Starting/switching off climate comfort reten-
tion (p. 210)

•

Symbols and messages for parking climate
control (p. 212)

•

Heater (p. 214)

•

Parking heater (p. 215)

Starting/stopping preconditioning

Preconditioning heats or cools the passenger
compartment before driving. The function can
use direct start from the centre display or a
mobile phone.

Starting/stopping from the centre
display

Preconditioning button in the Parking climate tab in

the climate view.

1. Open the climate view in the centre display.

2. Select the

Parking climate

tab.

Boxes for seat heating and steering wheel heating in the

Parking climate tab in the climate view.

3. Select whether seat heating and steering

wheel heating should be activated during
preconditioning by ticking/unticking the
boxes.

4. Press

Preconditioning

> Preconditioning is started/switched off

and the button is illuminated/extin-
guished.

CLIMATE CONTROL

* Option/accessory.

207

NOTE

Preconditioning is available only when the car
is connected to an electrical socket

. A

charging station which is not always active,
e.g. on account of a timer, may cause precon-
ditioning to malfunction.

If the car is not connected to an electrical
socket, it is still possible to cool the passen-
ger compartment briefly in a warm climate by
starting preconditioning directly.

NOTE

The car's doors and windows should be
closed during the preconditioning of the pas-
senger compartment.

WARNING

Do not use preconditioning

•

In unventilated spaces indoors. Exhaust
gases are emitted if the heater starts.

•

In locations with combustible or flamma-
ble material nearby. Fuel, gas, long grass,
sawdust, etc. may ignite.

•

When there is a risk that the heater’s
exhaust line may be blocked. For exam-
ple, deep snow inside the front right-hand
wheel housing can obstruct the heater’s
ventilation.

Remember that the preconditioning can be

started by a timer that has been set for a long

time in advance.

Starting from the app

Start of preconditioning and information about
the selected settings can be managed from a
device that has the Volvo On Call

* app. Precondi-

tioning heats or cools the passenger compart-
ment (using the car's air conditioning) to comfort
temperature.

The passenger compartment can also be precon-
ditioned with the car remote start function
(Engine Remote Start - ERS)

via the Volvo On

Call

* app.

Related information

•

Parking climate (p. 205)

•

Timer for preconditioning (p. 208)

•

Starting/switching off climate comfort reten-
tion (p. 210)

•

Symbols and messages for parking climate
control (p. 212)

•

Heater (p. 214)

Applicable to electric heater.

Applicable to fuel-driven auxiliary heater.

Certain markets.

CLIMATE CONTROL

208

Timer for preconditioning

The timer can be set so that the preconditioning
is finished at a predetermined time.

The timer can handle up to 8 different settings
for:

•

A time on a single date

•

A time on one or more days of the week, with
or without repetition.

NOTE

Preconditioning is available only when the car
is connected to an electrical socket

. A

charging station which is not always active,
e.g. on account of a timer, may cause precon-
ditioning to malfunction.

If the car is not connected to an electrical
socket, it is still possible to cool the passen-
ger compartment briefly in a warm climate by
starting preconditioning directly.

Related information

•

Parking climate (p. 205)

•

Setting the timer for preconditioning
(p. 208)

•

Activating/deactivating the timer for precon-
ditioning (p. 210)

•

Starting/stopping preconditioning (p. 206)

•

Symbols and messages for parking climate
control (p. 212)

Setting the timer for

preconditioning

The timer for preconditioning can manage up to
8 time settings.

Adding a time setting

The button to add a time setting in the Parking climate

tab in the climate view.

1. Open the climate view in the centre display.

2. Select the

Parking climate

tab.

Applicable to electric heater.

CLIMATE CONTROL

209

3. Press

Add timer

> A pop-up window is shown.

NOTE

It is not possible to add a time setting if there
already are 8 settings entered for the timer.
Delete a time setting in order to be able to
add a new one.

4. Tap on

Date

to set the time for a single date.

Tap on

Days

to set the time for one or more

days of the week.

With

Days

: Activate/deactivate repetition by

ticking/unticking the box for

Repeat

weekly

5. With

Date

: Select the date for precondition-

ing by scrolling the date list with the arrows.

With

Days

: Select the days of the week for

preconditioning by tapping on the buttons for
the days of the week.

6. Set the time when the preconditioning

should be finished by scrolling with the
arrows.

7. Tap on

Confirm

in order to add the time set-

ting.
> The time setting is added to the list and is

activated.

WARNING

Do not use preconditioning

•

In unventilated spaces indoors. Exhaust
gases are emitted if the heater starts.

•

In locations with combustible or flamma-
ble material nearby. Fuel, gas, long grass,
sawdust, etc. may ignite.

•

When there is a risk that the heater’s
exhaust line may be blocked. For exam-
ple, deep snow inside the front right-hand
wheel housing can obstruct the heater’s
ventilation.

Remember that the preconditioning can be

started by a timer that has been set for a long

time in advance.

Editing a time setting

1. Open the climate view in the centre display.

2. Select the

Parking climate

tab.

3. Press the time setting that is to be changed.

> A pop-up window is shown.

4. Edit the time setting in the same way as

described in "Adding a time setting" above.

Deleting a time setting

The button for editing the list/deleting the time setting

in the tab Parking climate in the climate view.

1. Open the climate view in the centre display.

2. Select the

Parking climate

tab.

3. Press

Edit list

4. Press the delete icon to the right in the list.

> The icon changes to the text

Delete

5. Press

Delete

to confirm.

> The time setting is removed from the list.

Related information

•

Timer for preconditioning (p. 208)

•

Activating/deactivating the timer for precon-
ditioning (p. 210)

•

Heater (p. 214)

Applicable to fuel-driven auxiliary heater.

CLIMATE CONTROL

210

Activating/deactivating the timer for

preconditioning

A time setting in the timer for preconditioning
can be activated or deactivated based on need.

The timer buttons in the Parking climate tab in the cli-

mate view.

1. Open the climate view in the centre display.

2. Select the

Parking climate

tab.

3. Activate/deactivate a time setting by tapping

on the timer button to the right of the setting.
> The time setting is activated/deactivated

and the button illuminates/extinguishes.

WARNING

Do not use preconditioning

•

In unventilated spaces indoors. Exhaust
gases are emitted if the heater starts.

•

In locations with combustible or flamma-
ble material nearby. Fuel, gas, long grass,
sawdust, etc. may ignite.

•

When there is a risk that the heater’s
exhaust line may be blocked. For exam-
ple, deep snow inside the front right-hand
wheel housing can obstruct the heater’s
ventilation.

Remember that the preconditioning can be

started by a timer that has been set for a long

time in advance.

Related information

•

Timer for preconditioning (p. 208)

•

Setting the timer for preconditioning (p. 208)

•

Heater (p. 214)

Starting/switching off climate

comfort retention

Climate comfort retention maintains the climate
in the passenger compartment after driving. The
function can use direct start from the centre dis-
play.

Button for climate comfort retention in the Parking

climate tab in the climate view.

1. Open the climate view in the centre display.

2. Select the

Parking climate

tab.

3. Press

Keep climate comfort

> Climate comfort retention is started/

switched off and the button illuminates/
extinguishes.

Applicable to fuel-driven auxiliary heater.

CLIMATE CONTROL

211

NOTE

It is not possible to start climate comfort
retention if there is not enough residual heat
in the engine to maintain the passenger com-
partment climate, or if the outside tempera-
ture is above approx. 20 °C.

NOTE

Related information

•

Parking climate (p. 205)

•

Starting/stopping preconditioning (p. 206)

Content .. 9 10 11 12 ..
