INSTRUMENTS AND CONTROLS

}}

Hybrid related information in the

driver display

The driver display shows different instruments
and functions depending on the drive mode
selected. The instruments can help the driver to
drive the car while maintaining the best possible
driving economy.

The car also stores statistics of journeys made,
which can be viewed in the form of a block dia-
gram. See the section "Show trip statistics in the
centre display".

Hybrid gauge

The hybrid gauge shows in different ways the
relationship between how much power is being
taken from the electric motor and how much
power is available.

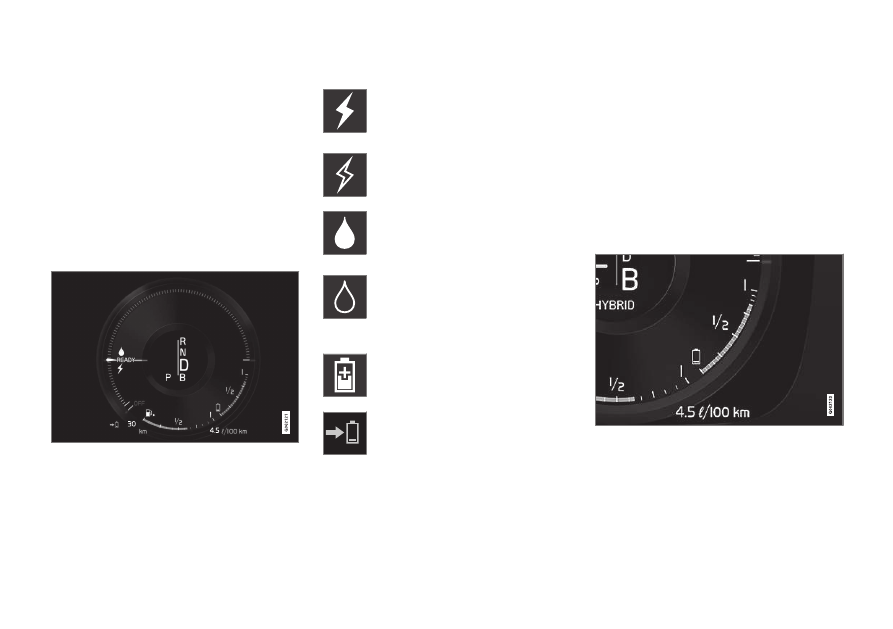

Hybrid-unique symbols

Indicates current level for available
electric motor power. If the symbol is
filled in, it means that the electric
motor is in use.

If the symbol is not filled in, it means
that the electric motor is not in use.

Indicates the power level when the
combustion engine starts. If the symbol
is filled in, it means that the combus-
tion engine is in use.

Indicates the power level when the
internal combustion engine is due to
start. If the symbol is not filled in, it
means that the combustion engine is

not in use.

Indicator that shows that the hybrid
battery is being charged, e.g. if the
brake pedal is gently depressed.

Information from trip computer: dis-
tance to empty battery, eDTE (Electri-
cal Distance To Empty) indicator.
Shows approximate distance with

remaining energy quantity in the hybrid battery.

Since it is difficult to anticipate driving style and
other factors that affect the range for electric
operation, Volvo has decided to use a start value
for eDTE when the car is fully charged. The start
value indicates an up-to figure instead of a fore-
cast for the range for electric operation. The dif-
ference in start value between

Hybrid

and

Pure

is due to the car being allowed to use more
energy from the hybrid battery in

Pure

mode, as

well as that the car changes over to ECO climate.

The hybrid battery gauge shows available
electric motor power

The hybrid battery gauge shows how much
energy there is in the battery. This energy is used
for the electric motor, but also to cool or heat the
car.

Driver-requested power

The pointer in the hybrid gauge indicates the
amount of engine power requested by the driver

INSTRUMENTS AND CONTROLS

100

by regulating the accelerator pedal. The higher
the reading on the scale, the more power is
requested by the driver in the current gear. The
marking between the lightning bolt and the drop
indicates the transition point where the electric
motor stops working and the combustion engine
takes over.

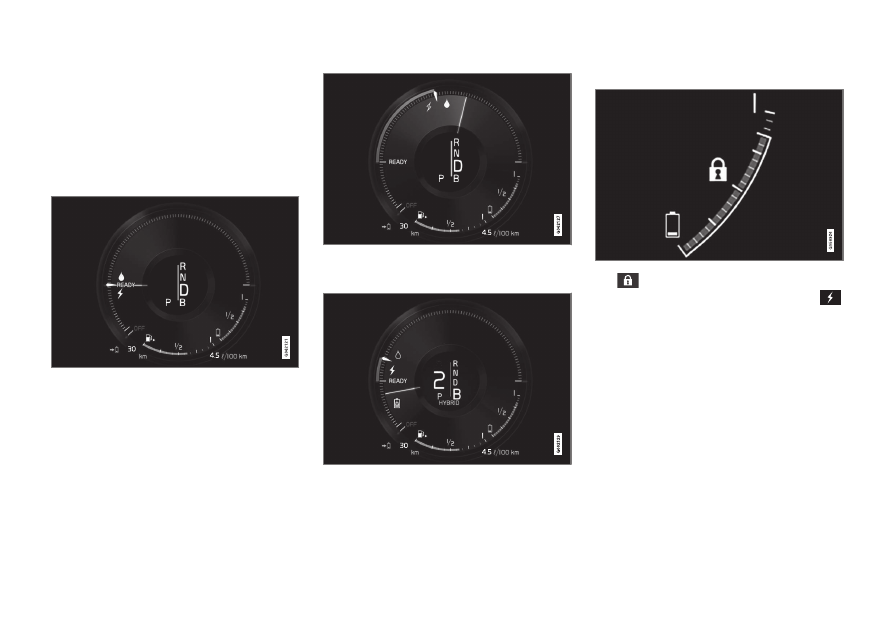

Example:

The car is started but stationary, no power is requested.

The electric motor cannot supply the amount of engine

power requested and the internal combustion engine

starts.

The car generates current to the battery, the battery is

charged, e.g. when the brake pedal is pressed lightly or

during engine braking down a hill.

Functions "Hold" and "Charge"

The

symbol in the hybrid battery gauge indi-

cates that the

Hold

function is activated, the

symbol indicates that

Charge

is activated. For

more information on these functions, see the
section "Maintain or increase the hybrid battery's
state of charge while driving".

Related information

•

Show trip statistics in the centre display
(p. 171)

•

Driver display (p. 96)

•

Trip computer (p. 168)

•

Drive modes (p. 421)

•

Maintain or increase the hybrid battery's
state of charge while driving. (p. 425)

INSTRUMENTS AND CONTROLS

}}

101

Indicator symbols in the driver

display

The indicator symbols alert the driver that a func-
tion is activated, that a system is operating, or
that a fault or abnormal condition exists.

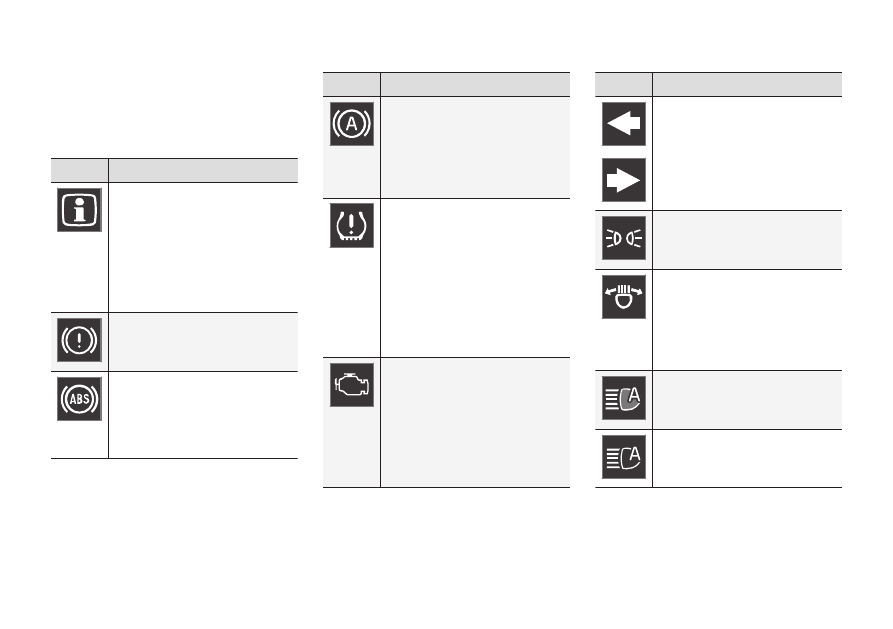

Symbol

Specification

Information, read display text

When one of the car's systems
does not behave as intended, this
information symbol illuminates and
a text appears on the driver display.
The information symbol can also
illuminate in conjunction with other
symbols.

Fault in brake system

The symbol lights up when there is
a fault in the parking brake.

ABS fault

If this symbol illuminates then the
system is not working. The car's
regular brake system continues to
work, but without the ABS function.

Symbol

Specification

Automatic brake on

The symbol illuminates when the
function is activated and the foot
brake or parking brake is acting.
The brake holds the car stationary
when it has stopped.

Tyre pressure system

The symbol illuminates when tyre
pressure is too low. If there is a
fault in the tyre pressure system,
the symbol will flash for approx. 1
minute and then illuminate with a
constant glow. This may be
because the system cannot detect
or warn of low tyre pressure as
intended.

Emissions system

If the symbol illuminates after the
engine has been started then it
may be due to a fault in the car's
emissions system. Drive to a work-
shop for checking. Volvo recom-
mends that an authorised Volvo
workshop is contacted.

Symbol

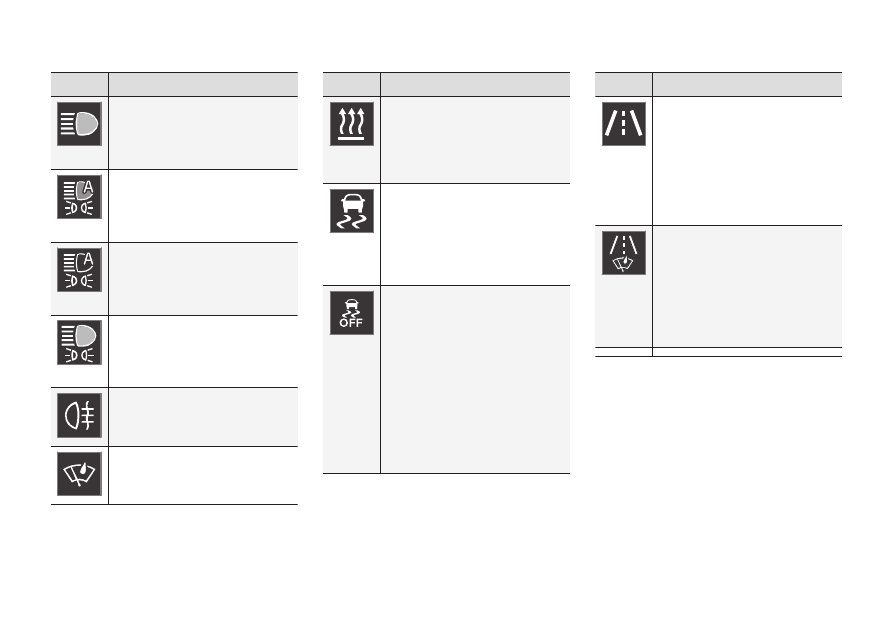

Specification

Left and right-hand direction
indicator

The symbols flash when the direc-
tion indicators are used.

Position lamps

The symbol lights up when the
position lamps are switched on.

Fault in the headlamp system

The symbol illuminates if a fault
has occurred in the ABL function
(Active Bending Lights) or if
another fault has occurred in the
headlamp system.

Active main beam on

The symbol lights up blue when the
automatic main beam is on.

Active main beam off

The symbol lights up white when
the automatic main beam is off.

INSTRUMENTS AND CONTROLS

102

Symbol

Specification

Main beam On

The symbol illuminates when main
beam is on and with main beam
flash.

Active main beam on

The symbol lights up blue when
active main beam is on. Position
lamps are switched on.

Active main beam off

The symbol lights up white when
active main beam is off. Position
lamps are switched on.

Main beam On

The symbol lights up when main
beam and the position lamps are
switched on.

Rear fog lamp on

This symbol illuminates when the
rear fog lamp is switched on.

Rain sensor on

This symbol illuminates when the
rain sensor is on.

Symbol

Specification

Preconditioning on

The symbol illuminates when the
engine block and passenger com-
partment heater/air conditioning
are preconditioning the car.

Stability system

A flashing symbol indicates that
the stability system is operating. If
the symbol illuminates with con-
stant glow then there is a fault in
the system.

Stability system, sport mode

The symbol illuminates when the
sport mode is activated. Sport
mode allows for a more active driv-
ing experience. The system then
detects whether the accelerator
pedal, steering wheel movements
and cornering are more active than
in normal driving and then allows
controlled skidding of the rear sec-
tion up to a certain level before it
intervenes and stabilises the car.

Symbol

Specification

Lane assistance

White symbol: Lane assistance is
on and road lines are detected.

Grey symbol: Lane assistance is on
but road lines are not detected.

Yellow symbol: Lane assistance
warns/intervenes.

Lane assistance and rain sensor

White symbol: Lane assistance is
on and road lines are detected.
Rain sensor is on.

Grey symbol: Lane assistance is on
but road lines are not detected.
Rain sensor is on.

Reminder for doors, bonnet, tailgate
and fuel filler flap

If the bonnet, tailgate, fuel filler flap or door is not
closed properly then the information or warning
symbol and graphics illuminate in the driver dis-
play.

Related information

•

Driver display (p. 96)

•

Warning symbols in the driver display
(p. 103)

•

Door and seatbelt reminder (p. 66)

INSTRUMENTS AND CONTROLS

}}

103

Warning symbols in the driver

display

The warning symbols alert the driver that an
important function is activated or that a serious
fault or condition exists.

WARNING

If the brake fluid is below the MIN level in the

brake fluid reservoir, do not drive further

before topping up the brake fluid.
The loss of brake fluid must be investigated

by a workshop. Volvo recommends contacting

an authorised Volvo workshop.

WARNING

If the BRAKE and ABS symbols are lit at the

same time, there is a risk that the rear end will

skid during heavy braking.

Symbol

Specification

Warning

The red warning symbol illuminates
when a fault has been indicated
which could affect the safety
and/or driveability of the car. An
explanatory text is shown on the
driver display at the same time. The
warning symbol can also illuminate
in conjunction with other symbols.

Seatbelt reminder

This symbol flashes if someone in
a front seat has not put on their
seatbelt or if someone in a rear
seat has taken off their seatbelt.

Airbags

If the symbol remains illuminated or
illuminates while driving, a fault has
been detected in one of the car's
safety systems. Read the message
in the driver display. Volvo recom-
mends that an authorised Volvo
workshop is contacted.

Symbol

Specification

Fault in brake system

If this symbol illuminates, the brake
fluid level may be too low. Visit the
nearest authorised workshop to
have the brake fluid level checked
and rectified.

Parking brake applied

This symbol illuminates with a con-
stant glow when the parking brake
is applied.

A flashing symbol means that a
fault has arisen. Read the message
in the driver display.

Low oil pressure

If this symbol illuminates during
driving then the engine's oil pres-
sure is too low. Stop the engine
immediately and check the engine
oil level, top up if necessary. If the
symbol illuminates and the oil level
is normal, contact a workshop.
Volvo recommends that an author-
ised Volvo workshop is contacted.

INSTRUMENTS AND CONTROLS

104

Symbol

Specification

Alternator not charging

This symbol illuminates during driv-
ing if a fault has occurred in the
electrical system. Visit a workshop.
Volvo recommends that an author-
ised Volvo workshop is contacted.

Collision risk

City Safety warns of a risk of colli-
sion with other vehicles, pedes-
trians, cyclists or large animals.

Reminder for doors, bonnet, tailgate
and fuel filler flap

If the bonnet, tailgate, fuel filler flap or door is not
closed properly then the information or warning
symbol and graphics illuminate in the driver dis-
play.

Related information

•

Driver display (p. 96)

•

Indicator symbols in the driver display
(p. 101)

•

Door and seatbelt reminder (p. 66)

•

Safety (p. 60)

Outside temperature gauge

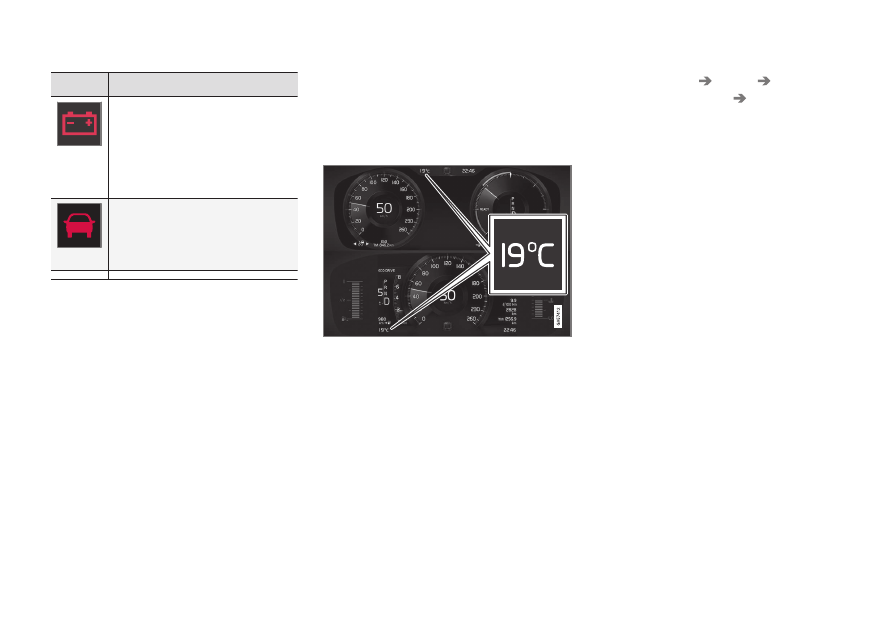

The outside temperature gauge is shown in the
driver display.

A sensor detects the temperature outside of the
car.

Outside temperature gauge location in the 12-inch and

8-inch driver display.

If the car has been stationary, the gauge may dis-
play a temperature reading that is too high.

When the outside temperature is within the range
-5 °C to +2 °C (23 till 36

°F) a snowflake symbol

is also shown in the driver display as a warning
for potentially slippery conditions. The snowflake
symbol is also illuminated briefly in the head-up
display, if the car is equipped with one.

Outside temperature gauge setting

Change the unit for the temperature gauge via
the centre display's top view.

–

Select

Settings

System

Languages and Units

Units of

Measurement

and select the required unit

type,

Metric

Imperial

Related information

•

Driver display (p. 96)

•

Climate control - sensors (p. 182)

INSTRUMENTS AND CONTROLS

105

Clock

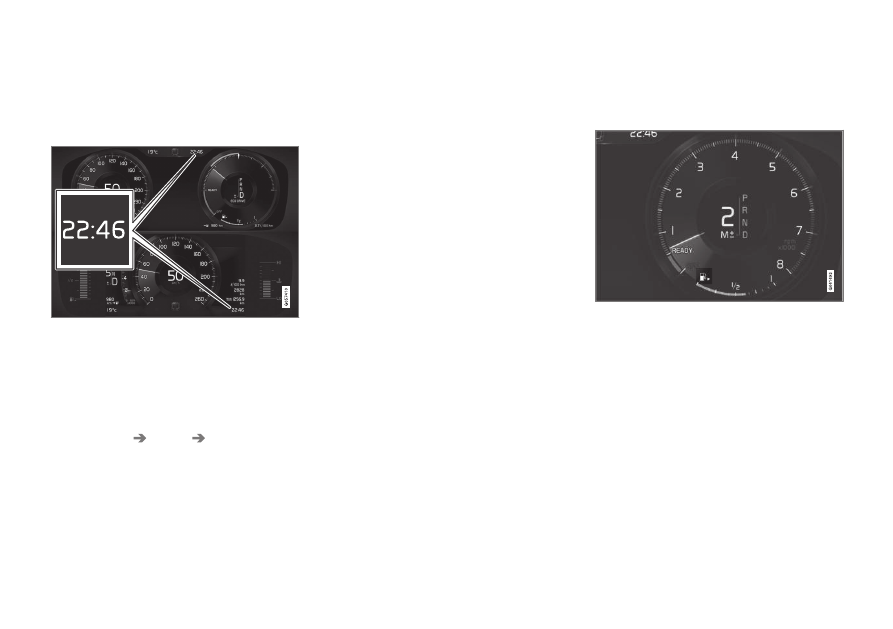

The clock is shown in both the driver display and
the centre display.

Location

Clock location in the 12-inch and 8-inch driver display.

In the centre display, the clock is located at the
top right of the status bar.

In certain situations, messages and information
may cover the clock in the driver display.

Settings for time and date

Select

Settings

System

Date and Time

in the centre display's top view to change set-
tings for time and date format.

Adjust time and date by pressing the up or down
arrow on the touch screen.

Automatic time for cars with GPS

If the car is equipped with a navigation system
then

Auto Time

can be selected. The time zone

is then adjusted automatically based on the loca-
tion of the car. For certain types of navigation
systems, the current location (country) must also
be set to obtain the right time zone. If

Auto Time

is not selected, time and data are adjusted with
arrow up or arrow down on the touch screen.

Summer time

In certain countries, it is possible to select auto-
matic setting of summer time with

Auto

. For

other countries, summer time can be set with

Off

Related information

•

Driver display (p. 96)

•

Settings in the centre display (p. 172)

Fuel gauge

The fuel gauge in the driver display shows the
fuel level in the tank.

Fuel gauge in the 12-inch driver display.

The beige zone in the fuel gauge indicates the
quantity of fuel in the tank.

When the fuel level is low and it is soon time to
refuel, the fuel pump symbol illuminates and
changes to amber colour. The trip computer also
indicates distance to empty tank, see the section
"Trip computer".

Related information

•

Trip computer (p. 168)

•

Opening/closing the fuel filler flap and refu-
elling (p. 439)

INSTRUMENTS AND CONTROLS

106

License agreement for the driver

display

A license is an agreement for the right to oper-
ate a certain activity or the right to use someone
else's entitlement according to the terms and
conditions in the agreement. The following text is
Volvo's agreement with the manufacturer/devel-
oper.

BSD 4-clause "Original" or "Old"
License

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.

3. All advertising materials mentioning features

or use of this software must display the
following acknowledgement: This product
includes software developed by the
University of California, Berkeley and its
contributors.

4. Neither the name of the University nor the

names of its contributors may be used to
endorse or promote products derived from
this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE
REGENTS AND CONTRIBUTORS ``AS IS'' AND
ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

BSD 3-clause "New" or "Revised"
License

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.

3. Neither the name of the organisation nor the

names of its contributors may be used to
endorse or promote products derive from this
software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE COPYRIGHT HOLDER
OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,

INSTRUMENTS AND CONTROLS

}}

107

WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

BSD 2-clause “Simplified” license

<YEAR>, <OWNER> All rights

reserved.

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.

EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

The views and conclusions contained in the
software and documentation are those of the
authors and should not be interpreted as
representing official policies, either expressed or
implied, of the FreeBSD Project.

FreeType Project License

Robert Wilhelm, and Werner Lemberg
Introduction The FreeType Project is
distributed in several archive packages; some
of them may contain, in addition to the
FreeType font engine, various tools and
contributions which rely on, or relate to, the
FreeType Project. This license applies to all
files found in such packages, and which do
not fall under their own explicit license. The
license affects thus the FreeType font
engine, the test programs, documentation
and makefiles, at the very least. This license
was inspired by the BSD, Artistic, and IJG

(Independent JPEG Group) licenses, which
all encourage inclusion and use of free
software in commercial and freeware
products alike. As a consequence, its main
points are that: o We don't promise that this
software works. However, we are be
interested in any kind of bug reports. (`as is'
distribution) o You can use this software for
whatever you want, in parts or full form,
without having to pay us. (`royalty-free'
usage) o You may not pretend that you wrote
this software. If you use it, or only parts of it,
in a program, you must acknowledge
somewhere in your documentation that
you've used the FreeType code. (`credits')
We specifically permit and encourage the
inclusion of this software, with or without
modifications, in commercial products,
provided that all warranty or liability claims
are assumed by the product vendor. Legal
Terms 0. Definitions Throughout this license,
the terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files
originally distributed by the authors (David
Turner, Robert Wilhelm, and Werner
Lemberg) as the `FreeType project', be they
named as alpha, beta or final release. `You'
refers to the licensee, or person using the
project, where `using' is a generic term
including compiling the project's source code
as well as linking it to form a `program' or
`executable'. This program is referred to as `a
program using the FreeType engine'. This

INSTRUMENTS AND CONTROLS

108

license applies to all files distributed in the
original FreeType archive, including all source
code, binaries and documentation, unless
otherwise stated in the file in its original,
unmodified form as distributed in the original
archive. If you are unsure whether or not a
particular file is covered by this license, you
must contact us to verify this. The FreeType
project is copyright (C) 1996-1999 by David
Turner, Robert Wilhelm, and Werner
Lemberg. All rights reserved except as
specified below. 1. No Warranty THE
FREETYPE ARCHIVE IS PROVIDED `AS IS'
WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL ANY OF THE
AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY DAMAGES CAUSED BY
THE USE OR THE INABILITY TO USE, OF
THE FREETYPE PROJECT. As you have not
signed this license, you are not required to
accept it. However, as the FreeType project
is copyrighted material, only this license, or
another one contracted with the authors,
grants you the right to use, distribute, and
modify it. Therefore, by using, distributing, or
modifying the FreeType project, you indicate

that you understand and accept all the terms
of this license.

2. Redistribution Redistribution and use in

source and binary forms, with or without
modification, are permitted provided that the
following conditions are met: o Redistribution
of source code must retain this license file
(`licence.txt') unaltered; any additions,
deletions or changes to the original files
must be clearly indicated in accompanying
documentation. The copyright notices of the
unaltered, original files must be preserved in
all copies of source files. o Redistribution in
binary form must provide a disclaimer that
states that the software is based in part of
the work of the FreeType Team, in the
distribution documentation. We also
encourage you to put an URL to the
FreeType web page in your documentation,
though this isn't mandatory. These conditions
apply to any software derived from or based
on the FreeType code, not just the
unmodified files. If you use our work, you
must acknowledge us. However, no fee need
be paid to us.

3. Advertising The names of FreeType's authors

and contributors may not be used to endorse
or promote products derived from this
software without specific prior written
permission. We suggest, but do not require,
that you use one or more of the following
phrases to refer to this software in your
documentation or advertising materials:

`FreeType Project', `FreeType Engine',
`FreeType library', or `FreeType Distribution'.

4. Contacts There are two mailing lists related

to FreeType: o freetype@freetype.org
Discusses general use and applications of
FreeType, as well as future and wanted
additions to the library and distribution. If you
are looking for support, start in this list if you
haven't found anything to help you in the
documentation. o devel@freetype.org
Discusses bugs, as well as engine internals,
design issues, specific licenses, porting, etc.
o http://www.freetype.org Holds the current
FreeType web page, which will allow you to
download our latest development version and
read online documentation. You can also
contact us individually at: David Turner

<david.turner@freetype.org> Robert Wilhelm

<robert.wilhelm@freetype.org> Werner
Lemberg

<werner.lemberg@freetype.org>

Libpng License

This copy of the libpng notices is provided for
your convenience. In case of any discrepancy
between this copy and the notices in the file
png.h that is included in the libpng distribution,
the latter shall prevail.

INSTRUMENTS AND CONTROLS

}}

109

If you modify libpng you may insert additional
notices immediately following this sentence.

libpng versions 1.0.7, July 1, 2000, through
1.0.13, April 15, 2002, are Copyright (c)
2000-2002 Glenn Randers-Pehrson and are
distributed according to the same disclaimer and
license as libpng-1.0.6 with the following
individuals added to the list of Contributing
Authors

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the disclaimer:

There is no warranty against interference with
your enjoyment of the library or against
infringement. There is no warranty that our efforts
or the library will fulfill any of your particular
purposes or needs. This library is provided with all
faults, and the entire risk of satisfactory quality,
performance, accuracy, and effort is with the user.

libpng versions 0.97, January 1998, through
1.0.6, March 20, 2000, are Copyright (c) 1998,
1999 Glenn Randers-Pehrson, and are
distributed according to the same disclaimer and
license as libpng-0.96, with the following
individuals added to the list of Contributing
Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through 0.96,
May 1997, are Copyright (c) 1996, 1997
Andreas Dilger Distributed according to the same
disclaimer and license as libpng-0.88, with the
following individuals added to the list of
Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88,
January 1996, are Copyright (c) 1995, 1996 Guy
Eric Schalnat, Group 42, Inc.

For the purposes of this copyright and license,
"Contributing Authors" is defined as the following
set of individuals:

Andreas Dilger

Dave Martindale

Guy Eric Schalnat

Paul Schmidt

Tim Wegner

The PNG Reference Library is supplied "AS IS".
The Contributing Authors and Group 42, Inc.
disclaim all warranties, expressed or implied,
including, without limitation, the warranties of
merchantability and of fitness for any purpose.
The Contributing Authors and Group 42, Inc.
assume no liability for direct, indirect, incidental,
special, exemplary, or consequential damages,
which may result from the use of the PNG
Reference Library, even if advised of the
possibility of such damage.

Permission is hereby granted to use, copy,
modify, and distribute this source code, or
portions hereof, for any purpose, without fee,
subject to the following restrictions:

1. The origin of this source code must not be

misrepresented.

2. Altered versions must be plainly marked as

such and must not be misrepresented as
being the original source.

3. This Copyright notice may not be removed or

altered from any source or altered source
distribution.

The Contributing Authors and Group 42, Inc.
specifically permit, without fee, and encourage
the use of this source code as a component to
supporting the PNG file format in commercial
products. If you use this source code in a product,
acknowledgment is not required but would be
appreciated.

INSTRUMENTS AND CONTROLS

110

A "png_get_copyright" function is available, for
convenient use in "about" boxes and the like:

printf("%s",png_get_copyright(NULL));

Also, the PNG logo (in PNG format, of course) is
supplied in the files "pngbar.png" and

Libpng is OSI Certified Open Source Software.
OSI Certified Open Source is a certification mark
of the Open Source Initiative.

Glenn Randers-Pehrson randeg@alum.rpi.edu
April 15, 2002

MIT License

Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the "Software"),
to deal in the Software without restriction,
including without limitation the rights to use,
copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is
furnished to do so, subject to the following
conditions:

The above copyright notice and this permission
notice shall be included in all copies or
substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
THE AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR
OTHER LIABILITY, WHETHER IN AN ACTION
OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION
WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.

zlib License

The zlib/libpng License Copyright (c)

<year>

<copyright holders>
This software is provided 'as-is', without any
express or implied warranty. In no event will the
authors be held liable for any damages arising
from the use of this software.

Permission is granted to anyone to use this
software for any purpose, including commercial
applications, and to alter it and redistribute it
freely, subject to the following restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that you
wrote the original software. If you use this
software in a product, an acknowledgment in
the product documentation would be
appreciated but is not required.

2. Altered source versions must be plainly

marked as such, and must not be

misrepresented as being the original
software.

3. This notice may not be removed or altered

from any source distribution.

SGI Free Software B License Version
2.0.

SGI FREE SOFTWARE LICENSE B (Version 2.0,
Sept. 18, 2008)

Copyright (C) [dates of first publication] Silicon
Graphics, Inc. All Rights Reserved. Permission is
hereby granted, free of charge, to any person
obtaining a copy of this software and associated
documentation files (the "Software"), to deal in
the Software without restriction, including without
limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies
of the Software, and to permit persons to whom
the Software is furnished to do so, subject to the
following conditions: The above copyright notice
including the dates of first publication and either
this permission notice or a reference to http://
oss.sgi.com/projects/FreeB/ shall be included in
all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
SILICON GRAPHICS, INC. BE LIABLE FOR ANY

INSTRUMENTS AND CONTROLS

111

CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT
OF OR IN CONNECTION WITH THE SOFTWARE
OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Except as contained in this notice, the name of
Silicon Graphics, Inc. shall not be used in
advertising or otherwise to promote the sale, use
or other dealings in this Software without prior
written authorization from Silicon Graphics, Inc.

Related information

•

Driver display (p. 96)

Application menu in the driver

display

Application menu (app menu) in the driver dis-
play provides quick access to commonly used
functions for certain apps.

The app menu in the driver display can be used instead

of using the centre display.

The app menu is shown in the driver display and
is controlled using the steering wheel's right-
hand keypad. The app menu makes it easy to
switch between different apps or functions within
the apps without having to let go of the steering
wheel and take your eyes off the road.

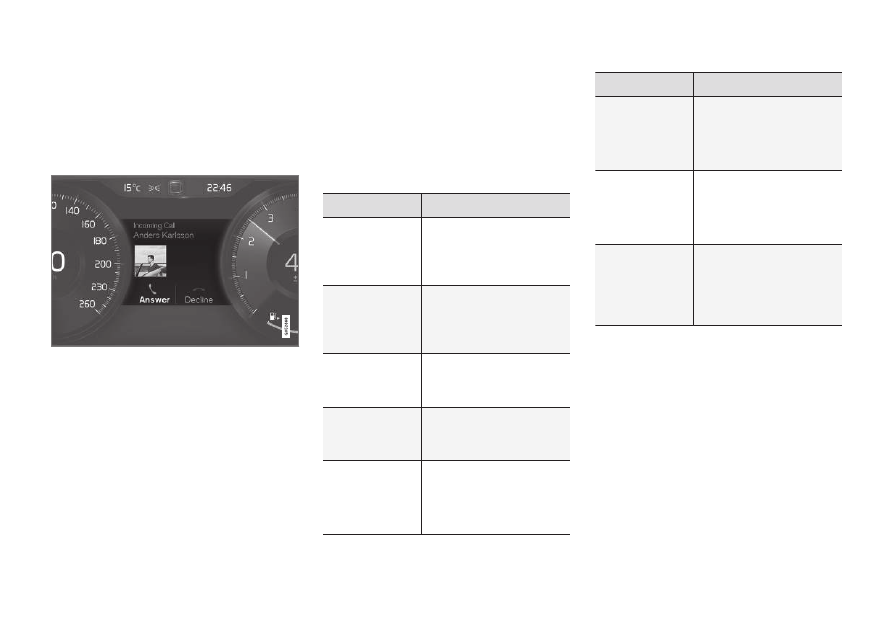

App menu functions

Different apps give access to different types of
functions. The following apps and their associ-
ated functions can be controlled from the app
menu:

App

Functions

Trip com-
puter

Selection of trip meter, selection
of what to show in the driver dis-
play, etc.

Media
player

Selection of active source for
the media player.

Phone

Calling a contact from the call
list.

Navigation

Pause guide, start guide to
recently used destination, etc.

Related information

•

Driver display (p. 96)

•

Overview of the centre display (p. 33)

•

Using the application menu in the driver dis-
play (p. 112)

INSTRUMENTS AND CONTROLS

112

Using the application menu in the

driver display

The application menu (the app menu) in the
driver display is operated with the steering
wheel's right-hand keypad.

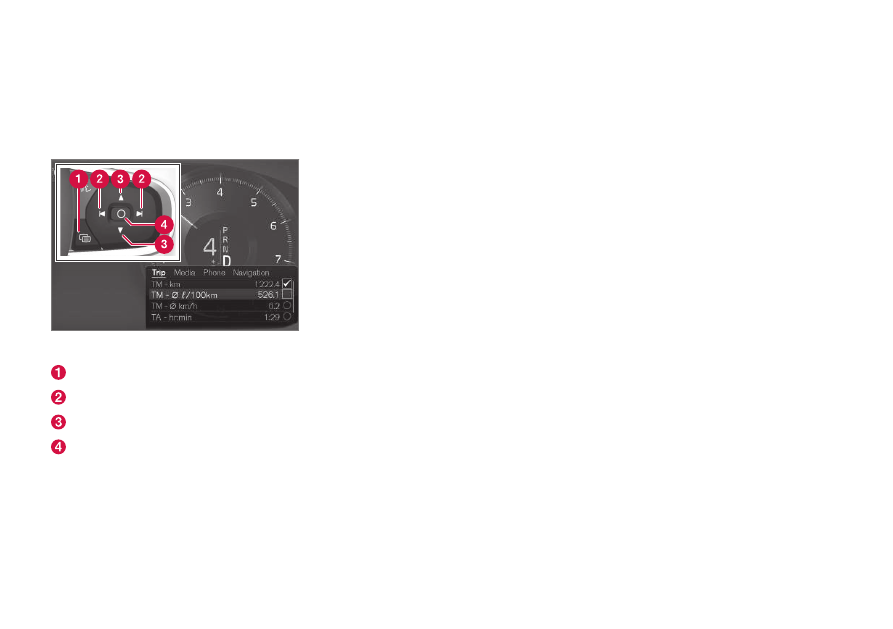

The app menu and the steering wheel's right-hand key-

pad.

Open/close

Left/right

Up/down

Confirm

Opening/closing the app menu

–

Press on open/close (1).

(It is not possible to open the app menu
while there is an unacknowledged message
in the driver display. The message must be
confirmed before the app menu can be
opened.)
> The app menu opens/closes.

The app menu closes automatically after a period
of inactivity or after certain options have been
selected.

Navigating and selecting in the app
menu

1. Navigate between the different apps that are

available by tapping on left or right (2).
> Functions for previous/next app are

shown in the app menu.

2. Browse through the functions for the

selected app by tapping on up or down (3).

3. Confirm or highlight an option for the func-

tion by pressing on confirm (4).
> The function is activated and for some

options the app menu then closes.

If the app menu is opened again, the functions of
the most recently selected app are shown first.

Related information

•

Application menu in the driver display
(p. 111)

•

Managing messages in the driver display and
the centre display (p. 114)

INSTRUMENTS AND CONTROLS

}}

113

Messages in the driver display and

the centre display

The driver display and centre display can show
messages to inform or assist the driver in the
event of different events.

Driver display

Message in the driver display.

The driver display shows messages that are of
high priority for the driver.

The messages can be shown in different parts of
the driver display depending on what other infor-
mation is currently being displayed. After a while,
or when the message has been acknowledged/
action taken if required, the message disappears
from the driver display. If a message needs to be
saved, it is placed in the

Car status

app, which is

opened from the app view in the centre display.

Message composition may vary and they can be
shown together with graphics, symbols or buttons
for acknowledging the message or accepting a
request, for example.

Service messages

Shown below is a selection of important service
messages and their meanings.

Message

Specification

Stop safely

Stop and switch off the
engine. Serious risk of
damage - consult a work-
shop

Turn off
engine

Stop and switch off the
engine. Serious risk of
damage - consult a work-
shop

Service urgent
Drive to work-
shop

Contact a workshop

check the car immediately.

Service
required

Contact a workshop

check the car as soon as
possible.

Regular main-
tenance

Book time for
maintenance

Time for regular service -
contact a workshop

Shown before the next
service date.

Message

Specification

Regular main-
tenance

Time for main-
tenance

Time for regular service -
contact a workshop

Shown at the next service
date.

Regular main-
tenance

Maintenance
overdue

Time for regular service -
contact a workshop

Shown when the service
date has passed.

Temporarily
off

A function has been tem-
porarily switched off and is
reset automatically while
driving or after starting
again.

Part of message, shown together with information on where the

problem has arisen.

An authorised Volvo workshop is recommended.

INSTRUMENTS AND CONTROLS

114

Centre display

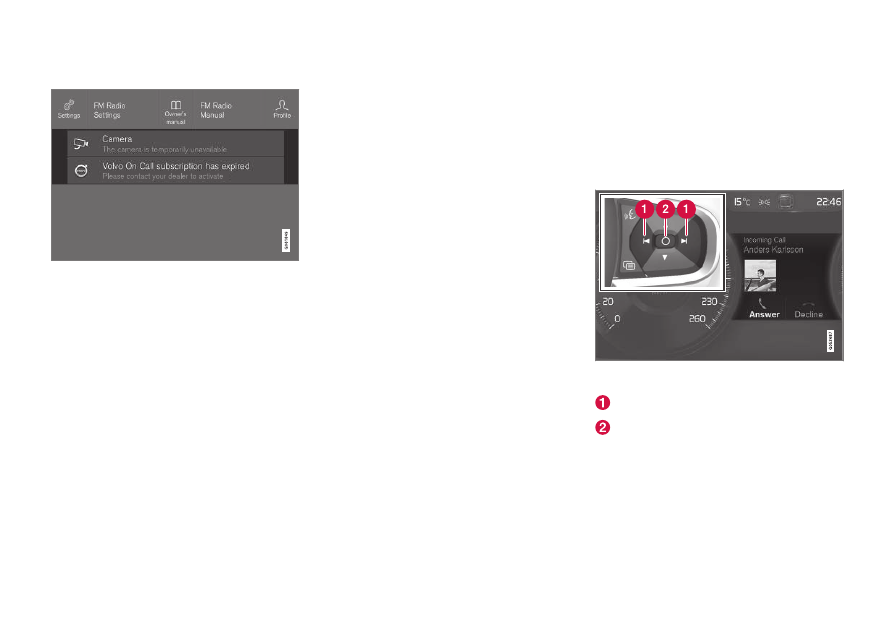

Message in the centre display.

The centre display shows messages that are of
lower priority for the driver.

Most messages are shown above the centre dis-
play's status bar. After a while, or when any
required action related to the message has been
taken, the message disappears from the status
bar. If a message needs to be saved, it is posi-
tioned in the top view in the centre display.

Message composition may vary and they can be
shown together with graphics, symbols or a but-
ton for activating/deactivating a function linked
to the message.

Pop-up messages

In some cases, a message is shown in the form
of a pop-up window. Pop-up messages have
higher priority than messages shown in the sta-
tus bar and require acknowledgement/action

before they disappear. Messages that need to be
saved are positioned in the top view in the centre
display.

Related information

•

Driver display (p. 96)

•

Overview of the centre display (p. 33)

•

Managing messages in the driver display and
the centre display (p. 114)

•

Managing messages saved from the driver
display and centre display (p. 116)

Managing messages in the driver

display and the centre display
