05 During your trip

Refueling

05

196

Fuel requirements

Deposit control gasoline (detergent
additives)

Volvo recommends the use of detergent gas-
oline to control engine deposits. Detergent
gasoline is effective in keeping injectors and
intake valves clean. Consistent use of deposit
control gasolines will help ensure good driva-
bility and fuel economy. If you are not sure
whether the gasoline contains deposit control
additives, check with the service station oper-
ator.

NOTE

Volvo does not recommend the use of exter-
nal fuel injector cleaning systems.

Unleaded fuel

Each Volvo has a three-way catalytic converter
and must use only unleaded gasoline. U.S. and
Canadian regulations require that pumps deliv-
ering unleaded gasoline be labelled "UNLEA-
DED". Only these pumps have nozzles which
fit your vehicle's filler inlet. It is unlawful to dis-
pense leaded fuel into a vehicle labelled
"unleaded gasoline only". Leaded gasoline
damages the three-way catalytic converter and
the heated oxygen sensor system. Repeated
use of leaded gasoline will lessen the effective-

ness of the emission control system and could
result in loss of emission warranty coverage.
State and local vehicle inspection programs
will make detection of misfueling easier, pos-
sibly resulting in emission test failure for mis-
fueled vehicles.

NOTE

Some U.S. and Canadian gasolines contain
an octane enhancing additive called methyl-
cyclopentadienyl manganese tricarbonyl
(MMT). If such fuels are used, your Emission
Control System performance may be affec-
ted, and the Check Engine Light (malfunc-
tion indicator light) located on your instru-
ment panel may light. If this occurs, please
return your vehicle to a trained and qualified
Volvo service technician for service.

Gasoline containing alcohol and ethers,
"Oxygenated fuels"

Some fuel suppliers sell gasoline containing
"oxygenates" which are usually alcohols or
ethers. In some areas, state or local laws
require that the service pump be marked indi-
cating use of alcohols or ethers. However,
there are areas in which the pumps are
unmarked. If you are not sure whether there is
alcohol or ethers in the gasoline you buy, check
with the service station operator. To meet sea-

sonal air quality standards, some areas require
the use of "oxygenated" fuel.

Volvo allows the use of the following "oxygen-
ated" fuels; however, the octane ratings listed
on page 197 must still be met.

Alcohol – Ethanol

Fuels containing up to 10% ethanol by volume
may be used. Ethanol may also be referred to
as Ethyl alcohol, or "Gasohol".

Ethers – MTBE: Fuels containing up to
15% MTBE may be used.

Methanol

Do not use gasolines containing methanol
(methyl alcohol, wood alcohol). This practice
can result in vehicle performance deterioration
and can damage critical parts in the fuel sys-
tem. Such damage may not be covered under
the New Vehicle Limited Warranty.

05 During your trip

 Refueling

05

``

197

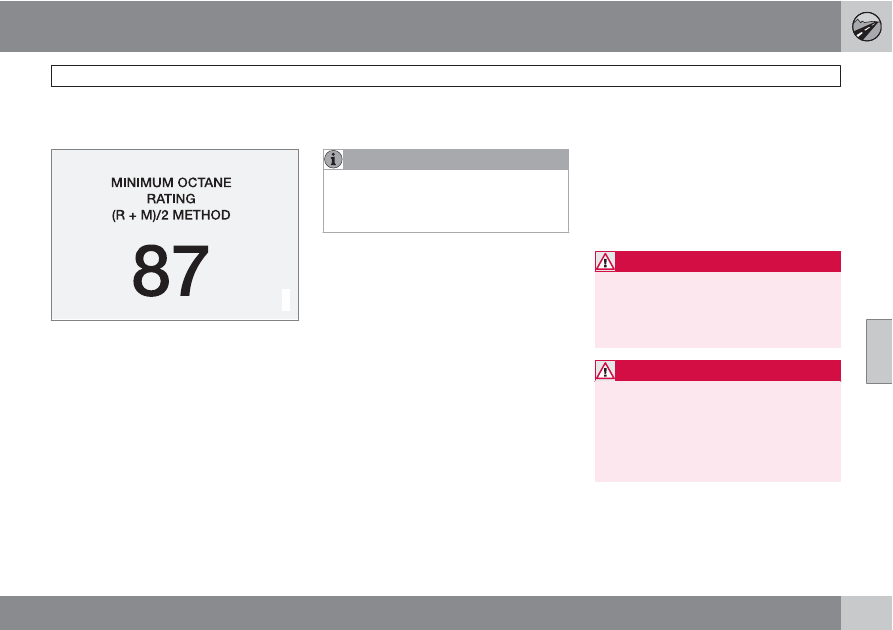

Octane rating

Minimum octane

G028920

Typical pump octane label

Volvo recommends premium fuel for best per-
formance, but using 87 octane or above will not
affect engine reliability.

Volvo engines are designed to achieve rated
horsepower, torque, and fuel economy per-
formance using premium 91 octane fuel.

Demanding driving

In demanding driving conditions, such as oper-
ating the vehicle in hot weather, towing a trailer,
or driving for extended periods at higher alti-
tudes than normal, it may be advisable to
switch to higher octane fuel (91 or higher) or to
change gasoline brands to fully utilize your

engine's capacity, and for the smoothest pos-
sible operation.

NOTE

When switching to higher octane fuel or
changing gasoline brands, it may be neces-
sary to fill the tank more than once before a
difference in engine operation is noticeable.

Fuel Formulations

Do not use gasoline that contains lead as a
knock inhibitor, and do not use lead additives.
Besides damaging the exhaust emission con-
trol systems on your vehicle, lead has been
strongly linked to certain forms of cancer.

Many fuels contain benzene as a solvent.
Unburned benzene has been strongly linked to
certain forms of cancer. If you live in an area
where you must fill your own gas tank, take
precautions. These may include:

standing upwind away from the filler nozzle
while refueling

refueling only at gas stations with vapor
recovery systems that fully seal the mouth
of the filler neck during refueling

wearing neoprene gloves while handling a
fuel filler nozzle.

Use of Additives

With the exception of gas line antifreeze during
winter months, do not add solvents, thicken-
ers, or other store-bought additives to your
vehicle's fuel, cooling, or lubricating systems.
Overuse may damage your engine, and some
of these additives contain organically volatile
chemicals. Do not needlessly expose yourself
to these chemicals.

WARNING

Never carry a cell phone that is switched
on
 while refueling your vehicle. If the phone
rings, this may cause a spark that could
ignite gasoline fumes, resulting in fire and
injury.

WARNING

Carbon monoxide is a poisonous, colorless,
and odorless gas. It is present in all exhaust
gases. If you ever smell exhaust fumes
inside the vehicle, make sure the passenger
compartment is ventilated, and immediately
return the vehicle to a trained and qualified
Volvo service technician for correction.

05 During your trip

Refueling

05

198

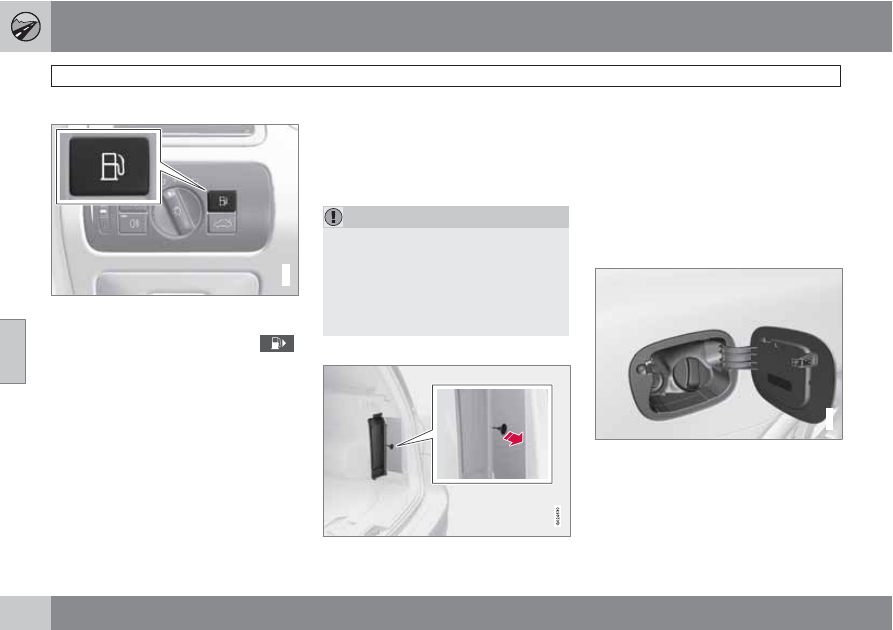

Opening/closing the fuel filler door

G022914

The fuel filler door is located on the right rear
fender (indicated by an arrow beside the fuel

tank symbol on the information display

)

With the ignition switched off, press the button
on the lighting panel to unlock the fuel filler
door. Please note that the fuel filler door will
remain unlocked until the vehicle begins to
move forward. An audible click will be heard
when the fuel filler door relocks.

If you intend to leave your vehicle while it
is being refueled, this feature enables you
to lock the doors/tailgate while leaving the
fuel filler door unlocked.

You can also keep the vehicle locked if you
remain inside it during refueling. The cen-
tral locking button does not lock the fuel
filler door.

Be sure the fuel filler door is not obstructed
and is completely closed after refueling.

Open the fuel filler cap slowly during hot
weather.

Close the fuel filler door by pressing it a click
indicates that it is closed.

CAUTION

Avoid spilling gasoline during refueling.
In addition to causing damage to the
environment, gasolines containing
alcohol can cause damage to painted
surfaces, which may not be covered
under the New Vehicle Limited War-
ranty.

Manually opening the fuel filler door

If necessary, the fuel filler door can be opened
manually:

1.

Open the side hatch in the cargo compart-
ment (on the same side as the fuel filler
door).

2.

Grasp the green cord with a handle.

3.

Pull the cord straight rearward until the fuel
filler door clicks open.

Opening/closing the fuel cap

G022915

Fuel vapor expands in hot weather. Open the
filler cap slowly.

After refueling, close the fuel filler cap by turn-
ing it clockwise until it clicks into place.

05 During your trip

 Refueling

05

199

CAUTION

Do not refuel with the engine running

1

.

Turn the ignition off or to position I. If the
ignition is on, an incorrect reading could
occur in the fuel gauge.

Avoid overfilling the fuel tank. Do not
press the handle on the filler nozzle
more than one extra time. Too much fuel
in the tank in hot weather conditions can
cause the fuel to overflow. Overfilling
could also cause damage to the emis-
sion control systems.

Emission controls

Three-way catalytic converter

Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help

avoid malfunctions that could damage the
three-way catalytic converter.

Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.

Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.

Remember that tampering or unauthorized
modifications to the engine, the Engine
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes: altering fuel injection settings or
components, altering emission system
components or location or removing com-
ponents, and/or repeated use of leaded
fuel.

NOTE

Unleaded fuel is required for vehicles with
three-way catalytic converters.

Heated oxygen sensors

The heated oxygen sensors monitor the oxy-
gen content of the exhaust gases. Readings
are fed into a control module that continuously
monitors engine functions and controls fuel
injection. The ratio of fuel to air into the engine
is continuously adjusted for efficient combus-
tion to help reduce harmful emissions.

1

If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's
performance will not be affected. Use only Volvo original or approved fuel filler caps.

05 During your trip

Loading

05

200

Introduction

The load carrying capacity of your vehicle is
determined by factors such as the number of
passengers, the amount of cargo, the weight
of any accessories that may be installed, etc.

To increase loading space, the rear seat backr-
ests can be folded down, See page 81.

When loading the cargo area, keep the follow-
ing in mind:

Load objects in the cargo area against the
backrest whenever possible.

Unstable loads can be secured to the load
anchoring eyelets with straps or web lash-
ings to help keep them from shifting.

Stop the engine and apply the parking
brake when loading or unloading long
objects. The gear selector can be knocked
out of position by long loads, which could
set the vehicle in motion.

WARNING

Stop the engine, put the gear selector in
P, and apply the parking brake when
loading or unloading long objects.

The vehicle's driving characteristics
may change depending on the weight
and distribution of the load.

A 44-pound (20 kg) object produces a
force of 2,200 pounds (1,000 kg) in a
headon collision at 30 mph (50 km/h).

The cargo area and rear seat should not
be loaded to a level higher than 2 in.
(5 cm) below the upper edge of the rear
side windows. Objects placed higher
than this level could impede the func-
tion of the Volvo Inflatable Curtain.

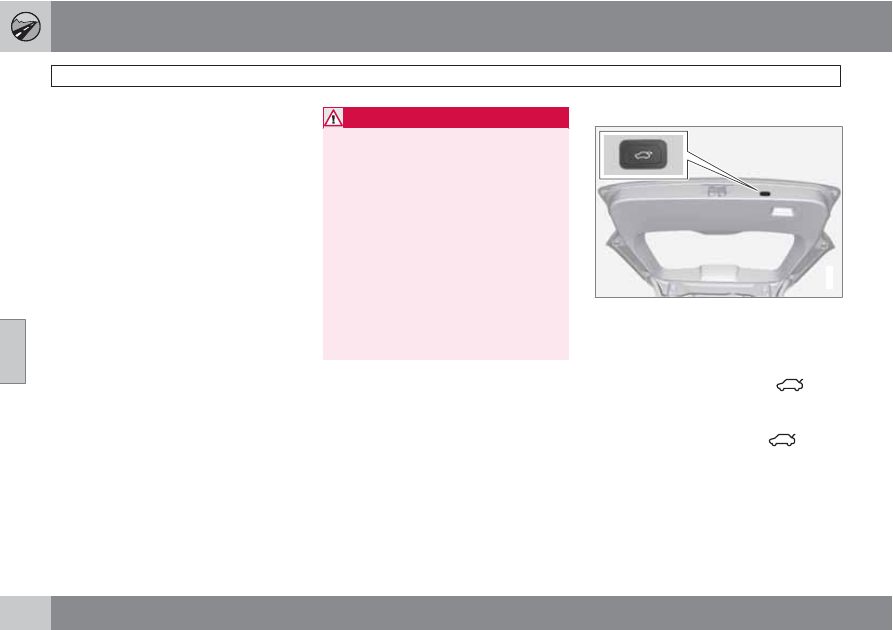

Power tailgate

G017876

Power tailgate closing button

Automatic opening

The power tailgate can be opened automati-
cally in the three ways:

By pressing and holding the

 but-

ton on the lighting panel until the tailgate
begins to open.

By pressing and holding the

 button

on the remote key until the tailgate begins
to open.

By pulling the outer handle on the tailgate.

The taillights illuminate automatically when the
automatic open function is used.

05 During your trip

 Loading

05

``

201

CAUTION

Be sure that there is adequate space above
and behind the vehicle before opening the
tailgate automatically.

NOTE

If the tailgate has been opened and closed
continuously for more than 90 seconds, the
automatic function will be deactivated to
avoid overloading the electrical system. The
automatic function can be used again after
approximately 10 minutes.

Automatic closing

The power tailgate can be closed by pressing

the

 button on the tailgate (see the illus-

tration) or by pressing it down.

NOTE

If the tailgate is pressed down e.g., by the
weight of snow or strong wind, it will close
automatically.

WARNING

Be sure that no one is near the tailgate when
it is opened or closed automatically. The
tailgate should never be obstructed in any
way when it is operated.

Interrupting automatic opening/closing

Automatic opening or closing the tailgate can
be interrupted in four ways:

By pressing the

 button on the

lighting panel.

By pressing the

 button on the

remote key for several seconds.

By pressing the button on the lower edge
of the tailgate.

By pulling the outer handle on the tailgate
a second time.

If one of these actions is taken:

While the tailgate is being opened, the
electrical function will be switched off and
the tailgate will be released from the elec-
trical system.

While the tailgate is being closed, it will
return to the fully open position.

Pinch protection

If the tailgate is obstructed while it is being
operated, the pinch protection function is acti-
vated.

If the tailgate is being opened, the electri-
cal function will be switched off and the
tailgate will be released from the electrical
system.

If the tailgate is being closed, it will move
in the opposite direction.

Operating the tailgate manually

The power tailgate can be disconnected from
the vehicle’s electrical system by quickly pull-
ing the outer handle twice. The tailgate can
then be opened/closed manually.

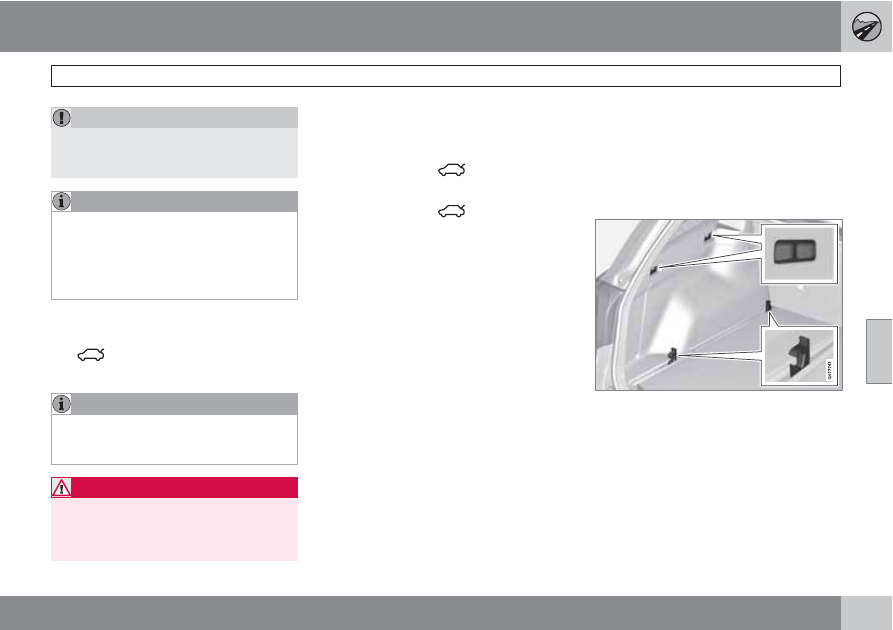

Load anchoring eyelets

The load anchoring eyelets on both sides of the
vehicle are used to fasten straps, etc., to help
anchor items in the cargo area.

05 During your trip

Loading

05

202

WARNING

Cover sharp edges on long loads to help
prevent injury to occupants. Secure the
load to help prevent shifting during sud-
den stops.

Always secure large and heavy objects
with a seat belt or cargo retaining
straps.

Always secure the load to help prevent
it from moving in the event of sudden
stops.

Switch off the engine, apply the parking
brake and put the gear selector in P
when loading and unloading the vehicle.

Cargo area floor rails and hooks

Load secured in upper and lower hooks

The floor of the cargo compartment has rails
on opposite sides of the vehicle equipped with
hooks for anchoring loads with straps, nets,
etc.

Cleaning the rails

Dirt or other small objects that collect in the
rails can make moving, locking, unlocking, and
removing the hooks more difficult. Objects can
be removed from the rails with a vacuum
cleaner, and the rails can be cleaned with a
moist cloth.

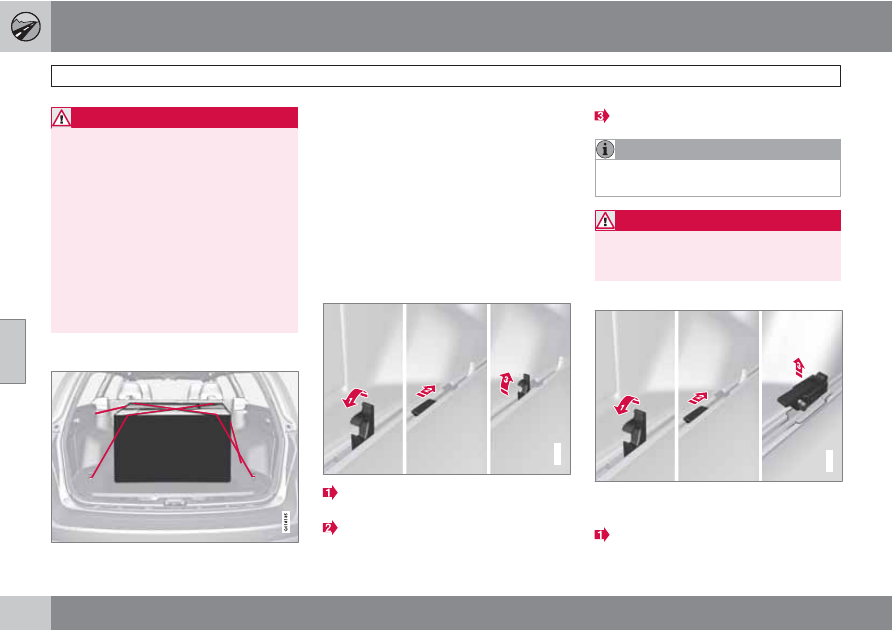

Moving the load anchoring hooks

G017742

To move a hook, fold it down in the direc-
tion in which its opening points.

Press the hook down lightly and move it to
the desired position.

Fold up the hook. It will lock in place.

NOTE

There should be at least 2 in. (50 cm)
between the hooks in the rail.

WARNING

Switch off the engine, apply the parking
brake and put the gear selector in P when
loading and unloading the vehicle.

Removing a hook

G018134

The load-securing hooks can easily be
removed, for example, to clean the rail.

To remove a hook, fold it down in the direc-
tion in which its opening points.

05 During your trip

 Loading

05

``

*



Option/accessory, for more information, see Introduction.

203

Press the hook down lightly and move the
it to an opening in the rail.

Pull the hook straight up.

Replace a hook in the rail in the reverse order.

NOTE

In order to return a removed hook into a rail,
it must be press down lightly.

Reinserting a hook

G019581

Upper illustration: hooks correctly installed, Lower
illustration: hooks incorrectly installed

It is important to insert the hooks correctly in
the rails. The hooks' openings should point
away from each other.

The opening on the hook closest to the rear
seat backrest should point toward the
backrest.

The opening on the hook closest to the
tailgate should point toward the tailgate.

WARNING

The hooks must be installed correctly in the
rail. Incorrectly installed hooks will be folded
down by the strap, allowing them to move.
The load will then no longer be securely
anchored.

Straps for securing loads

G019397

Securing loads

Wrapping straps a full turn around the hooks
helps keep them in place.

NOTE

The straps should preferably be approxi-
mately 1 in. (25 mm) in width.

Grocery bag holder*

G017745

Grocery bag holder under the floor of the cargo
area

The grocery bag holder holds shopping bags
in place.

1.

Open the hatch in the floor of the cargo
area.

2.

Secure the shopping bags with the strap.

05 During your trip

Loading

05

204

Roof loads

Using load carriers

Load carriers are available as Volvo accesso-
ries. Observe the following points when in use:

To avoid damaging your vehicle and to
achieve maximum safety when driving, we
recommend using the load carriers that
Volvo has developed especially for your
vehicle.

Volvo-approved removable roof racks are
designed to carry the maximum allowable
roof load for this vehicle: 220 lbs (100 kg).
For non-Volvo roof racks, check the man-
ufacturer's weight limits for the rack.

Never exceed the rack manufacturer's
weigh limits and never exceed the maxi-
mum rated roof load of 220 lbs (100 kg).

Avoid single-point loads. Distribute loads
evenly.

Place heavier cargo at the bottom of the
load.

Secure the cargo correctly with appropri-
ate tie-down equipment.

Check periodically that the load carriers
and load are properly secured.

Remember that the vehicle's center of
gravity and handling change when you
carry a load on the roof.

The vehicle's wind resistance and fuel con-
sumption will increase with the size of the
load.

Drive smoothly. Avoid rapid starts, fast
cornering and hard braking.

05 During your trip

  Cargo area

05

``

*



Option/accessory, for more information, see Introduction.

205

Steel cargo grid*

G017748

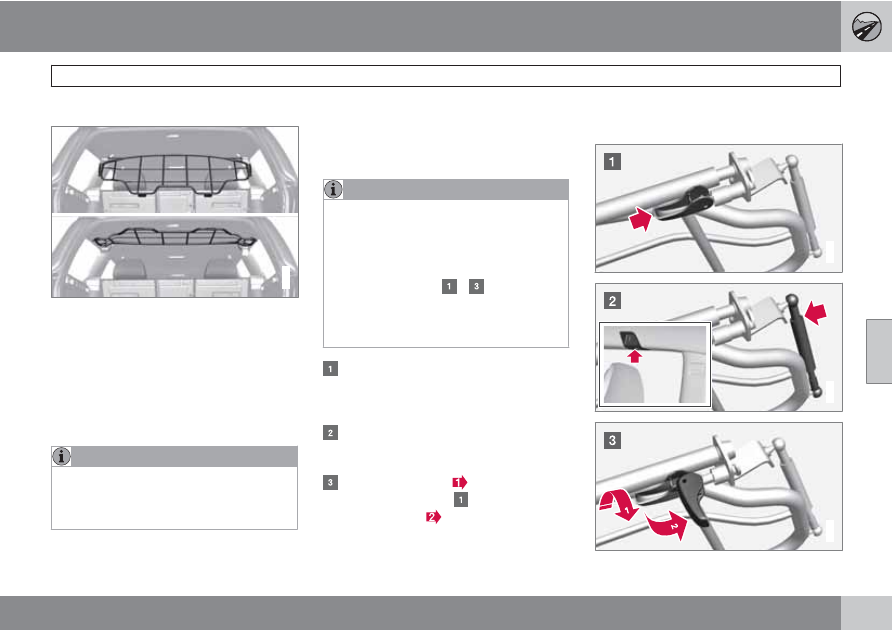

Your vehicle can be equipped with a steel grid
that helps prevent objects in the cargo area
from moving forward into the passenger com-
partment.

Folding the grid up/down

Grasp the lowering edge of the grid and pull it
rearward/upward, or push it downward/for-
ward.

NOTE

If the steel grid is to be used with the
optional cargo area cover, the grid must be
folded down before the cargo area cover is
put in place.

Installing the steel cargo grid

In order to install the steel grid, the rear seat
backrests must be completely folded down,
see page 81 for instructions.

NOTE

The steel cargo grid is easiest to install
by two people, and should be folded
down.

When installing the grid, the handle
should be on the front side of the grid
(see illustrations

 –

).

The rear seat backrests must be folded
down when installing the steel cargo
grid, see page 81.

Put the handle in the installation position,
see the illustration. Press lightly on the
handle in order to turn it to this position,
see the arrow.

Press in the piston toward the grid and
press it into the attachment bracket near
the ceiling.

Turn the handle 90°

. Press lightly as

shown in illustration

 if necessary.

Attach the grid

 by moving the handle

90°.

Do the same on the opposite side of the
vehicle.

G018367

G018368

G018369

Installing the cargo grid

05 During your trip

Cargo area

05

206

*



Option/accessory, for more information, see Introduction.

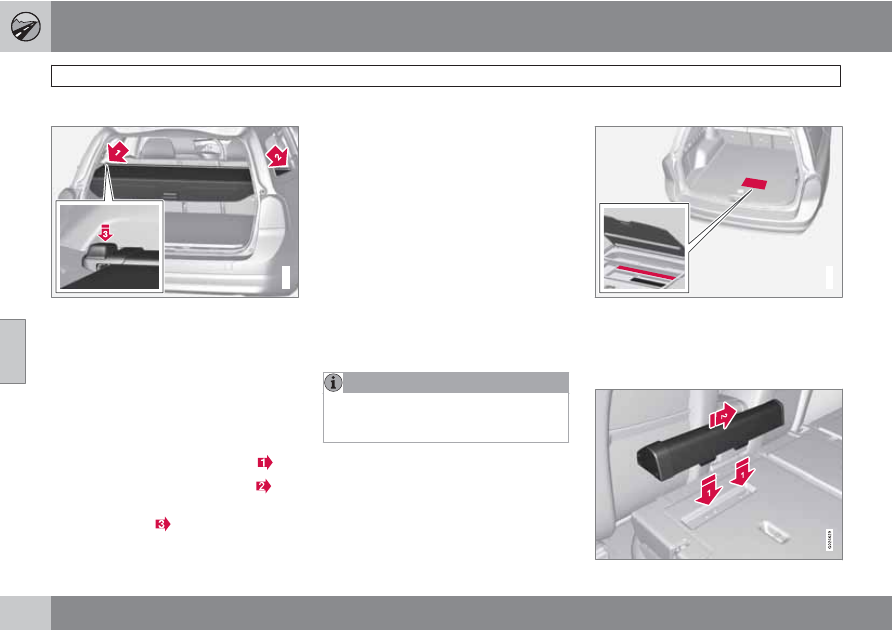

Cargo area cover*

G017749

Use

Pull the cover over the cargo and hook it
into the holes in the rear cargo area pillars.

To retract (roll up) the cover, release it from
the holes and guide it toward the rear seat
backrest.

Installing the cover

1.

Press the end piece on one side of the
cargo area cover into the retaining bracket
in the side panel of the cargo area

.

2.

Do the same on the opposite side

.

3.

Press both sides of the cover until they
click into place

. The red mark will no

longer be visible.

4.

Check that both ends of the cover are
securely locked in place.

Removing the cover

1.

Press one of the end pieces of the cover
inward.

2.

Pull the cover carefully upward and out-
ward. The other end will release automati-
cally from its retaining bracket.

Folding down the cargo area cover's rear
flap

The cargo area cover's rear flap points hori-
zontally when the cover is retracted (rolled up).
To fold it down:



Pull the flap slightly rearward past its sup-
ports and fold it down.

NOTE

On models equipped with this cover, it
should be removed before a child seat is
attached to the child restraint anchors.

Cargo net*

G024628

Storage compartment for the cargo net

Two cassettes containing nylon cargo nets are
stored in a compartment under the cargo area
floor.

Attaching the cassette(s)

05 During your trip

 Cargo area

05

207

The two-sections of the net are attached to the
rear side of the rear seat backrest. The cas-
settes have different widths, and the widest
section should be mounted on the right side
(seen from the rear of the vehicle).

1.

Fold down the rear seat backrests.

2.

Align the cassette’s mounting rail above
the mounting brackets on the backrest

.

3.

Slide the cassette onto the mounting
brackets

.

4.

Return the backrest to the upright position.

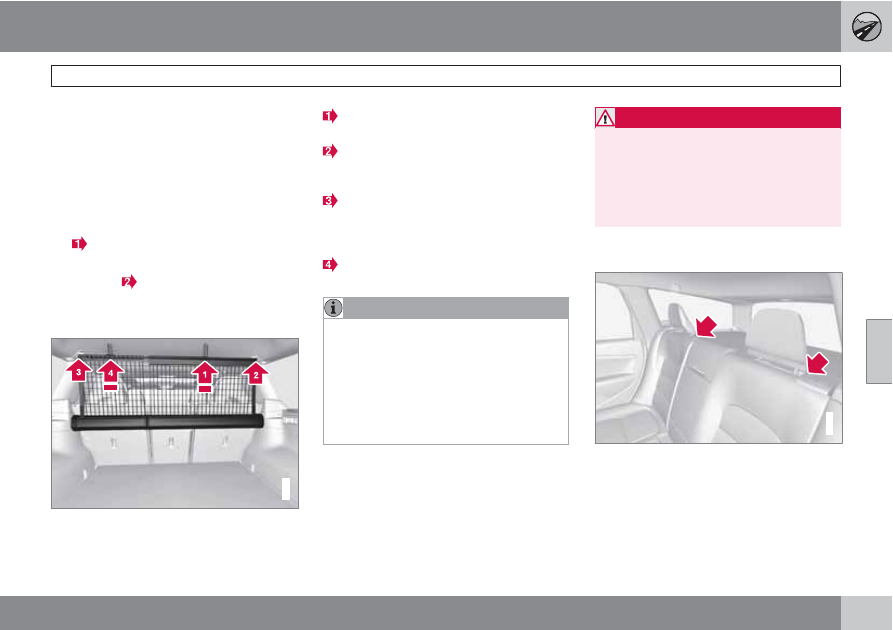

Using the net(s)

G018246

With the backrests upright

The net is pulled up from the cassette and locks
in position after approximately 1 minute.

Pull up the right side of the net by grasping
its strap.

Insert the net’s rod in the retaining bracket
on the right side near the ceiling and press
it forward. It will click into place.

Extend the left section of the rod and insert
it in the bracket on the left side of the cargo
compartment. Press it forward until it clicks
into place.

Pull up the left side of the cargo net and
secure it on the rod.

NOTE

The net can be fastened in the same
way if the rear seat backrests are folded
down. In this case, use the retaining
brackets near the ceiling, above the
front seats.

The front passenger's seat backrest
can also be folded down for carrying
long objects, see page 79.

Removing the cargo net cassettes

1.

Retract the net(s) in the reverse order.

2.

Fold the entire rear seat backrest down.

3.

Slide the cassettes outward until they
release from the mounting brackets.

WARNING

When not in use, return the cassettes to
their storage compartment under the
cargo area floor.

Objects in the cargo area should be
securely anchored, even if the cargo net
is correctly installed and in use.

Using the cargo net with the cargo area
cover

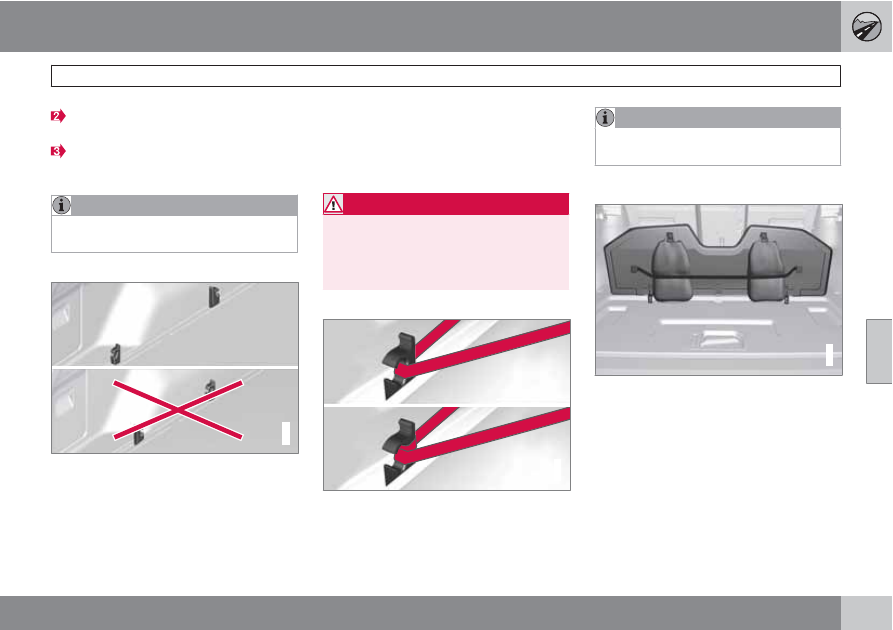

G018247

Straps for pulling up the net

The cargo net(s) can also be pulled up from the
backrest when the cargo area cover is pulled
out.

The straps for pulling up the cargo net are
located at the arrows in the illustration. Follow
the same procedure as for using the nets with
the backrests upright.

05 During your trip

Towing a trailer

05

208

Introduction

Volvo recommends the use of Volvo trailer
hitches that are specially designed for the vehi-
cle.

NOTE

See page 273 for the maximum trailer and
tongue weights recommended by Volvo.

Observe the legal requirements of the
state/province in which the vehicles are

All Volvo models are equipped with
energy-absorbing shock-mounted bump-
ers. Trailer hitch installation should not
interfere with the proper operation of this
bumper system.

Trailer towing does not normally present any
particular problems, but take into considera-
tion:

Increase tire pressure to recommended
full. See the tire inflation tables on pages
247 and 247.

When your vehicle is new, avoid towing
heavy trailers during the first 620 miles
(1,000 km).

Maximum speed when towing a trailer:
50 mph (80 km/h).

Engine and transmission are subject to
increased loads. Therefore, engine coolant
temperature should be closely watched

when driving in hot climates or hilly terrain.
Use a lower gear and turn off the air con-
ditioner if the temperature gauge needle
enters the red range.

If the automatic transmission begins to
overheat, a message will be displayed in
the text window.

Avoid overload and other abusive opera-
tion.

Hauling a trailer affects handling, durabil-
ity, and economy.

It is necessary to balance trailer brakes
with the towing vehicle brakes to provide a
safe stop (check and observe state/local
regulations).

Do not connect the trailer's brake system
directly to the vehicle's brake system.

More frequent vehicle maintenance is
required.

Remove the ball and drawbar assembly
when the hitch is not being used.

Volvo recommends the use of synthetic
engine oil when towing a trailer over long
distances or in mountainous areas.

WARNING

Bumper-attached trailer hitches must
not be used on Volvos, nor should
safety chains be attached to the
bumper.

Trailer hitches attaching to the vehicle
rear axle must not be used.

Never connect a trailer's hydraulic
brake system directly to the vehicle
brake system, nor a trailer's lighting
system directly to the vehicle lighting
system. Consult your nearest author-
ized Volvo retailer for correct installa-
tion.

When towing a trailer, the trailer's safety
wire must be correctly fastened to the
hole or hook provided in the trailer hitch
on the vehicle. The safety wire should
never be fastened to or wound around
the drawbar ball.

05 During your trip

 Towing a trailer

05

209

NOTE

When parking the vehicle with a trailer
on a hill, apply the parking brake before
putting the gear selector in P. Always
follow the trailer manufacturer's recom-
mendations for wheel chocking.

When starting on a hill, put the gear
selector in D before releasing the park-
ing brake. See also page 115 for more
detailed information about starting off
on a hill while towing a trailer.

If you use the manual (Geartronic) shift
positions while towing a trailer, make
sure the gear you select does not put
too much strain on the engine (using too
high a gear).

The drawbar assembly/trailer hitch may
be rated for trailers heavier than the
vehicle is designed to tow. Please
adhere to Volvo's recommended trailer
weights.

Avoid driving with a trailer on inclines of
more than 15 %.

Trailer cable

An adapter is required if the vehicle's trailer
hitch has a 13-pin connector and the trailer has
7 pins. Use an adapter cable approved by
Volvo. Make sure the cable does not drag on
the ground.

Detachable trailer hitch (accessory)

A

C

E

D

B

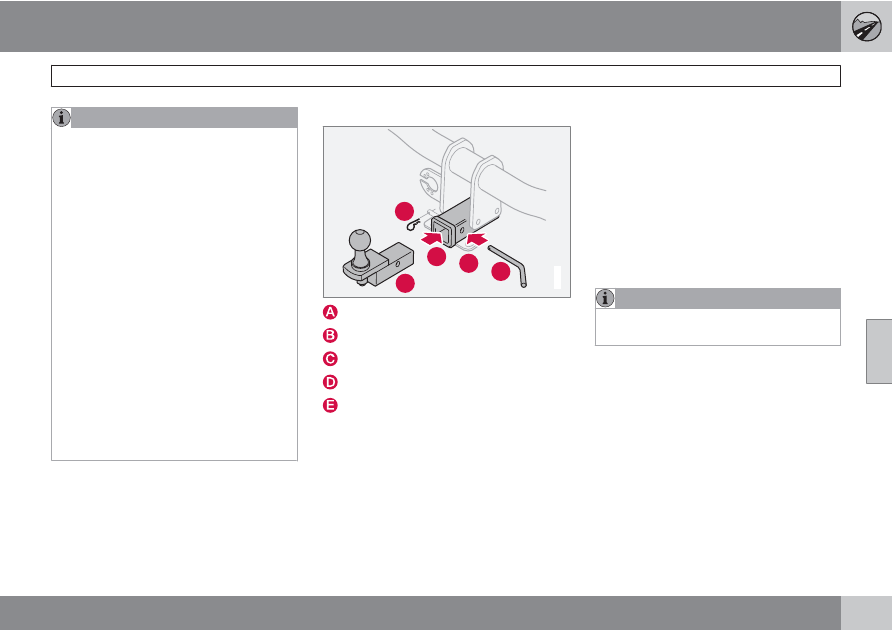

G010496

Ball holder

Locking bolt

Cotter pin

Hitch assembly

Safety wire attachment

Installing the ball holder

1.

If necessary, remove the cotter pin from
the locking bolt and slide the locking bolt
out of the hitch assembly.

2.

Slide the ball holder into the hitch assem-
bly.

3.

Align the hole in the ball holder with the one
in the hitch assembly.

4.

Slide the locking bolt through the hitch
assembly/ball holder.

5.

Insert the cotter pin in the hole at the end
of the locking bolt.

Removing the ball holder

1.

Remove the cotter pin from the locking bolt
and slide the locking bolt out of the ball
holder/hitch assembly.

2.

Pull the ball holder out of the hitch assem-
bly.

NOTE

A cover for the hitch assembly is also
included in the kit.

05 During your trip

Emergency towing

05

210

Towing eyelet

G017464

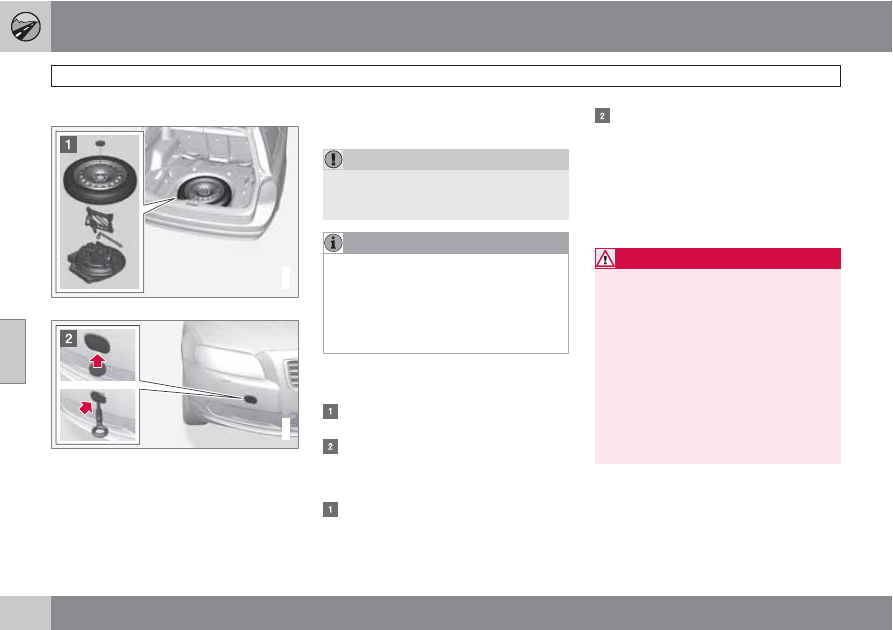

Location of the towing eyelet

G021501

Attaching the towing eyelet

The towing eyelet is located under the floor of
the cargo area, with the spare tire. This eyelet
must be screwed into the positions provided

on the right sides of either the front or rear
bumper (see illustration).

CAUTION

If the vehicle is being towed on a flat bed
truck, the towing eyelets must not be used
to pull the vehicle up onto the flat bed.

NOTE

On certain models equipped with a trailer
hitch, the towing eyelet cannot be screwed
into the hole in the rear bumper. The towing
rope should be attached to the trailer hitch
instead. For this reason, the detachable
section of the trailer hitch should be safely
stowed in the vehicle at all times.

Attaching the towing eyelet

V70

Press the marked edge of the cover in the
bumper and release it.

Fold away the cover and screw the towing
eyelet in place, first by hand and then using
the tire iron until it is securely in place.

XC70

Use a coin to pry open the lower edge of
the cover.

Screw the towing eyelet in place, first by
hand and then using the tire iron until it is
securely in place.

After the vehicle has been towed, the eyelet
should be removed and returned to its storage
location.

Press the cover for the attachment point back
into position.

WARNING

Remember that the power brakes and
power steering will not function when
engine is not running. The braking and
steering systems will function but con-
siderably higher pressure will be
required on the brake pedal and greater
steering effort must be exerted.

The towing eyelets must not be used for
pulling the vehicle out of a ditch or for
any similar purpose involving severe
strain. Do not use the towing eyelets to
pull the vehicle up onto a flat bed tow
truck.

05 During your trip

 Emergency towing

05

211

Precautions when the vehicle is in tow

The steering wheel must be unlocked. The
remote key must be in the ignition slot

1

.

Attach jumper cables (see page 105) to
provide current for releasing the optional
electric parking brake and to move the gear
selector from the P position.

The gear selector must be in position N.

Maximum speed: 50 mph (80 km/h). Do not
exceed the maximum allowable towing
speed.

Maximum distance with front wheels on
ground: 50 miles (80 km).

While the vehicle is being towed, try to
keep the tow rope taut at all times.

The vehicle should only be towed in the
forward direction.

NOTE

During towing, ignition mode II should be
used so that the lighting can be switched on.

CAUTION

Vehicles with AWD (All Wheel Drive) with the
front wheels off the ground should not be
towed at speeds above 50 mph (70 km/h) or
for distances longer than 30 miles (50 km).

CAUTION

Please check with state and local
authorities before attempting this type
of towing, as vehicles being towed are
subject to regulations regarding maxi-
mum towing speed, length and type of
towing device, lighting, etc.

If the vehicle's battery is dead, do not
attempt to start the vehicle by pushing
or pulling it as this will damage the
three-way catalytic converter(s). The
engine must be jump started using an
auxiliary battery (see page 105).

If the vehicle is being towed on a flat bed
truck, the towing eyelets must not be
used to pull the vehicle up onto the flat
bed or to secure the vehicle on the flat
bed. Consult the tow truck operator.

Towing vehicles with front wheel drive/
All Wheel Drive

Volvo recommends the use of flat bed equip-
ment.

If wheel lift equipment must be used,
please use extreme caution to help avoid
damage to the vehicle. In this case, the
vehicle should be towed with the rear
wheels on the ground if at all possible.

If it is absolutely necessary to tow the vehi-
cle with the front wheels on the ground,
please refer to the towing information on
page 210.

CAUTION

Sling-type equipment applied at the
front will damage radiator and air con-
ditioning lines.

It is equally important not to use sling-
type equipment at the rear or apply lift-
ing equipment inside the rear wheels;
serious damage to the rear axle may
result.

If the vehicle is being towed on a flat bed
truck, the towing eyelets must not be
used to secure the vehicle on the flat
bed. Consult the tow truck operator.

1

On vehicles with the optional keyless drive, the remote key must be in the passenger compartment.















Content   ..  10  11  12  13   ..
