Towing capacity and towball load

Towing capacity and towball load for driving

with a trailer can be read in the tables.

Max. weight braked trailer

NOTE

The use of a stabiliser hitch on the towing

bracket is recommended for trailers heav-

ier than 1800 kg.

NOTE

Not all engines are available in all markets.

V70
Engine

Engine code

A

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

All

All

All

1200

50

T4

B4204T19

Manual, M66

1600

75

T4

B4204T19

Automatic, TF-71SC

1600

75

T5/Bi-Fuel

B4204T11

Automatic, TG-81SC

1800

90

D2

D4204T20

Manual, M66

1800

90

D2

D4204T20

Automatic, TF-71SC

1800

90

D3

D4204T9

Manual, M66

1800

90

D3

D4204T9

Automatic, TF-71SC

1800

90

D4

D4204T5

Manual, M66

1800

90

||

11 Specifications

11

412

V70
Engine

Engine code

A

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

D4

D4204T5

Automatic, TG-81SC

1800

90

D4 AWD

D5244T12

Automatic, TF-80SD

2000

90

A

Engine code, component and serial number can be read on the engine; see Type designations (p. 405).

XC70
Engine

Engine code

A

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

All

All

All

1200

50

T5

B4204T11

Automatic, TG-81SC

1800

90

T5 AWD

B5254T14

Automatic, TF-80SC

2000

90

T5 AWD

B5254T12

Automatic, TF-80SC / TF-80SD

2000

90

D4

D4204T5

Manual, M66

1800

90

D4

D4204T5

Automatic, TG-81SC

1800

90

D4 AWD

D5244T12

Manual, M66

2100

90

D4 AWD

D5244T12

Automatic, TF-80SD

2100

90

D4 AWD

D5244T17

Manual, M66

2100

90

D4 AWD

D5244T17

Automatic, TF-80SD

2100

90

D5 AWD

D5244T20

Automatic, TF-80SD

2100

90

A

Engine code, component and serial number can be read on the engine; see Type designations (p. 405).

11 Specifications

11

*



Option/accessory, for more information, see Introduction.

413

Max. weight unbraked trailer

Max. weight unbraked trailer (kg)

Max. towball load (kg)

750

50

Related information

•

Weights (p. 410)

•

Driving with a trailer* (p. 309)

11 Specifications

11

414

Engine specifications

Engine specifications (output etc.) for each

respective engine alternative can be read in

the table.

NOTE

Not all engines are available in all markets.

V70
Engine

Engine

code

A

Output

(kW/rpm)

Output

(hp/rpm)

Torque

(Nm/rpm)

No. of cyl-

inders

Bore

(mm)

Stroke

(mm)

Swept vol-

ume

(litres)

Compres-

sion ratio

T4

B4204T19

140/4700

190/4700

300/1300-4000

4

82.0

93.2

1,969

11.3:1

T5/Bi-Fuel

B4204T11

180/5500

245/5500

350/1500–4800

4

82.0

93.2

1,969

10.8:1

D2

D4204T20

88/3750

120/3750

280/1500-2250

4

82.0

93.2

1,969

16.0:1

D3

D4204T9

110/3750

150/3750

320/1750-3000

4

82.0

93.2

1,969

16.0:1

D4

D4204T5

133/4250

181/4250

400/1750-2500

4

82.0

93.2

1,969

15.8:1

D4 AWD

D5244T12

133/4000

181/4000

420/1500–2500

5

81.0

93.2

2.400

16.5:1

A

Engine code, component and serial number can be read on the engine; see Type designations (p. 405).

XC70
Engine

Engine code

A

Output

(kW/rpm)

Output

(hp/rpm)

Torque

(Nm/rpm)

No. of cylin-

ders

Bore

(mm)

Stroke

(mm)

Swept vol-

ume

(litres)

Compres-

sion ratio

T5

B4204T11

180/5500

245/5500

350/1500–4800

4

82.0

93.2

1,969

10.8:1

T5 AWD

B5254T14

183/5400

249/5400

360/1800–4200

5

83.0

92,3

2,497

9.5:1

T5 AWD

B5254T12

187/5400

254/5400

360/1800–4200

5

83.0

92,3

2,497

9.5:1

D4

D4204T5

133/4250

181/4250

400/1750-2500

4

82.0

93.2

1,969

15.8:1

11 Specifications

11

415

XC70
Engine

Engine code

A

Output

(kW/rpm)

Output

(hp/rpm)

Torque

(Nm/rpm)

No. of cylin-

ders

Bore

(mm)

Stroke

(mm)

Swept vol-

ume

(litres)

Compres-

sion ratio

D4 AWD

D5244T12

133/4000

181/4000

420/1500–2500

5

81.0

93.2

2.400

16.5:1

D4 AWD

D5244T17

120/4000

163/4000

420/1500–2500

5

81.0

93.2

2.400

16.5:1

D5 AWD

D5244T20

162/4000

220/4000

440/1500-3000

5

81.0

93.2

2.400

16.5:1

A

Engine code, component and serial number can be read on the engine; see Type designations (p. 405).

Related information

•

Coolant - grade and volume (p. 419)

•

Engine oil - grade and volume (p. 417)

11 Specifications

11

416

Engine oil - adverse driving conditions

Adverse driving conditions can lead to abnor-

mally high oil temperature or oil consumption.

Below are some examples of adverse driving

conditions.

Check the oil level (p. 363) more frequently for

long journeys:

•

towing a caravan or trailer

•

in mountainous regions

•

at high speeds

•

in temperatures colder than -30 °C or

hotter than +40 °C.

The above also apply to shorter driving dis-

tances at low temperatures.
Choose a fully synthetic engine oil for adverse

driving conditions. It provides extra protection

for the engine.
Volvo recommends:

IMPORTANT

In order to fulfil the requirements for the

engine's service intervals all engines are

filled with a specially adapted synthetic

engine oil at the factory. The choice of oil

has been made very carefully with regard

to service life, starting characteristics, fuel

consumption and environmental impact.
An approved engine oil must be used in

order that the recommended service inter-

vals can be applied. Only use a prescribed

grade of oil for both filling and oil change,

otherwise you will risk affecting service life,

starting characteristics, fuel consumption

and environmental impact.
Volvo Car Corporation disclaims all war-

ranty liability if engine oil of the prescribed

grade and viscosity is not used.
Volvo recommends that oil changes are

carried out at an authorised Volvo work-

shop.

Related information

•

Engine oil - grade and volume (p. 417)

•

Engine oil - general (p. 362)

11 Specifications

11

}}

417

Engine oil - grade and volume

Engine oil grade and volume for each respec-

tive engine alternative can be read in the

table.

Volvo recommends:

NOTE

Not all engines are available in all markets.

V70

Engine

Engine code

A

Oil grade

Volume, incl. oil filter

(litres)

D4 AWD

D5244T12

Oil grade: ACEA A5/B5
Viscosity: SAE 0W–30

approx. 5.9

T4

B4204T19

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0w20

approx. 5.9

T5/Bi-Fuel

B4204T11

approx. 5.9

||

11 Specifications

11

418

V70

Engine

Engine code

A

Oil grade

Volume, incl. oil filter

(litres)

D2

D4204T20

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0w20

approx 5.2

D3

D4204T9

approx 5.2

D4

D4204T5

approx 5.2

A

Engine code, component and serial number can be read on the engine; see Type designations (p. 405).

XC70

Engine

Engine code

A

Oil grade

Volume, incl. oil filter

(litres)

D4 AWD

D5244T12

Oil grade: ACEA A5/B5
Viscosity: SAE 0W–30

approx. 5.9

D4 AWD

D5244T17

approx. 5.9

D5 AWD

D5244T20

approx. 5.9

T5

B4204T11

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0w20

approx. 5.9

D4

D4204T5

approx 5.2

T5 AWD

B5254T12

Oil grade: ACEA A5/B5
Viscosity: SAE 0W–30

approx 5.5

T5 AWD

B5254T14

approx 5.5

A

Engine code, component and serial number can be read on the engine; see Type designations (p. 405).

Related information

•

Engine oil - adverse driving conditions

(p. 416)

•

Engine oil - checking and filling (p. 363)

11 Specifications

11

419

Coolant - grade and volume

Approved coolant volume for each respective

engine alternative can be read in the table.

Prescribed grade: Coolant recommended by
Volvo mixed with 50% water

1

, see the pack-

aging.

NOTE

Not all engines are available in all markets.

Engine

A

Volume

(litres)

T4

B4204T19

8,3 (8,7

B

)

T5/Bi-Fuel

B4204T11

D2

D4204T20

8,9 (9,2

B

)

D3

D4204T9

D4

D4204T5

Engine

A

Volume

(litres)

T5 AWD

B5254T12

8.9

T5 AWD

B5254T14

D4 AWD

D5244T12

D4 AWD

D5244T17

D5 AWD

D5244T20

A

Engine code, component and serial number can be read

on the engine; see Type designations (p. 405).

B

Applies to cars with fuel-driven heater.

Related information

•

Coolant - level (p. 366)

1

Water quality must fulfil the standard STD 1285.1.

11 Specifications

11

420

Transmission fluid - grade and volume

The prescribed transmission fluid and volume

for each respective gearbox alternative can be

read in the table.

Manual gearbox

Manual gearbox

Volume (litres)

Prescribed transmission fluid

M66

approx. 1.9

A

approx. 1.45

B

BOT 350M3

A

Applies to 5-cylinder engines.

B

Applies to other engines.

NOTE

The gearbox oil does not need to be

changed under normal driving conditions.

However, it may be necessary under

adverse driving conditions.

Automatic gearbox

Automatic gearbox

Volume (litres)

Prescribed transmission fluid

TF-71SC

approx 6.8

AW1

TF-80SC

approx 7.0

AW1

TF-80SD

approx 7.0

AW1

TG-81SC

approx. 6.6

A

approx. 7.5

B

AW1

A

Petrol engines

B

Diesel engines

11 Specifications

11

421

NOTE

The gearbox oil does not need to be

changed under normal driving conditions.

However, it may be necessary under

adverse driving conditions.

Related information

•

Engine oil - adverse driving conditions

(p. 416)

•

Type designations (p. 405)

11 Specifications

11

422

Brake fluid - grade and volume

The medium in a hydraulic brake system is

called brake fluid, and it is used to transfer

pressure from e.g. a brake pedal via a master

brake cylinder to one or more slave cylinders,

which in turn act on a mechanical brake.

Prescribed grade: DOT 4
Volume: 0.6 litres

Related information

•

Brake and clutch fluid - level (p. 367)

Power steering fluid - grade

Power steering fluid is the denomination of

the medium used in the car's power steering

system.

Prescribed grade: Power steering fluid rec-

ommended by Volvo.

Related information

•

Power steering fluid - level (p. 368)

11 Specifications

11

423

Fuel tank - volume

Fuel tank volume for each respective engine

alternative can be read in the table.

Engine

Volume (litres)

Prescribed grade

Petrol engine

approx. 70

Fuel - petrol (p. 304)

Diesel engine

approx. 70

Fuel - diesel (p. 304)

Vehicle gas tank (CNG) - applies to Bi-
Fuel

Tank volume

approx. 17 kg

NOTE

Filling stations may have different tank

pressures, so fillable gas volume may dif-

fer from one refuelling to another.

Related information

•

Filling up with fuel (p. 302)

•

Engine specifications (p. 414)

11 Specifications

11

424

Specifications for air conditioning

Prescribed grades and volumes of fluids and

lubricants in the air conditioning system can

be read in the tables below.

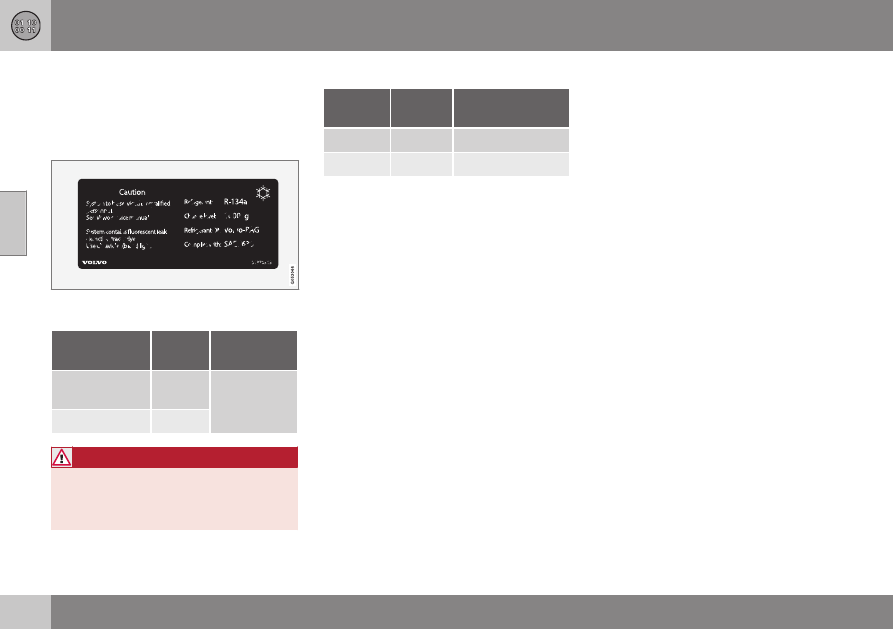

A/C decal

The label is fitted on the inside of the bonnet.

Refrigerant

Engine

Weight Prescribed

grade

5-cylinder die-

sel

720 g

R134a

other

800 g

WARNING

The air conditioning system contains pres-

surised refrigerant R134a. This system

must only be serviced and repaired by an

authorised workshop.

Compressor oil

Engine

Volume Prescribed

grade

4-cylinder

60 ml

PAG SP-A2

5-cylinder

110 ml

PAG SP-10

Related information

•

Climate control system - fault tracing and

repair (p. 369)

•

Type designations (p. 405)

11 Specifications

11

}}

425

Fuel consumption and CO2 emissions

Fuel consumption in a vehicle is measured in

litres per 100 km and CO2 emissions in grams

per km.

Explanation

gram/km

litre/100 km

Urban driving

Extra-urban driving

Combined driving

manual gearbox

Automatic gearbox

NOTE

If the consumption and emission data is

missing then it is included in the enclosed

supplement.

NOTE

Not all engines are available in all markets.

V70

T4 (B4204T19)

-

-

-

-

-

-

T4 (B4204T19)

-

-

-

-

-

-

T5 (B4204T11)

211

9.0

125

5.4

156

6.7

D2

A

 (D4204T20)

-

-

-

-

-

-

||

11 Specifications

11

426

V70

D2

B

 (D4204T20)

-

-

-

-

-

-

D2

A

 (D4204T20)

-

-

-

-

-

-

D2

B

 (D4204T20)

-

-

-

-

-

-

D3

A

 (D4204T9)

-

-

-

-

-

-

D3

B

 (D4204T9)

-

-

-

-

-

-

D3

A

 (D4204T9)

-

-

-

-

-

-

D3

B

 (D4204T9)

-

-

-

-

-

-

D4

A

 (D4204T5)

-

-

-

-

-

-

D4

B

 (D4204T5)

121

4.7

102

3.9

109

4.2

D4

A

 (D4204T5)

-

-

-

-

-

-
