Electric additional heater*

The car is equipped with either a fuel-driven

(p. 151) or an electric additional heater

(p. 151).

The heater cannot be controlled manually, but

is instead activated automatically after the

engine has been started in outside tempera-

tures below 14 °C and is switched off after

the set passenger compartment temperature

has been reached.

Related information

Engine block heater and passenger com-

partment heater* (p. 145)

05 Loading and storage

05

154

Storage spaces

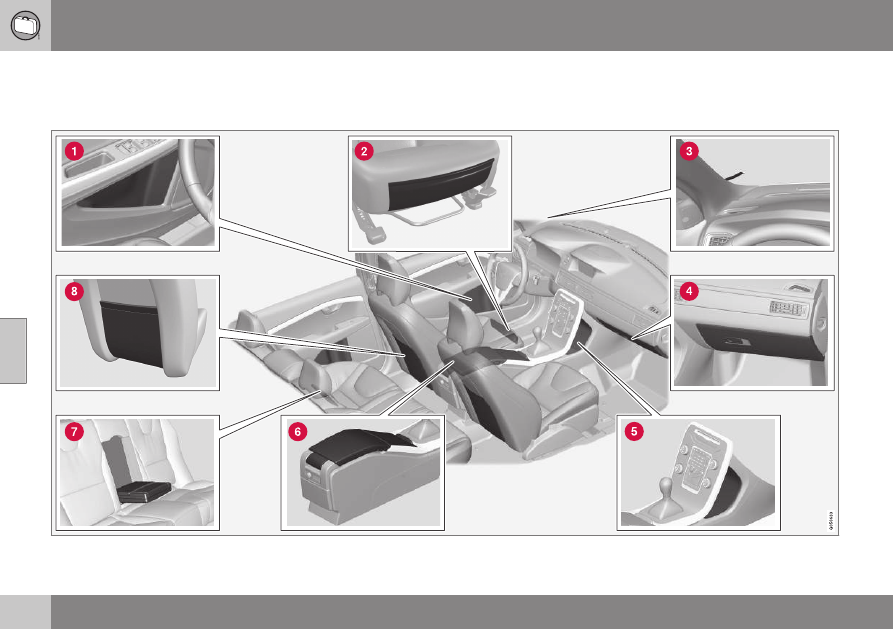

Overview of storage spaces in the passenger

compartment.

05 Loading and storage

05

*



Option/accessory, for more information, see Introduction.

155

Storage compartment in door panel

Storage pocket* on front edge of front

seat cushions
Ticket clip

Glovebox (p. 156)

Storage compartment

Storage compartment, cup holder

(p. 156)
Cup holder* in armrest, rear seat

Storage pocket

WARNING

Keep loose objects such as mobile

phones, cameras, remote controls for

accessories, etc. in the glove compartment

or other compartments. Otherwise they

may injure people in the car in the event of

sudden braking or a collision.

05 Loading and storage

05

156

*



Option/accessory, for more information, see Introduction.

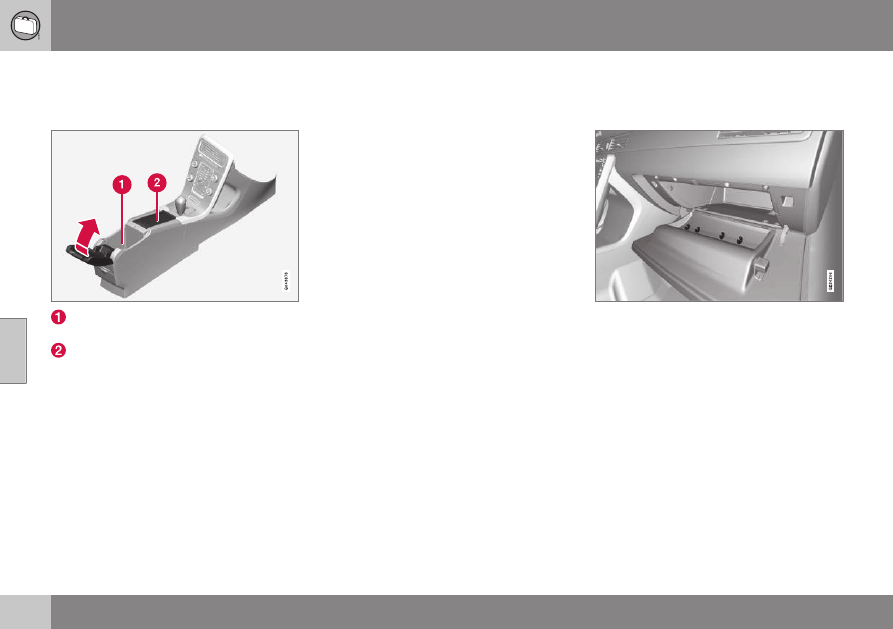

Tunnel console

The tunnel console is located between the

front seats.

Storage compartment (e.g. for CDs) and

USB*/AUX input under the armrest.
Includes cup holder for driver and pas-

senger. If ashtray and cigarette lighter

(p. 156) are specified, then there is a cig-

arette lighter in the 12 V socket (p. 157)

for the front seat, and a detachable ash-

tray in the cup holder.

Related information

Storage spaces (p. 154)

Tunnel console - cigarette lighter and

ashtray* (p. 156)

Tunnel console - cigarette lighter and

ashtray*

A detachable ashtray is fitted in the cup

holder under the armrest. The cigarette lighter

is fitted in the 12 V socket (p. 157) for the

front seat.

The ashtray in the tunnel console (p. 156) is

detached by lifting the tray straight up.
Activate the lighter by pushing in the button.

The button pops out when the lighter is hot.

Pull out the lighter and light a cigarette on the

heated coils.

Related information

Storage spaces (p. 154)

Glovebox

The glovebox is located on the passenger

side.

The owner's manual and maps can be kept in

here for example. There are also holders for

pens on the inside of the lid. The glovebox

can be locked* (p. 184) using the key blade

(p. 174).

Related information

Storage spaces (p. 154)

05 Loading and storage

05

}}

*



Option/accessory, for more information, see Introduction.

157

Inlay mats*

Inlay mats collect e.g. rubbish and slush.

Volvo supplies specially manufactured inlay

mats.

WARNING

Only use one inlaid mat at each seat, and

check before setting off that the mat by

the driver's seat is firmly affixed and

secured in the pins so that it does not get

caught adjacent to and under the pedals.

Related information

Cleaning the interior (p. 401)

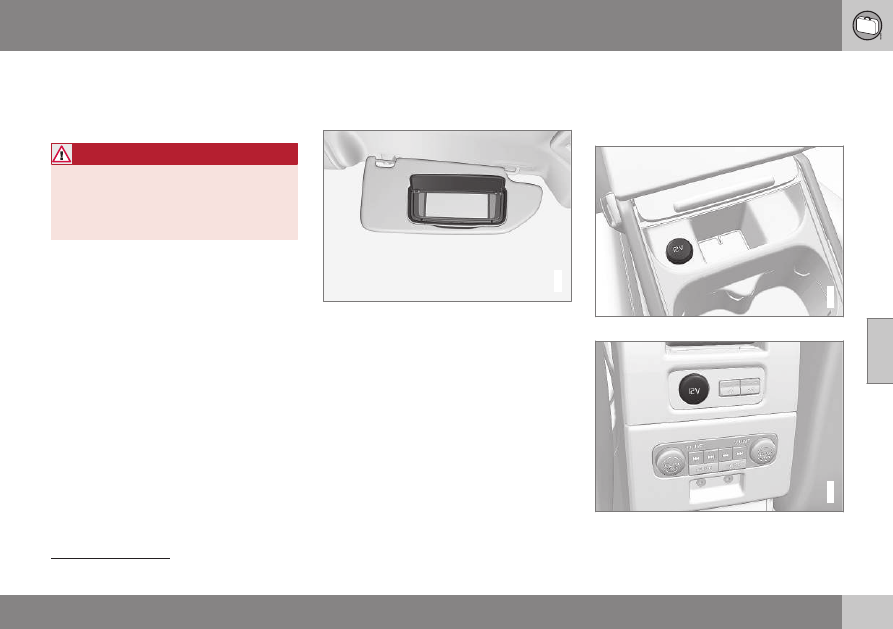

Vanity mirror

The vanity mirror is located on the rear of the

sun visor.

G021438

Vanity mirror with lighting.

The lamp for the vanity mirror, on the driver's

side* and passenger side respectively, is

switched on automatically when the cover is

raised.

Related information

Lamp replacement - vanity mirror lighting

(p. 374)

Tunnel console - 12 V-sockets

The electrical sockets (12 V) are located next
to the cup holder

1

 and rear of the tunnel con-

sole.

G021439

12 V socket in tunnel console, front seat.

G021440

12 V socket in tunnel console, rear seat.

1

If ashtray and cigarette lighter are specified then there is no cup holder and adjacent 12 V socket.

||

05 Loading and storage

05

158

*



Option/accessory, for more information, see Introduction.

The electrical socket can be used for various

accessories designed for 12 V, e.g. TV

screens, music players and mobile phones.

For the socket to supply current, the remote

control key must be in at least key position I

(p. 81).

WARNING

Always leave the plug in the socket when

the socket is not in use.

NOTE

Optional equipment and accessories - e.g.

display screens, music players and mobile

phones - which are connected to one of

the passenger compartment's 12V electri-

cal sockets, could be activated by the cli-

mate control system, even when the

remote control key has been removed or

when the car is locked, for example, when

the parking heater is activated at a preset

time.
For this reason remove the plugs from the

electrical sockets for optional equipment

or accessories when not in use because

the battery could be drained in the event of

such an occurrence!

IMPORTANT

Max. socket is 10 A (120 W) if one socket

is used at a time. If both sockets in the

tunnel console are used simultaneously,

7.5 A (90 W) per socket is applicable.
If the compressor for emergency puncture

repair is connected to one of the two sock-

ets, no other current consumer must be

connected to the other one.

NOTE

The compressor for emergency puncture

repair (p. 341) has been tested and

approved by Volvo.

Related information

Tunnel console - cigarette lighter and

ashtray* (p. 156)

12 V electrical socket - cargo area*

(p. 161)

Loading

Payload depends on the car's kerb weight.

Payload depends on the car's kerb weight.

The total of the weight of the passengers and

all accessories reduces the car's payload by

a corresponding weight.
For more detailed information on weights, see

Weights (p. 410).

The tailgate is opened via a button

on the lighting panel or the remote

control key, see Locking/unlocking -

tailgate (p. 185).

WARNING

The car’s driving properties change

depending on the weight and positioning

of the load.

To bear in mind when loading

Position the load firmly against the rear

seat's backrest.

Note that objects must not prevent the func-

tion of the WHIPS system for the front seats if

any of the rear seat's backrests is folded

down, see WHIPS - seating position (p. 39).

Centre the load.

Heavy objects should be placed as low

as possible. Avoid placing heavy loads on

lowered backrests.

05 Loading and storage

05

*



Option/accessory, for more information, see Introduction.

159

Cover sharp edges with something soft to

avoid damaging the upholstery.

Secure all loads to the load retaining eye-

lets with straps or web lashings.

WARNING

A loose object weighing 20 kg can, in a

frontal collision at a speed of 50 km/h,

carry the impact of an item weighing

1000 kg.

WARNING

The protection provided by the inflatable

curtain in the headlining may be compro-

mised or eliminated by high loads.

Never load cargo above the backrest.

WARNING

Always secure the load. During heavy

braking the load may otherwise shift, caus-

ing injury to the car's occupants.
Cover sharp edges and sharp corners with

something soft.
Switch off the engine and apply the park-

ing brake when loading/unloading long

items. Otherwise you may accidentally

knock the gear lever or gear selector with

the load into a drive position - and the car

could then move off.

Related information

Safety net* (p. 162)

Loading - long load (p. 159)

Roof load (p. 160)

Loading - long load

To simplify loading (p. 158) in the cargo area,

the rear seat backrest can be folded down.
The passenger seat

2

 backrest can also be

folded for an extra long load*.

Lowering the rear seat backrest
If the rear seat backrest needs to be lowered,

see Seats, rear (p. 84).

2

Only applies to comfort seats.

05 Loading and storage

05

160

Roof load

The load carriers recommended for roof loads

are the ones developed by Volvo. This is in

order to avoid damage to the car and in order

to achieve the maximum possible safety dur-

ing a journey.

Carefully follow the installation instructions

supplied with the carriers.

Check periodically that the load carriers

and load are properly secured. Lash the

load securely with retaining straps.

Distribute the load evenly over the load

carriers. Put the heaviest objects at the

bottom.

The size of the area exposed to the wind,

and therefore fuel consumption, increase

with the size of the load.

Drive gently. Avoid quick acceleration,

heavy braking and hard cornering.

WARNING

The car's centre of gravity and driving cha-

racteristics are altered by roof loads.
For information about the maximum per-

mitted load on the roof, including load car-

riers and any space box, see Weights

(p. 410).

Related information

Loading (p. 158)

Securing loads (p. 160)

Securing loads

On both sides of the car's cargo area there

are fixed mounting points designed for secur-

ing loads.

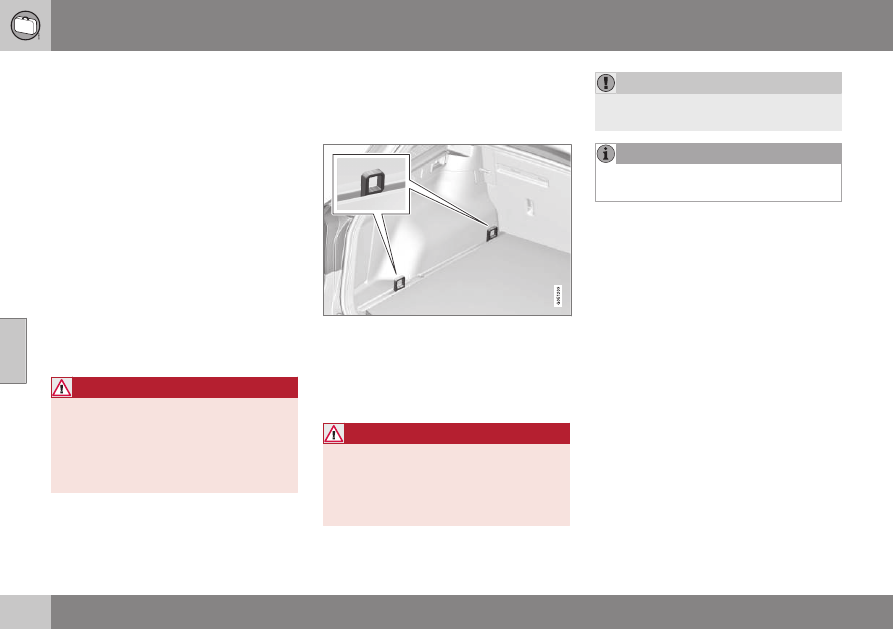

Mounting point locations in the cargo area.

The fixed mounting points are positioned in

the cargo rails in the cargo area floor. In the

illustration above, two of the mounting points

in the floor are shown in raised position. Their

basic position is lowered.

WARNING

Hard, sharp and/or heavy objects which

protrude may cause injury under violent

braking.
Always secure large and heavy objects

with a seatbelt or cargo retaining straps.

IMPORTANT

Do not use straps with exchange as these

may pull the mounting points apart.

NOTE

A suitable width for a cargo retaining strap

is approx. 25 mm.

Related information

Loading (p. 158)

05 Loading and storage

05

*



Option/accessory, for more information, see Introduction.

161

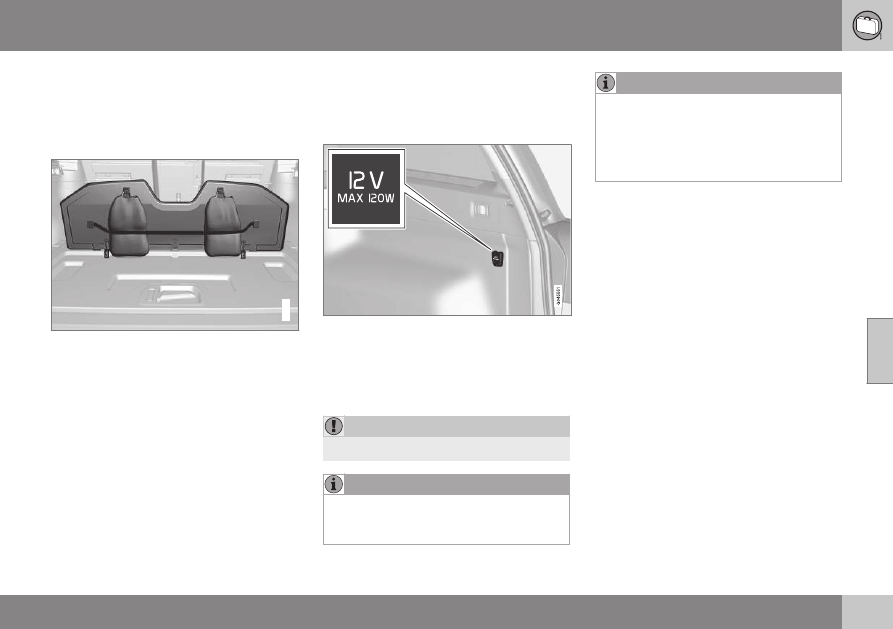

Loading - bag holder*

The bag holder keeps carrier bags in place

and prevents them from overturning and

spreading their contents across the cargo

area.

G017745

Bag holder under folding hatch in the floor.

1. Fold up the holder, which is part of the

floor hatch.

2. Fasten the bags with strap and secure

the carrying handle in the hooks.

Related information

Loading (p. 158)

12 V electrical socket - cargo area*

The electrical socket can be used for various

accessories designed for 12 V, e.g. screens,

music players and mobile phones.

Lower the cover to access the electrical

socket.

The socket also provides voltage when

the remote control key is not in the igni-

tion switch.

IMPORTANT

Max. power takeoff is 10 A (120 W).

NOTE

Remember that using the electrical socket

with the engine switched off involves the

risk of discharging the car's starter battery.

NOTE

The compressor for temporary emergency

puncture repair has been tested and

approved by Volvo. For information on the

use of Volvo's recommended temporary

emergency puncture repair (TMK), see

Emergency puncture repair* (p. 341).

Related information

Tunnel console - 12 V-sockets (p. 157)

05 Loading and storage

05

162

*



Option/accessory, for more information, see Introduction.

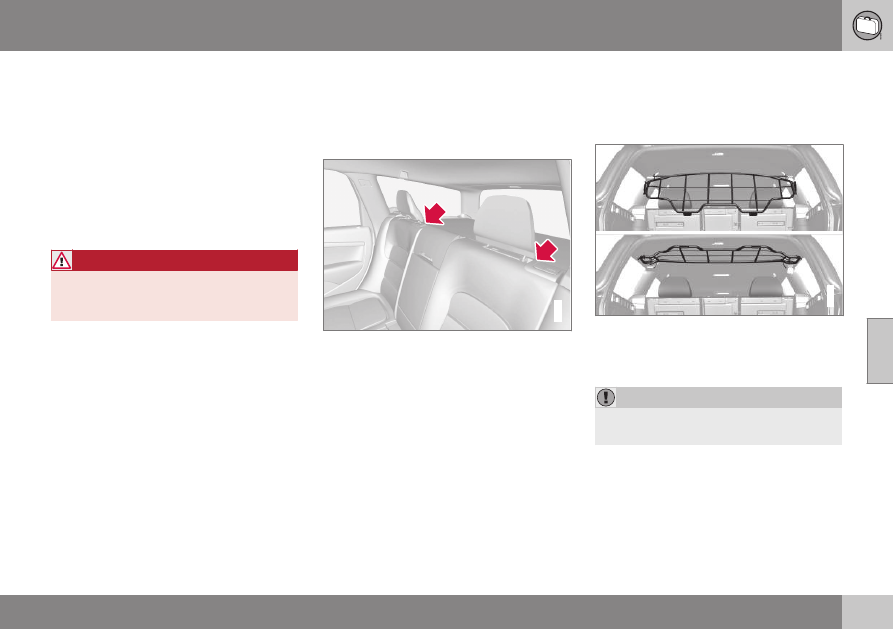

Safety net*

A safety net prevents loads from being thrown

forward in the passenger compartment in the

event of sudden braking.

Storage space, safety net cassettes.

A rollable safety net comprising two cassettes

has a storage space under the cargo area

floor hatch.

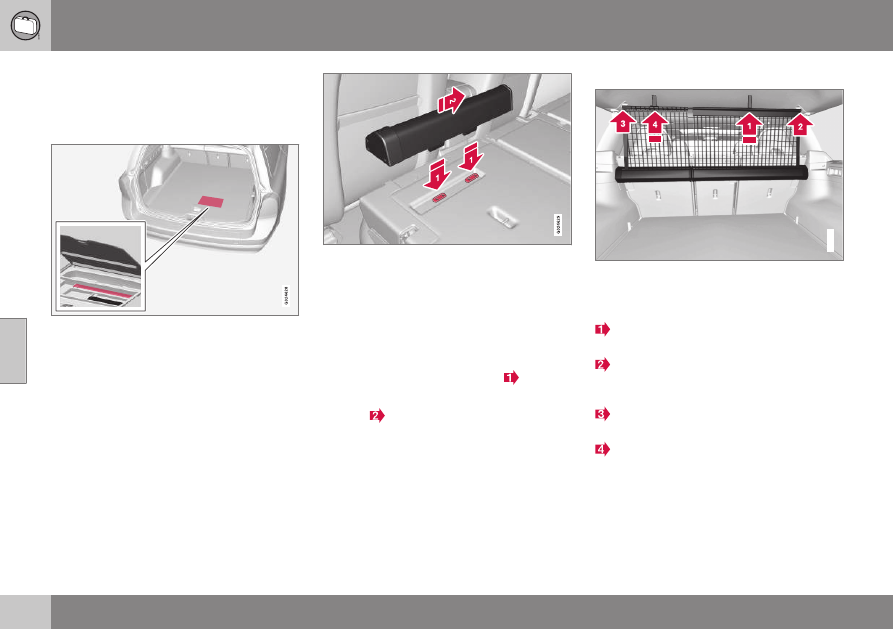

Securing the net cassettes
A rollable safety net comprising two cassettes

has a storage space under the cargo area

floor hatch.

The two-part safety net cassette is secured

on the rear of the backrest. The narrowest

cassette is secured on the left-hand side

(seen from the tailgate).
1. Fold the rear seat's backrest forward, see

Seats, rear (p. 84).

2. Align the cassette's anchor rails in front of

the backrest attachment lugs

.

3. Slide the cassette into the attachment

lugs

.

4. Fold back and lock the backrests.

Removing the cassette takes place in

reverse order.

Using the safety net

G018246

Pull the net up from the cassettes. The net is

self-locking after approx. one minute if the

rear seat's backrests are raised.

Pull up the right-hand section of the net

using its strap.
Insert the rod in the mounting on the

right-hand side and then press it forward

– the rod locks in with a click.
Pull out the rod's telescope section and

click it in on the other side.
Pull up the left-hand safety net and hook

it into the rod.

Folding up takes place in reverse order.

The net can also be used when the rear

seat's backrests are folded forward.

05 Loading and storage

05

}}

*



Option/accessory, for more information, see Introduction.

163

Removing the net cassettes
1. Roll the safety nets into the cassettes in

accordance with the procedure in the

section entitled "Using the safety net",

but in reverse.

2. Fold the whole backrest forward.
3. Slide the cassettes out until they loosen

from the anchor rails.

Store the cassettes in their compartment

under the cargo area floor hatch.

WARNING

Loads in the luggage compartment must

be anchored well, and also using a cor-

rectly fitted safety net.

Related information

Loading (p. 158)

Safety grille (p. 163)

Safety net* combined with cargo

cover

A safety net prevents loads from being thrown

forward in the passenger compartment in the

event of sudden braking.

G018247

Puller-straps for raising the net.

The safety net can also be raised from the

rear seat when the cargo cover is extended.
Follow the procedure described in the section

"Using the safety net" (p. 162). The straps for

folding up are located by the arrows.

Related information

Safety net* (p. 162)

Loading (p. 158)

Safety grille

A safety grille prevents loads or pets from

being thrown forward in the passenger com-

partment in the event of sudden braking.

G017748

Folding up
Take hold of the bottom of the safety grille

and pull back/up.

IMPORTANT

The protective grille cannot be folded up

or down when a cargo cover is fitted.

Fitting/removal
The safety grille is normally permanently

installed in the car because it can easily be

folded up in the roof and so be out of the way

if a longer cargo area is required. However, if

desired, the safety grille can be dismantled

and removed from the car.

||

05 Loading and storage

05

164

*



Option/accessory, for more information, see Introduction.

For safety reasons, the safety grille must

always be correctly fastened and secured

when being refitted.

The backrests must first be lowered to allow

the safety grille to be fitted, see Seats, rear

(p. 84).

NOTE

The safety grille is most easily fitted/

removed by two people via the rear doors.

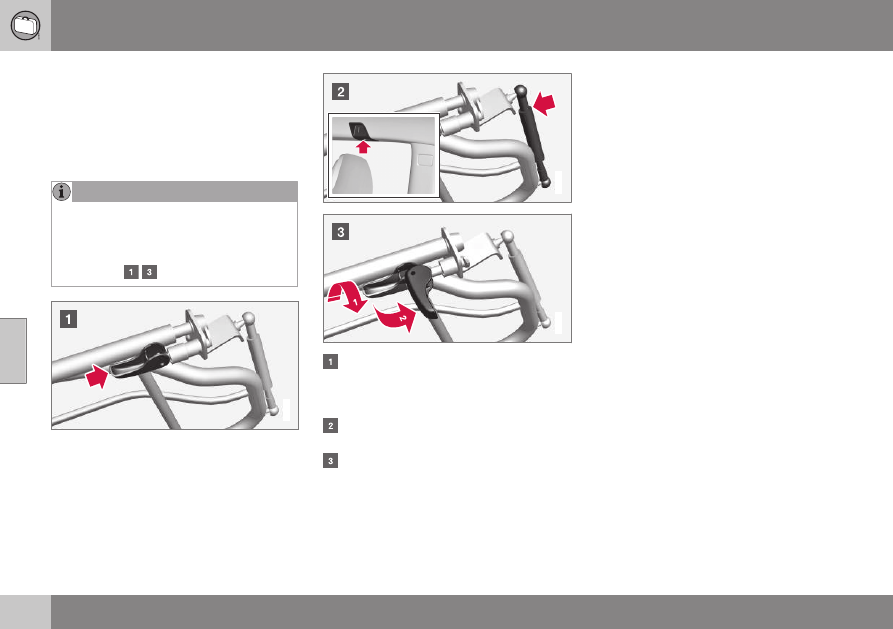

During fitting the handle should be on the

front of the grille, see the
illustrations



.

G018367

G018368

G018369

Position the handle in fitting position in

accordance with the illustration. Press

gently on the handle to enable it to be

turned into position.
Press the strut in towards the grille and

align the grille in the roof mounting.
Turn the handle 90° . Press gently as in

the illustration (1) if necessary. Secure the

grille by angling the handle 90° .

Removal of the grille takes place in

reverse order.

Related information

Safety net* (p. 162)

Loading (p. 158)

05 Loading and storage

05

165

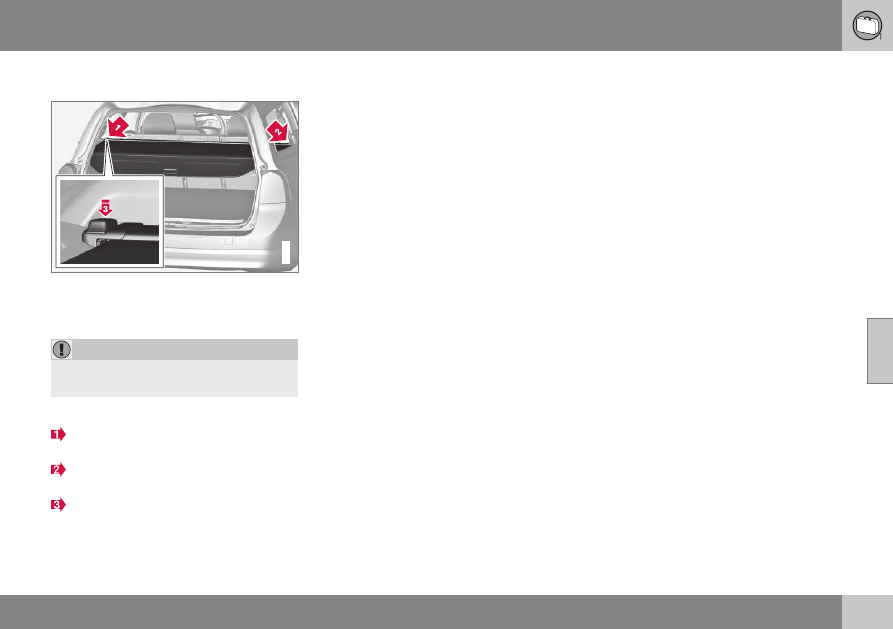

Cargo cover

G017749

Pull the cargo cover over the load and hook it

into the recesses at the cargo area's rear

posts.

IMPORTANT

The protective grille cannot be folded up

or down when the cargo cover is fitted.

Attaching the cargo cover

Move one end piece of the cover into the

recess on the side panel.
Move the other end piece into the corres-

ponding recess.
Press both sides in. A "click" should be

audible and the red marking should dis-

appear.
> Check that both end pieces are

locked.

Removing the cargo cover
1. Press in one end piece button and lift it

out.

2. Carefully angle the cover up/out and the

other end piece loosens automatically.

Lowering the cargo cover's rear sealing
disc
In its rolled-in position, the cargo cover's rear

sealing disc protrudes horizontally into the

cargo area when it is fitted.

Pull the sealing disc back gently, free

from its support shelves, and lower.

Related information

Loading (p. 158)

Loading - long load (p. 159)

06 Locks and alarm

06

*



Option/accessory, for more information, see Introduction.

167

Remote control key

Amongst other things, the remote control key

is used for locking/unlocking and starting the

engine.

There are two variants of remote control key -

Remote control key in basic version and

Remote control key with PCC (Personal Car

Communicator)*.

Functionality

Basic

A

with

PCC

B

Locking/unlocking

and detachable key

blade

x

x

Keyless locking/

unlocking

x

Keyless engine star-

ting

x

Information button

and indicator lamps

x

A

5-button key

B

6-button key

Remote control key with PCC has extended

functionality compared with the remote con-

trol key in the basic version - e.g. support for

Keyless Drive (p. 178) and certain unique

functions (p. 172).

All remote control keys have a detachable key

blade (p. 174) made of metal. The visible

section is available in two versions so that it

is possible to distinguish between the remote

control keys.
More remote control keys can be ordered -

but not variants other than the one supplied

with the car. Up to six keys can be pro-

grammed and used for one single car.
The car is supplied with two remote control

keys

WARNING

If there are children in the car:
Remember to switch off the supply to the

power windows and sunroof by removing

the remote control key if the driver leaves

the car.

Related information

Remote control key - functions (p. 170)

Remote control key - losing

If you lose a remote control key then a new

one can be ordered at a workshop - an

authorised Volvo workshop is recommended.

The remaining remote control keys must be

taken to the Volvo workshop. The code of the

missing remote control key must be erased

from the system as a theft prevention meas-

ure.
The current number of keys registered to the

car can be checked in the menu system MY

CAR. For a description of the menu system,

see MY CAR (p. 116).

Related information

Remote control key - functions (p. 170)

06 Locks and alarm

06

168

*



Option/accessory, for more information, see Introduction.

Remote control key - personalisation*

The key memory in the remote control key

(p. 167) means that certain settings in the car

can be individually adapted for different peo-

ple.

The key memory function is available in com-

bination with power* driver's seat.
Settings for door mirrors (p. 108), driver's

seat, steering force (p. 195) and the com-

bined instrument panel's theme, contrast and

colour mode (p. 66) can be stored in the

memory, depending on the car's equipment

level.

The function

1

 can be activated/deactivated in

the menu system MY CAR. For a description

of the menu system, see MY CAR (p. 116).
When the function is activated, the settings

are automatically linked to the key memory.

This means that a change in a setting will

automatically be saved to the specific remote

control key's memory.

Storing settings
Make sure that the key memory function is

activated in the menu system MY CAR.

Proceed as follows in order to store the set-

tings and use the key memory in the remote

control key:
1. Unlock the car with the remote control

key in whose memory the setting

2

 shall

be stored.

2. Make the desired settings for e.g. the

seat and the door mirrors.

3. The settings are stored in the current

remote control key's memory.

The next time the car is unlocked with the

same remote control key, the positions that

are stored in the key memory will be set auto-

matically - providing that they have been

changed since the last time the current

remote control key was used.

Emergency stop

If the seat accidentally begins to move, press

one of the setting buttons for the seat or

memory buttons in order to stop the seat.
Restarting to reach the seat position stored in

the key memory is performed by pressing the

unlock button on the remote control key. The

driver's door must then be open.

WARNING

Risk of crushing! Make sure that children

do not play with the controls. Check that

there are no objects in front of, behind or

under the seat during adjustment. Make

sure that none of the passengers in the

rear seat is in danger of becoming trap-

ped.

Changing settings
If several people each with a remote control

key approach the car, then the settings for

e.g. seat and door mirrors are implemented

for the person whose remote control key

unlocks the driver's door.
If the driver's door has been opened by

person A with remote control key A, but

person B with remote control key B shall

drive, then the settings can be changed as

follows:

Standing by the driver's door, or sitting

behind the steering wheel, person B

presses the button for unlocking on

his/her remote control key, see Remote

control key - functions (p. 170).

Select one of three possible memories for

seat adjustment with seat button 1-3, see

1

Called Car key memory in MY CAR.

2

This setting does not affect settings that have been stored in the power seat's memory function.

06 Locks and alarm

06

}}

*



Option/accessory, for more information, see Introduction.

169

Seats, front - electrically operated*

(p. 83).

Adjust seat and door mirrors manually,

see Seats, front - electrically operated*

(p. 83) and Door mirrors (p. 108).

Reactivation of settings
When the car is locked or after 30 minutes if

the car is left unlocked, the key memory will

be deactivated and a standard driver profile

will be set. To reactivate the key memory for

the current remote control key, the following

is required.

For cars without Keyless Drive

The settings that are stored in the key mem-

ory are activated if the car is unlocked by

pressing the remote control key's unlock but-

ton.

For cars with Keyless Drive

The key memory is activated if:
1. The car is unlocked either by pressing the

remote control key's unlock button or via

keyless unlocking.

2. If the car is unlocked, a key scan is made

when the driver's door is opened. If a

unique remote control key is found, its

stored settings will be activated. If the car

is locked, see the previous point.

Related information

Remote control key with PCC* - unique

functions (p. 172)

Locking/unlocking - indicator

When the car is locked or unlocked using the

remote control key (p. 167) the direction indi-

cators confirm that locking/unlocking was

correctly performed.

Locking - one flash and the door mirrors
are folded

3

 in.

Unlocking - two flashes and the door mir-
rors are folded

3

 out.

After locking the indication is only given if all

locks are activated once the doors have been

closed.

Selecting the function
Different options for indicating locking/

unlocking with light can be set in the car's

menu system MY CAR. For a description of

the menu system, see MY CAR (p. 116).

Related information

Keyless drive* (p. 178)

Alarm indicator (p. 191)

Immobiliser

The electronic immobiliser is a theft protec-

tion system that prevents an unauthorised

person from starting the car.

Each remote control key (p. 167) has a unique

code. The car can only be started with the

correct remote control key with the correct

code.
The following error messages in the com-

bined instrument panel's information display

are related to the electronic immobiliser:

3

Only for cars with retractable power door mirrors.















Content   ..  7  8  9  10   ..
